Description

STREET SERIES direct replacement rotors are ideal for drivers seeking an OE level performance upgrade.

STREET SERIES rotors are the perfect option for drivers looking for a direct OE replacement disc rotor that is built using the highest quality manufacturing processes, materials and proven safety, thanks to DBA's over 40 years experience in braking.

We recommend STREET SERIES for daily drivers, light commercial and SUV applications.

EnShield technology has been introduced to the Street Series range to provide corrosion resistant rotors, keeping the rotors looking good throughout service life.

The EnShield process begins with a zinc/aluminium water based coating being applied to the entire rotor surface and is then baked on.

EnShield rotors are denoted by the suffix (E) in Street Series part numbers.

Features

  • Surface Design: Slots and/or chamfered drill holes facilitate the exit of friction dust and gasses, for a quieter and more responsive pedal feel.
  • Anti Rust: Painted non-friction areas to prevent rust and enhance appearance, or full En-shield coating to protect the rotor and alleviate the need for pre-installation cleaning.
  • BI-Directional Use: Symmetrical slotting and/or drilling for universal left/right use.
  • Thermal Efficiency: Centre-split core castings for increased heat transfer and thermal efficiency.
  • CBN: CBN (Cubic Boron Nitride) machine turned finish, minimising disc thickness variation and the potential for pad "knock" and resulting premature wear.
  • Kangaroo Paw: Unique Kangaroo Paw vane design for up to 20% better heat dissipation, increasing braking effectiveness and prolonging brake life.

Specifications

  • Quantity: 2 (pair)
  • Product Variant: Street Series
  • Product SubVariant: En-Shield
  • Warranty: 12 months/ 20,000km/ 12,000 miles
  • Axle: Rear
  • Vane Design: Solid
  • Outer diameter [mm]: 302
  • Height [mm]: 36.2
  • Brake Disc Thickness [mm]: 10
  • Minimum Thickness [mm]: 8.4
  • Centering Diameter [mm]: 69
  • Number of Holes: 5
  • Pitch Circle Diameter: 114.30
  • Surface Design: Plain
  • Driving Style: 4WD, 4WD Offroad, Family SUV, Passenger car, Towing < 750kg, Utility or Van

What's Included

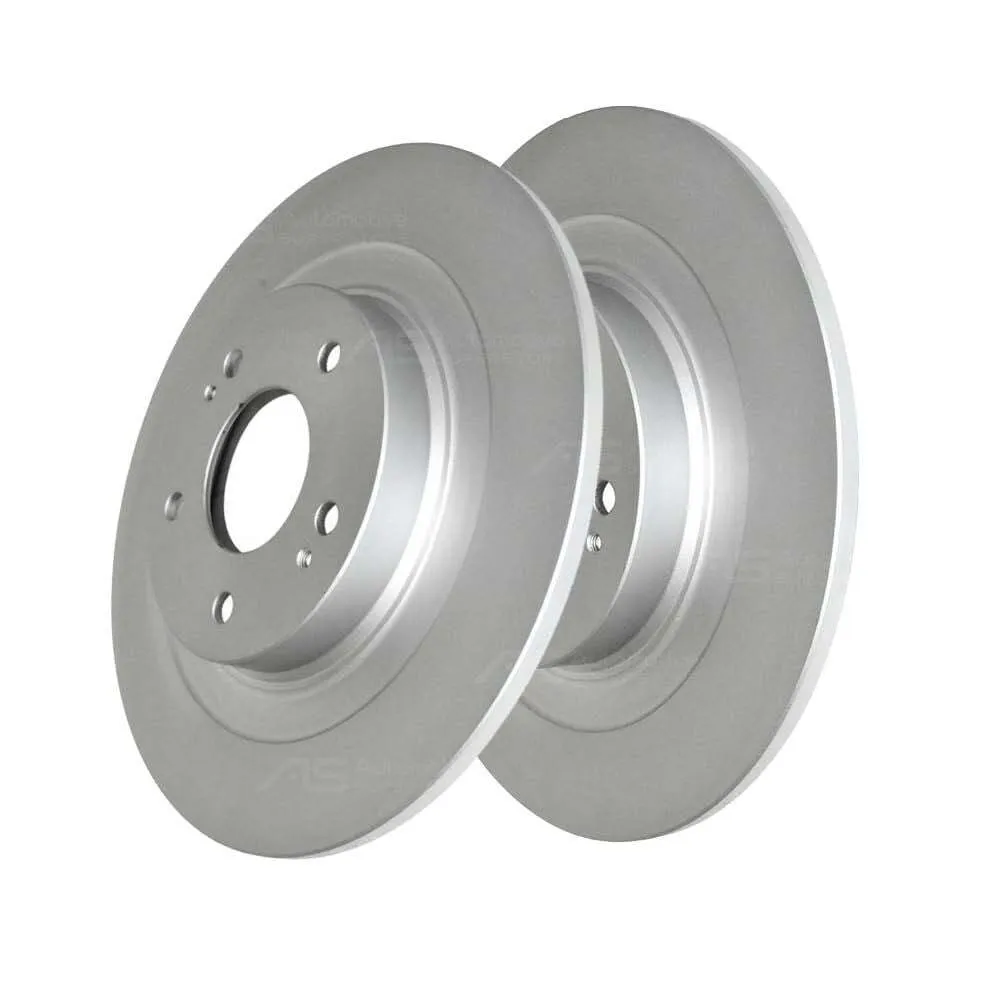

  • 2x Rear Street Series En-Shield Brake Rotors

Compatibility

  • 2010-2026 Mitsubishi ASX Petrol Engine 2.0 MIVEC (GA2W) GA_W_,XA,XB,XC,XD SUV 110KW - XB & XC SERIES 2012 - on
  • 2010-2014 Mitsubishi ASX Petrol Engine 2.0 MIVEC 4WD GA_W_,XA,XB,XC,XD SUV 110KW - 302mm [ 36.2 Height ] 144.3mm H/Brake
  • 2013-2018 Mitsubishi ASX Diesel 2.2 DI-D 4WD (GA8W) GA_W_,XA,XB,XC,XD SUV 110KW
  • 2019-2026 Mitsubishi ASX Petrol Engine 2.4 i (GA5W) GA_W_,XA,XB,XC,XD SUV 123KW
  • 2017-2026 Mitsubishi Eclipse Cross Petrol Engine 1.5 (GK1W) GK_,GL_,YA,YB SUV 110KW
  • 2017-2026 Mitsubishi Eclipse Cross Petrol Engine 1.5 4WD (GK1W) GK_,GL_,YA,YB SUV 110KW
  • 2012-2021 Mitsubishi Outlander Diesel 2.2 DI-D 4WD (GF6W) GG_W,GF_W,ZJ,ZL,ZK SUV 110KW
  • 2012-2021 Mitsubishi Outlander Petrol Engine 2.0 (GF7W) GG_W,GF_W,ZJ,ZL,ZK SUV 110KW - 36.2mm Height [ CHECK ]
  • 2012-2021 Mitsubishi Outlander Petrol Engine 2.4 (GF8W) GG_W,GF_W,ZJ,ZL,ZK SUV 124KW
  • 2012-2021 Mitsubishi Outlander Petrol Engine 2.4 4WD (GF8W) GG_W,GF_W,ZJ,ZL,ZK SUV 124KW
  • 2014-2018 Mitsubishi Outlander Plug-In Hybrid 2.0 Hybrid 4WD (GG2W) GG_W,GF_W,ZJ,ZL,ZK SUV 147KW
  • 2012-2017 Peugeot 4008 Petrol Engine 2.0 AWC SUV 110KW - PLEASE OVERALL HEIGHT OF 36.4MM
  • 2013-2017 Peugeot 4008 Petrol Engine 2.0 SUV 110KW - 302mm [ 36.4mm Height ] From RPO 13115
