Description

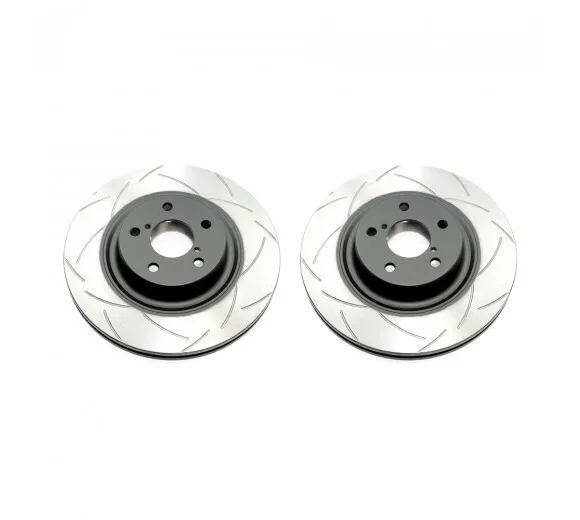

DBA's Street Series T2 rotor provides all the benefits of DBA's Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA's patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA's revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.



Features:

Kangaroo Paw 144 diamond and tear drop pillar ventilation system

  • Increased surface area resulting in greater heat dissipation which minimises brake fade and increases braking effectiveness

CBN (Cubic Boron Nitride) machine turned

  • Reduced DTV (Disc thickness variation) and parallelism which provides less occurrence of brake shudder or brake pedal "judder".

Specifications

  • Diameter (mm): 295
  • Thickness (mm): 28
  • Height (mm): 46.5
  • Centre Hole Diameter (mm): 94
  • Minimum Thickness (mm): 26.4
  • Drum Maximum Diameter (mm): N/A
  • Wheel/Stud Holes: 6
  • What's Included

    • 2x Rotors

    Compatibility

    • 2007 - 2015 > MITSUBISHI > TRITON > Diesel 2.5 DI-D (KA4T) KA_T,KB_T,ML,MN Ute 123KW
    • 2005 - 2015 > MITSUBISHI > TRITON > Diesel 2.5 DI-D (KA4T) KA_T,KB_T,ML,MN Ute 100KW
    • 2010 - 2015 > MITSUBISHI > TRITON > Diesel 2.5 DI-D (KA4T) KA_T,KB_T,ML,MN Ute 94KW
    • 2009 - 2015 > MITSUBISHI > TRITON > Diesel 2.5 DI-D 4WD (KB4T) KA_T,KB_T,ML,MN Ute 131KW
    • 2007 - 2015 > MITSUBISHI > TRITON > Petrol Engine 2.4 (KA5T) KA_T,KB_T,ML,MN Ute 97KW
    • 2006 - 2009 > MITSUBISHI > TRITON > Diesel 3.2 DI-D 4WD (KB8T) KA_T,KB_T,ML,MN Ute 118KW
    • 2006 - 2009 > MITSUBISHI > TRITON > Petrol Engine 3.5 4WD (KB9T) KA_T,KB_T,ML,MN Ute 135KW
    • 2005 - 2015 > MITSUBISHI > TRITON > Petrol Engine 2.4 (KA5T) KA_T,KB_T,ML,MN Ute 94KW
    • 2009 - 2015 > MITSUBISHI > TRITON > Diesel 2.5 DI-D 4WD (KB4T) KA_T,KB_T,MN,ML Platform/Chassis 131KW
    • 2007 - 2015 > MITSUBISHI > TRITON > Petrol Engine 2.4 LPG (KA5T) KA_T,KB_T,MN,ML Platform/Chassis 94KW
    • 2015 - 2025 > MITSUBISHI > TRITON > Diesel 2.4 DI-D 4WD (KL1T) KJ_,KK_,KL_,MQ,MR Ute 133KW
    • 2015 - 2025 > MITSUBISHI > TRITON > Diesel 2.4 DI-D (KK1T) KJ_,KK_,KL_,MQ,MR Ute 133KW
    • 2015 - 2025 > MITSUBISHI > TRITON > Diesel 2.4 D 4WD (KL1T) MQ,MR Platform/Chassis 133KW
    • 2015 - 2025 > MITSUBISHI > TRITON > Diesel 2.4 D (KK1T) MQ,MR Platform/Chassis 133KW
    • 2006 - 2009 > MITSUBISHI > TRITON > Petrol Engine 3.5 (KA9T) KA_T,KB_T,ML,MN Ute 135KW
    • 2010 - 2015 > MITSUBISHI > TRITON > Diesel 2.5 DI-D (KA4T) KA_T,KB_T,ML,MN Ute 103KW
    • 2007 - 2015 > MITSUBISHI > TRITON > Petrol Engine 2.4 (KA5T) KA_T,KB_T,MN,ML Platform/Chassis 94KW
    • 2008 - 2015 > MITSUBISHI > CHALLENGER > Diesel 2.5 DI-D 4WD (KH4W) KH_,KG_,PB,PC Closed Off-Road Vehicle 131KW
