Description

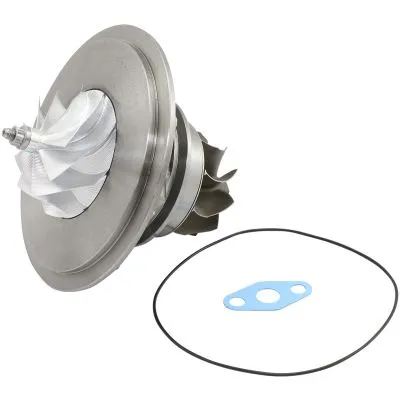

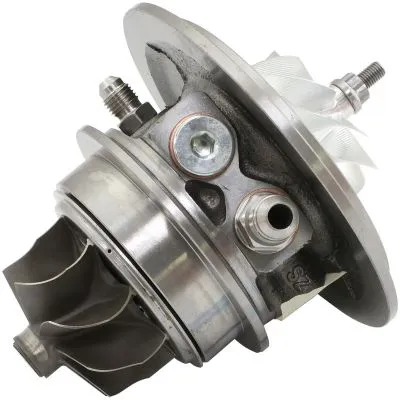

Boosted Turbocharger Replacement Core.

As another way of backing up our excellent Boosted Turbocharger range, we stock replacement core's for all popular Boosted Turbo models. This way if you have a mis-hapthat has damaged either of thewheels or even the internals of the turbocharger you can easily purchase the core and swap it out. These cores are designed to suit Boosted Turbochargers specifically however you may find some crossover on other brands thathave a similar core design.

Specifications

BOOSTED 6255 Reverse Rotation Core Specifications

Recommended horsepower rating:  550-900HP
Recommended engine displacement:  2.0L to 3.5L

- Dual ceramicball bearing
- Point Milled 7075 billet compressor wheel
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fittingwith in-built restrictor
- 38mm bolt centre turbodrain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer:  62mm
Exducer:  716mm
Extended Tip:  79.4mm

Turbine Specifications
Inducer:  60mm
Exducer:  55mm

Wastegate
External wastegate

Boosted Turbocharger Replacement Core.

As another way of backing up our excellent Boosted Turbocharger range, we stock replacement core's for all popular Boosted Turbo models. This way if you have a mis-hapthat has damaged either of thewheels or even the internals of the turbocharger you can easily purchase the core and swap it out. These cores are designed to suit Boosted Turbochargers specifically however you may find some crossover on other brands thathave a similar core design.

BOOSTED 6255 Reverse Rotation Core Specifications

Recommended horsepower rating:  550-900HP
Recommended engine displacement:  2.0L to 3.5L

- Dual ceramicball bearing
- Point Milled 7075 billet compressor wheel
- External wastegate sold separately
- Inlet flange gasket, turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fittingwith in-built restrictor
- 38mm bolt centre turbodrain flange with M8 x 1.25mm thread size

Compressor Specifications
Inducer:  62mm
Exducer:  716mm
Extended Tip:  79.4mm

Turbine Specifications
Inducer:  60mm
Exducer:  55mm

Wastegate
External wastegate
