Description

Aeroflow Performance Boosted turbochargers are designed specifically for the enthusiast who wants optimal performance at a competitive price. Boosted Turbochargers have a range of specific turbos to meet your power goals, driving style and budget. Boosted turbocharger's utilize billet compressor wheels and feature the latest aerodynamic design that maximizes horsepower and boost response throughout the rev range. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to extremely high exhaust gas temperatures.

Boosted Turbocharger's are available in 360¬? journal bearing, dual and triple ceramic ball bearing cartridges designed to prolong the turbo lifespan and improve shaft balance. Boosted Turbocharger's are also available in oil/water or oil cooled versions to help keep temperatures to a minimum. The boosted range of turbos are available with a ported shroud compressor cover housing which increases surge resistance and provides reliable, continuous power throughout the engine's RPM. Boosted turbochargers are available for a direct bolt-on for some Ford's and Nissan's with further models in development. Boosted turbos are available in natural aluminium or high temp black compressor cover options.

Specifications

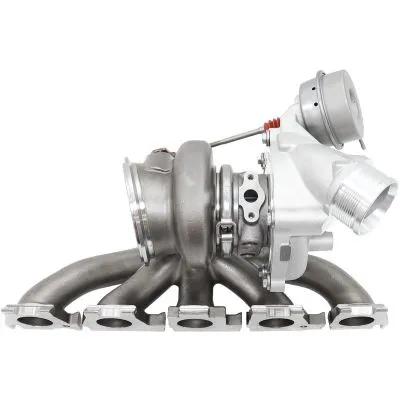

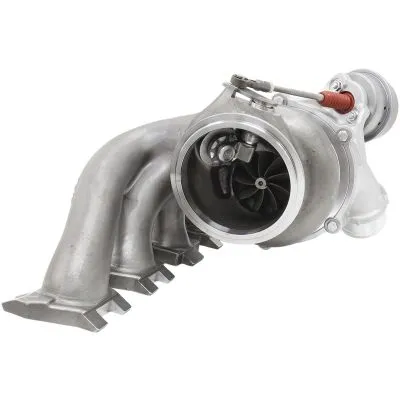

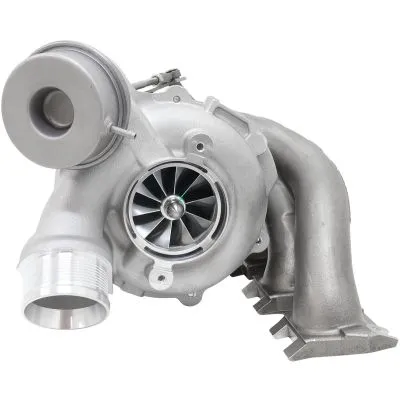

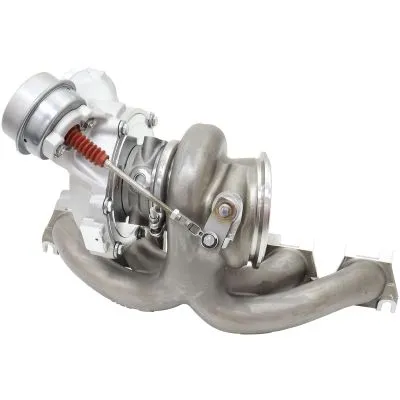

BOOSTED 6558 Audi RS3 Turbocharger Specifications

Recommended horsepower rating:  500-650HP
Recommended engine displacement:  3L

- Dual ceramic ball bearing
- Billet aluminium compressor wheel
- Factory compressor cover..
- Audi 2 Bolt compressor cover inlet (85mm Bolt Centers)
- Audi 2 Bolt compressor cover outlet (81mm Bolt Centers)
- Audi 2 Slot and Audi V-Band turbine inlet flange.
- Will suit OEM oil feed, water feed and turbo drain.
- Audi V-Band turbine outlet flange.
- Stainless steel rear housing with O2 Sensor port.
- Factory Audi internal wastegate actuator.

Compressor Specifications
Inducer:  65.7mm
Exducer:  82.6mm
Compressor Inlet: Audi OEM
Compressor Outlet: Audi OEM

Turbine Specifications
Inducer:  63mm
Exducer:  57mm
Turbine Inlet Flange:  Audi 2 Slot and Audi V-Band
Turbine Outlet Flange:  Audi V-Band

Wastegate
Audi Internal wastegate.

Compatibility

  • Audi RS3/TT RS

Aeroflow Performance Boosted turbochargers are designed specifically for the enthusiast who wants optimal performance at a competitive price. Boosted Turbochargers have a range of specific turbos to meet your power goals, driving style and budget. Boosted turbocharger's utilize billet compressor wheels and feature the latest aerodynamic design that maximizes horsepower and boost response throughout the rev range. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to extremely high exhaust gas temperatures.

Boosted Turbocharger's are available in 360¬? journal bearing, dual and triple ceramic ball bearing cartridges designed to prolong the turbo lifespan and improve shaft balance. Boosted Turbocharger's are also available in oil/water or oil cooled versions to help keep temperatures to a minimum. The boosted range of turbos are available with a ported shroud compressor cover housing which increases surge resistance and provides reliable, continuous power throughout the engine's RPM. Boosted turbochargers are available for a direct bolt-on for some Ford's and Nissan's with further models in development. Boosted turbos are available in natural aluminium or high temp black compressor cover options.

BOOSTED 6558 Audi RS3 Turbocharger Specifications

Recommended horsepower rating:  500-650HP
Recommended engine displacement:  3L

- Dual ceramic ball bearing
- Billet aluminium compressor wheel
- Factory compressor cover..
- Audi 2 Bolt compressor cover inlet (85mm Bolt Centers)
- Audi 2 Bolt compressor cover outlet (81mm Bolt Centers)
- Audi 2 Slot and Audi V-Band turbine inlet flange.
- Will suit OEM oil feed, water feed and turbo drain.
- Audi V-Band turbine outlet flange.
- Stainless steel rear housing with O2 Sensor port.
- Factory Audi internal wastegate actuator.

Compressor Specifications
Inducer:  65.7mm
Exducer:  82.6mm
Compressor Inlet: Audi OEM
Compressor Outlet: Audi OEM

Turbine Specifications
Inducer:  63mm
Exducer:  57mm
Turbine Inlet Flange:  Audi 2 Slot and Audi V-Band
Turbine Outlet Flange:  Audi V-Band

Wastegate
Audi Internal wastegate.
  • Audi RS3/TT RS
