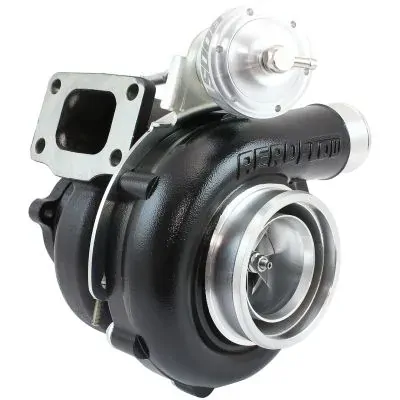

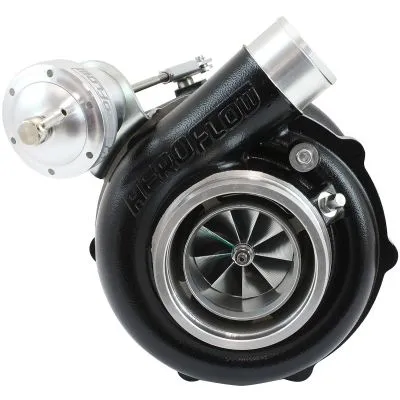

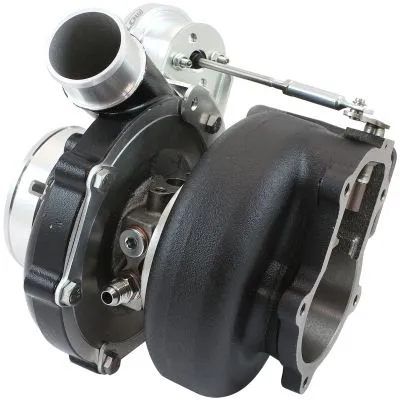

Description
Aeroflow Performance Boosted turbochargers are designed specifically for the enthusiast who wants optimal performance at a competitive price. Boosted Turbochargers have a range of specific turbos to meet your power goals, driving style and budget. Boosted turbocharger's utilise billet compressor wheels and feature the latest aerodynamic design that maximises horsepower and boost response throughout the rev range. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to extremely high exhaust gas temperatures.
Boosted Turbocharger's are available in 360¬? journal bearing, dual and triple ceramic ball bearing cartridges designed to prolong the turbo lifespan and improve shaft balance. Boosted Turbocharger's are also available in oil/water or oil cooled versions to help keep temperatures to a minimum. The boosted range of turbos are available with a ported shroud compressor cover housing which increases surge resistance and provides reliable, continuous power throughout the engine's RPM. Boosted turbochargers are available for a direct bolt-on for some Ford's and Nissan's with further models in development. Boosted turbos are available in natural aluminium or high temp black compressor cover options.
Specifications
Recommended horsepower rating:¬550-900HP
Recommended engine displacement: ¬2.5L to 4.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- Internal wastegate option with 20psi spring & 32mm hole size
- Ceramic Coated Black Finish SiMo-nodular cast iron rear housing
- Standard 5-Bolt XR6 turbine outlet flange
- T3 single entry turbine inlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-built restrictor (WarrantyVOID if not used)
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
- Suits both Ford XR6 BA/BF and FG. Turbo housing will be supplied in BA/BF configuration
- Billet Internal wastegate actuator with 20psi spring (different rate springs sold separately)
- Internal wastegate hole size is 32mm
- 9 blade turbine wheel
Compressor Specifications
Inducer:¬ 62mm
Exducer:¬ 76.6mm
Extended Tip:¬79.42mm
A/R:¬0.72
Compressor Inlet: ¬4" Slip fit
Compressor Outlet:¬2-1/2" Slip fit
Turbine Specifications
Inducer: ¬68mm
Exducer: ¬62mm
Turbine Specifications
Inducer: ¬68mm
Exducer: ¬62.3mm
A/R: ¬1.15
Turbine Inlet Flange:¬T3
Turbine Outlet Flange: ¬BA-BF XR6 5-Bolt
Wastegate
Internal wastegate featuring 32mm port and 20psi actuator
Aeroflow Performance Boosted turbochargers are designed specifically for the enthusiast who wants optimal performance at a competitive price. Boosted Turbochargers have a range of specific turbos to meet your power goals, driving style and budget. Boosted turbocharger's utilise billet compressor wheels and feature the latest aerodynamic design that maximises horsepower and boost response throughout the rev range. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to extremely high exhaust gas temperatures.
Boosted Turbocharger's are available in 360¬? journal bearing, dual and triple ceramic ball bearing cartridges designed to prolong the turbo lifespan and improve shaft balance. Boosted Turbocharger's are also available in oil/water or oil cooled versions to help keep temperatures to a minimum. The boosted range of turbos are available with a ported shroud compressor cover housing which increases surge resistance and provides reliable, continuous power throughout the engine's RPM. Boosted turbochargers are available for a direct bolt-on for some Ford's and Nissan's with further models in development. Boosted turbos are available in natural aluminium or high temp black compressor cover options.
Recommended horsepower rating:¬550-900HP
Recommended engine displacement: ¬2.5L to 4.5L
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensor sold separately, AF8050-1010)
- 1/8" NPT boost reference port
- Internal wastegate option with 20psi spring & 32mm hole size
- Ceramic Coated Black Finish SiMo-nodular cast iron rear housing
- Standard 5-Bolt XR6 turbine outlet flange
- T3 single entry turbine inlet flange
- M14 x 1.5mm coolant port thread
- 7/16"-24 oil feed fitting with in-built restrictor (WarrantyVOID if not used)
- 38mm bolt centre turbo drain flange with M8 x 1.25mm thread size
- Suits both Ford XR6 BA/BF and FG. Turbo housing will be supplied in BA/BF configuration
- Billet Internal wastegate actuator with 20psi spring (different rate springs sold separately)
- Internal wastegate hole size is 32mm
- 9 blade turbine wheel
Compressor Specifications
Inducer:¬ 62mm
Exducer:¬ 76.6mm
Extended Tip:¬79.42mm
A/R:¬0.72
Compressor Inlet: ¬4" Slip fit
Compressor Outlet:¬2-1/2" Slip fit
Turbine Specifications
Inducer: ¬68mm
Exducer: ¬62mm
Turbine Specifications
Inducer: ¬68mm
Exducer: ¬62.3mm
A/R: ¬1.15
Turbine Inlet Flange:¬T3
Turbine Outlet Flange: ¬BA-BF XR6 5-Bolt
Wastegate
Internal wastegate featuring 32mm port and 20psi actuator
