Description

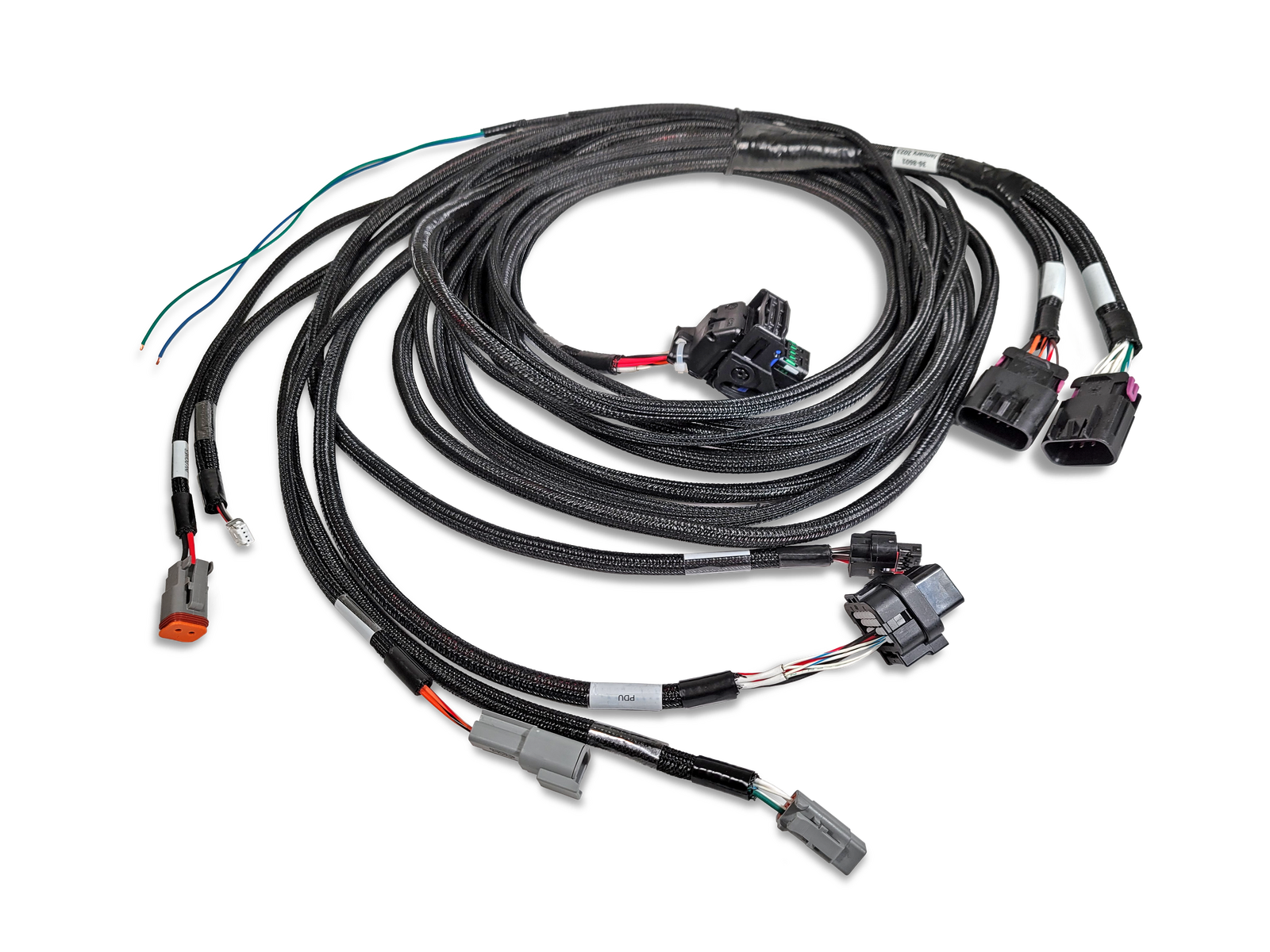

This low voltage harness assembly was designed to be installed in the rear half of the electric vehicle. It was designed to be used with a mating front half assembly that is VCU hardware specific. The AEM part number for the mating front half harness is 30-8600.

Features

  • Connector interface features include:
  • Power Distribution Unit (PDU)
  • Combined Charging Unit (CCU)
  • Isabellenhutte (IVTS) - current voltage shunt based measuring system
  • - Life Energy Motion (LEM) - current voltage DHAB s/124 Transducer Sensor
  • Inverter CAN (INV CAN)
  • Inverter High-Voltage Interlock (HVIL)
  • Inverter Power (INV PWR)
  • J1772 Flying Leads - Proximity Pilot (PROX) and Control Pilot (CP)
  • Inline Signals
  • Inline CAN

Specifications

BrandAEM EV
ColourBlack
Emission Code6
GenderMale Female
Product TypeWiring Harness
Terminal GenderMale Female

Compatibility

  • Universal Part

This low voltage harness assembly was designed to be installed in the rear half of the electric vehicle. It was designed to be used with a mating front half assembly that is VCU hardware specific. The AEM part number for the mating front half harness is 30-8600.

Features

  • Connector interface features include:
  • Power Distribution Unit (PDU)
  • Combined Charging Unit (CCU)
  • Isabellenhutte (IVTS) - current voltage shunt based measuring system
  • - Life Energy Motion (LEM) - current voltage DHAB s/124 Transducer Sensor
  • Inverter CAN (INV CAN)
  • Inverter High-Voltage Interlock (HVIL)
  • Inverter Power (INV PWR)
  • J1772 Flying Leads - Proximity Pilot (PROX) and Control Pilot (CP)
  • Inline Signals
  • Inline CAN
BrandAEM EV
ColourBlack
Emission Code6
GenderMale Female
Product TypeWiring Harness
Terminal GenderMale Female
  • Universal Part
