Description

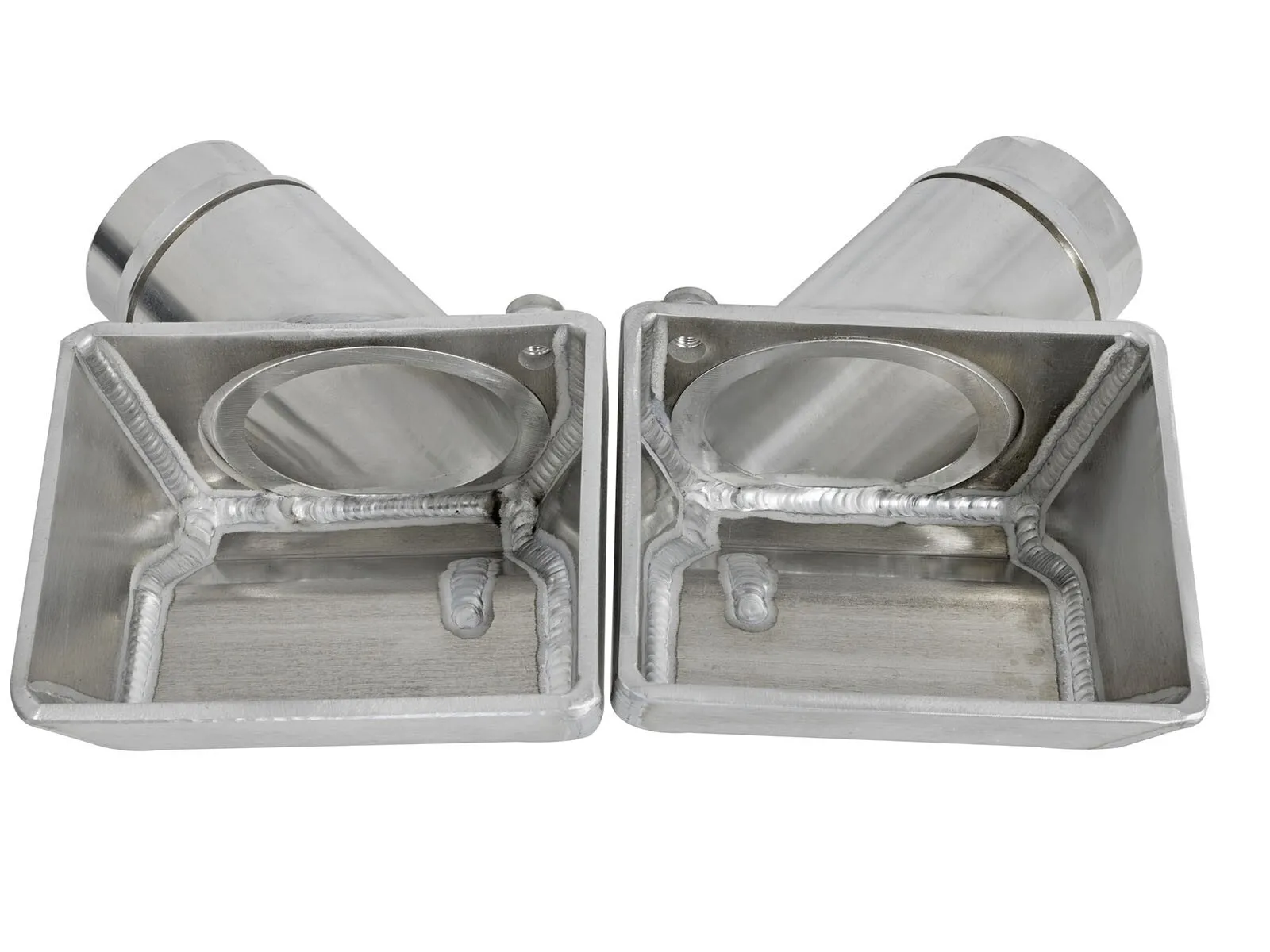

End Tanks: The unique BladeRunner end tanks are constructed out of 3/16" thick aluminum plates and include two 1/8" NPT ports for sensors or water-methanol injection.

5" Bar and Plate Core Design: The use of the bar and plate core design allows for greater airflow and increased heat dissipation over the much smaller tube and fin design used by the factory.

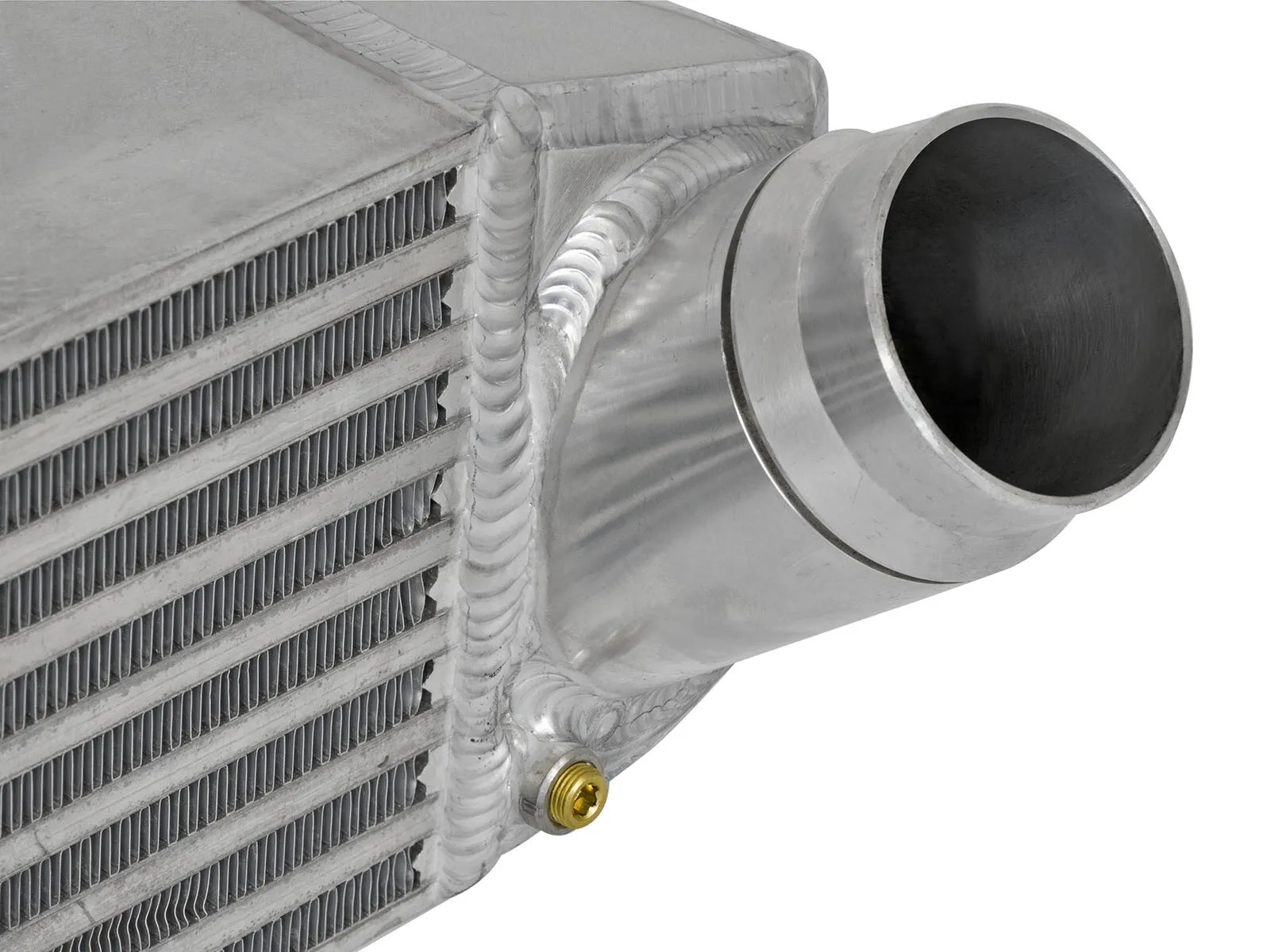

TIG-Welded: 100% TIG-Welded inside and out by a certified craftsmen for strength and durability. TIG-Welding provides the strongest welds while reducing stress cracks.

Pressure Tested: The BladeRunner Intercooler is test pressure rated at 200psi.

Mandrel-bent Tubing: Constructed of 2-1/2" to 3" mandrel-bent aluminum tubing and powder-coated wrinkle-black for heat and corrosion resistance. The smooth transition mandrel bends decrease turbulence which increases horsepower and torque. The high-temp wrinkle-black powder-coating insulates the tubes from engine heat and protects them from corrosion.

aFe Badging: Unique aluminum laser-cut aFe POWER logo plate is welded-on for an aggressive style.

Perfect Fit: Includes stainless steel clamps for a leak-free seal and heavy-duty 5-Ply reinforced silicone coupling for strength.

Note: This intercooler tube is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicle.

Specifications

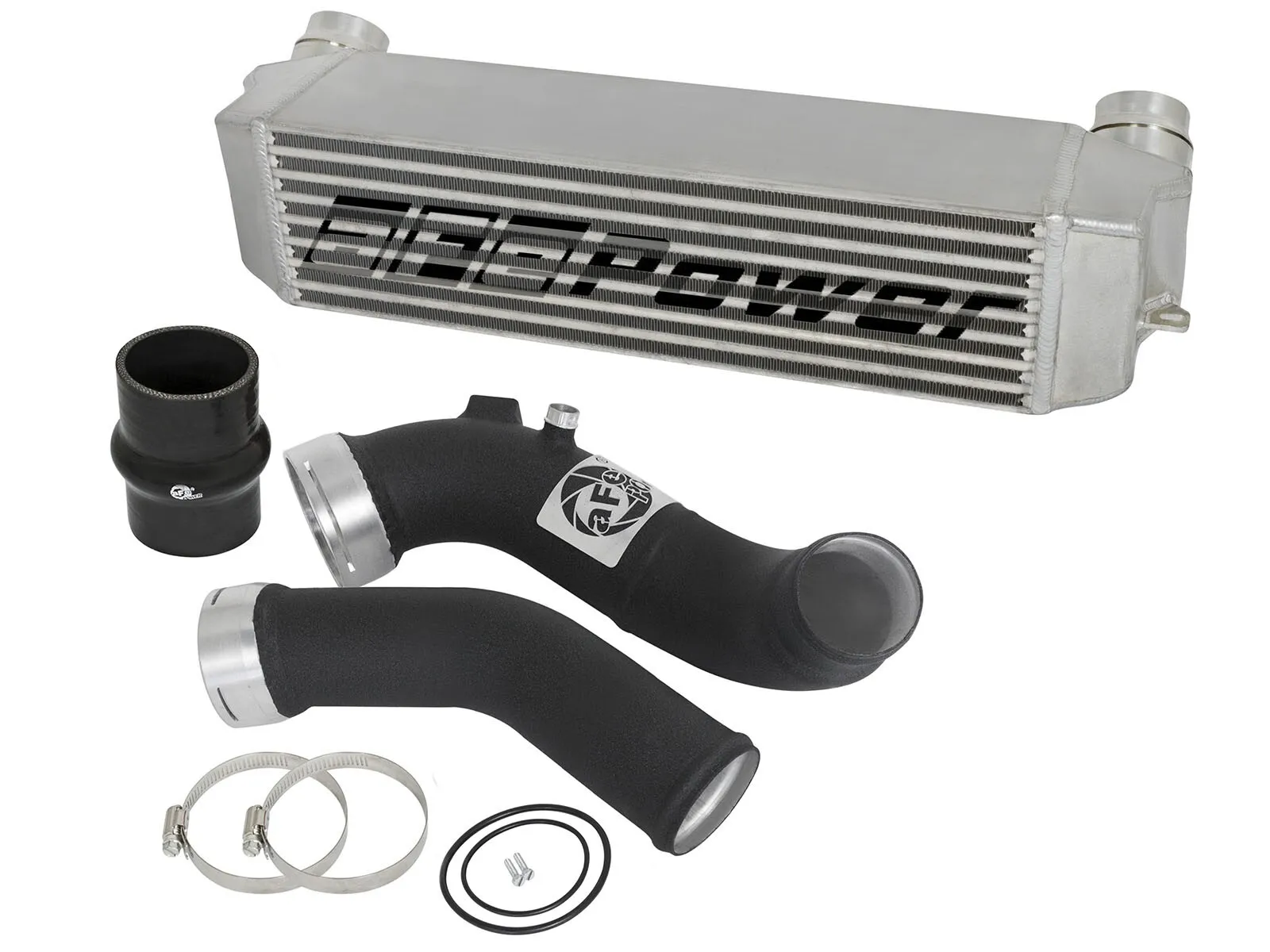

  • Outflows factory intercooler and tube by 21%
  • Lowers manifold intake air temperature
  • 2-1/2" billet aluminum inlet and outlet for superior strength & durability
  • The intercooler incorporates the factory style quick connections for the intercooler tubes

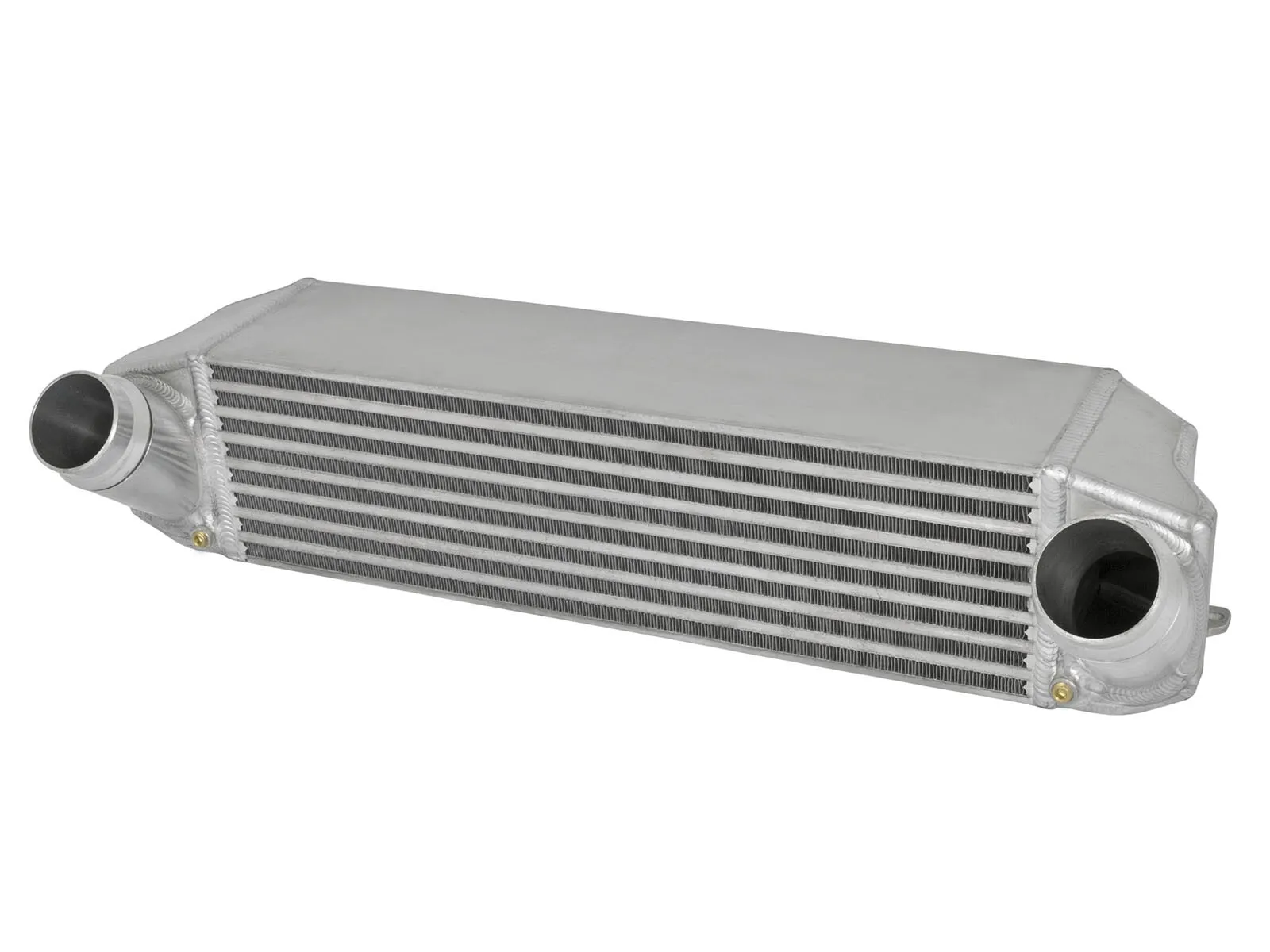

  • 5" Bar and plate core design that is 25% larger than stock
  • This intercooler is 100% TIG welded by certified craftsmen for strength and durability

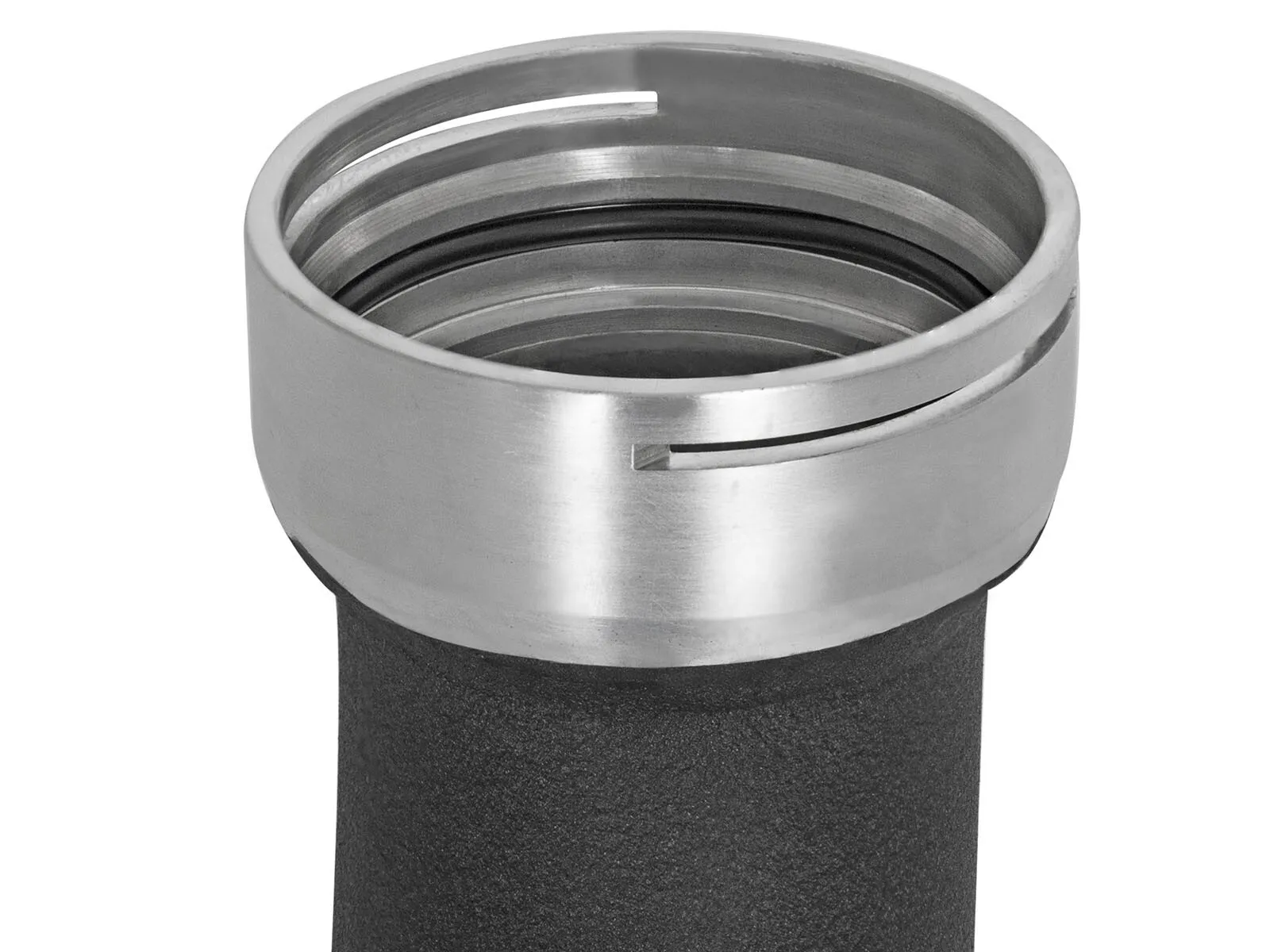

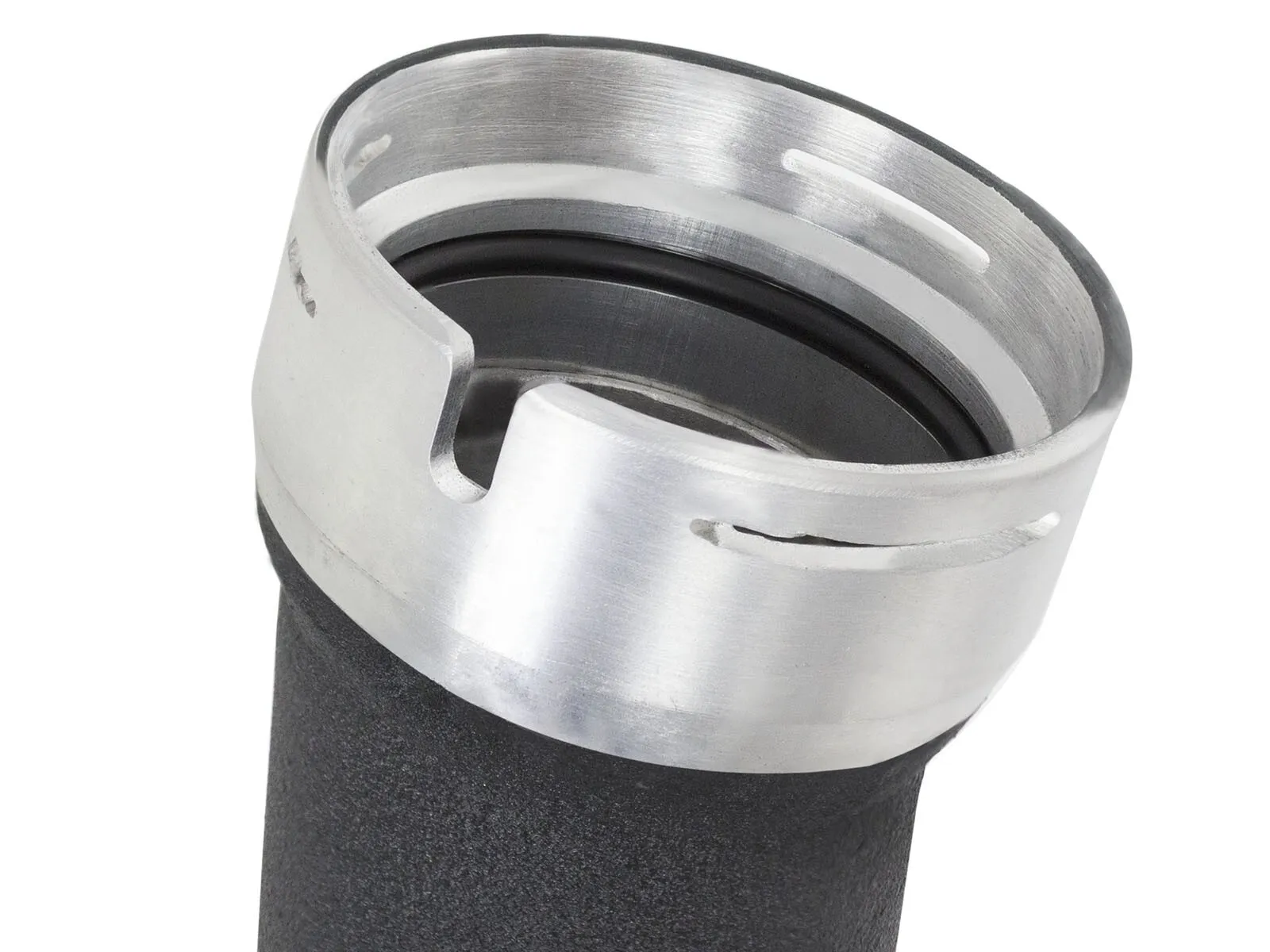

  • The intercooler tubes retain the factory style throttle body and intercooler quick connections made from 6061-T6 Billet Aluminum

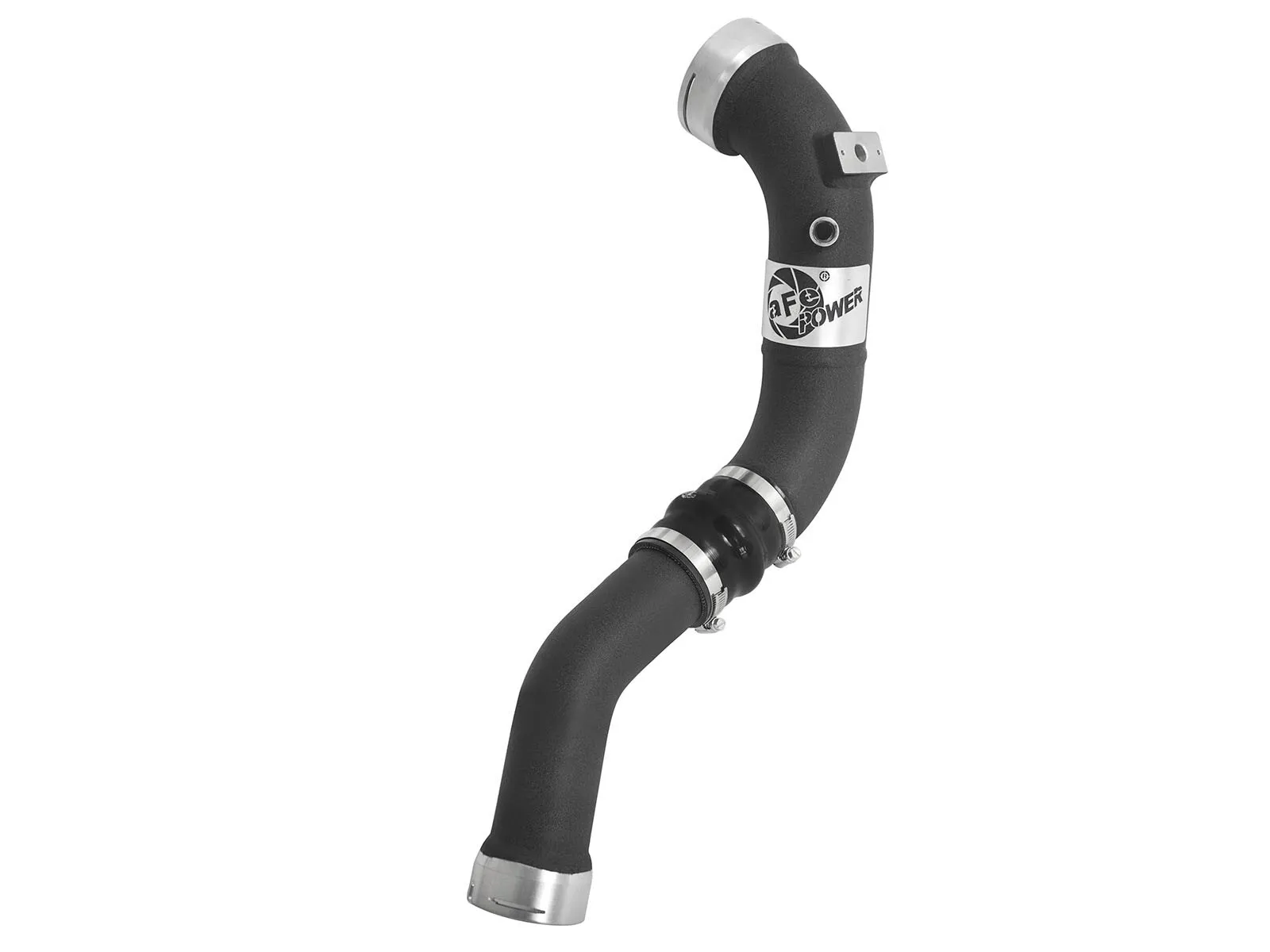

  • 2-1/2" to 3" cold side mandrel-bent aluminum tubing
  • Powder-coated wrinkle black for heat resistance
  • 5-ply silicone coupling for strength
  • Includes premium stainless-steel clamps for a secure fit

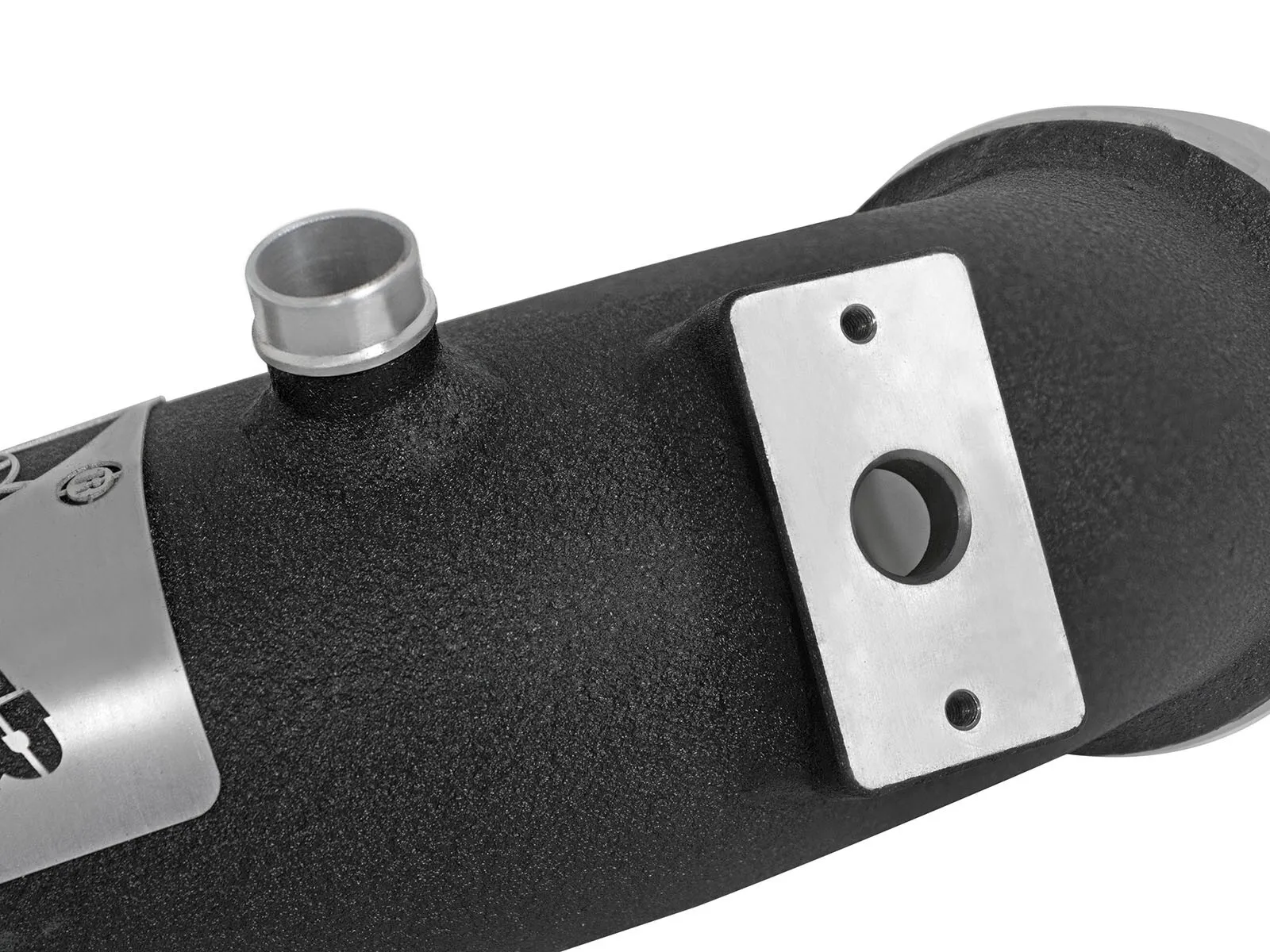

  • 1/8" NPT ports are provided on both the intercooler and tube for connecting pressure sensors or water methanol injection
  • Includes necessary hardware for a hassle-free installation
  • Absolutely no cutting or modifications are needed for the installation of this intercooler kit
  • For use with automatic transmission vehicles ONLY

Compatibility

  • 2012-2015 BMW 335i (F30) N55 (Turbo) Automatic Transmission L6 3.0L Gas
  • 2014-2016 BMW M235i (F22/23) Turbo (N55) L6 3.0L Gas

End Tanks: The unique BladeRunner end tanks are constructed out of 3/16" thick aluminum plates and include two 1/8" NPT ports for sensors or water-methanol injection.

5" Bar and Plate Core Design: The use of the bar and plate core design allows for greater airflow and increased heat dissipation over the much smaller tube and fin design used by the factory.

TIG-Welded: 100% TIG-Welded inside and out by a certified craftsmen for strength and durability. TIG-Welding provides the strongest welds while reducing stress cracks.

Pressure Tested: The BladeRunner Intercooler is test pressure rated at 200psi.

Mandrel-bent Tubing: Constructed of 2-1/2" to 3" mandrel-bent aluminum tubing and powder-coated wrinkle-black for heat and corrosion resistance. The smooth transition mandrel bends decrease turbulence which increases horsepower and torque. The high-temp wrinkle-black powder-coating insulates the tubes from engine heat and protects them from corrosion.

aFe Badging: Unique aluminum laser-cut aFe POWER logo plate is welded-on for an aggressive style.

Perfect Fit: Includes stainless steel clamps for a leak-free seal and heavy-duty 5-Ply reinforced silicone coupling for strength.

Note: This intercooler tube is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicle.

  • Outflows factory intercooler and tube by 21%
  • Lowers manifold intake air temperature
  • 2-1/2" billet aluminum inlet and outlet for superior strength & durability
  • The intercooler incorporates the factory style quick connections for the intercooler tubes
  • 5" Bar and plate core design that is 25% larger than stock
  • This intercooler is 100% TIG welded by certified craftsmen for strength and durability
  • The intercooler tubes retain the factory style throttle body and intercooler quick connections made from 6061-T6 Billet Aluminum
  • 2-1/2" to 3" cold side mandrel-bent aluminum tubing
  • Powder-coated wrinkle black for heat resistance
  • 5-ply silicone coupling for strength
  • Includes premium stainless-steel clamps for a secure fit
  • 1/8" NPT ports are provided on both the intercooler and tube for connecting pressure sensors or water methanol injection
  • Includes necessary hardware for a hassle-free installation
  • Absolutely no cutting or modifications are needed for the installation of this intercooler kit
  • For use with automatic transmission vehicles ONLY
  • 2012-2015 BMW 335i (F30) N55 (Turbo) Automatic Transmission L6 3.0L Gas
  • 2014-2016 BMW M235i (F22/23) Turbo (N55) L6 3.0L Gas
