Description

We offer new Flow Through Flex Fuel Sensor as a part of ECA Kit, which includes the Ethanol Content Analyser, Flow Through Flex Fuel Sensor and ECA Harness with a correct connector.

What's your ethanol percentage?

The ethanol content of E85 fuel can vary from 60% to 92% ethanol. A fill up with E85 can drastically change the mix of fuel in your vehicle. For performance drivers determining actual ethanol content of E85 is essential to maximizing an engine tune and horsepower.

Why know your ethanol percentage?

E85 has the equivalent octane rating of 105 or higher octane fuel. Higher octane fuel is more resistant to knock allowing for more aggressive ignition timing, higher compression and increased engine power over gasoline itself. The Zeitronix Ethanol Content Analyser helps you get the most out of your engine and fuel.

Specifications

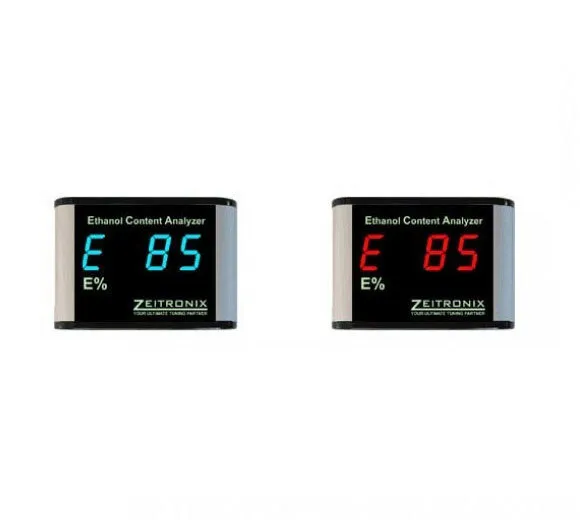

  • Blue Display
  • Real time display of fuel ethanol content from 0% to 100%
  • Displays fuel temperature in Celsius ranging from -40 to 52 °C
  • Two analogue outputs: Ethanol % and Fuel Temperature for use with datalogging or engine management systems
  • Surface mountable sleek aluminium enclosure with bright LED display visible even in direct sunlight
  • Display Dimensions: 71 x 46 x 19 mm
  • Sensor Dimensions : 154 x 75 x 37 mm
  • Sensor Tube Dimensions: 9mm Outside Diameter

ECA Analogue Outputs

Ethanol content and temperature analogue outputs are available as part of the ECA. The flex fuel sensor does not provide these outputs. We have created the ECA to provide these outputs making use of E-85 easier with aftermarket engine control modules and data logging systems.

Analogue Outputs

Signal

Range

Ethanol Percentage

0-5 Volts

0% to 100%

Fuel Temperature

0-5 Volts

-40 to 125 °C

Flex fuel Sensor Technical Specification:

Measuring range: 0…100% Alcohol (ethanol) in fuel mixtures
Sensor Accuracy: 5% of the mixture ratio
Output characteristic: Linear
Operating temperature: Environment -40°C… +125°C, Fuel -40°C… +90°C
Maximum fuel pressure: 10 bar, (145 psi)
Maximum pressure drop: 0.1 bar, (1.45 psi)
Maximum flow: 200 l/h
Supply voltage: 6…18 Volts DC
Sensor Temperature error: < 1.5%
Response time: < 250 ms after power on at any temperature
Design: Suitable for the installation in motor vehicles, independent of position. Housing is waterproof. Always check for fuel leaks!







What's Included

  • 1 x Zeitronix Ethanol Content Analyser Display (No Sensor)
  • >

Compatibility

  • Universal Part

We offer new Flow Through Flex Fuel Sensor as a part of ECA Kit, which includes the Ethanol Content Analyser, Flow Through Flex Fuel Sensor and ECA Harness with a correct connector.

What's your ethanol percentage?

The ethanol content of E85 fuel can vary from 60% to 92% ethanol. A fill up with E85 can drastically change the mix of fuel in your vehicle. For performance drivers determining actual ethanol content of E85 is essential to maximizing an engine tune and horsepower.

Why know your ethanol percentage?

E85 has the equivalent octane rating of 105 or higher octane fuel. Higher octane fuel is more resistant to knock allowing for more aggressive ignition timing, higher compression and increased engine power over gasoline itself. The Zeitronix Ethanol Content Analyser helps you get the most out of your engine and fuel.

  • Blue Display
  • Real time display of fuel ethanol content from 0% to 100%
  • Displays fuel temperature in Celsius ranging from -40 to 52 °C
  • Two analogue outputs: Ethanol % and Fuel Temperature for use with datalogging or engine management systems
  • Surface mountable sleek aluminium enclosure with bright LED display visible even in direct sunlight
  • Display Dimensions: 71 x 46 x 19 mm
  • Sensor Dimensions : 154 x 75 x 37 mm
  • Sensor Tube Dimensions: 9mm Outside Diameter

ECA Analogue Outputs

Ethanol content and temperature analogue outputs are available as part of the ECA. The flex fuel sensor does not provide these outputs. We have created the ECA to provide these outputs making use of E-85 easier with aftermarket engine control modules and data logging systems.

Analogue Outputs

Signal

Range

Ethanol Percentage

0-5 Volts

0% to 100%

Fuel Temperature

0-5 Volts

-40 to 125 °C

Flex fuel Sensor Technical Specification:

Measuring range: 0…100% Alcohol (ethanol) in fuel mixtures
Sensor Accuracy: 5% of the mixture ratio
Output characteristic: Linear
Operating temperature: Environment -40°C… +125°C, Fuel -40°C… +90°C
Maximum fuel pressure: 10 bar, (145 psi)
Maximum pressure drop: 0.1 bar, (1.45 psi)
Maximum flow: 200 l/h
Supply voltage: 6…18 Volts DC
Sensor Temperature error: < 1.5%
Response time: < 250 ms after power on at any temperature
Design: Suitable for the installation in motor vehicles, independent of position. Housing is waterproof. Always check for fuel leaks!







  • 1 x Zeitronix Ethanol Content Analyser Display (No Sensor)
  • >
  • Universal Part
