Description

Whiteline bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
  • Install guide included providing detailed instructions on how to install your new purchase .

Specifications

Bush Type 6 6 6 6 6 6
Bush Qty 2 2 2 2 2 2
OD (A) 34.6 mm 34.6 mm 47 mm 47 mm 39.7 mm 39.7 mm
ID (B) 22 mm 22.2 mm 25.4 mm 25.4 mm 25.4 mm 25.4 mm
L (C) 42.7 mm 33.3 mm 46.6 mm 34 mm 64 mm 38 mm
FL (D) 33.2 mm 23.3 mm 36.6 mm 22.5 mm 54 mm 28.5 mm
FLOD (E) 71.2 mm 64 mm 87 mm 75 mm 84 mm 59.3 mm
C/Tube QTY 2/02/2002 2/02/2002 2/02/2002 2/02/2002 2/02/2002 2/02/2002
C/Tube Size 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm
Similar Bushing Size







Bush Image

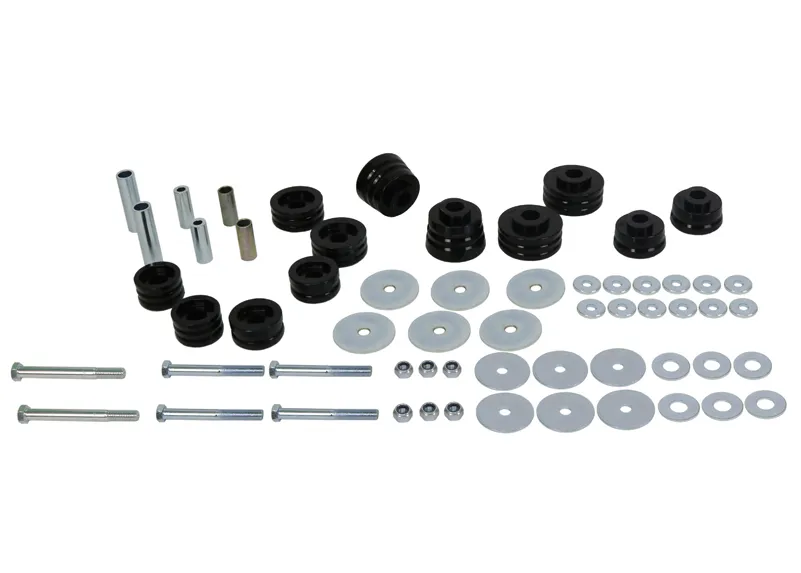

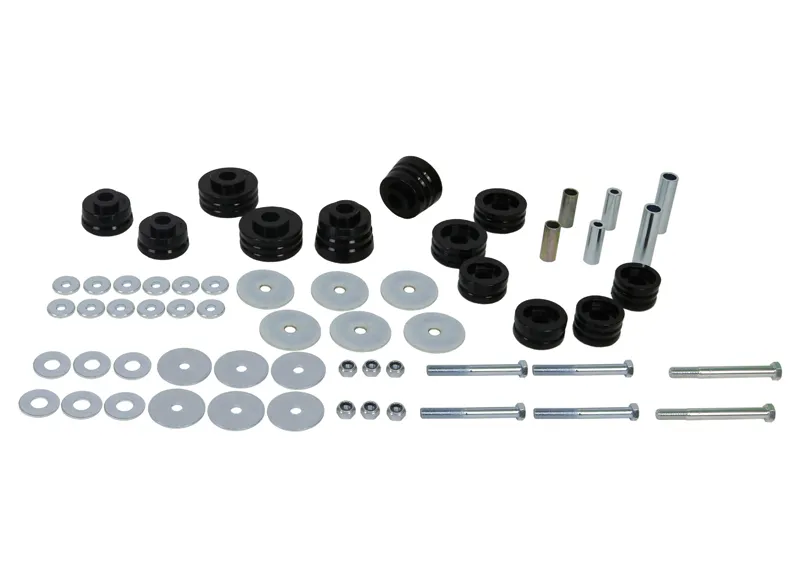

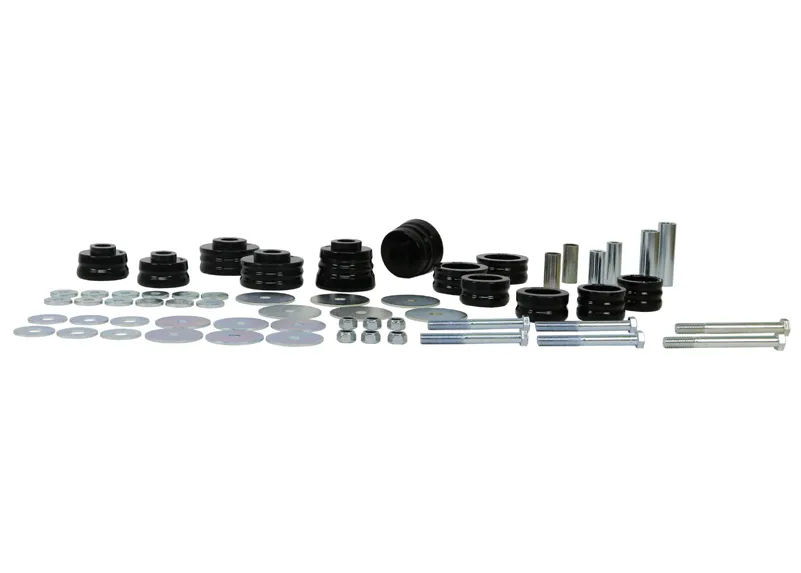

What's Included

  • 12 Bushings
  • 6 Tubes
  • 6 Bolts
  • 30 Washers
  • 6 Nuts
  • Install Guide

Compatibility

  • 1999-2006 MAZDA B-SERIE BRAVO, UN 2WD
  • 1999-2005 MAZDA B-SERIE BRAVO, UN 4WD
  • 1999-2006 MAZDA BOUNTY, UN 2WD
  • 1999-2005 MAZDA BOUNTY, UN 4WD

Whiteline bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.

Features:

  • The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
  • Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
  • Install guide included providing detailed instructions on how to install your new purchase .
Bush Type 6 6 6 6 6 6
Bush Qty 2 2 2 2 2 2
OD (A) 34.6 mm 34.6 mm 47 mm 47 mm 39.7 mm 39.7 mm
ID (B) 22 mm 22.2 mm 25.4 mm 25.4 mm 25.4 mm 25.4 mm
L (C) 42.7 mm 33.3 mm 46.6 mm 34 mm 64 mm 38 mm
FL (D) 33.2 mm 23.3 mm 36.6 mm 22.5 mm 54 mm 28.5 mm
FLOD (E) 71.2 mm 64 mm 87 mm 75 mm 84 mm 59.3 mm
C/Tube QTY 2/02/2002 2/02/2002 2/02/2002 2/02/2002 2/02/2002 2/02/2002
C/Tube Size 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm 22.2x16.2x63.5 / 25.4x18.2x66 / 25.4x19x90 mm
Similar Bushing Size







Bush Image

  • 12 Bushings
  • 6 Tubes
  • 6 Bolts
  • 30 Washers
  • 6 Nuts
  • Install Guide
  • 1999-2006 MAZDA B-SERIE BRAVO, UN 2WD
  • 1999-2005 MAZDA B-SERIE BRAVO, UN 4WD
  • 1999-2006 MAZDA BOUNTY, UN 2WD
  • 1999-2005 MAZDA BOUNTY, UN 4WD
