Description

Notes: Important
22.5mm
Kits Required: 1

Warranty: Lifetime
Kit Contents:   2 Bushings, Grease

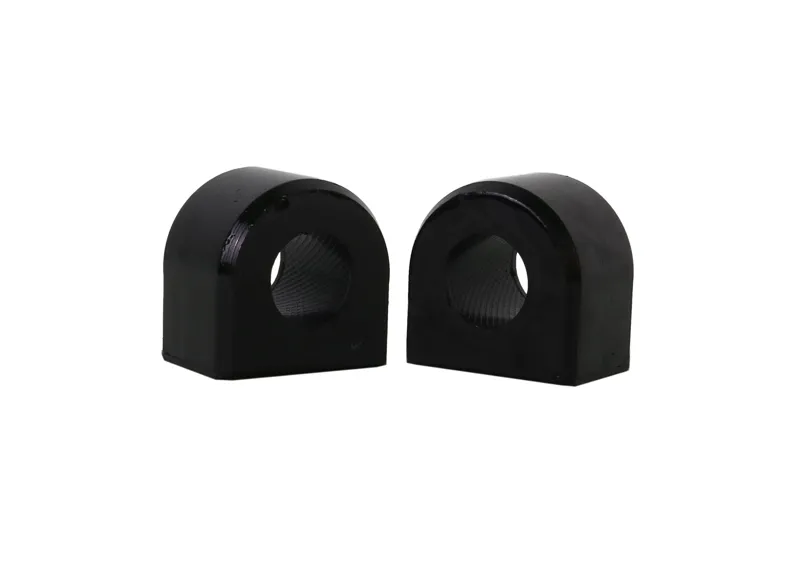

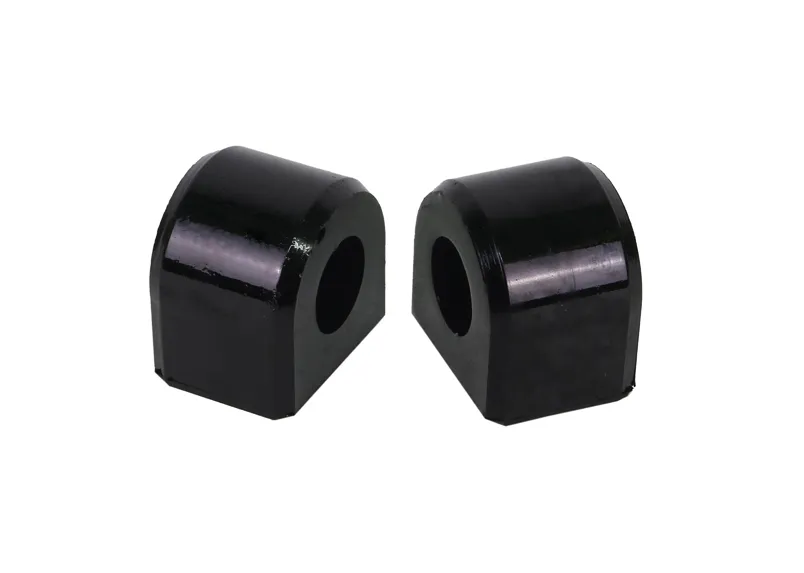

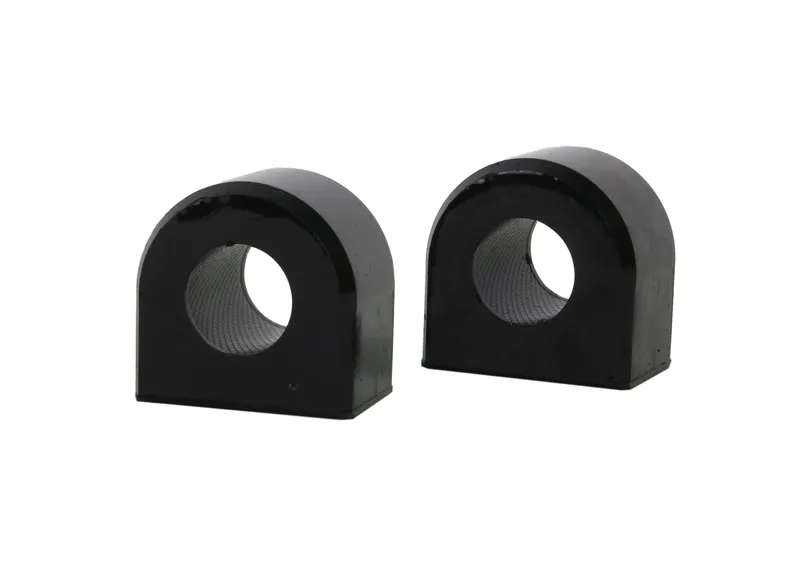

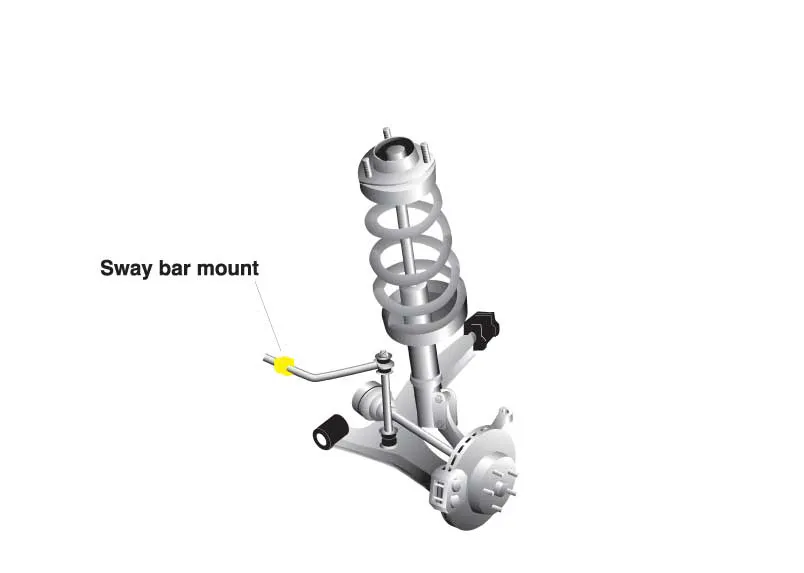

One of the most common suspension service items as they are easily inspected and simple to replace. Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.

Features

  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • This Whiteline kit is covered by a limited lifetime warranty.

Specifications

Kit Specifications




Bush
Type
Bush
Qty
OD
A
ID
B
L
C
5 2 45.5 mm 22.5 mm 35.5 mm



Compatibility

  • 2009-2013 VW GOLF, Mk 6 Typ 5K 4motion
  • 2008-2013 VW GOLF, Mk 6 Typ 5K FWD
  • 2004-2009 VW GOLF, Mk5 Typ 1K 4motion
  • 2003-2009 VW GOLF, Mk5 Typ 1K FWD
  • 2004-2009 VW GOLF, Mk5 Typ 1K GTi
  • 2005-2010 VW GOLF, Mk5 Typ 1K R32 4motion
  • 2011-2016 VW GOLF, Mk6 Typ 517 Convertible
  • 2009-2012 VW GOLF, Mk6 Typ 5K GTi, GTD
  • 2009-2013 VW GOLF, Mk6 Typ 5K R 4motion
  • 2004-2013 VW GOLF PLUS, 521, 5M
  • 2005-2010 VW JETTA, Mk5 Typ 1K
  • 2010-2018 VW JETTA, Mk6 Typ 162, 163, AV
Notes: Important
22.5mm
Kits Required: 1

Warranty: Lifetime
Kit Contents:   2 Bushings, Grease

One of the most common suspension service items as they are easily inspected and simple to replace. Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication and performance. Be sure to measure the sway bar diameter to ensure appropriate diameter mount bushing is selected.

Features

  • Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
  • Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
  • Internal grease reservoirs provide continual self lubrication for optimum friction management.
  • This Whiteline kit is covered by a limited lifetime warranty.
Kit Specifications




Bush
Type
Bush
Qty
OD
A
ID
B
L
C
5 2 45.5 mm 22.5 mm 35.5 mm


  • 2009-2013 VW GOLF, Mk 6 Typ 5K 4motion
  • 2008-2013 VW GOLF, Mk 6 Typ 5K FWD
  • 2004-2009 VW GOLF, Mk5 Typ 1K 4motion
  • 2003-2009 VW GOLF, Mk5 Typ 1K FWD
  • 2004-2009 VW GOLF, Mk5 Typ 1K GTi
  • 2005-2010 VW GOLF, Mk5 Typ 1K R32 4motion
  • 2011-2016 VW GOLF, Mk6 Typ 517 Convertible
  • 2009-2012 VW GOLF, Mk6 Typ 5K GTi, GTD
  • 2009-2013 VW GOLF, Mk6 Typ 5K R 4motion
  • 2004-2013 VW GOLF PLUS, 521, 5M
  • 2005-2010 VW JETTA, Mk5 Typ 1K
  • 2010-2018 VW JETTA, Mk6 Typ 162, 163, AV
