We include specific instructions to suit the VDJ70, Hilux KUN/GGN and Patrol GQ/GU vehicles.

Toyota LandCruiser

• 70 Series - VDJ76, VDJ78 & VDJ79 - (will not suit 08/2016 on DPF models)

Toyota Hilux

• KUN
• GGN

Nissan Patrol

• GQ
• GU

This unit can be used in any Toyota/Nissan vehicle that has an electronic speedo and the dash driven by a single pulse wire.

Note: Some models such as the LandCruiser 200 Series and 08/2016 on LandCruiser 70 Series have speedos driven from the CAN vehicle network, this unit will not suit these vehicles.

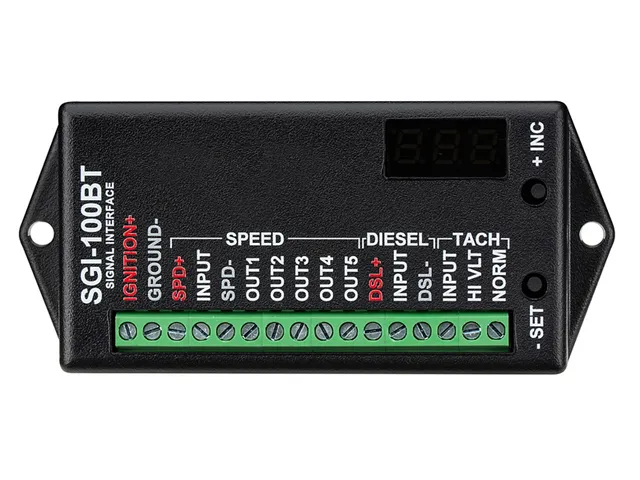

This kit uses the SGI-100BT Universal Signal Interface Unit & can handle nearly all of your electric speedometer signal conversion and calibration issues. The SGI-100BT can recalibrate a 2,000 pulse per mile (ppm) through 250,000ppm electronic speedometer pulse rates, either up or down. The SGI-100BT is great for adjusting aftermarket and OEM electric speedometers on vehicles after changing rear end gears, tire sizes, or drive train changes affecting the speedometer.

The SGI-100BT is used as either a signal multiplier or signal divider (25%-400%), making this unit extremely flexible for almost any application. While the SGI-100BT is intended to correct only the signal feeding the electronic speedometer, in many cases where a speed signal is shared or on a data bus, the SGI-100BT can instead correct the signal feeding the engine and transmission computers. For even greater flexibility, the SGI-100BT allows multiplication up to 16x, taking an 8,000ppm signal and converting to a 128,000ppm output, and includes a regulated 5V sensor output, allowing use of the Dakota Digital SEN-01-5 speed sensor. A built-in LED display and push-button switches simplify set-up and calibration.

Note: If your vehicle is equipped with an anti-lock braking system (ABS), it is advised to ensure the signal reaching the ABS controller is not altered to eliminate any potential problems affecting control algorithms within the system. Some vehicles also utilize the output shaft speed to calculate transmission slip and lock-up. When a signal feeding the PCM is altered, this may cause the PCM to detect a constant slip. Consulting a service manual may be of assistance in determining the signal routing within the vehicle if the SGI-5 is decided to be used in a situation such as this.

Unit measures 4" x 2" x 1" and is designed to be mounted inside a vehicle.
