The catch can draws out oil and water condensation from the crankcase gasses that would otherwise be drawn into the intake manifold. This prevents oil buildup in the intake, intercooler system walls, throttle body, and intake manifold. This effectively raises the octane, can increase engine performance from cleaner inlet air, and can lower hydrocarbon emissions. The closed system prevents unwanted oil vapors from entering into the cabin. Catch can kits include everything needed for a complete installation.

FLUID LOCK CATCH CANS

In 2022, Radium Engineering implemented a revolutionary design change to the 7 fluid ounce standard catch can. An inherent problem always existed with typical catch cans when not serviced regularly. The fluid contaminants will eventually leave the reservoir pouring into the air intake system causing poor engine performance. To resolve this issue, Radium created the Fluid Lock Catch Can. This contains a patented mechanism that prevents the reservoir from overfilling and traps the collected fluids until it is emptied.

FEATURES

• Direct fitment with no drilling required
• Large 10AN ORB inlet and outlet ports
• 4AN ORB drain port
• 2-step oil separation baffling
• O-ring sealed dipstick
• 7 fluid ounce capacity
• Patented Fluid Lock system

COLLECTION & EMPTYING

The rate that your catch cans will collect oil and moisture contaminants will vary from one individual vehicle to the next, so there is no set emptying interval. PCV catch cans tend to collect more than CCV catch cans. You should check the level of your catch can using the integrated dipstick starting at 3-4 weeks of driving and repeat as needed to determine how often they should be emptied based on what you see.

Catch cans can be emptied by unscrewing the lower reservoir and removing it from the vehicle to dump out, or in cases where there is available space under the catch can, the Petcock Drain Kit can be installed and used to drain them.

In cases where oil collection is excessive you may have to address an issue with the engine. The reasons a catch can will collect an excess of oil include

• Excessive blowby from engine damage
• Crankcase windage from an over-full oil level
• Poor placement of breather ports and/or poor baffling inside breather ports
• PCV valve not closing and leaking under heavy load

20-0073-FL CATCH CAN KIT, BMW E46 M3, FLUID LOCK COMPATIBILITY 00-06 BMW E46 M3 (LHD only) 03-04 BMW E46 M3 CSL (LHD only) The catch can mounts in the RH compartment of the engine bay near the firewall. Thus, it is not compatible with RHD models. It is compatible with early models where the ABS module is mounted in this compartment. It is also compatible with later models that have a secondary PCV system. INCLUDES Billet aluminum oil catch can with integrated dipstick Laser cut anodized E46 specific mounting bracket Anodized aluminum 10AN hose ends and adapter fittings Enough 10AN (5/8"") PCV hose to work with modified vehicles Stainless steel mounting hardware and hose clamps

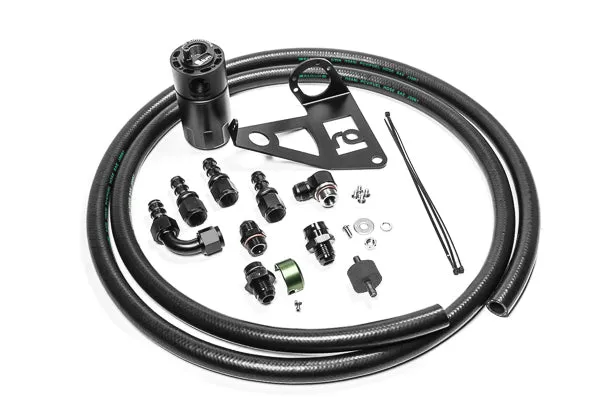

20-0873-FL CATCH CAN KIT, BMW E46 3-SERIES, FLUID LOCK COMPATIBILITY 98-06 BMW E46 320i (LHD only) 98-00 BMW E46 323i (LHD only) 01-06 BMW E46 325i (LHD only) 98-00 BMW E46 328i (LHD only) 00-06 BMW E46 330i (LHD only) 03-06 BMW E46 330i ZHP (LHD only) The catch can mounts in the RH compartment of the engine bay near the firewall. Thus, it is not compatible with RHD models. It is compatible with early models where the ABS module is mounted in this compartment. INCLUDES Billet aluminum oil catch can with integrated dipstick Laser cut anodized E46 specific mounting bracket Anodized aluminum 10AN hose ends and adapter fittings Anodized aluminum V2 quick connect 10AN adapter fittings Enough 10AN (5/8"") PCV hose to work with modified vehicles Stainless steel mounting hardware and hose clamps
