Note: Includes new PSR Bolt On RHD compatible mounting bracket and hardware.

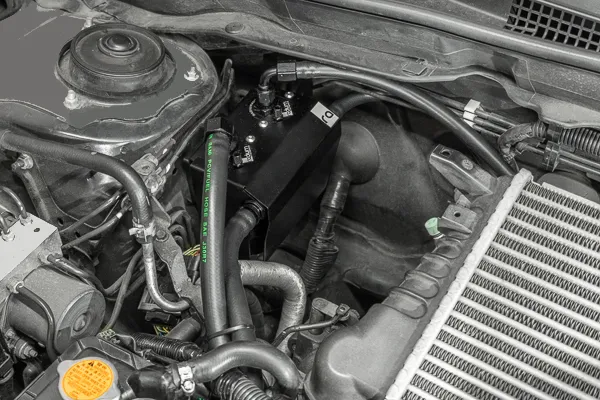

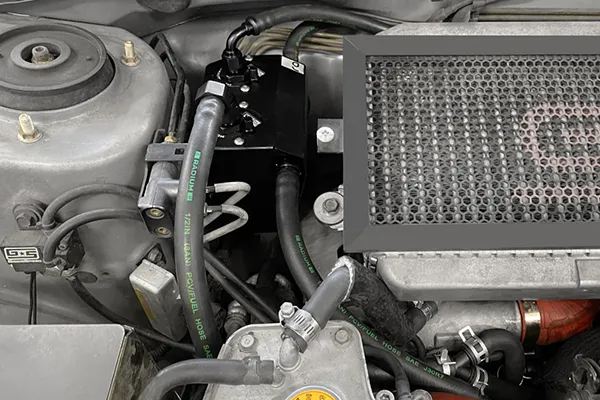

RHD Mounting Bracket Notes:

• Included heat shield may need to be modified for RHD position depending on surrounding engine bay components, or this can simply be left off.
• Spacers are included to allow clearance of the surrounding fuel lines and wiring.
• Supplied hoses/fittings from certain catch can/AOS kits may not be sufficient to install their product in this new location. Additional hoses/fittings may be required and sourced separately. For example, some cans may only include straight fittings where 90-degree fittings will work best.
• For 01-07 Vehicles: Cable-Throttle Models with Cruise Control will need the PSR cruise control relocation bracket (sold separately).
• For 08-14 WRX and 08-21 STI Vehicles: Factory bracket for the engine wiring harness plug is removed. For 08-14 Vehicles this plug will need to be cable tied out of the way. For 15+ STI the OEM bracket can be mounted upside down and the plug reinstalled in a new position.

An oil catch can is essential for engine protection from elevated levels of crankcase blow-by oil that accumulate during aggressive driving. Excess oil saturated air circulating back into the air intake stream can lead to degraded performance by depositing oil on the inside of the induction system, intercooler, intake manifold, etc. Radium Engineering catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick.

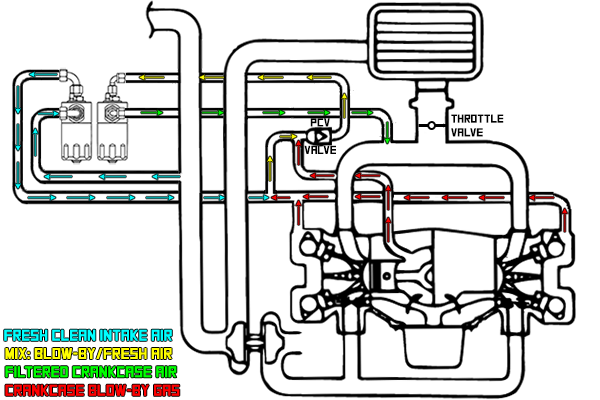

This kit contains two independent catch cans, each plumbed into different parts of the PCV system. The cans do NOT vent to atmosphere (VTA), and instead maintain the factory plumbing strategy. This closed-loop system routes clean filtered air back in through the engine promoting negative crankcase pressure for optimal performance. Furthermore, closed loop systems prevent unwanted oil vapors from being detected in the cabin.

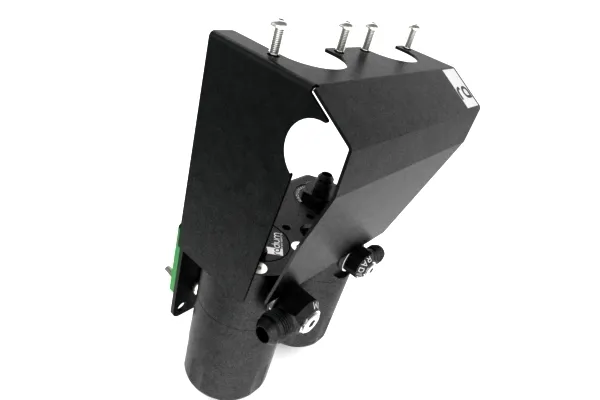

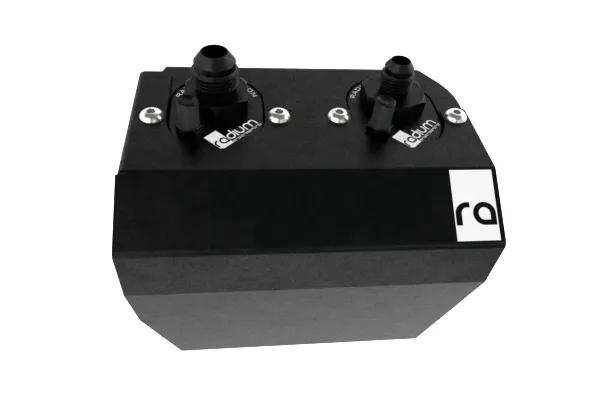

An aluminum heat shield is provided to prevent radiant exhaust temperatures from disturbing the oil condensation process. Furthermore, removing the 4 heat shield bolts makes catch can servicing simple and straight forward.

Catch cans must be maintained and emptied on a regular basis. The frequency will depend on how much sludge is collected which varies from vehicle to vehicle. For a maintenance-free solution, consider the Radium AOS-R.
