Description

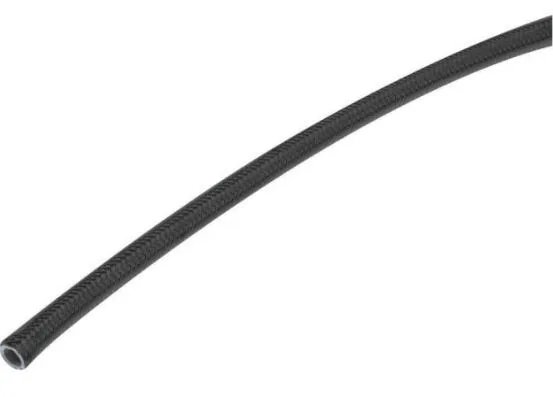

Raceworks 230 Series Teflon Black Braided Hose is constructed from a PTFE (Teflon) inner tube that is compatible with all fuels, oils, nitrous including brake and clutch fluids. The PTFE (Teflon) tube has an outer cover that is durable, and resistant to abrasion and expansion. The Raceworks 230 Series Hose is the best option for use on fuel systems as it won’t allow the permeation of fuel smell, and has the highest pressure and temperature rating in the range of Raceworks hoses. All Raceworks products come with a 2 year warranty.



Long lengths (greater than 10M) can be specially ordered. Please enquire with your Raceworks Dealer.





Temperature Range: -70°C to 250°C. Ethanol & Methanol Safe





Specifications

  • Operating Pressure: 2000psi
  • Burst Pressure: 7000psi
  • Inside Diameter: 13/32"/10.5mm
  • Outside Diameter: 17/32"/13.3mm
  • Weight: 140g
  • Bend Radius: 1-7/8"/48mm

Compatibility

  • Universal Part

Raceworks 230 Series Teflon Black Braided Hose is constructed from a PTFE (Teflon) inner tube that is compatible with all fuels, oils, nitrous including brake and clutch fluids. The PTFE (Teflon) tube has an outer cover that is durable, and resistant to abrasion and expansion. The Raceworks 230 Series Hose is the best option for use on fuel systems as it won’t allow the permeation of fuel smell, and has the highest pressure and temperature rating in the range of Raceworks hoses. All Raceworks products come with a 2 year warranty.



Long lengths (greater than 10M) can be specially ordered. Please enquire with your Raceworks Dealer.





Temperature Range: -70°C to 250°C. Ethanol & Methanol Safe





  • Operating Pressure: 2000psi
  • Burst Pressure: 7000psi
  • Inside Diameter: 13/32"/10.5mm
  • Outside Diameter: 17/32"/13.3mm
  • Weight: 140g
  • Bend Radius: 1-7/8"/48mm
  • Universal Part
