Description

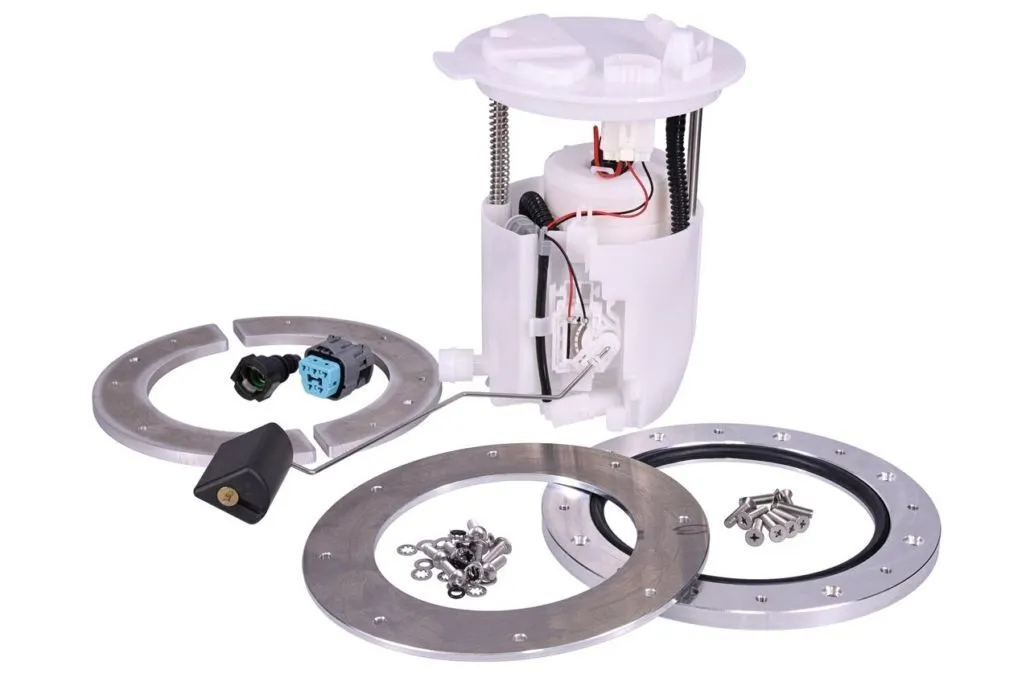

Raceworks Bolt In VE MRA Conversion Kit (Returnless). Suitable for bolting into any tank. Dead Head style system. 4 Bar (60psi) Fuel Pressure regulator built into MRA. Spring loaded to ensure that it sits on the bottom of the fuel tank, suitable for tanks 155mm to 180mm High. Pump suitable for up to 500hp.

Specifications:

  • Fuel Level sender resistance: 40-250 Ohms
  • Flow rate: 115LPH @ 4 Bar (9A)
  • Includes: Bolt on ring, Half moon rings, countersunk screws, top clamp aluminium ring, fuel safe seal, 3/8" Quick Disconnect to barb Fitting and Electrical Connector

All Raceworks products come with a 2 year warranty.

Manufacturer Part Number: FSA-517

Specifications

  • Includes VE Commodore MRA (Module Reservoir Assembly)
  • Suitable for retrofitting into a old tank
  • Dead end 4bar system (60psi)
  • Fuel Pressure regulator built into MRA
  • Includes Aluminium Top Clamp Ring, Lower Ring, Half Moon Rings for installation inside the tank, which are retianed with included Countersunk screws. Stainless cap screws and seals, fuel safe seal, 3/8" Quick Disconnect to barb Fittings and Electrical Connector
  • Suitable for tanks 155mm to 180mm High
  • Spring loaded to ensure that it sits on the bottom of the fuel tank
  • Fuel Level sender resistance – 40-250 Ohms
  • Fuel Pump flows 115LPH @ 4bar with a 9A Current Draw

Compatibility

  • Universal Part
Raceworks Bolt In VE MRA Conversion Kit (Returnless). Suitable for bolting into any tank. Dead Head style system. 4 Bar (60psi) Fuel Pressure regulator built into MRA. Spring loaded to ensure that it sits on the bottom of the fuel tank, suitable for tanks 155mm to 180mm High. Pump suitable for up to 500hp.

Specifications:

  • Fuel Level sender resistance: 40-250 Ohms
  • Flow rate: 115LPH @ 4 Bar (9A)
  • Includes: Bolt on ring, Half moon rings, countersunk screws, top clamp aluminium ring, fuel safe seal, 3/8" Quick Disconnect to barb Fitting and Electrical Connector

All Raceworks products come with a 2 year warranty.

Manufacturer Part Number: FSA-517

  • Includes VE Commodore MRA (Module Reservoir Assembly)
  • Suitable for retrofitting into a old tank
  • Dead end 4bar system (60psi)
  • Fuel Pressure regulator built into MRA
  • Includes Aluminium Top Clamp Ring, Lower Ring, Half Moon Rings for installation inside the tank, which are retianed with included Countersunk screws. Stainless cap screws and seals, fuel safe seal, 3/8" Quick Disconnect to barb Fittings and Electrical Connector
  • Suitable for tanks 155mm to 180mm High
  • Spring loaded to ensure that it sits on the bottom of the fuel tank
  • Fuel Level sender resistance – 40-250 Ohms
  • Fuel Pump flows 115LPH @ 4bar with a 9A Current Draw
  • Universal Part
