Description

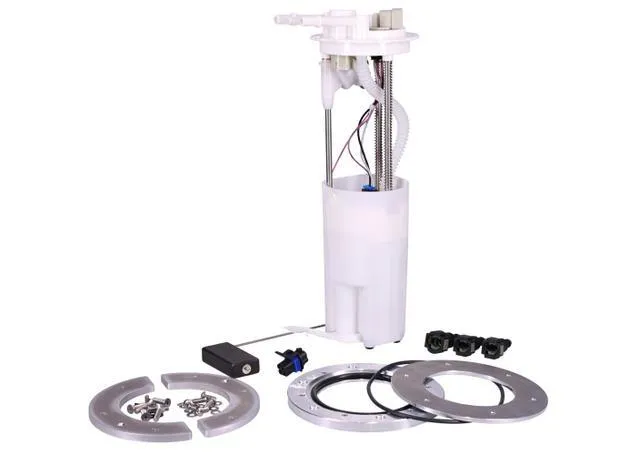

Bolts In VX MRA Conversion Kit Returnless Style

Specifications

  • Includes VX Commodore MRA (Module Reservoir Assembly)
  • Suitable for retrofitting into a old tank
  • Dead end 4bar system (60psi)
  • Fuel Pressure regulator built into MRA
  • Includes Aluminium Top Clamp Ring, Lower Ring, Half Moon Rings for installation inside the tank, which are retianed with included Countersunk screws. Stainless cap screws and seals, fuel safe seal, 3/8" and 5/16" Quick Disconnect to barb Fittings and Electrical Connector
  • Suitable for tanks 255mm to 310mm High
  • Spring loaded to ensure that it sits on the bottom of the fuel tank
  • Fuel Level sender resistance – 39-246 Ohms
  • Fuel Pump flows 160LPH @ 4bar with an 8A Current Draw

Compatibility

  • Universal Part

Bolts In VX MRA Conversion Kit Returnless Style

  • Includes VX Commodore MRA (Module Reservoir Assembly)
  • Suitable for retrofitting into a old tank
  • Dead end 4bar system (60psi)
  • Fuel Pressure regulator built into MRA
  • Includes Aluminium Top Clamp Ring, Lower Ring, Half Moon Rings for installation inside the tank, which are retianed with included Countersunk screws. Stainless cap screws and seals, fuel safe seal, 3/8" and 5/16" Quick Disconnect to barb Fittings and Electrical Connector
  • Suitable for tanks 255mm to 310mm High
  • Spring loaded to ensure that it sits on the bottom of the fuel tank
  • Fuel Level sender resistance – 39-246 Ohms
  • Fuel Pump flows 160LPH @ 4bar with an 8A Current Draw
  • Universal Part
