Description

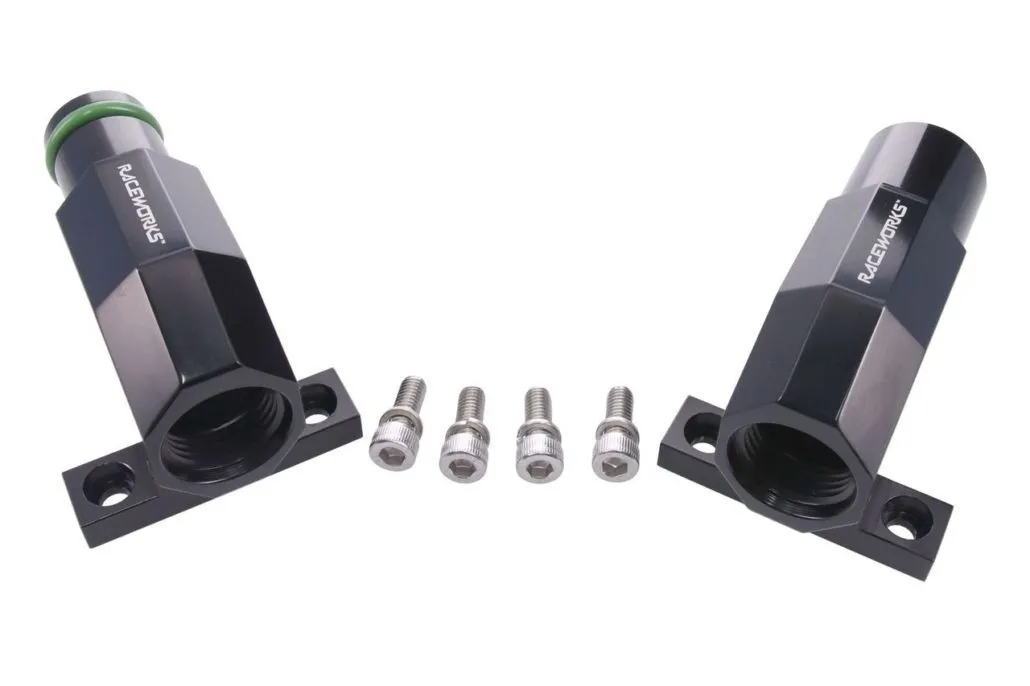

New from Raceworks is a clever Flex Sensor bypsass fitting. This allows an Ethanol sensor to be integrated into the high pressure fuel feed hose before the engine without impeding fuel flow. Fuel enters via one side of the fitting via an AN-10 ORB fitting and then diverts some of the fuel through the Flex sensor but allowing the majority of the fuel to continue through without a drop in pressure. The two channels meet and exit via another AN-10 ORB fitting on the other side.

Can be used in conjunction with the Raceworks ALY-151BK Billet Flex Sensor mounting bracket.

These brackets have been carefully machined from high grade 6061-T6 aluminium and feature a stylish and durable black anodised finish.

All Raceworks products come with a 2 year warranty.

Specifications

  • AN-10 ORB. Facilitates the use of a flex sensor in a high hp application, removing the restriction in the fuel line.
  • Allows fuel to flow through the sensor, and through a bypass
  • Results in total flow equivalent to a AN-10 200 Series hose
  • Comes with mounting bolts, and self adhesive foam tape. The foam tape is used to absorb any variances in the port height moulded in the plastic body Continental sensor.

Compatibility

  • Universal Part

New from Raceworks is a clever Flex Sensor bypsass fitting. This allows an Ethanol sensor to be integrated into the high pressure fuel feed hose before the engine without impeding fuel flow. Fuel enters via one side of the fitting via an AN-10 ORB fitting and then diverts some of the fuel through the Flex sensor but allowing the majority of the fuel to continue through without a drop in pressure. The two channels meet and exit via another AN-10 ORB fitting on the other side.

Can be used in conjunction with the Raceworks ALY-151BK Billet Flex Sensor mounting bracket.

These brackets have been carefully machined from high grade 6061-T6 aluminium and feature a stylish and durable black anodised finish.

All Raceworks products come with a 2 year warranty.

  • AN-10 ORB. Facilitates the use of a flex sensor in a high hp application, removing the restriction in the fuel line.
  • Allows fuel to flow through the sensor, and through a bypass
  • Results in total flow equivalent to a AN-10 200 Series hose
  • Comes with mounting bolts, and self adhesive foam tape. The foam tape is used to absorb any variances in the port height moulded in the plastic body Continental sensor.
  • Universal Part
