Description

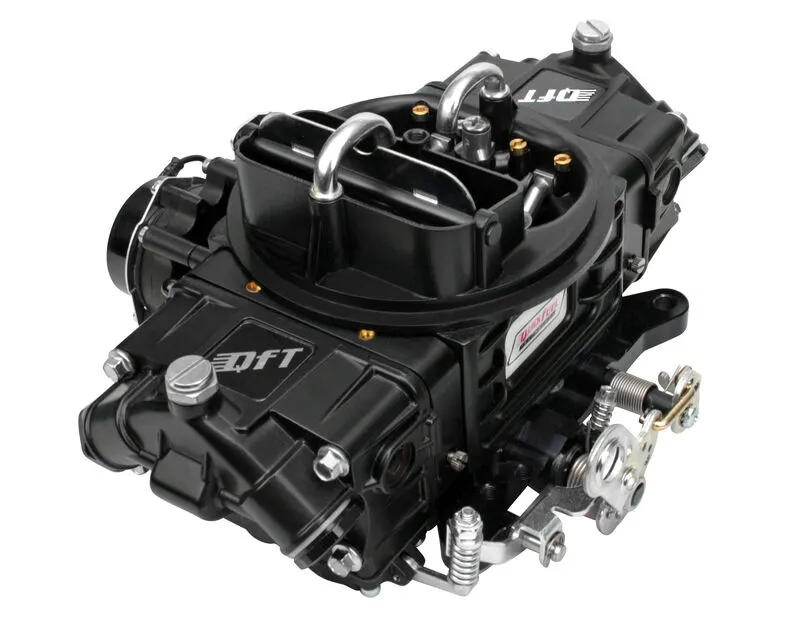

QFT brings its engineering expertise to the marine market. The M-Series feature billet-style metering blocks and throttle bodies for more precise performance and exceptional strength.

•Exclusive Black Diamond coating for enhanced corrosion protection and appearance, coating provides a 6% reduction in fuel temperature

•Electric choke - Fully adjustable, one wire hookup

•J tubes to prevent spillage

•PTFE-coated throttle shafts with PTFE bearing ribbons and stainless steel plates

•Built-in sight glass windows for easy float adjustment

•Changeable primary idle feed and power valve channel restrictions, plus changeable idle air and high speed bleeds

•QuickLink™ secondary adjustment for fast and easy changing of opening rates

•Available in eight different sizes from 350-1,050 cfm

Specifications

Barrel Quantity4
Barrels4
Billet ColourDiecast-No Billet
BoosterDown Leg
BrandQuick Fuel
Carburetor UseMarine
CFM650
ChokeElectric
Choke TypeElectric
Circuit2
ConditionNew
Cubic Feet Per Minute Rating650
Emission Code3
FinishBlack

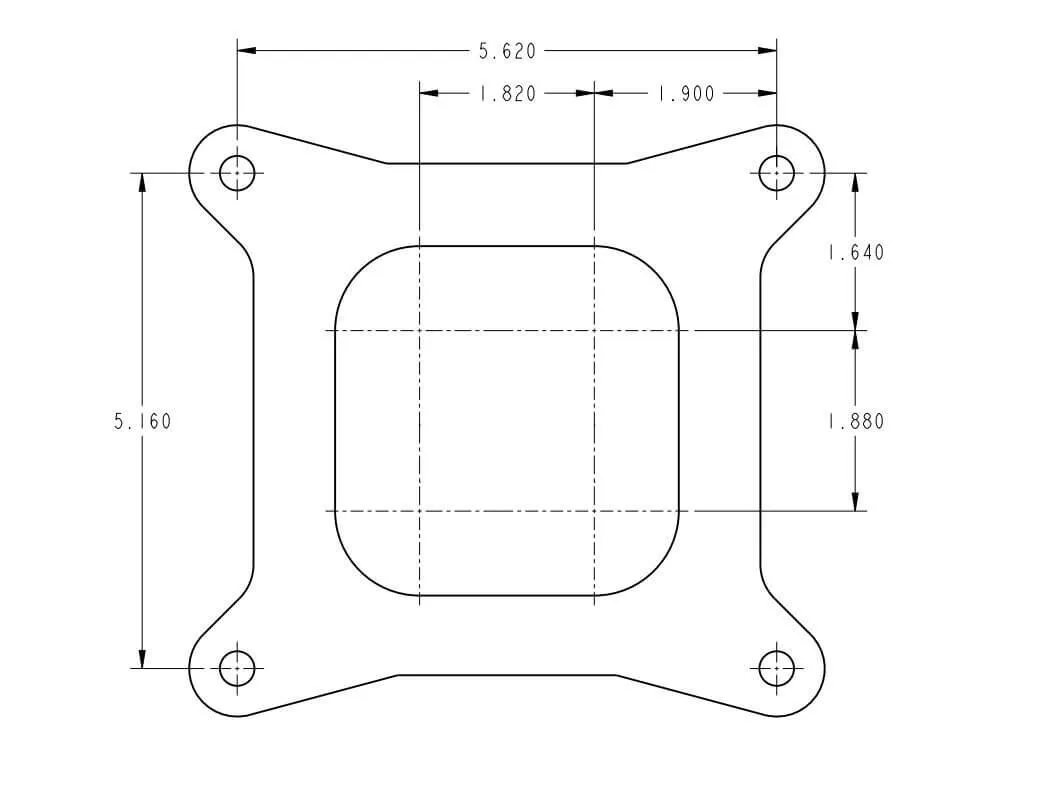

Flange TypeSquare/4150
FuelGasoline
Fuel SystemCarbureted
Gasket Or Seal IncludedYes
Grade TypePerformance
High Speed Air Bleed31
Idle Air Bleed Size70
Linkage AttachedYes
Marine Engine SizeUniversal
Marine UseYes
MaterialAluminum
Model4150
Primary Main Jet71
Primary Power Valve65
Primary Pump Nozzle Size32
Product TypeQuick Fuel Marine Carburetor
Sale CategoryCarburetors and Components
SecondariesMechanical
Secondary Main Jet78
Supercharged ApplicationNo
Throttle Bore1-11/16 inch
WarrantyLimited 90 Day

Compatibility

  • Universal Part

QFT brings its engineering expertise to the marine market. The M-Series feature billet-style metering blocks and throttle bodies for more precise performance and exceptional strength.

•Exclusive Black Diamond coating for enhanced corrosion protection and appearance, coating provides a 6% reduction in fuel temperature

•Electric choke - Fully adjustable, one wire hookup

•J tubes to prevent spillage

•PTFE-coated throttle shafts with PTFE bearing ribbons and stainless steel plates

•Built-in sight glass windows for easy float adjustment

•Changeable primary idle feed and power valve channel restrictions, plus changeable idle air and high speed bleeds

•QuickLink™ secondary adjustment for fast and easy changing of opening rates

•Available in eight different sizes from 350-1,050 cfm

Barrel Quantity4
Barrels4
Billet ColourDiecast-No Billet
BoosterDown Leg
BrandQuick Fuel
Carburetor UseMarine
CFM650
ChokeElectric
Choke TypeElectric
Circuit2
ConditionNew
Cubic Feet Per Minute Rating650
Emission Code3
FinishBlack
Flange TypeSquare/4150
FuelGasoline
Fuel SystemCarbureted
Gasket Or Seal IncludedYes
Grade TypePerformance
High Speed Air Bleed31
Idle Air Bleed Size70
Linkage AttachedYes
Marine Engine SizeUniversal
Marine UseYes
MaterialAluminum
Model4150
Primary Main Jet71
Primary Power Valve65
Primary Pump Nozzle Size32
Product TypeQuick Fuel Marine Carburetor
Sale CategoryCarburetors and Components
SecondariesMechanical
Secondary Main Jet78
Supercharged ApplicationNo
Throttle Bore1-11/16 inch
WarrantyLimited 90 Day
  • Universal Part
