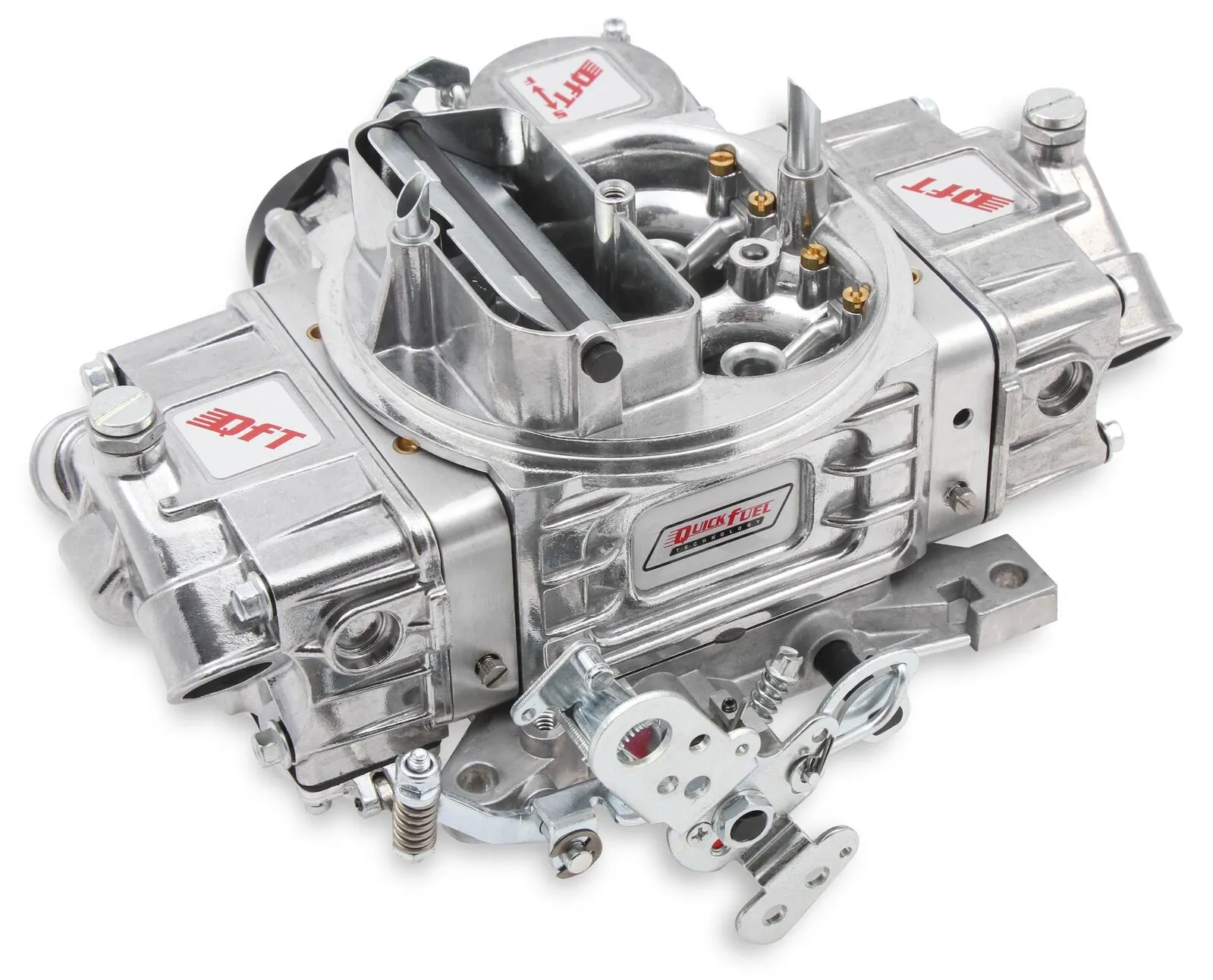

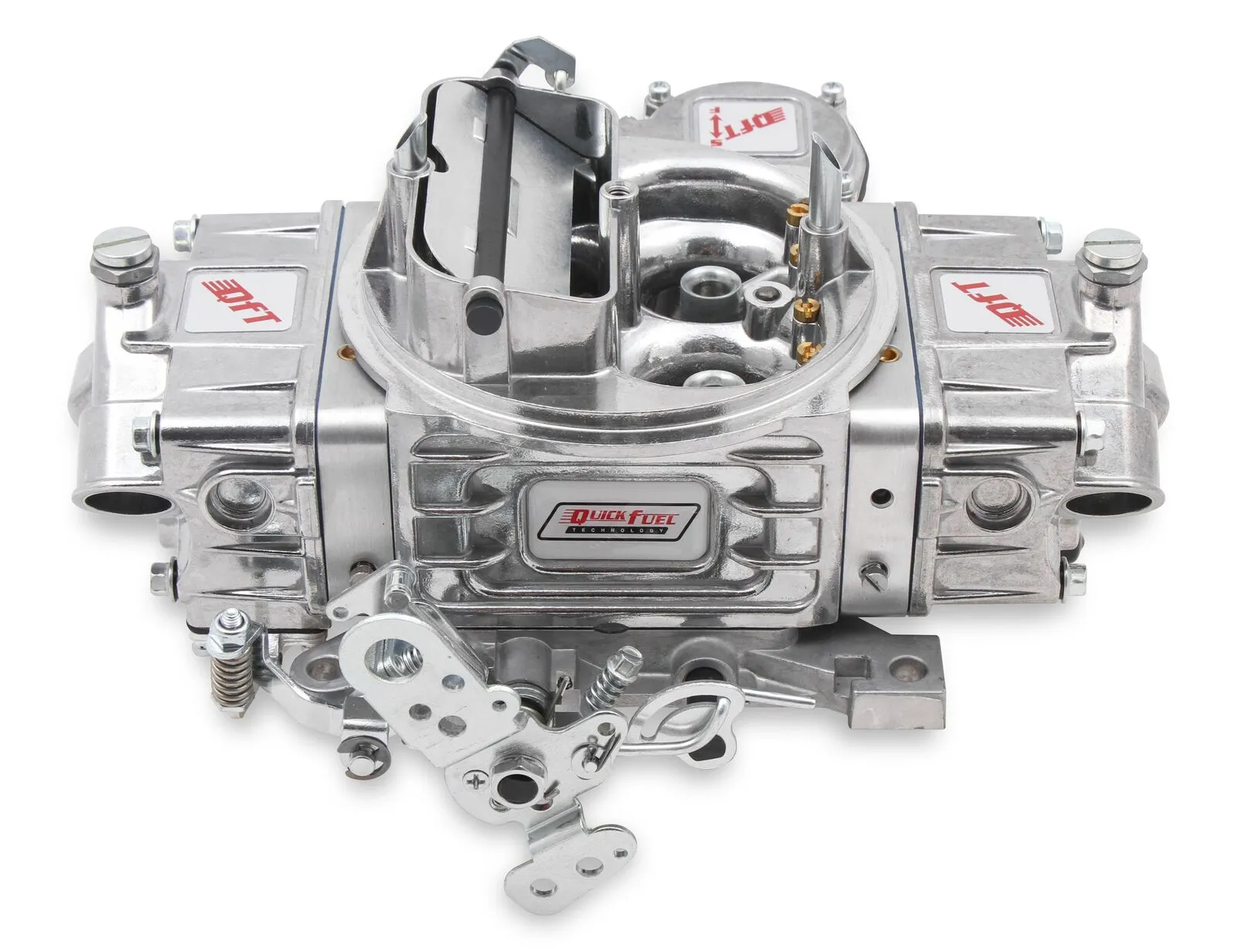

Quick Fuel Technology HR-780-VS HR-Series Carburetor 780CFM VS 780 CFM - 4150

Parts Experts
Fast Shipping
Aussie Owned
Best Prices

Choose Your Car

Your Car

Find Your Part Clear Vehicle

Filter Search Results

Filter by Categories

Filter by Brand

Filter by Price

Description

The HR-780-VS is now NHRA approved for use in Stock and Super Stock Eliminator! Featuring lightweight die-cast aluminum components, the HR-Series offer all the tunability you would expect from more expensive racing carburetors, including changeable bleeds, idle feed, power valve channel restrictions, and four-corner idle. Hot Rod Series carburetors feature electric chokes and dual metering blocks for added performance.

Features

Built with the same dimensions and specs of the original counterparts and guidelines set by the NHRA rulebook
Can be used in place of hard to find and expensive Holley O.E. carbs that are competition legal per class

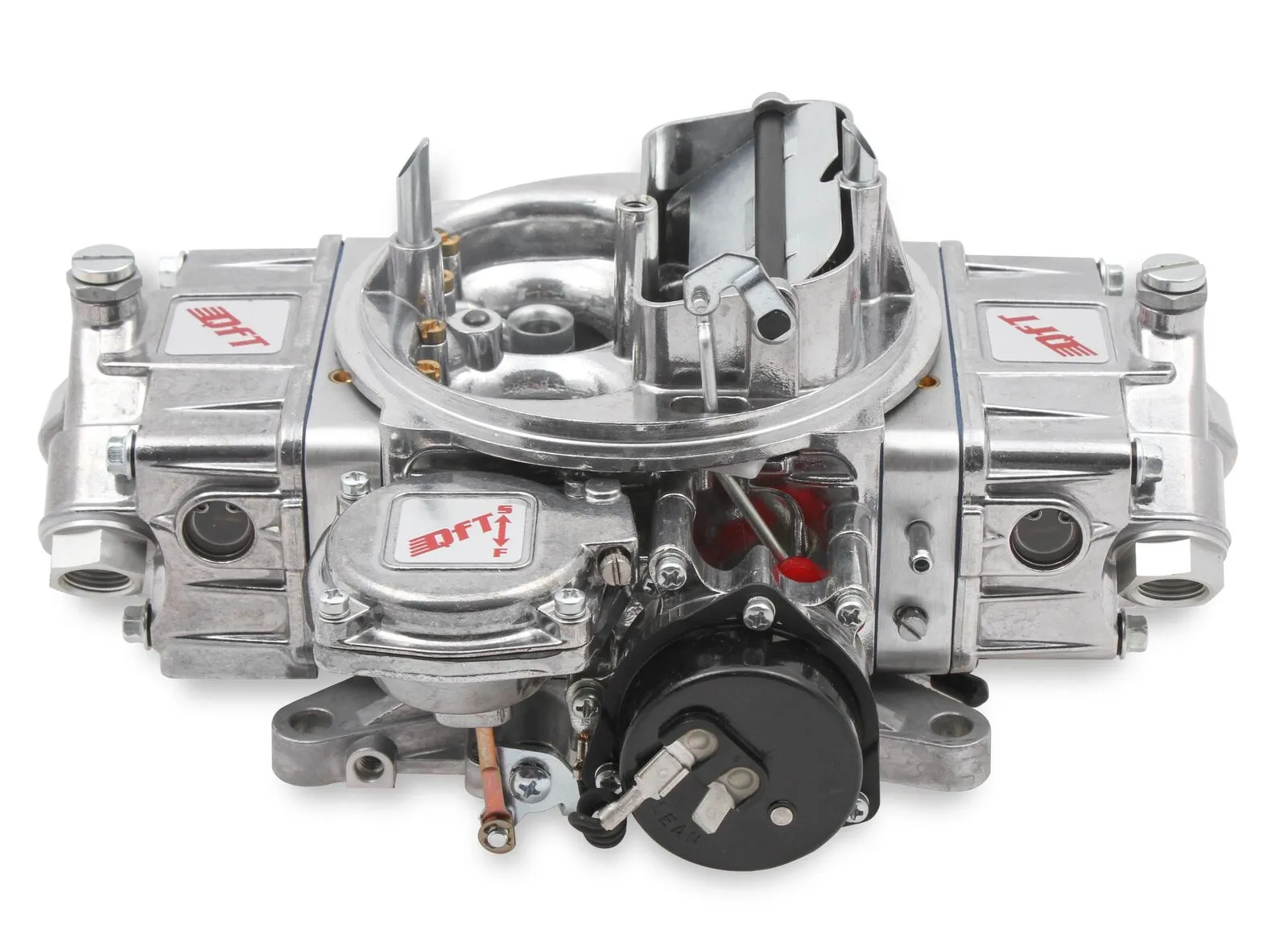

All models feature a fully adjustable electric choke for easy starting
Dual metering blocks w/4-corner idle for smooth and efficient idle quality
Screw-in air bleeds and idle feed restrictions for quick and unsurpassed tuning capability

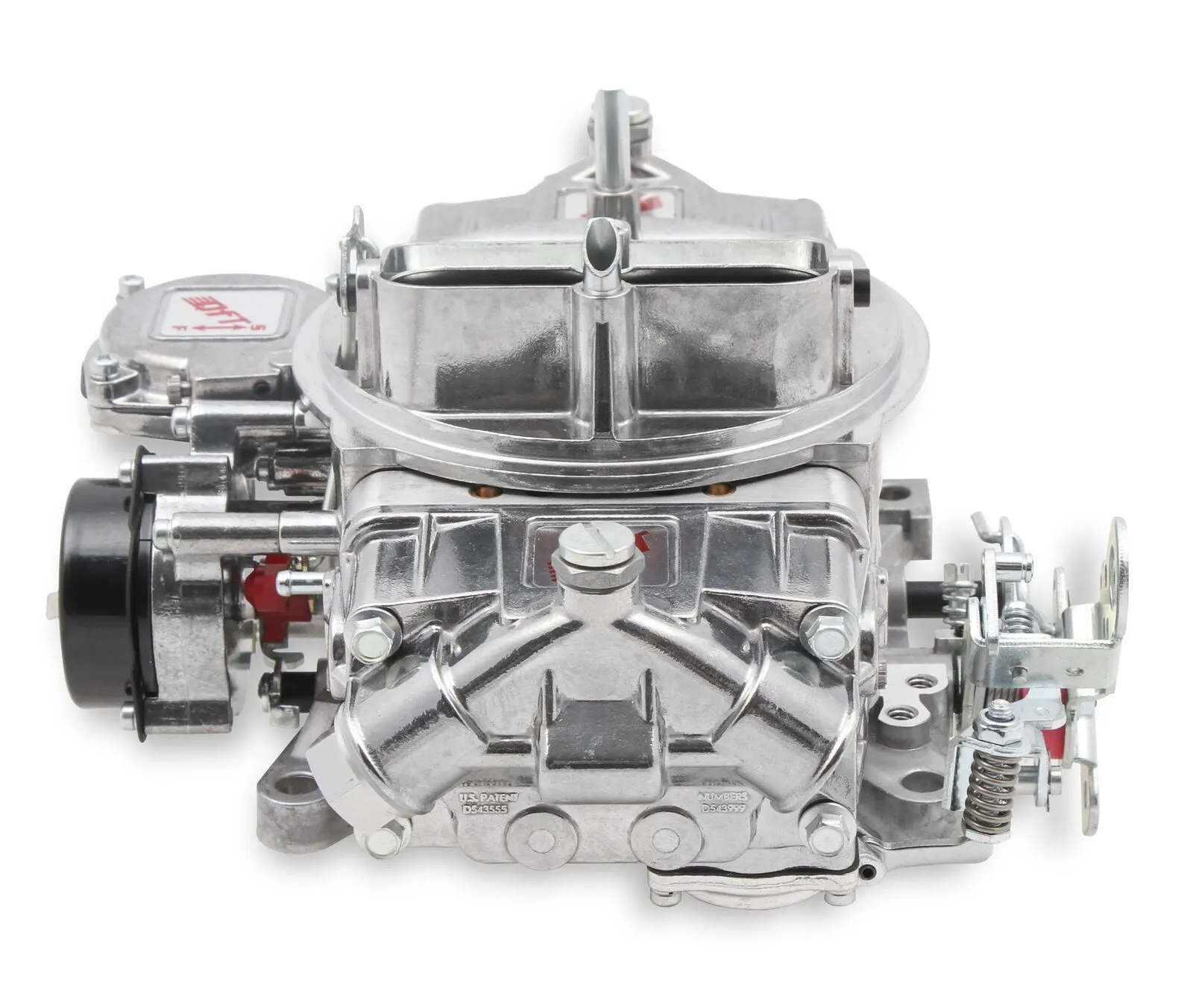

Dual inlet fuel bowls with sight glass windows on both fuel bowls for safe and easy float adjustment

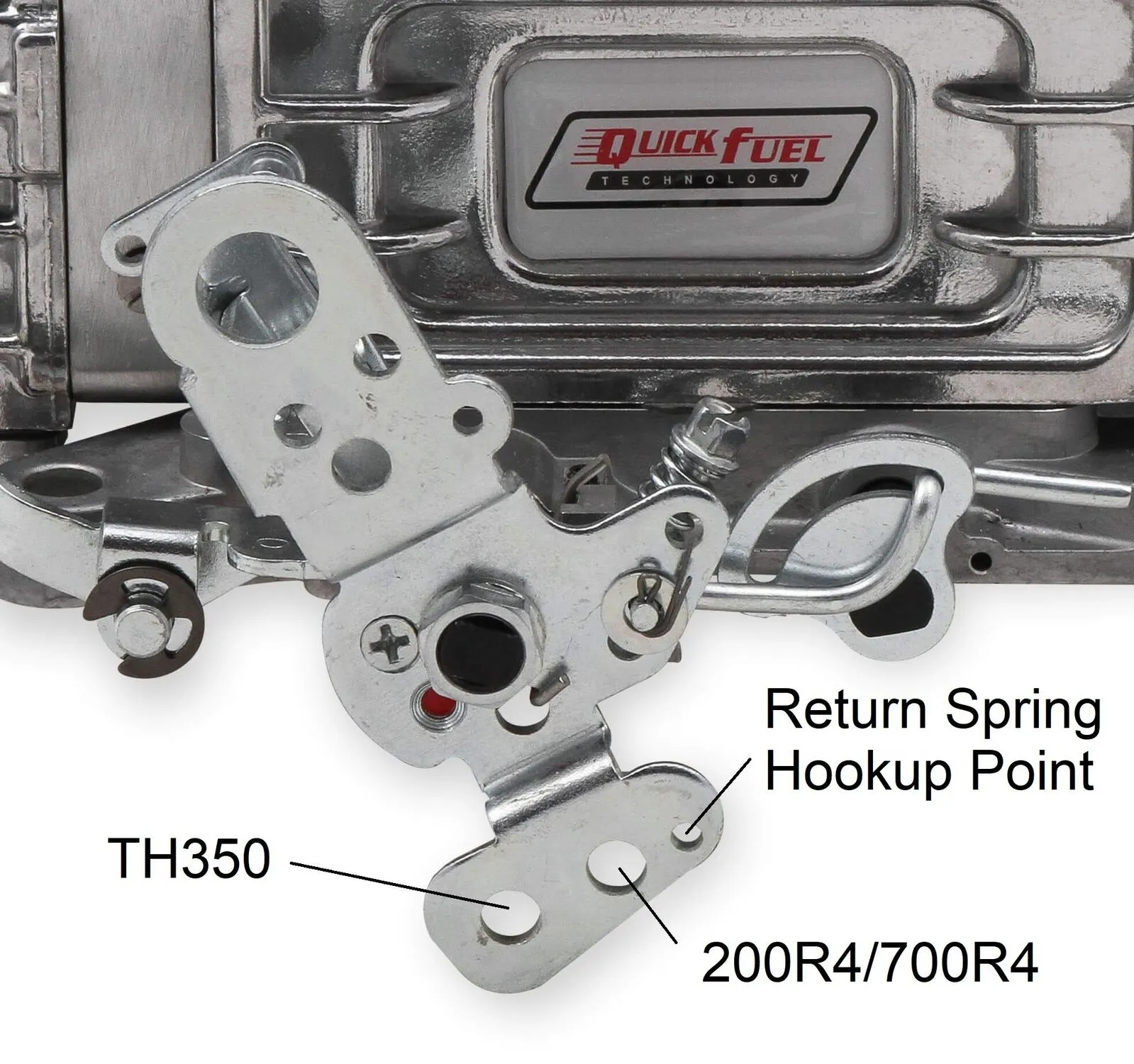

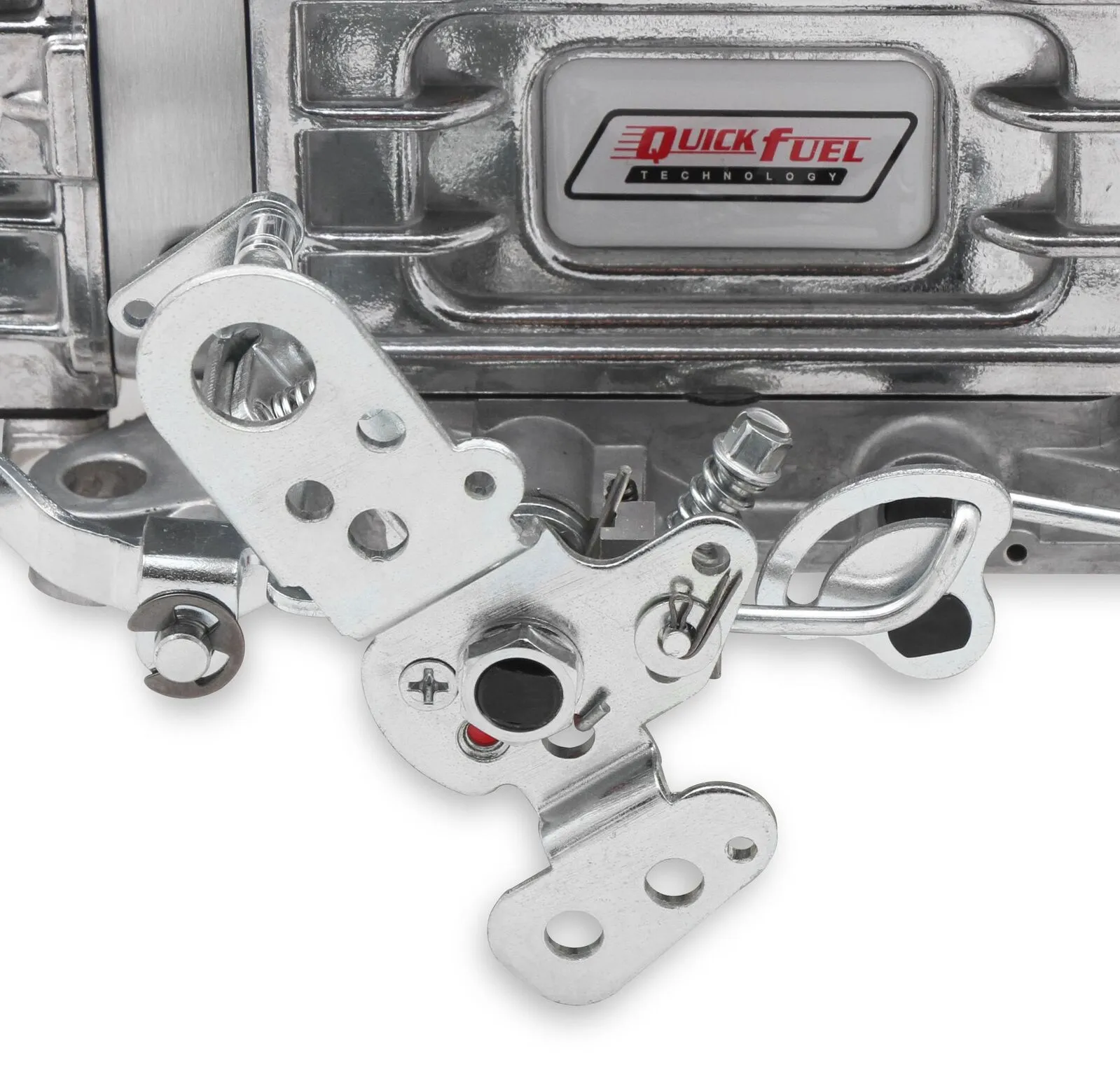

Universal throttle lever with sealed throttle shafts for years of smooth operation
Tuneable secondary opening rate
Tumble polished for long lasting shine

Specifications

Barrel Quantity	4
Barrels	4
Billet Colour	Diecast-No Billet
Booster	Down Leg
Brand	Quick Fuel
Carburetor Use	Street
CFM	780
Choke	Electric
Choke Type	Electric
Circuit	2
Condition	New
Cubic Feet Per Minute Rating	780
Emission Code	3
Finish	Shiny

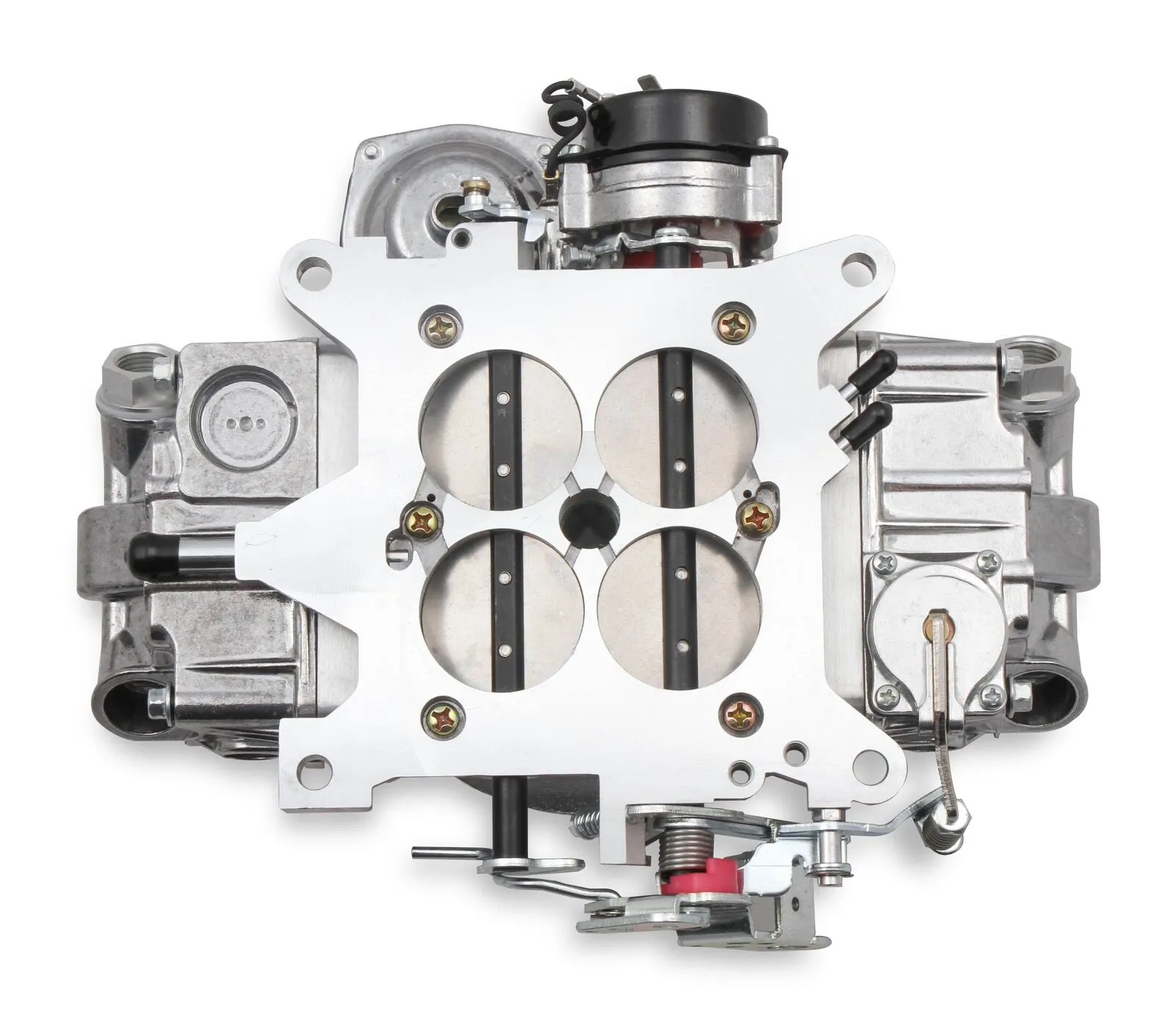

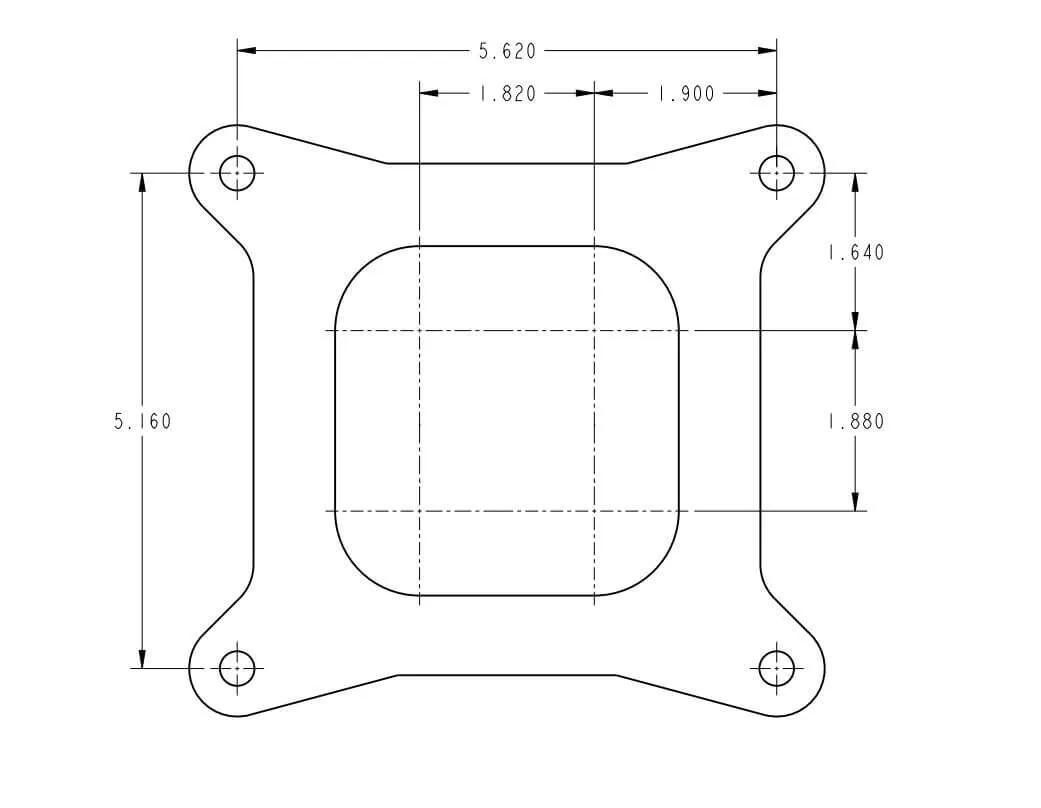

Flange Type	Square/4150
Fuel	Gasoline
Fuel System	Carbureted

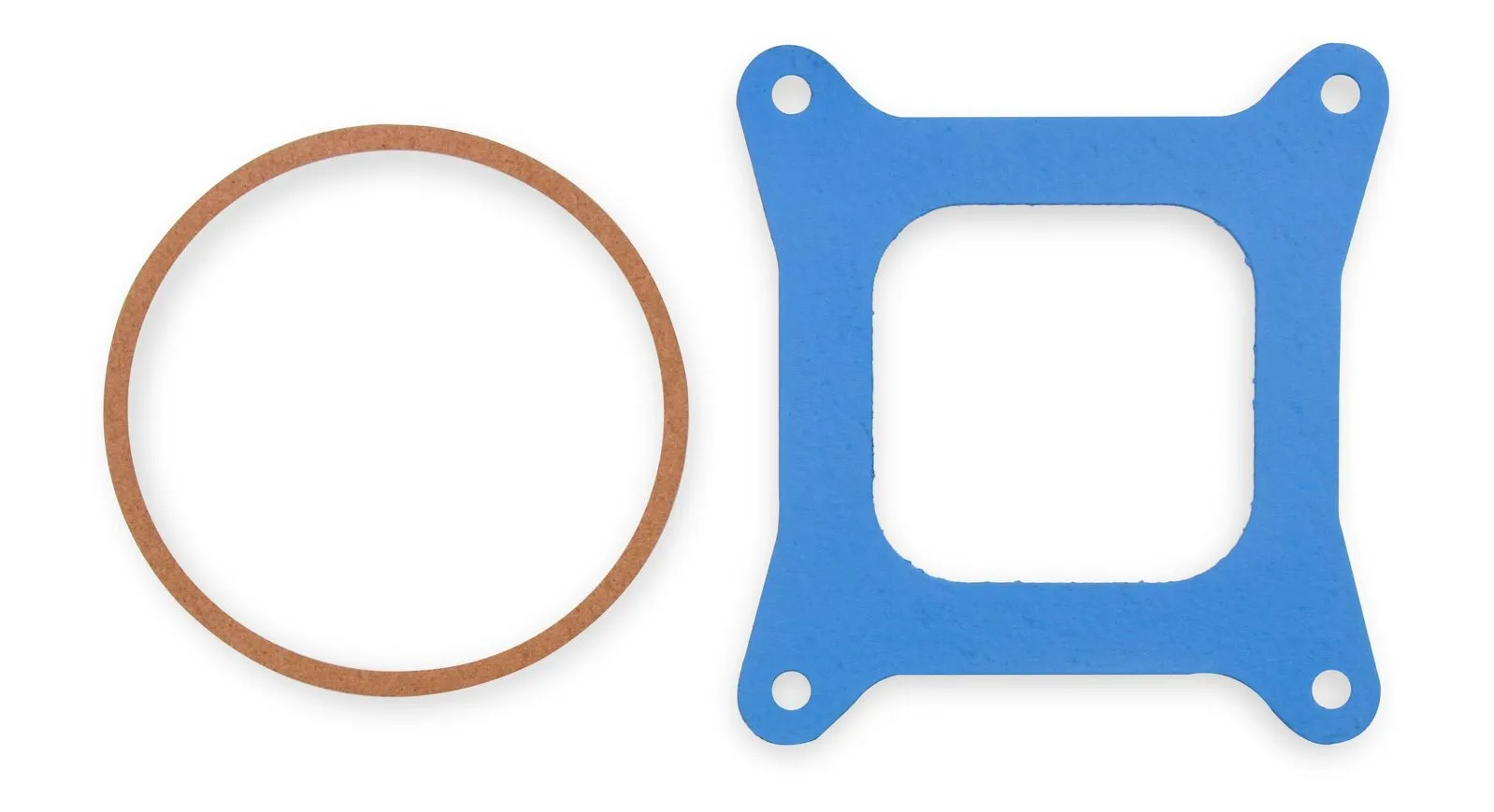

Gasket Or Seal Included	Yes
Grade Type	Performance
High Speed Air Bleed	31
Idle Air Bleed Size	70
Linkage Attached	Yes
Marine Use	No
Material	Aluminum
Model	HR-Series
Primary Main Jet	72
Primary Power Valve	65
Primary Pump Nozzle Size	31
Product Type	Carburetor
Sale Category	Carburetors and Components
Secondaries	Vacuum
Secondary Main Jet	83
Supercharged Application	No
Throttle Bore	1-11/16 inch
Warranty	Limited 90 Day

Compatibility

Universal Part

Description
Specifications

Features

Built with the same dimensions and specs of the original counterparts and guidelines set by the NHRA rulebook
Can be used in place of hard to find and expensive Holley O.E. carbs that are competition legal per class
All models feature a fully adjustable electric choke for easy starting
Dual metering blocks w/4-corner idle for smooth and efficient idle quality
Screw-in air bleeds and idle feed restrictions for quick and unsurpassed tuning capability
Dual inlet fuel bowls with sight glass windows on both fuel bowls for safe and easy float adjustment
Universal throttle lever with sealed throttle shafts for years of smooth operation
Tuneable secondary opening rate
Tumble polished for long lasting shine

Barrel Quantity	4
Barrels	4
Billet Colour	Diecast-No Billet
Booster	Down Leg
Brand	Quick Fuel
Carburetor Use	Street
CFM	780
Choke	Electric
Choke Type	Electric
Circuit	2
Condition	New
Cubic Feet Per Minute Rating	780
Emission Code	3
Finish	Shiny
Flange Type	Square/4150
Fuel	Gasoline
Fuel System	Carbureted
Gasket Or Seal Included	Yes
Grade Type	Performance
High Speed Air Bleed	31
Idle Air Bleed Size	70
Linkage Attached	Yes
Marine Use	No
Material	Aluminum
Model	HR-Series
Primary Main Jet	72
Primary Power Valve	65
Primary Pump Nozzle Size	31
Product Type	Carburetor
Sale Category	Carburetors and Components
Secondaries	Vacuum
Secondary Main Jet	83
Supercharged Application	No
Throttle Bore	1-11/16 inch
Warranty	Limited 90 Day

Universal Part
