Description

  • Dual Ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion
  • 9 Blade PTG-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
  • 9 Blade PTG-Aero Inconel 713c Turbine Wheel

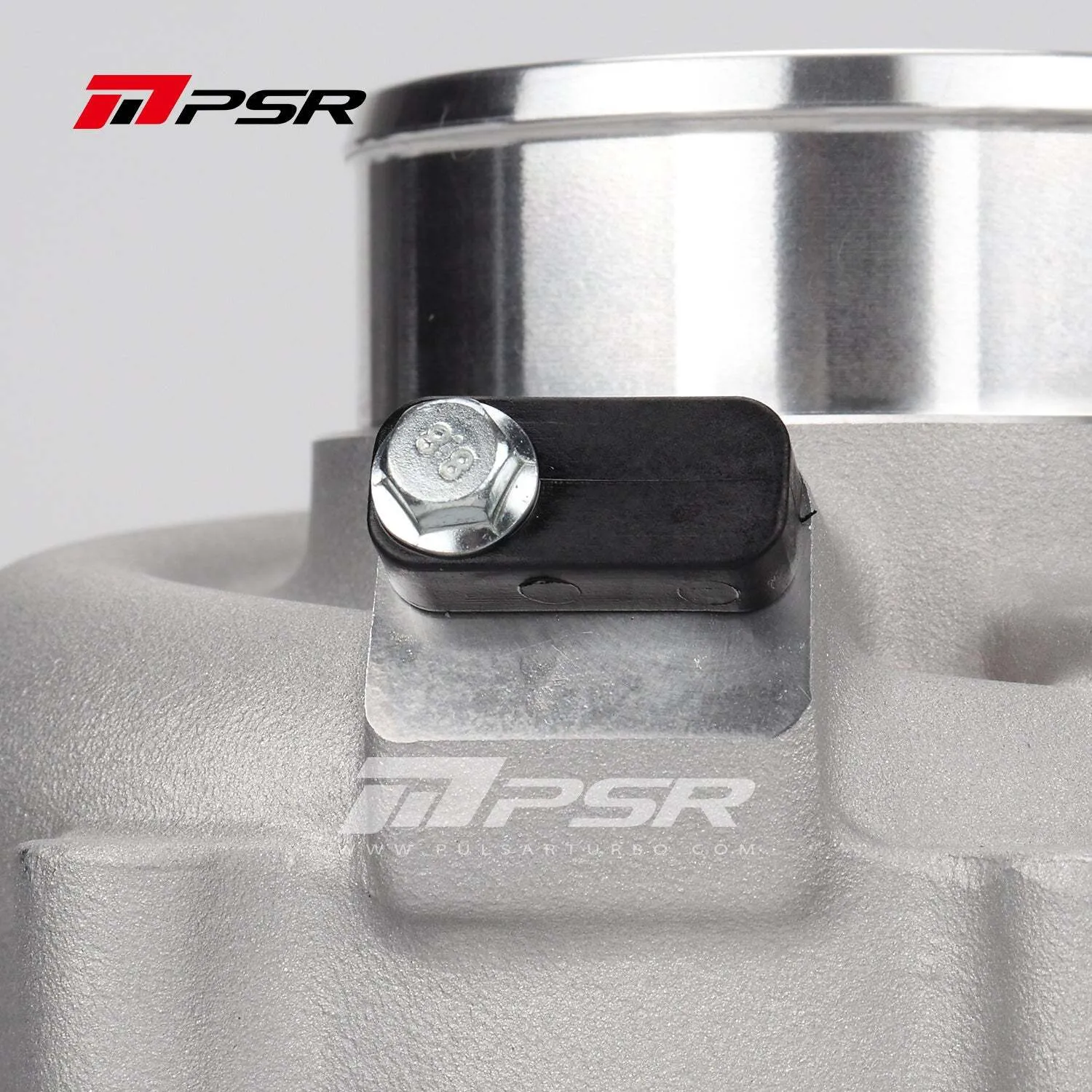

  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
  • Internally Wastegated, Billet Actuator(12-14 psi)
  • Compressor Wheel: 48*60mm
  • Turbine Wheel: 54*49mm
  • Compressor Inlet: 3? Hose
  • Compressor Outlet: 2? Hose
  • Turbine Inlet: 2.5? V-Band
  • Turbine Outlet: 3? V-Band
  • Water Ports: -6AN
  • Oil Feed: -4AN to the Oil Restrictor
  • Oil Drain: Std T3 Oil Drain Flange

Specifications

Compatibility

  • Universal Part
  • Dual Ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion
  • 9 Blade PTG-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
  • 9 Blade PTG-Aero Inconel 713c Turbine Wheel
  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
  • Internally Wastegated, Billet Actuator(12-14 psi)
  • Compressor Wheel: 48*60mm
  • Turbine Wheel: 54*49mm
  • Compressor Inlet: 3? Hose
  • Compressor Outlet: 2? Hose
  • Turbine Inlet: 2.5? V-Band
  • Turbine Outlet: 3? V-Band
  • Water Ports: -6AN
  • Oil Feed: -4AN to the Oil Restrictor
  • Oil Drain: Std T3 Oil Drain Flange
  • Universal Part
