Description

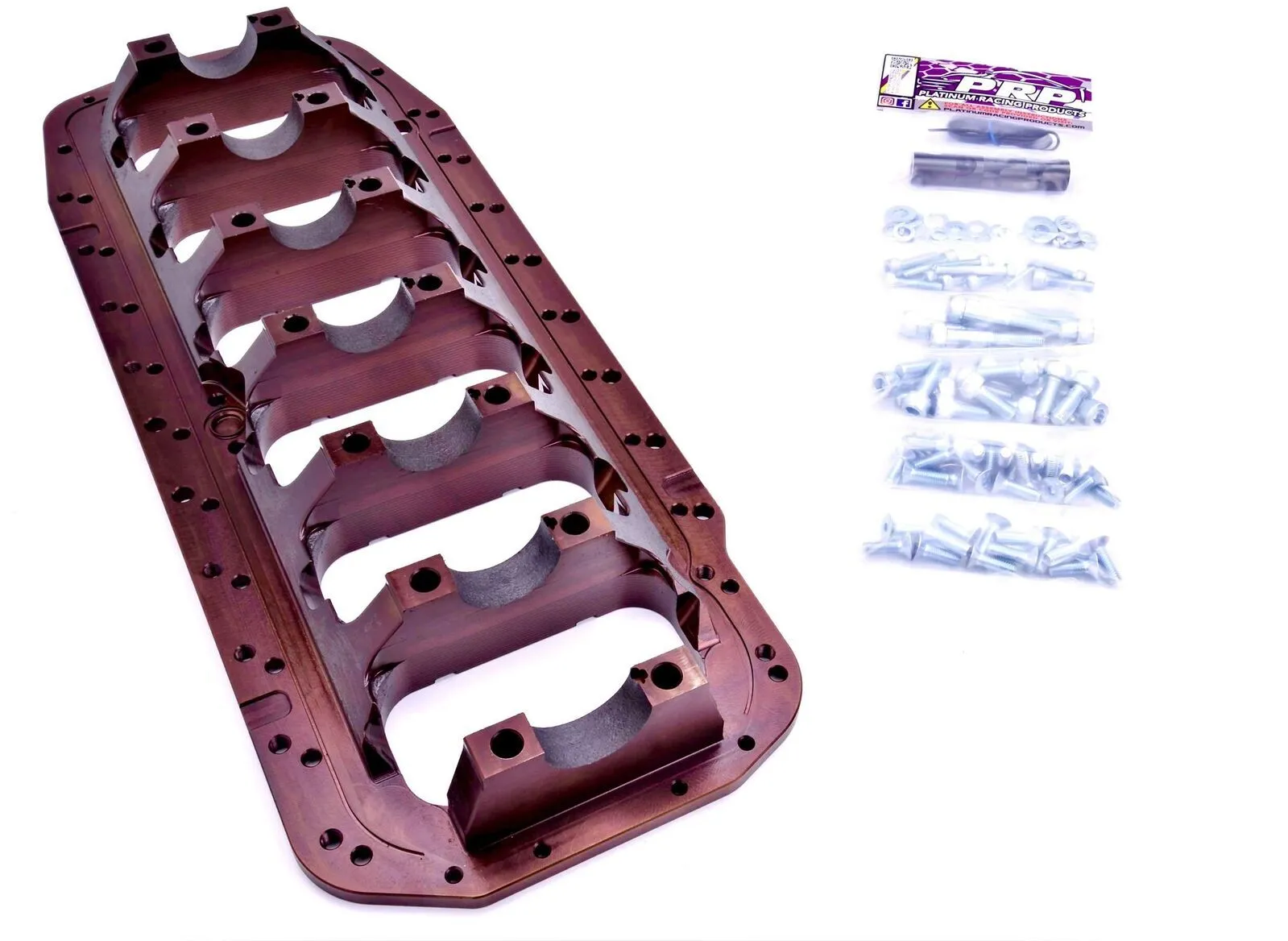

We are proud to release this long-awaited masterpiece, all in 1 Latest revision 4, Ductile Cast CNC machined Integrated Main cap Brace that now utilises everything we have learnt and all evolution of our standard OEM overlay brace but this time we have included billet main caps and incorporated the block brace itself in a one-piece unit! As you know, block twist is the major factor contributing to blocks cracking where our standard original brace has helped immensely! You have heard or tried billet main caps, which do not offer block twist protection at all, they are also hard to pin down and stop them floating (near impossible)

The usual billet main cap is also usually too hard, the harder the better you would think! WRONG, hard singular main caps do not absorb or disperse energy and shock, it bounces it straight back into the crank and con rods, and unless you are running alloy rods, your bearing and rotating assemblies life is actually diminished, a connected main cap brace offers a ton of positives, including energy and shock disbursement, much better twist protection, and no chance of main cap movement, even less chance of cracking the main cap.

So with all the real data and testing, we have done over the last 10 years with our braces we figured it was time to release our latest brace creation in iron, available for both the RB26 and RB30 configurations.

*This brace is for the serious racers here, it’s aimed at 1000hp plus applications, although there is no issue running this big block of precision manufactured equipment in your everyday cruiser.

*This brace has excellent thermal expansion properties closely matched to your OEM Cast Iron block, with less machine work than our typical standard overlay braces. * 12mm or 1/2 inch bolt upgrade is required, Tunnel Bore is also required (as all blocks with aftermarket bolts are required)

 *Brace comes with bolt kit in any of the 4WD/ 2WD configurations for the RB25/ 26 type 4WD, and the RB30/28/25 RWD blocks and you can convert them all to 4WD or 2WD with the right chosen bolt kit supplied.

*Block face is O-ring aided for ease of sealing. The brace is blackened (surface treated) for corrosion tolerance.

RB25 RB26 OEM 4WD Block Main Cap Integrated Cradle 4WD (PRECIMC26-4WD)

RB26 Block Main Cap Integrated Cradle 2WD (PRECIMC26-2WD)

RD28 RB30 Wet & Dry Sump Block Main Cap Integrated Cradle 4WD (PRECIMC30-4WD)

RD28 RB30 Wet & Dry Sump Block Main Cap Integrated Cradle 2WD (PRECIMC30-2WD)

 ANY QUESTIONS PLEASE ASK!

Specifications

*This brace is for the serious racers here, it’s aimed at 1000hp plus applications, although there is no issue running this big block of precision manufactured equipment in your everyday cruiser.

*This brace has excellent thermal expansion properties closely matched to your OEM Cast Iron block, with less machine work than our typical standard overlay braces. * 12mm or 1/2 inch bolt upgrade is required, Tunnel Bore is also required (as all blocks with aftermarket bolts are required)

 *Brace comes with bolt kit in any of the 4WD/ 2WD configurations for the RB25/ 26 type 4WD, and the RB30/28/25 RWD blocks and you can convert them all to 4WD or 2WD with the right chosen bolt kit supplied.

*Block face is O-ring aided for ease of sealing. The brace is blackened (surface treated) for corrosion tolerance.

Compatibility

  • RB25 RB26

We are proud to release this long-awaited masterpiece, all in 1 Latest revision 4, Ductile Cast CNC machined Integrated Main cap Brace that now utilises everything we have learnt and all evolution of our standard OEM overlay brace but this time we have included billet main caps and incorporated the block brace itself in a one-piece unit! As you know, block twist is the major factor contributing to blocks cracking where our standard original brace has helped immensely! You have heard or tried billet main caps, which do not offer block twist protection at all, they are also hard to pin down and stop them floating (near impossible)

The usual billet main cap is also usually too hard, the harder the better you would think! WRONG, hard singular main caps do not absorb or disperse energy and shock, it bounces it straight back into the crank and con rods, and unless you are running alloy rods, your bearing and rotating assemblies life is actually diminished, a connected main cap brace offers a ton of positives, including energy and shock disbursement, much better twist protection, and no chance of main cap movement, even less chance of cracking the main cap.

So with all the real data and testing, we have done over the last 10 years with our braces we figured it was time to release our latest brace creation in iron, available for both the RB26 and RB30 configurations.

*This brace is for the serious racers here, it’s aimed at 1000hp plus applications, although there is no issue running this big block of precision manufactured equipment in your everyday cruiser.

*This brace has excellent thermal expansion properties closely matched to your OEM Cast Iron block, with less machine work than our typical standard overlay braces. * 12mm or 1/2 inch bolt upgrade is required, Tunnel Bore is also required (as all blocks with aftermarket bolts are required)

 *Brace comes with bolt kit in any of the 4WD/ 2WD configurations for the RB25/ 26 type 4WD, and the RB30/28/25 RWD blocks and you can convert them all to 4WD or 2WD with the right chosen bolt kit supplied.

*Block face is O-ring aided for ease of sealing. The brace is blackened (surface treated) for corrosion tolerance.

RB25 RB26 OEM 4WD Block Main Cap Integrated Cradle 4WD (PRECIMC26-4WD)

RB26 Block Main Cap Integrated Cradle 2WD (PRECIMC26-2WD)

RD28 RB30 Wet & Dry Sump Block Main Cap Integrated Cradle 4WD (PRECIMC30-4WD)

RD28 RB30 Wet & Dry Sump Block Main Cap Integrated Cradle 2WD (PRECIMC30-2WD)

 ANY QUESTIONS PLEASE ASK!

  • RB25 RB26
