Description

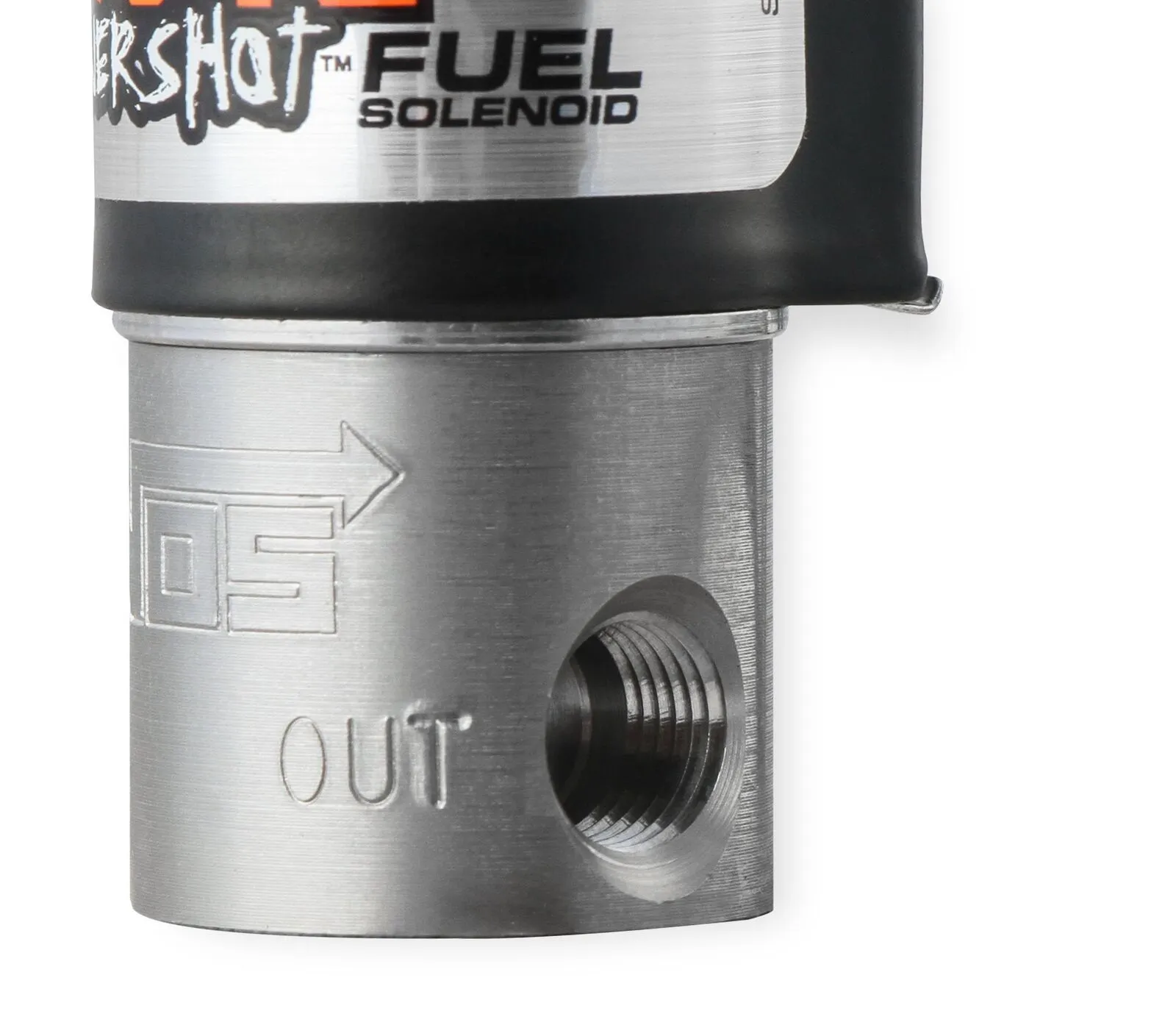

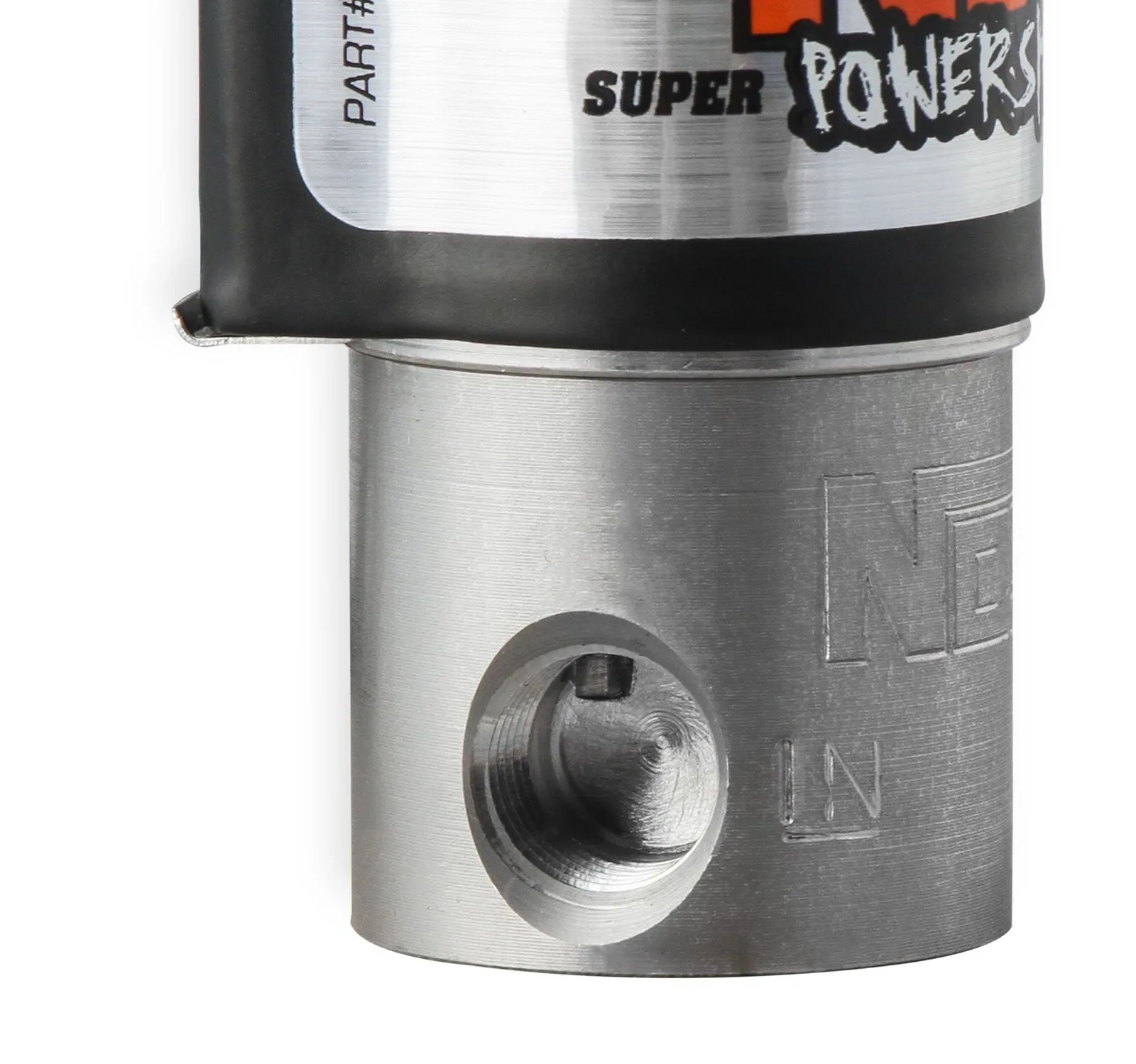

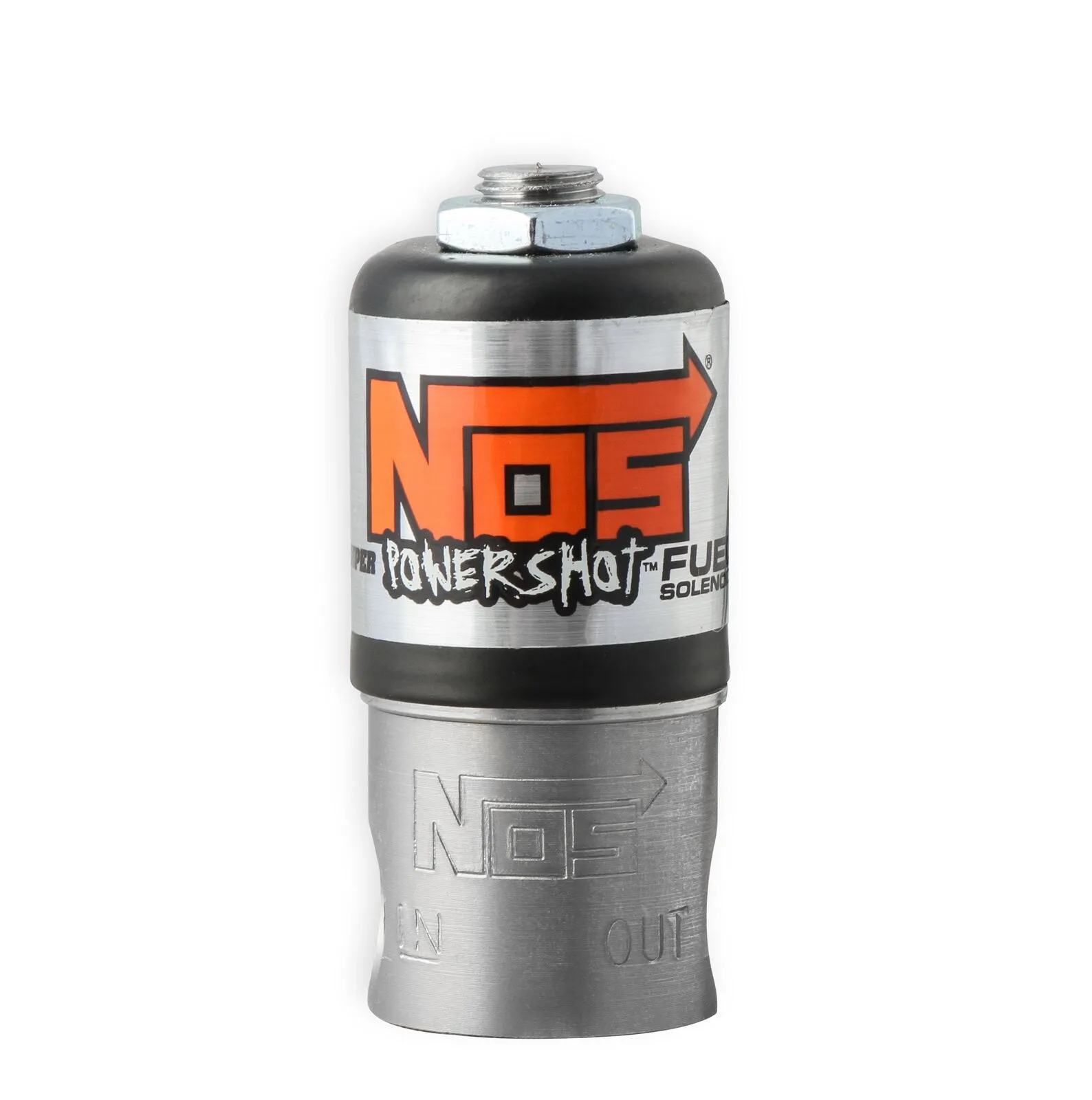

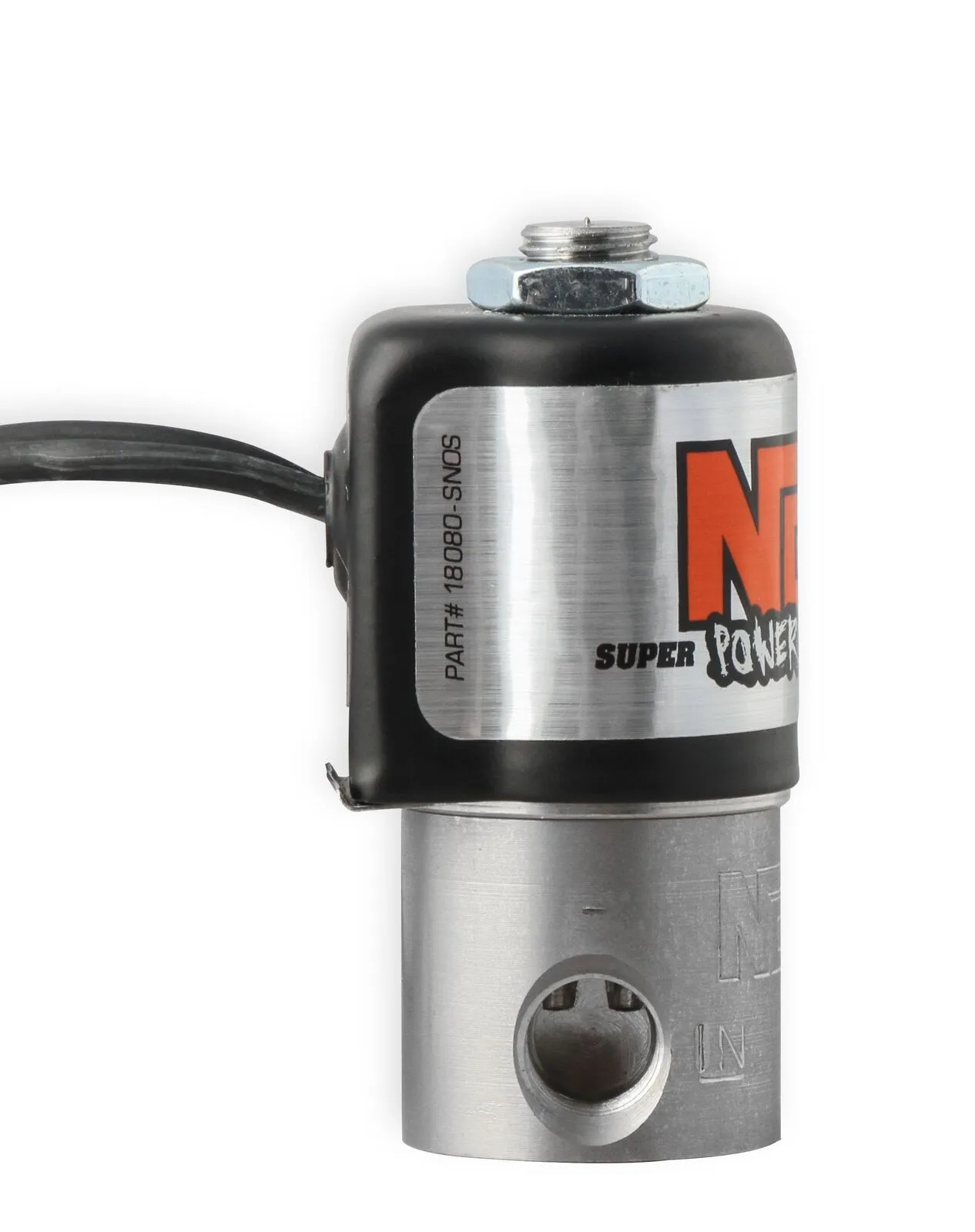

NOS Powershot solenoids have been the standard in the performance and racing world for years and are designed for optimum flow and operation. These solenoids feature a black powder coated housing for good looks and large orifice sizes. All NOS solenoids feature stainless steel bases with the NOS logo along with in/out stamped in so you know it is a quality NOS solenoid.

Features

  • Inlet Size - 1/8" NPT
  • Outlet Size - 1/8" NPT
  • Outlet Location - side
  • Orifice - 0.125"
  • Plunger - Fluorocarbon (FKM) Rubber Plunger
  • Current Draw @12VDC - .6 amps
  • Up to 200 HP
  • Supports up to 200 HP
  • Black Powder Coated Cover

Specifications

AMP DRAW0.6A
Bracket(s) IncludedNo
BrandNOS
ColourBlack
Emission Code4
FinishNatural
Fittings IncludedNo
InletSide
Inlet AttachmentFemale Threads
Inlet Thread1/8" NPT
MaterialStainless Steel
Max Horsepower200
Orifice1/8" (0.125")
OutletSide
Outlet AttachmentFemale Threads
Outlet Thread1/8" NPT
Plunger MaterialFluorocarbon Rubber (FKM)
Product LinePowershot
Product TypeFuel Solenoid
Purge Port
Solenoid Top Cover ColourBlack

Compatibility

  • Universal Part

NOS Powershot solenoids have been the standard in the performance and racing world for years and are designed for optimum flow and operation. These solenoids feature a black powder coated housing for good looks and large orifice sizes. All NOS solenoids feature stainless steel bases with the NOS logo along with in/out stamped in so you know it is a quality NOS solenoid.

Features

  • Inlet Size - 1/8" NPT
  • Outlet Size - 1/8" NPT
  • Outlet Location - side
  • Orifice - 0.125"
  • Plunger - Fluorocarbon (FKM) Rubber Plunger
  • Current Draw @12VDC - .6 amps
  • Up to 200 HP
  • Supports up to 200 HP
  • Black Powder Coated Cover
AMP DRAW0.6A
Bracket(s) IncludedNo
BrandNOS
ColourBlack
Emission Code4
FinishNatural
Fittings IncludedNo
InletSide
Inlet AttachmentFemale Threads
Inlet Thread1/8" NPT
MaterialStainless Steel
Max Horsepower200
Orifice1/8" (0.125")
OutletSide
Outlet AttachmentFemale Threads
Outlet Thread1/8" NPT
Plunger MaterialFluorocarbon Rubber (FKM)
Product LinePowershot
Product TypeFuel Solenoid
Purge Port
Solenoid Top Cover ColourBlack
  • Universal Part
