Description

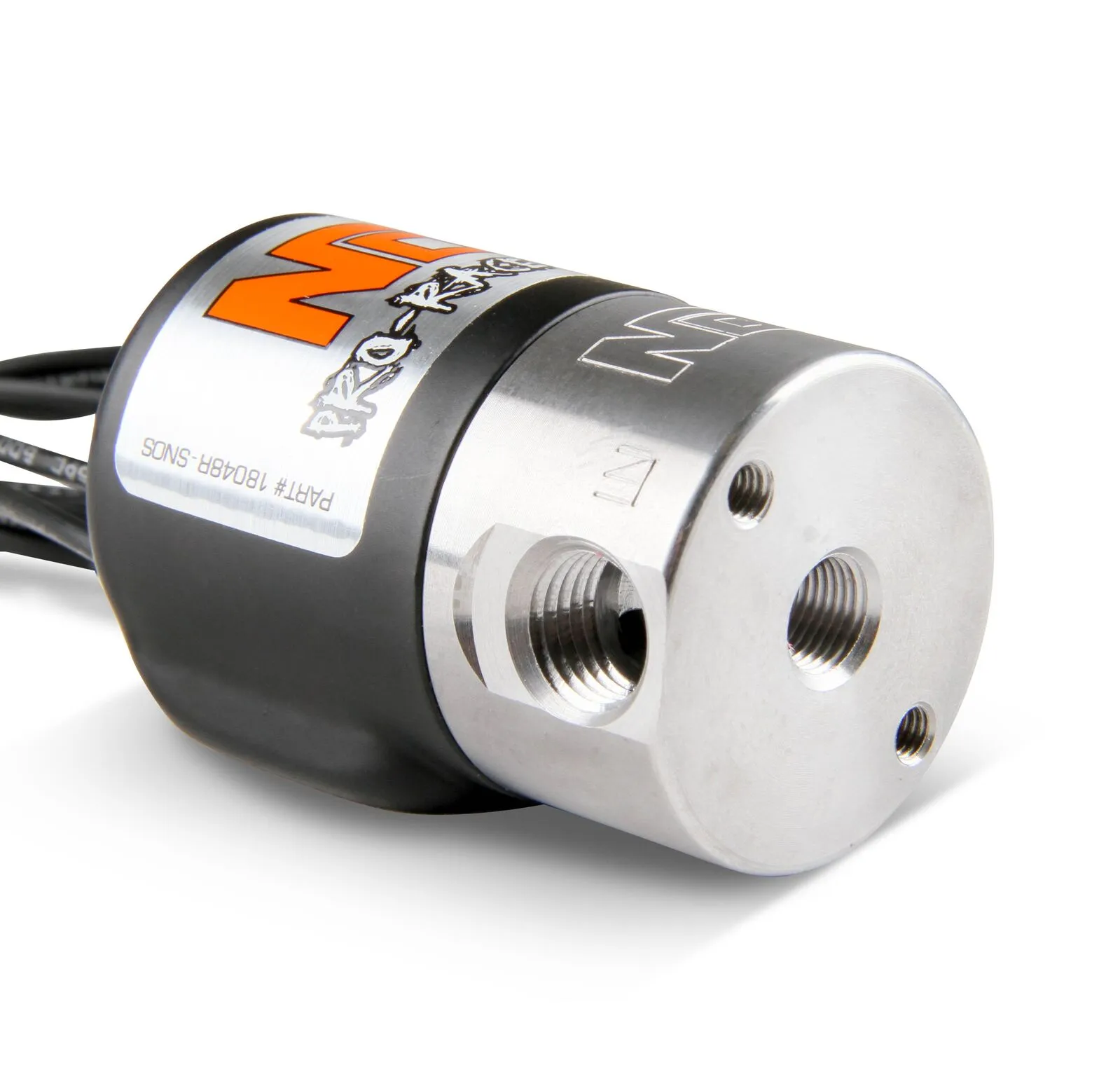

NOS bottom exit Pro-Race nitrous and fuel solenoids gives you the flexibility for mounting options in various positions. They are available with black or red powder coated top housing. All of our solenoids feature large orifice sizes for great flow. Our nitrous solenoids have a PTFE plunger puck material for durability while our fuel solenoids have FKM rubber plunger pucks for durability and sealing. All NOS solenoids feature stainless steel bases with the NOS logo along with in/out stamped in so you know it is a quality NOS solenoid.

Features

  • Inlet Size - 1/4" NPT
  • Inlet Location - Side
  • Outlet Size - 1/8" NPT
  • Outlet Location - Bottom
  • Orifice - 1/8" (0.125")
  • Purge Port - 1/8" NPT
  • Plunger - PTFE
  • Current Draw @ 12VDC – 11.5 amps
  • Supports up to 450 HP
  • Black Powder Coated Cover

Specifications

AMP DRAW11.5A
Bracket(s) IncludedNo
BrandNOS
ColourBlack
Emission Code4
FinishNatural
Fittings IncludedNo
InletSide
Inlet AttachmentFemale Threads
Inlet Size1/4" NPT
Inlet Thread1/4" NPT
MaterialStainless Steel
Max Horsepower450
Orifice1/8" (0.125")
OutletBottom
Outlet AttachmentFemale Threads
Outlet Size1/8" NPT
Outlet Thread1/8" NPT
Plunger MaterialPTFE
Product LinePro Race
Product TypeNitrous Solenoid
Purge Port1/8" NPT
Sale CategoryNitrous
Solenoid Top Cover ColourBlack

Compatibility

  • Universal Part

NOS bottom exit Pro-Race nitrous and fuel solenoids gives you the flexibility for mounting options in various positions. They are available with black or red powder coated top housing. All of our solenoids feature large orifice sizes for great flow. Our nitrous solenoids have a PTFE plunger puck material for durability while our fuel solenoids have FKM rubber plunger pucks for durability and sealing. All NOS solenoids feature stainless steel bases with the NOS logo along with in/out stamped in so you know it is a quality NOS solenoid.

Features

  • Inlet Size - 1/4" NPT
  • Inlet Location - Side
  • Outlet Size - 1/8" NPT
  • Outlet Location - Bottom
  • Orifice - 1/8" (0.125")
  • Purge Port - 1/8" NPT
  • Plunger - PTFE
  • Current Draw @ 12VDC – 11.5 amps
  • Supports up to 450 HP
  • Black Powder Coated Cover
AMP DRAW11.5A
Bracket(s) IncludedNo
BrandNOS
ColourBlack
Emission Code4
FinishNatural
Fittings IncludedNo
InletSide
Inlet AttachmentFemale Threads
Inlet Size1/4" NPT
Inlet Thread1/4" NPT
MaterialStainless Steel
Max Horsepower450
Orifice1/8" (0.125")
OutletBottom
Outlet AttachmentFemale Threads
Outlet Size1/8" NPT
Outlet Thread1/8" NPT
Plunger MaterialPTFE
Product LinePro Race
Product TypeNitrous Solenoid
Purge Port1/8" NPT
Sale CategoryNitrous
Solenoid Top Cover ColourBlack
  • Universal Part
