Description

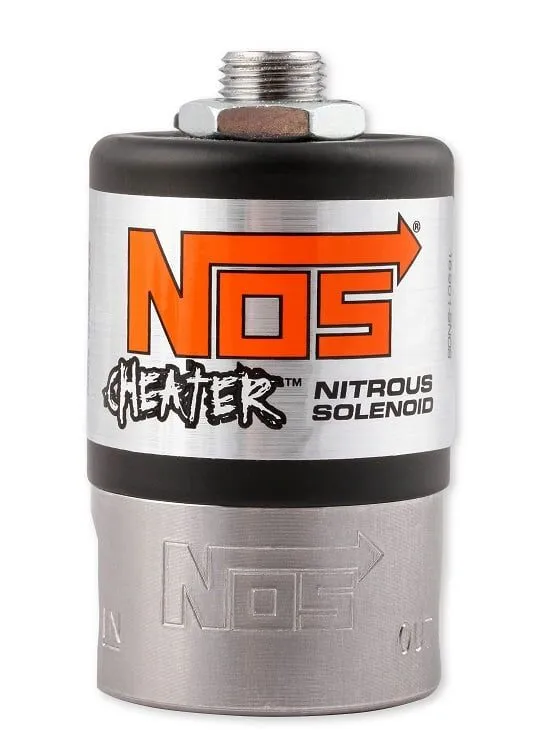

The NOS Cheater solenoid has been the standard in the performance and racing world for over 35 years. The Cheater series nitrous solenoid feature a blue or black powder coated housing, large orifice size and PTFE plunger material for durability. All NOS solenoids feature stainless steel bases with the NOS logo so you know it is a quality NOS solenoid.

Features

  • Cheater Nitrous Solenoid in Black

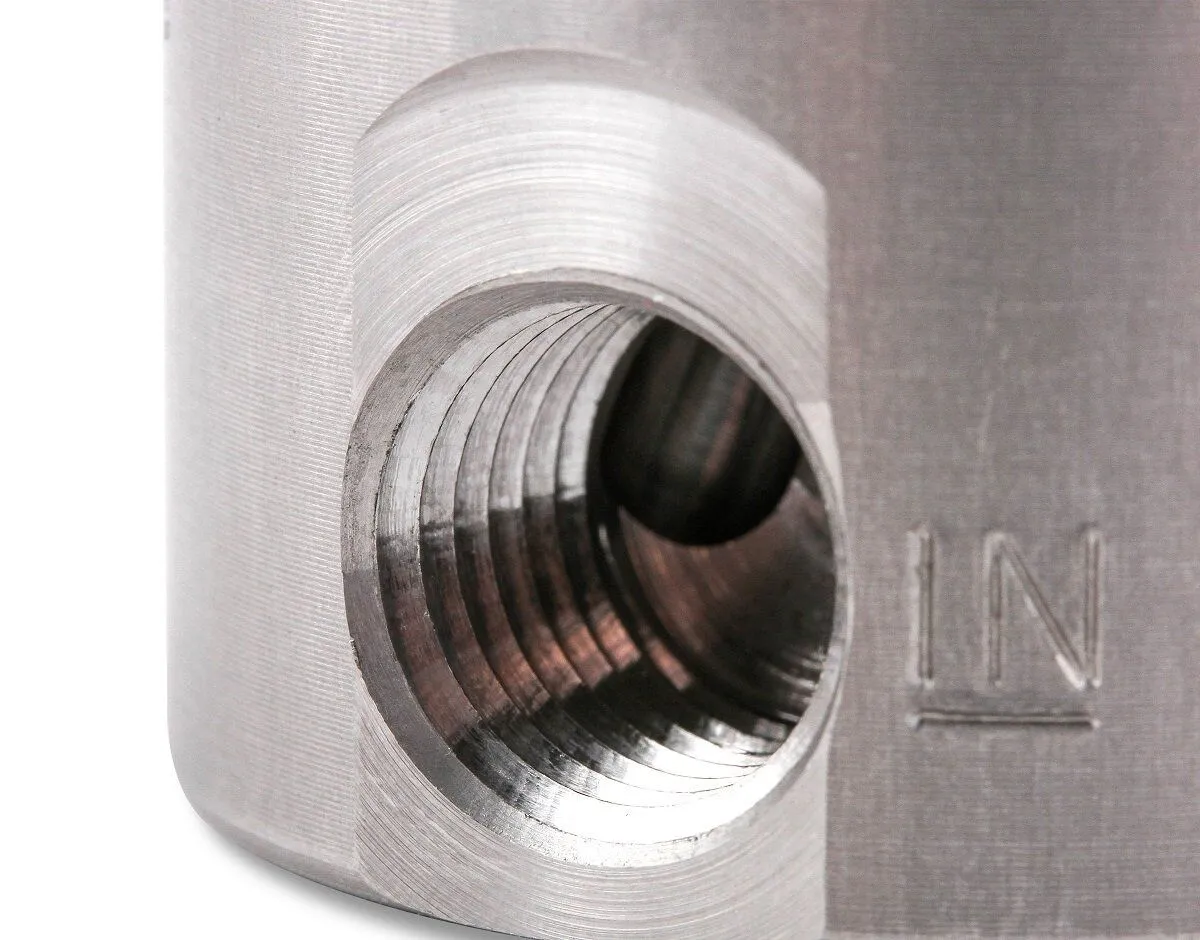

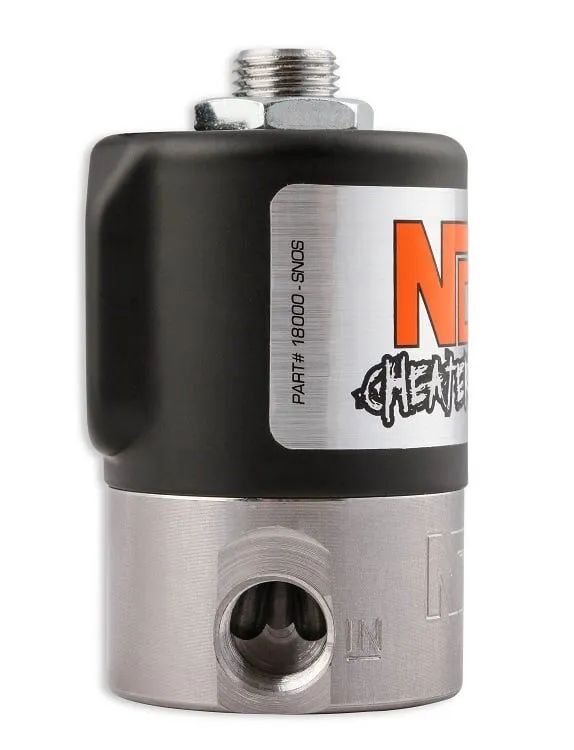

  • Inlet size - 1/4" NPT

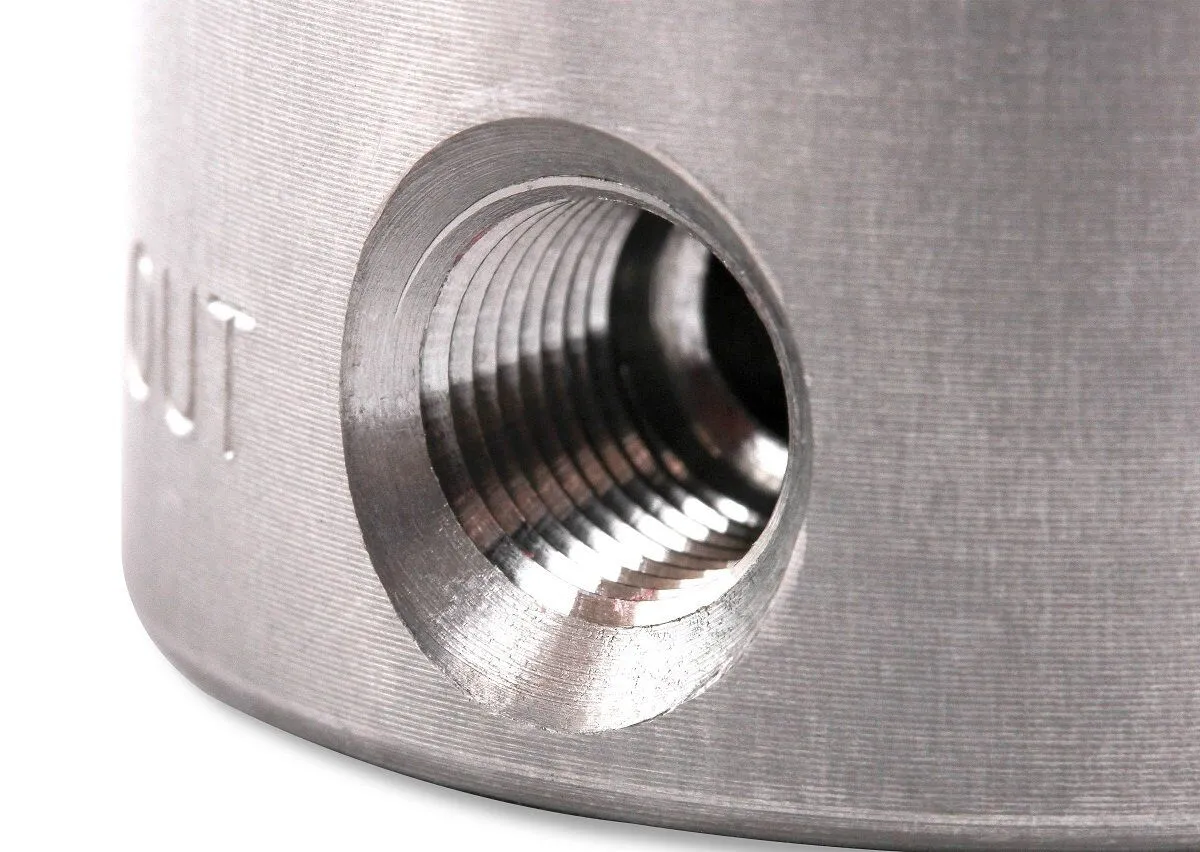

  • Outlet Size - 1/8" NPT

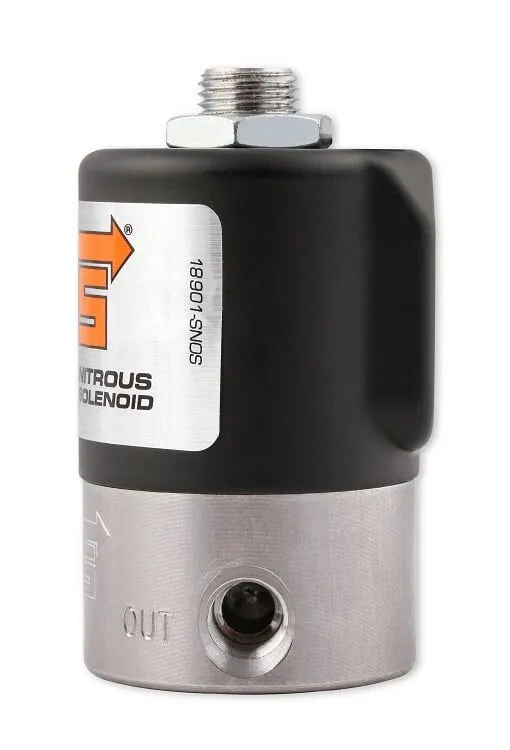

  • Outlet Location - side
  • Orifice - 3/32" (0.094")
  • Plunger - PTFE
  • Current Draw @ 12V DC - 8 amps

Specifications

AMP DRAW8A
Bracket(s) IncludedNo
BrandNOS
ColourBlack
Emission Code4
FinishNatural
Fittings IncludedNo
InletSide
Inlet AttachmentFemale Threads
Inlet Thread1/4" NPT
MaterialStainless Steel
Max Horsepower250
Orifice3/32" (0.094")
OutletSide
Outlet AttachmentFemale Threads
Outlet Thread1/8" NPT
Plunger MaterialPTFE
Product LineCheater
Product TypeNitrous Solenoid
Purge Port
Solenoid Top Cover ColourBlack

Compatibility

  • Universal Part

The NOS Cheater solenoid has been the standard in the performance and racing world for over 35 years. The Cheater series nitrous solenoid feature a blue or black powder coated housing, large orifice size and PTFE plunger material for durability. All NOS solenoids feature stainless steel bases with the NOS logo so you know it is a quality NOS solenoid.

Features

  • Cheater Nitrous Solenoid in Black
  • Inlet size - 1/4" NPT
  • Outlet Size - 1/8" NPT
  • Outlet Location - side
  • Orifice - 3/32" (0.094")
  • Plunger - PTFE
  • Current Draw @ 12V DC - 8 amps
AMP DRAW8A
Bracket(s) IncludedNo
BrandNOS
ColourBlack
Emission Code4
FinishNatural
Fittings IncludedNo
InletSide
Inlet AttachmentFemale Threads
Inlet Thread1/4" NPT
MaterialStainless Steel
Max Horsepower250
Orifice3/32" (0.094")
OutletSide
Outlet AttachmentFemale Threads
Outlet Thread1/8" NPT
Plunger MaterialPTFE
Product LineCheater
Product TypeNitrous Solenoid
Purge Port
Solenoid Top Cover ColourBlack
  • Universal Part
