Description

The NOS "Plate Only" kit allows our customers to build a custom nitrous system for their 2010-2015 Chevrolet Camaro, or any application using a GM LS style, 90mm, 4-bolt throttle body. This ultra-slim design is only 1/4" thick at the throttle body mounting flange. This allows maximum room forward of the throttle body to clear accessory drives, tensioner brackets or other obstacles that may interfere with a more forward mounted throttle body.

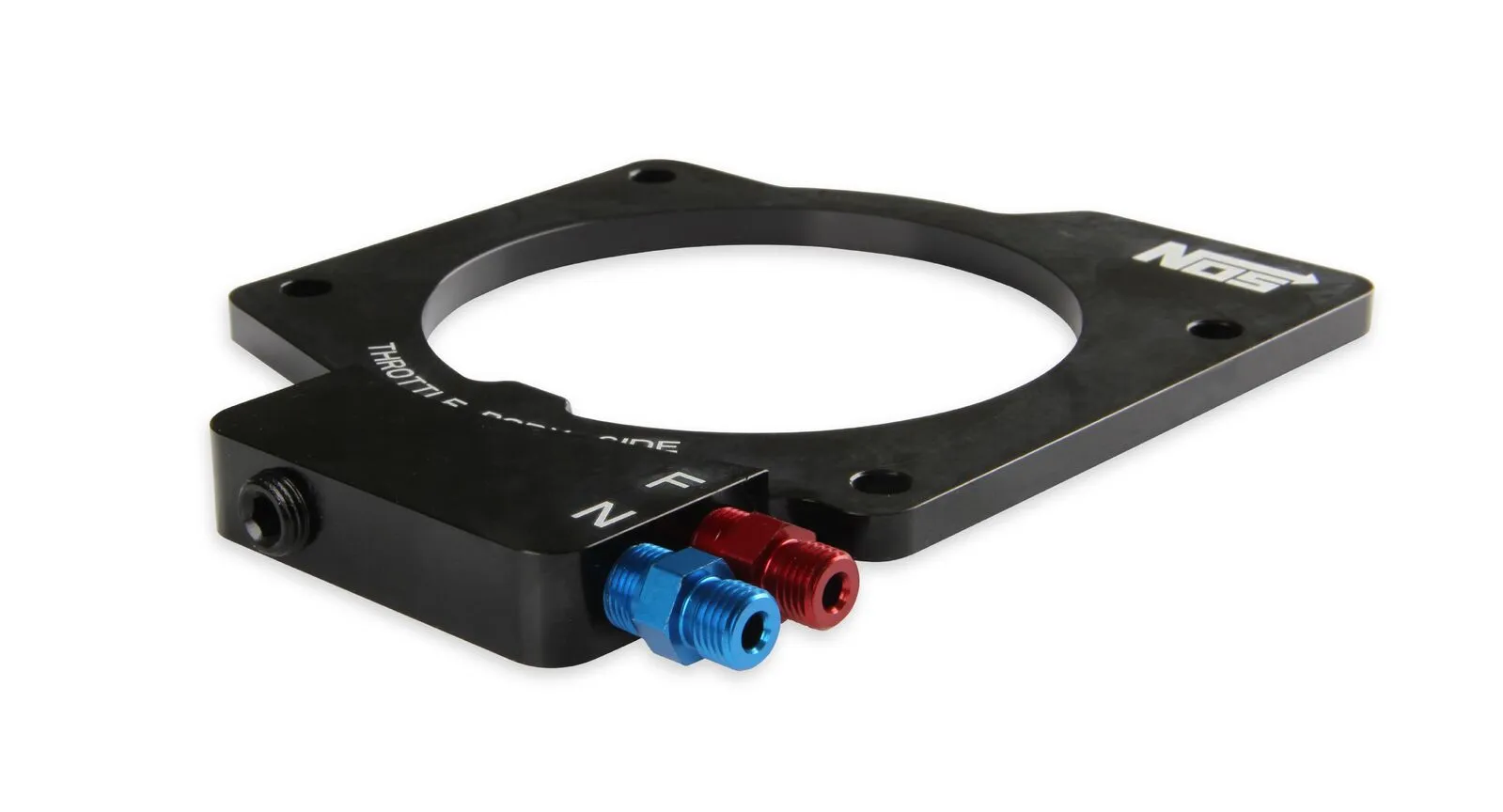

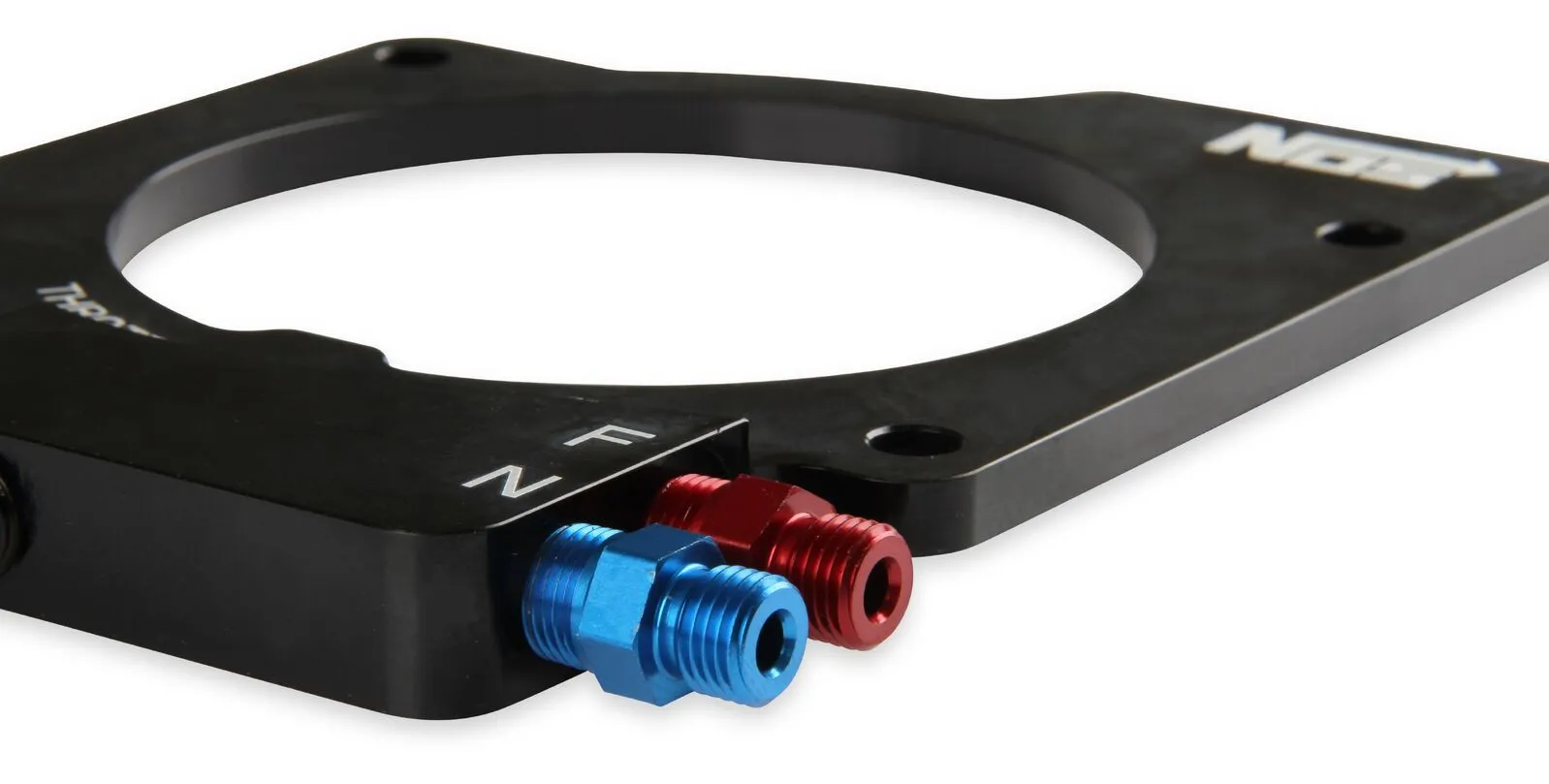

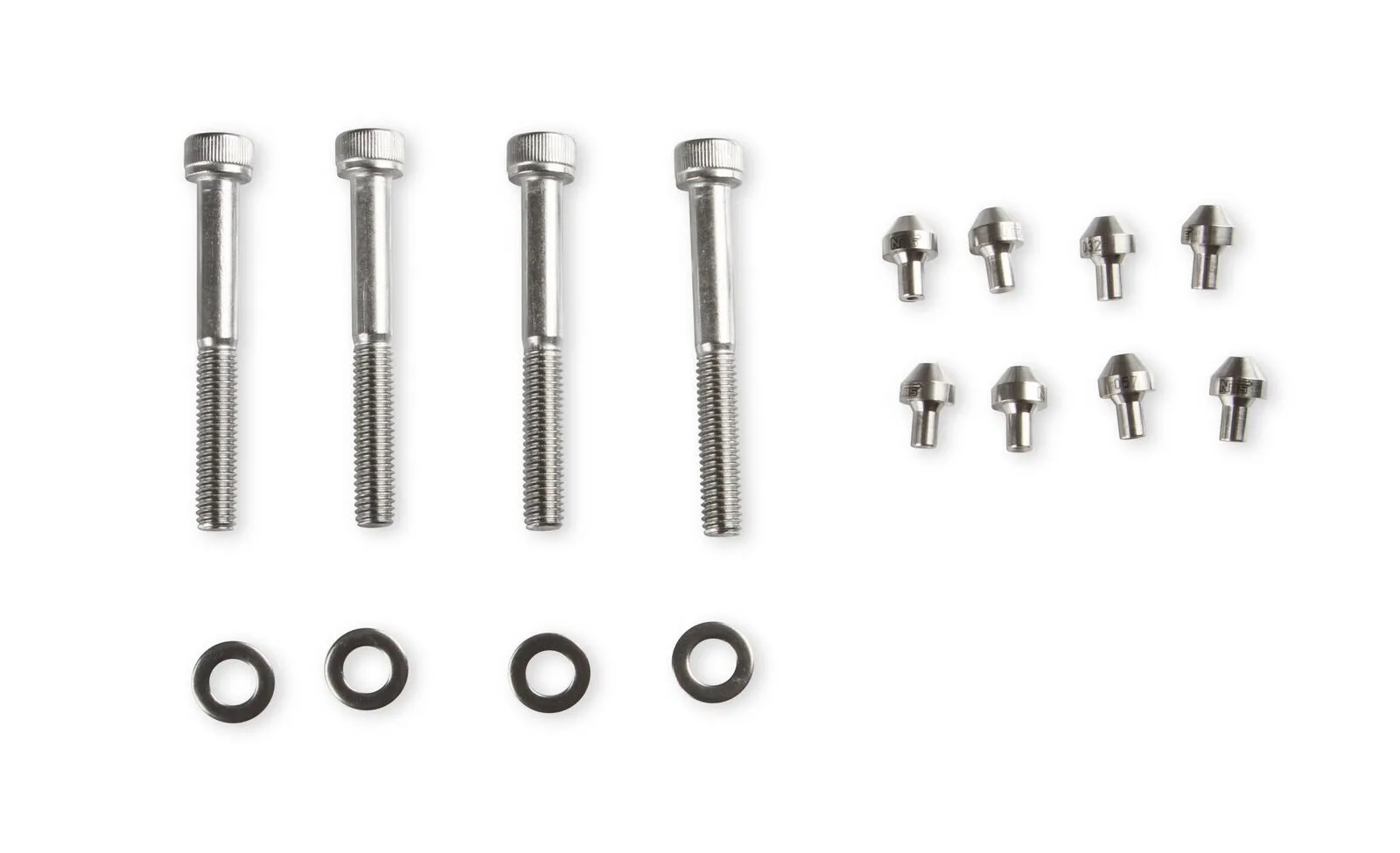

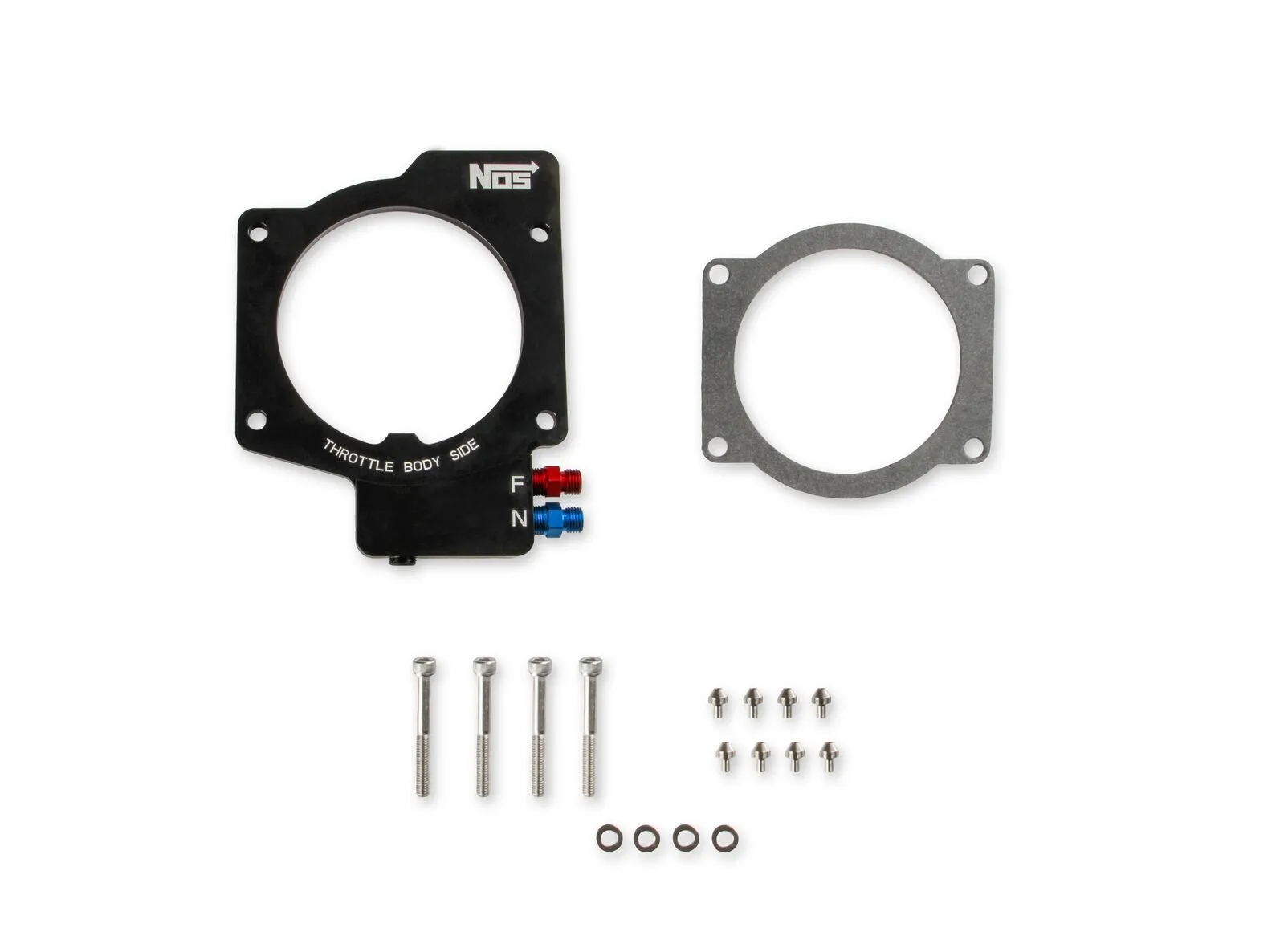

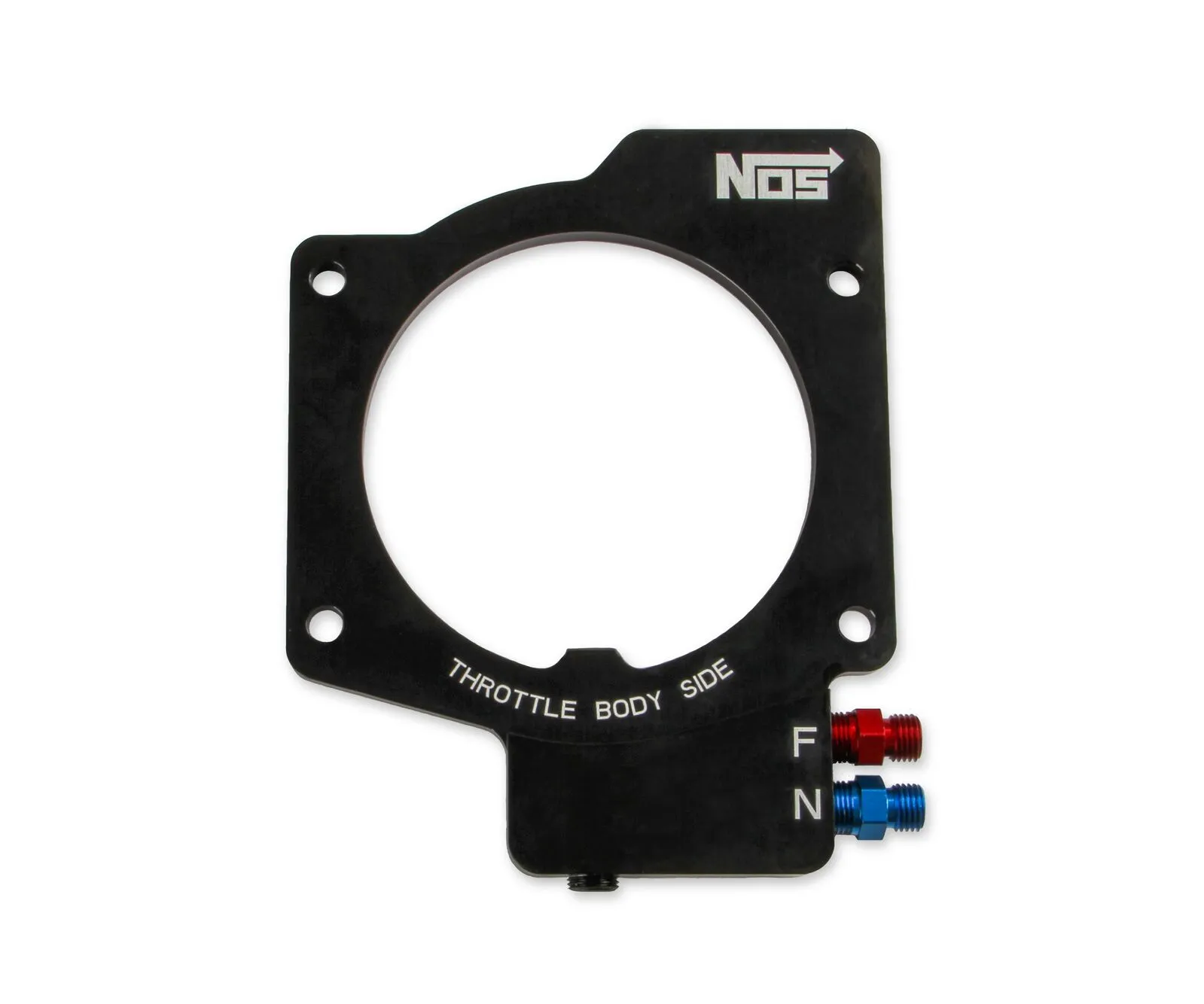

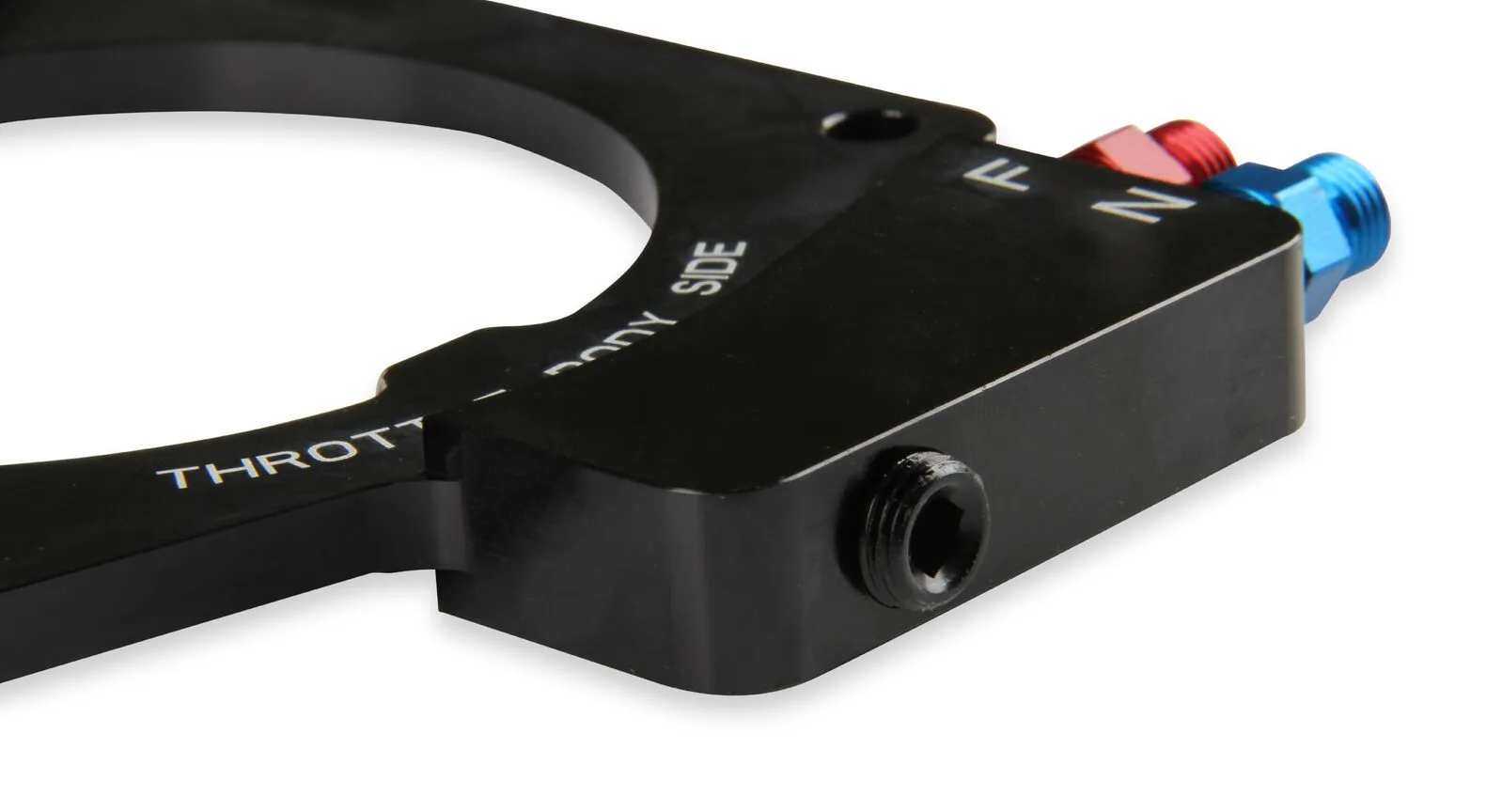

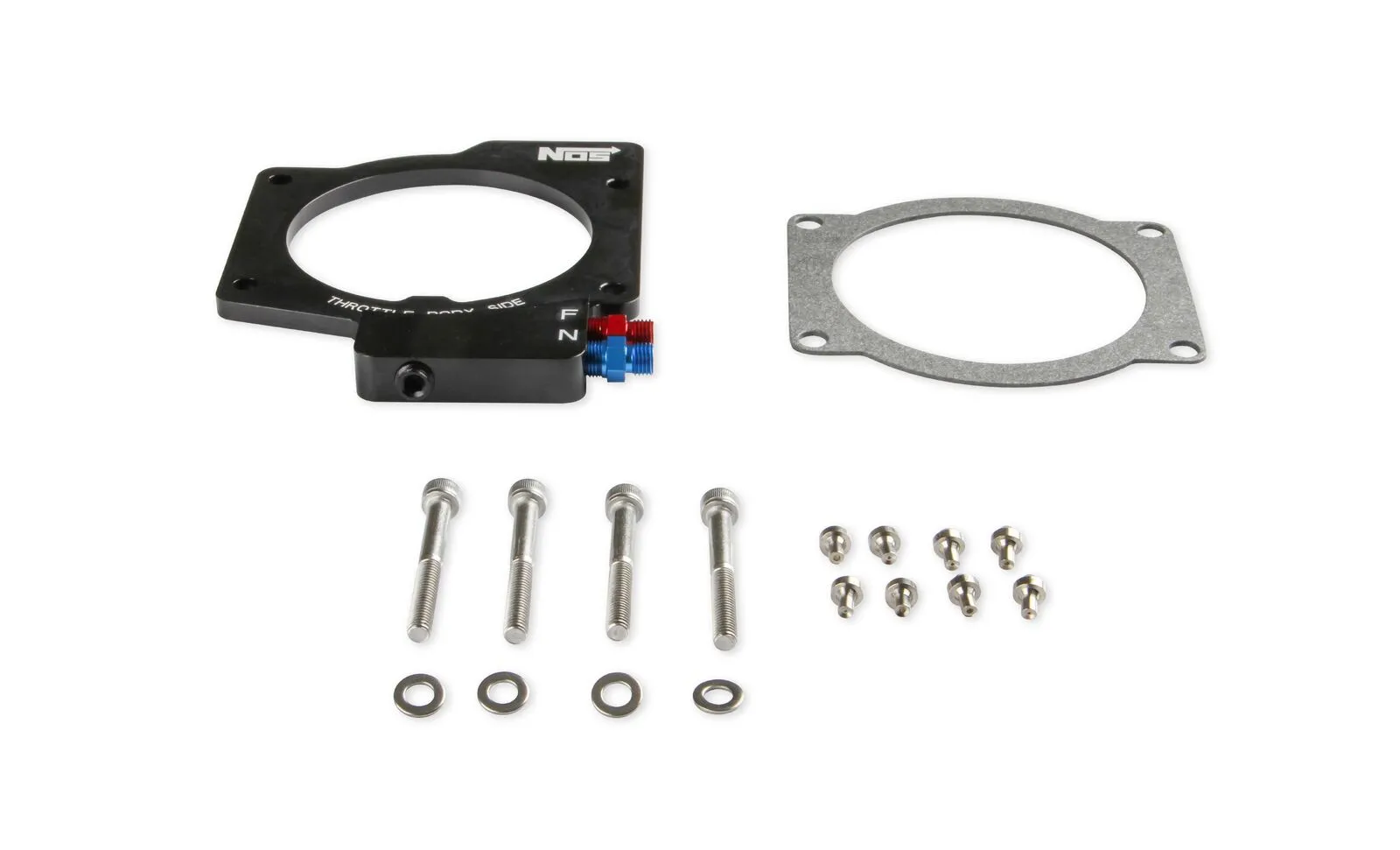

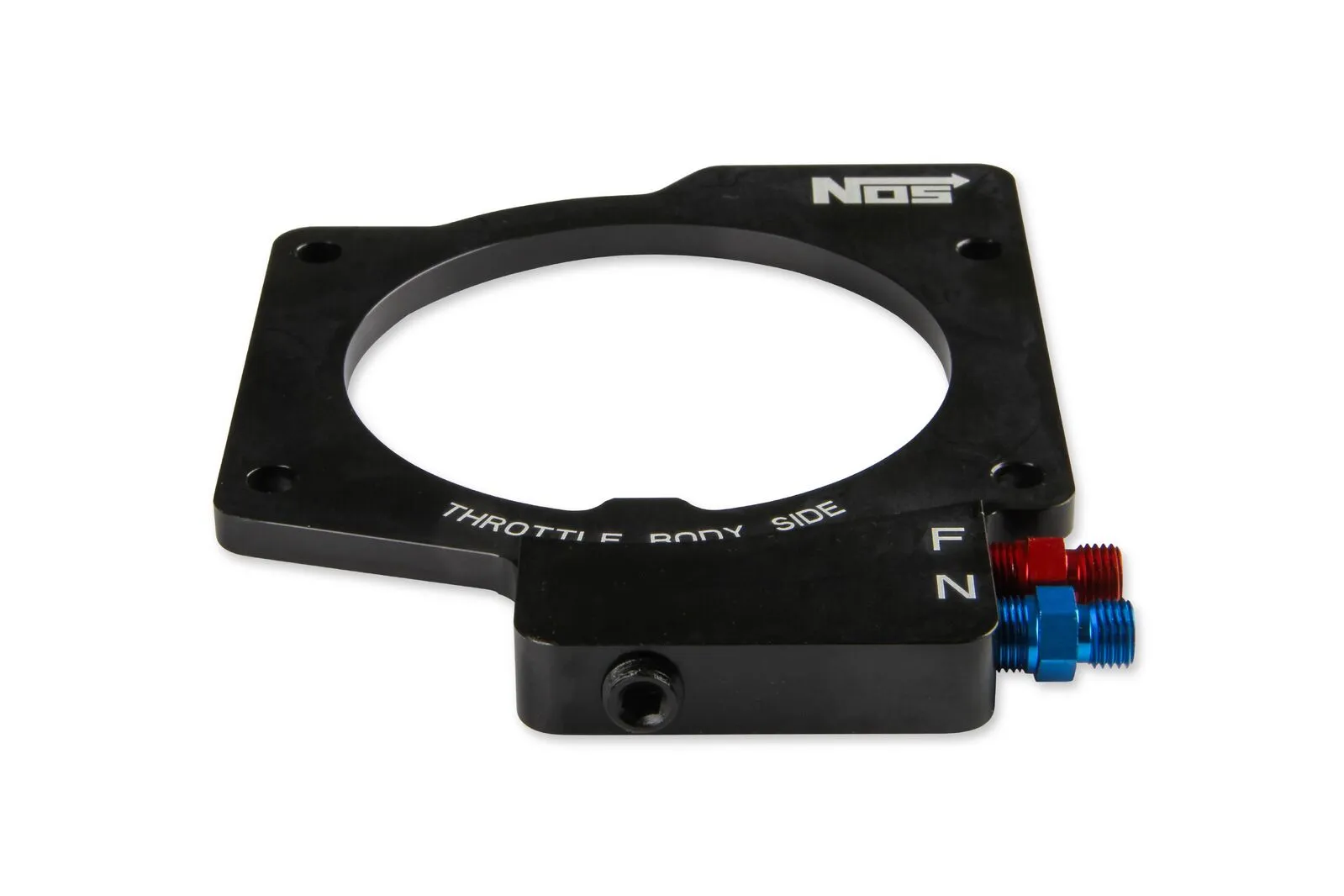

This kit includes a 6061 billet aluminum, black anodized nitrous plate, assembled and ready to bolt on, stainless socket head bolts, 8 NOS stainless jets to support power levels of 75, 100, 125 & 150 rear wheel horsepower increases.

Features

  • Single ¼” plate between the throttle body and manifold
  • Throttle body mounts in stock orientation
  • Supports up to 250 RWHP (Rear Wheel Horse Power)
  • Includes jetting for 75, 100, 125, & 150 RWHP
  • New plate outlet design maximizes distribution
  • 6061 Billet Aluminum, CNC Machined Plate
  • Also available as a complete kit for the 2010-2015 LS3 Camaro; p/n 05160NOS

Specifications

AdjustableYes
Bottle IncludedNo
BrandNOS
ColourBlack
Delivery StyleEFI Spacer Plate
Emission Code4
Included Jetting Horsepower75, 100, 125, 150
Jet Sizes Included75, 100, 125, 150 hp
Jet StyleFlare
Material6061-T6 Aluminum
Max Horsepower250
Plate Bolt Pattern4 bolt
Plate Diameter90 mm
Plate FlangeGM 4-Bolt LS3
Plate Height1/4 inch
Plate IncludedYes
Plate Thickness1/4 inch
Product TypeNitrous Plate
StyleWet
System StyleWet

Compatibility

  • 2011 - 2012 Chevrolet Camaro 1SS 6.2
  • 2011 - 2012 Chevrolet Camaro 2SS 6.2
  • 2013 - 2015 Chevrolet Camaro SS 6.2

The NOS "Plate Only" kit allows our customers to build a custom nitrous system for their 2010-2015 Chevrolet Camaro, or any application using a GM LS style, 90mm, 4-bolt throttle body. This ultra-slim design is only 1/4" thick at the throttle body mounting flange. This allows maximum room forward of the throttle body to clear accessory drives, tensioner brackets or other obstacles that may interfere with a more forward mounted throttle body.

This kit includes a 6061 billet aluminum, black anodized nitrous plate, assembled and ready to bolt on, stainless socket head bolts, 8 NOS stainless jets to support power levels of 75, 100, 125 & 150 rear wheel horsepower increases.

Features

  • Single ¼” plate between the throttle body and manifold
  • Throttle body mounts in stock orientation
  • Supports up to 250 RWHP (Rear Wheel Horse Power)
  • Includes jetting for 75, 100, 125, & 150 RWHP
  • New plate outlet design maximizes distribution
  • 6061 Billet Aluminum, CNC Machined Plate
  • Also available as a complete kit for the 2010-2015 LS3 Camaro; p/n 05160NOS
AdjustableYes
Bottle IncludedNo
BrandNOS
ColourBlack
Delivery StyleEFI Spacer Plate
Emission Code4
Included Jetting Horsepower75, 100, 125, 150
Jet Sizes Included75, 100, 125, 150 hp
Jet StyleFlare
Material6061-T6 Aluminum
Max Horsepower250
Plate Bolt Pattern4 bolt
Plate Diameter90 mm
Plate FlangeGM 4-Bolt LS3
Plate Height1/4 inch
Plate IncludedYes
Plate Thickness1/4 inch
Product TypeNitrous Plate
StyleWet
System StyleWet
  • 2011 - 2012 Chevrolet Camaro 1SS 6.2
  • 2011 - 2012 Chevrolet Camaro 2SS 6.2
  • 2013 - 2015 Chevrolet Camaro SS 6.2
