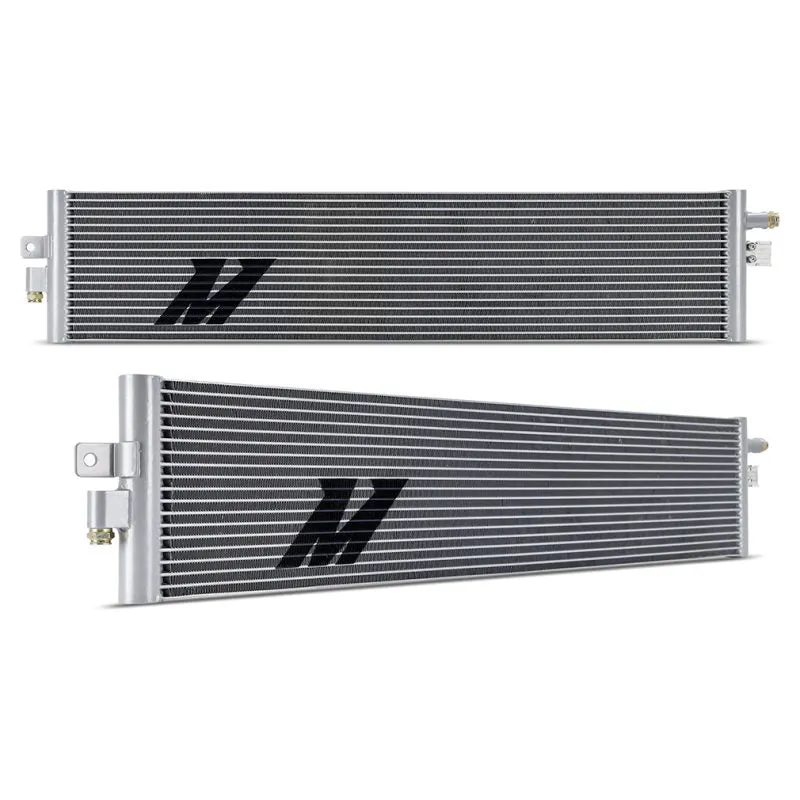

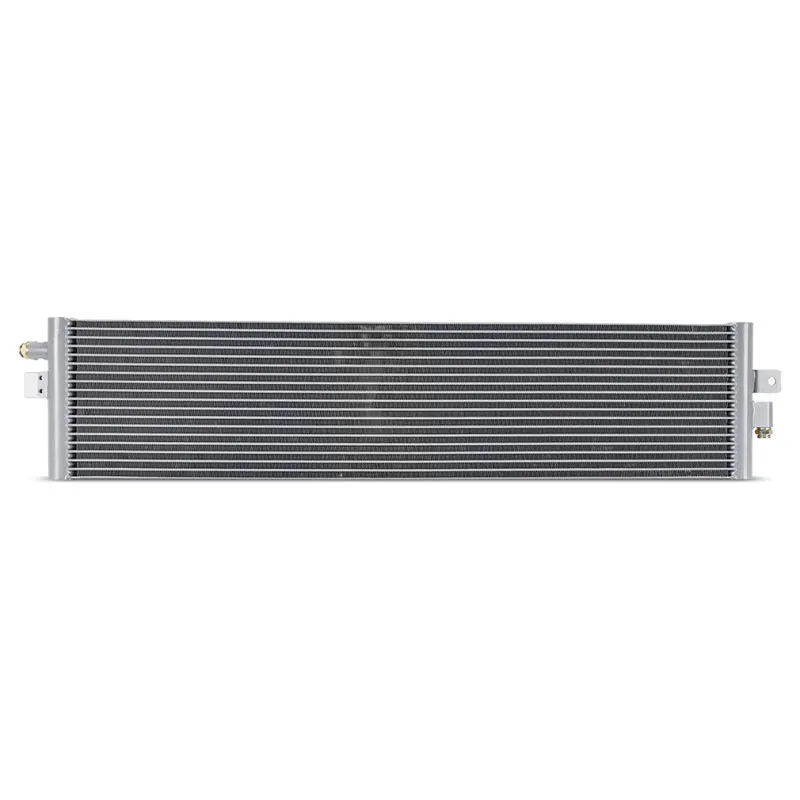

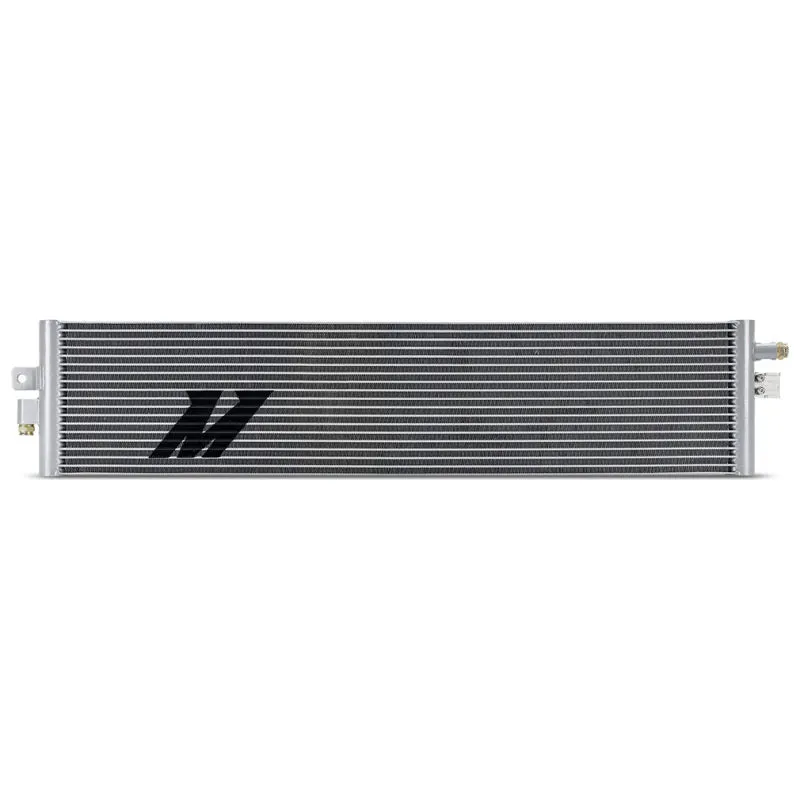

Mishimoto MMTC-T1-19 - 19+ Chevy Silverado 1500 Transmission Cooler

Transmission Cooler, Silver, fits Chevy Silverado 1500 2019-2025

Automatic transmission oil cooler designed to regulate fluid temperature and prevent overheating. Enhances transmission longevity, maintains performance, and features durable construction with a precise fit.

There's no greater enemy for a transmission than heat. Whether your 2019-2025 Chevrolet Silverado/GMC Sierra 1500 is a dedicated tow vehicle, hardworking fleet truck, or a daily driver with a liking for the drag strip, you need to ensure that your transmission runs cool. ---- Luckily, Mishimoto has developed a direct-fit transmission cooler to do just that. Our 2019-2025 Chevrolet Silverado/GMC Sierra 1500 transmission cooler utilizes a tube and fin design for improved efficiency and heat dissipation. Aside from its durable construction, this transmission cooler is significantly larger than the stock core. The Mishimoto transmission cooler boasts a 266% greater core volume, and 322% greater fin surface area than the stock transmission cooler. ---- The included CNC-machined adapters connect directly to the stock transmission cooler lines for leak-free cooling. Direct-fit brackets and tailor-made hoses make installation easy. Like all Mishimoto products, this transmission cooler is backed by our Lifetime Warranty for worry-free cooling as long as you own it.

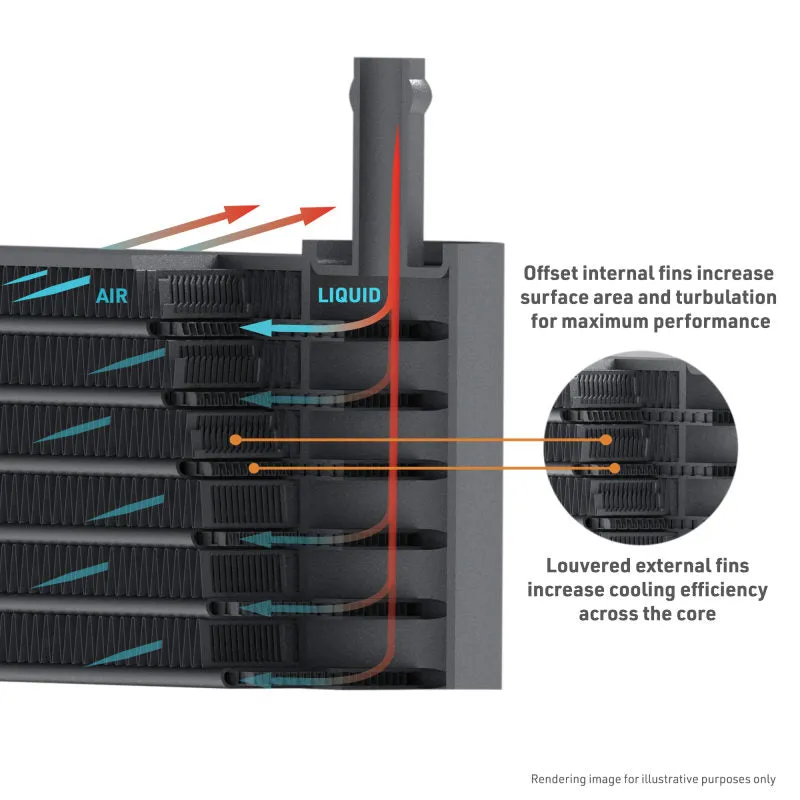

• Tube and fin core design, with factory quick disconnects
• 266% increase in core volume for serious heat dissipation

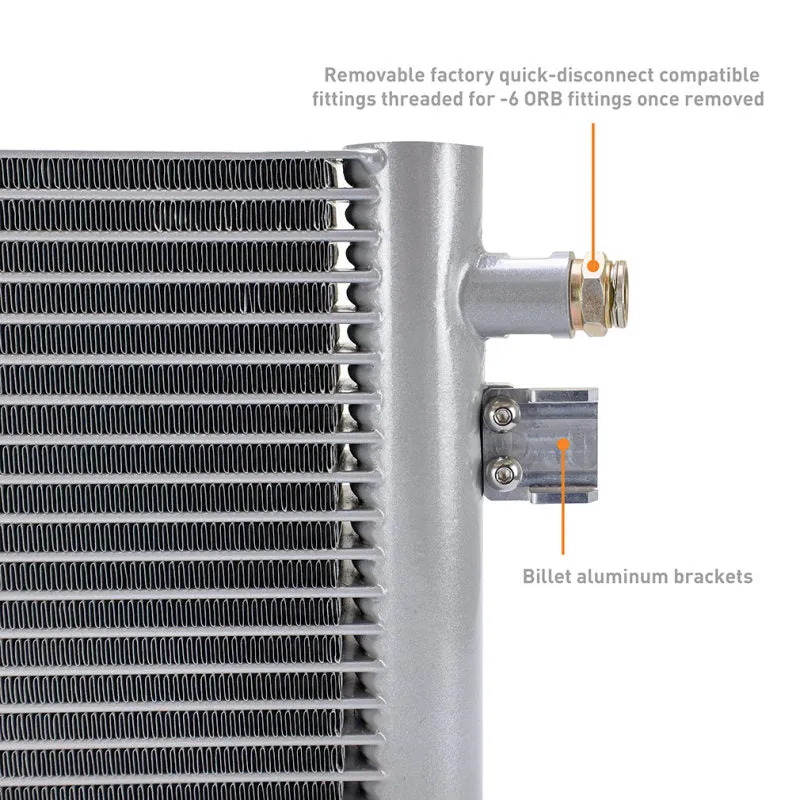

• CNC-machined -6ORB adapters make it easy to connect Mishimoto cooler to stock fluid lines or AN lines

SellingPoint01: Direct fit for 2019-2025 Chevy Silverado/GMC Sierra 1500

SellingPoint02: Tube and fin core design, with factory quick disconnects

SellingPoint03: 266% increase in core volume for serious heat dissipation

SellingPoint04: CNC-machined -6ORB adapters make it easy to connect Mishimoto cooler to stock fluid lines or AN lines

SellingPoint06: 339% increase in internal tube area over stock

SellingPoint05: 322% increase in external fin area over stock

SellingPoint07: Patent Pending

SellingPoint08: Mishimoto Lifetime Warranty

SellingPoint09: N/A

SellingPoint10: N/A

SellingPoint11: N/A

SellingPoint12: N/A

SellingPoint13: N/A

SellingPoint14: N/A

TechSpec Rows: 17

TechSpec Core Construction: Tube-and-fin

TechSpec Core Length (in): 32.68

TechSpec Core Height (in): 7.13

TechSpec Core Thickness (in): 1.26

TechSpec Engine Codes: LV3--L82--L84--L87--LM2--LZ0

TechSpec Chassis Codes: T1

TechSpec Installation Notes: N/A

TechSpec Transmission Codes: 8L90--10L80

TechSpec Caution: N/A

TechSpec Overall Height (in): 7.28

TechSpec Overall Length (in): 36.88

TechSpec Overall Width (in): 1.5

TechSpec Inlet: 9/16" - 18 (-6 ORB)

TechSpec Outlet: 9/16" - 18 (-6 ORB)

TechSpec Includes: (1) Mishimoto Performance Transmission Cooler--(1) Bracket--(1)Mounting Hardware--(2) Quick Connect Adapters--Mishimoto Lifetime Warranty

TechSpec Applications: Chevrolet Silverado 1500 2.7L L4 2020-2023--Chevrolet Silverado 1500 3.0L L6 2020-2025--Chevrolet Silverado 1500 4.3L V6 2020-2021--Chevrolet Silverado 1500 5.3L V8 2019-2025--Chevrolet Silverado 1500 6.2L V8 2019-2025--Chevrolet Silverado 1500 LD 5.3L V8 2019--Chevrolet Silverado 1500 LTD 3.0L L6 2022--Chevrolet Silverado 1500 LTD 5.3L V8 2022--Chevrolet Silverado 1500 LTD 6.2L V8 2022--GMC Sierra 1500 2.7L L4 2020-2025--GMC Sierra 1500 3.0L L6 2020-2025--GMC Sierra 1500 4.3L V6 2020-2021--GMC Sierra 1500 5.3L V8 2019-2025--GMC Sierra 1500 6.2L V8 2019-2025--GMC Sierra 1500 Limited 6.2L V8 2022

TechSpec Fluid Capacity (qts): 1.0 (total cooler capacity including lines where applicable)

TechSpec Note: This product will not fit 2024+ Silverado/Sierra 1500 models equipped with the 2.7L I4 L3B Turbomax engine and 2nd generation Hydra-Matic 8L80 transmission.----For 2019 model year trucks, double check engine and transmission codes before purchasing. If you have any questions, please contact our Customer Service Team.

Install Difficulty: 3

Core Height: 7.13

Core Material: Aluminum

Core Thickness: 1.26

Core Width: 32.68

Electric Fan: No

Finish: Natural Aluminum

Grade Type: Performance

Height: 7.28

Inlet Diameter: 0.5625

Line Included: No

Mounting Hardware Included: Yes

Outlet Diameter: 0.5625

Thickness: 1.5

Width: 0
