Description

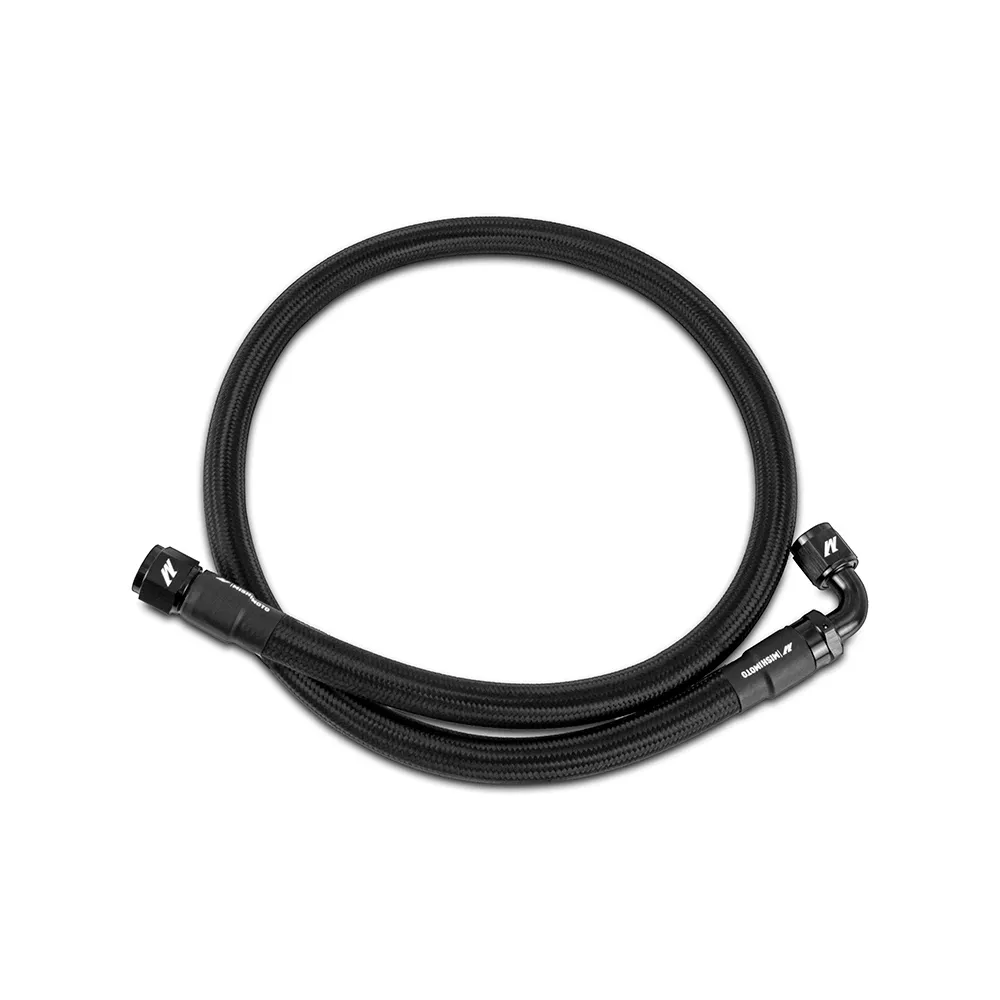

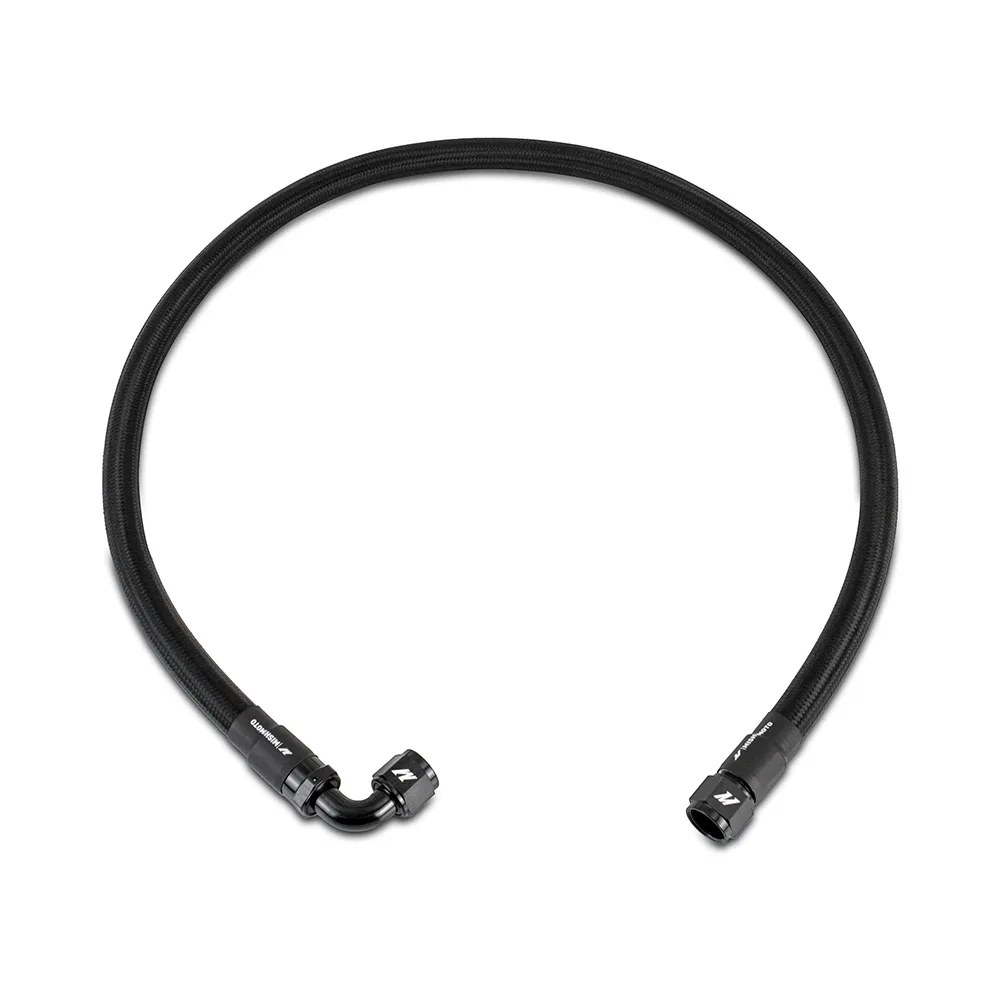

Extremely durable and flexible, this Mishimoto Braided Hose is an ideal addition to your vehicle.

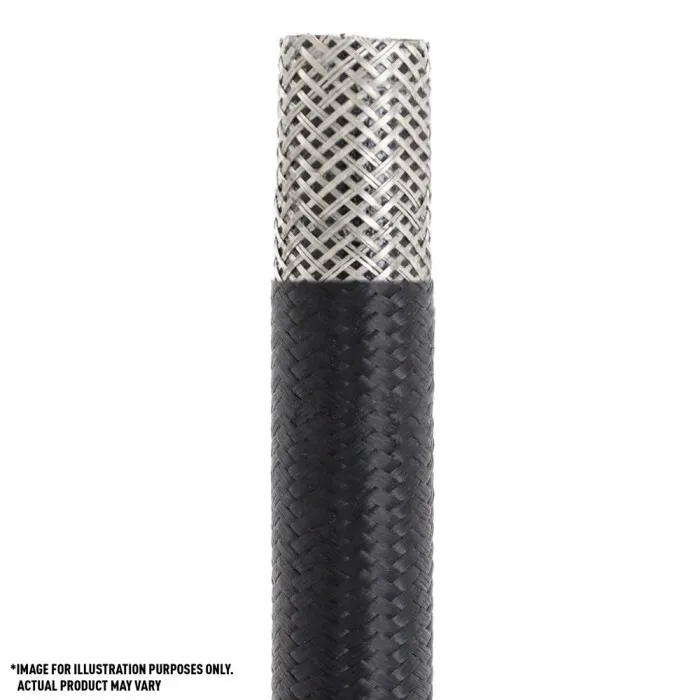

Whether you are installing a turbocharger oil drain hose or adding an oil cooling system, these nylon-wrapped stainless-steel braided fluid hoses are available in multiple lengths to suit any application. In addition, each line includes pre-installed pneumatically crimped 90 and straight -10AN fittings for leak-free operation. These Mishimoto -10AN lines feature a CPE rubber inner layer which provides a durable passageway for most fuels, oils, and engine coolants, while a woven stainless-steel inner jacket increases the pressure tolerance and durability. The nylon outer braid will not abrade soft materials such as plastic or aluminum in confined spaces. In addition, the combination of anodized black hose ends and outer nylon braid provides a very subtle, factory-like appearance. Our braided -10AN lines feature an operating temperature range from -40F to 300F and pressure rating of up to 1,000 PSI, making them applicable for most fluids or air passage systems on your vehicle.

As with all our products, this Mishimoto Stainless-Steel Braided Line is covered by our Lifetime Warranty.

Specifications

  • Line Size:-10AN
  • Line Inner Diameter: 15.88mm
  • Line Outer Diameter: 20.88mm
  • Line Inner Material: CPE Rubber
  • Line Outer Braid Material: Nylon
  • Line Bend Radius: 101.6mm
  • Compatible Fluids: Petroleum Based Fuels, Diesel Fuel, Oil.
  • Coolant: Water
  • Max Fluid Pressure: 1000PSI
  • Max Fluid Temperature: 150°C
  • Fitting Inlet: -10AN Female Straight
  • Fitting Outlet: -10AN Female 90°
  • Swivel: Yes
  • Fitting Material: Aluminum
  • Note: These hoses include pneumatically crimped fittings, which are not re-usable. If you need to make adjustments to the line length or fitting style, please use Mishimoto -10AN Braided Line Fittings

What's Included

  • Fully assembled Stainless Steel Braided Hose w/ -10AN Fittings
  • Mishimoto Lifetime Warranty

Compatibility

  • Universal Part

Extremely durable and flexible, this Mishimoto Braided Hose is an ideal addition to your vehicle.

Whether you are installing a turbocharger oil drain hose or adding an oil cooling system, these nylon-wrapped stainless-steel braided fluid hoses are available in multiple lengths to suit any application. In addition, each line includes pre-installed pneumatically crimped 90 and straight -10AN fittings for leak-free operation. These Mishimoto -10AN lines feature a CPE rubber inner layer which provides a durable passageway for most fuels, oils, and engine coolants, while a woven stainless-steel inner jacket increases the pressure tolerance and durability. The nylon outer braid will not abrade soft materials such as plastic or aluminum in confined spaces. In addition, the combination of anodized black hose ends and outer nylon braid provides a very subtle, factory-like appearance. Our braided -10AN lines feature an operating temperature range from -40F to 300F and pressure rating of up to 1,000 PSI, making them applicable for most fluids or air passage systems on your vehicle.

As with all our products, this Mishimoto Stainless-Steel Braided Line is covered by our Lifetime Warranty.

  • Line Size:-10AN
  • Line Inner Diameter: 15.88mm
  • Line Outer Diameter: 20.88mm
  • Line Inner Material: CPE Rubber
  • Line Outer Braid Material: Nylon
  • Line Bend Radius: 101.6mm
  • Compatible Fluids: Petroleum Based Fuels, Diesel Fuel, Oil.
  • Coolant: Water
  • Max Fluid Pressure: 1000PSI
  • Max Fluid Temperature: 150°C
  • Fitting Inlet: -10AN Female Straight
  • Fitting Outlet: -10AN Female 90°
  • Swivel: Yes
  • Fitting Material: Aluminum
  • Note: These hoses include pneumatically crimped fittings, which are not re-usable. If you need to make adjustments to the line length or fitting style, please use Mishimoto -10AN Braided Line Fittings
  • Fully assembled Stainless Steel Braided Hose w/ -10AN Fittings
  • Mishimoto Lifetime Warranty
  • Universal Part
