Description

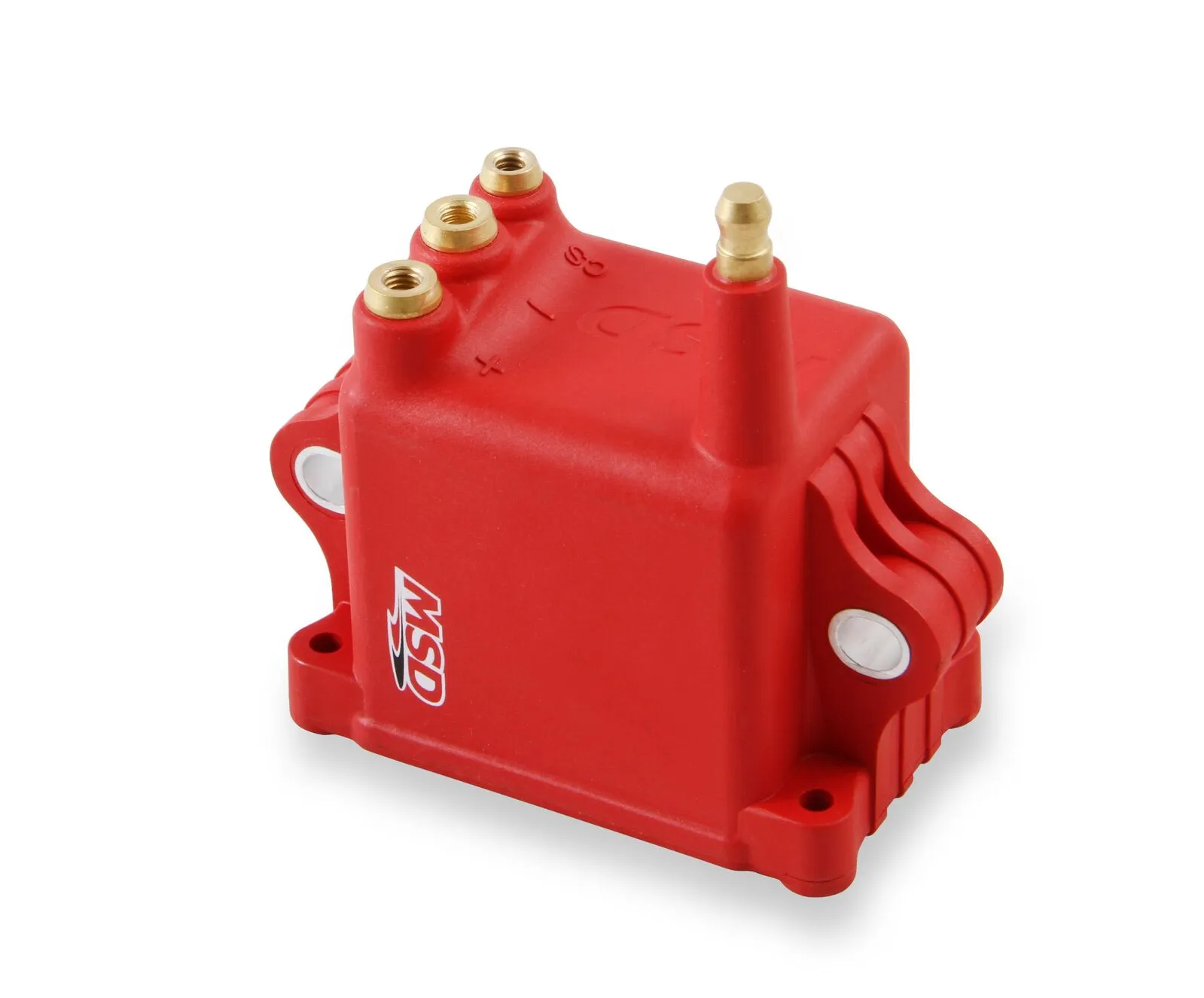

If you've made the step up to the industry-leading MSD Pro 600 Ignition, you'll want to equip it with the best coils on the market. The Pro 600 (Capacitive Discharge Ignition) coil is the solution with the highest current and voltage available in a small compact design.

When you're making extreme cylinder pressure with boost or nitrous on an inductive coil-per-plug ignition, lack of spark energy means you are leaving horsepower on the table. To answer this need, MSD developed this powerful coil for the PRO 600 Capacitive Discharge Ignition to provide unrivaled spark energy and dependability.

With the unrivaled output of the Pro 600 CDI, combined with these High-Output coils, everything from Pro Mod to Pulling Trucks can perform at a whole new level!

Features

  • Designed for extreme racing for the Pro 600 Capacitive Discharge Ignition, PN 8000
  • Capable of up to 50,000 Volts to ignite extreme cylinder pressures
  • Over 200 millijoules of spark energy makes them ideal for use with methanol, ethanol, E85 and forced induction and power adder combinations

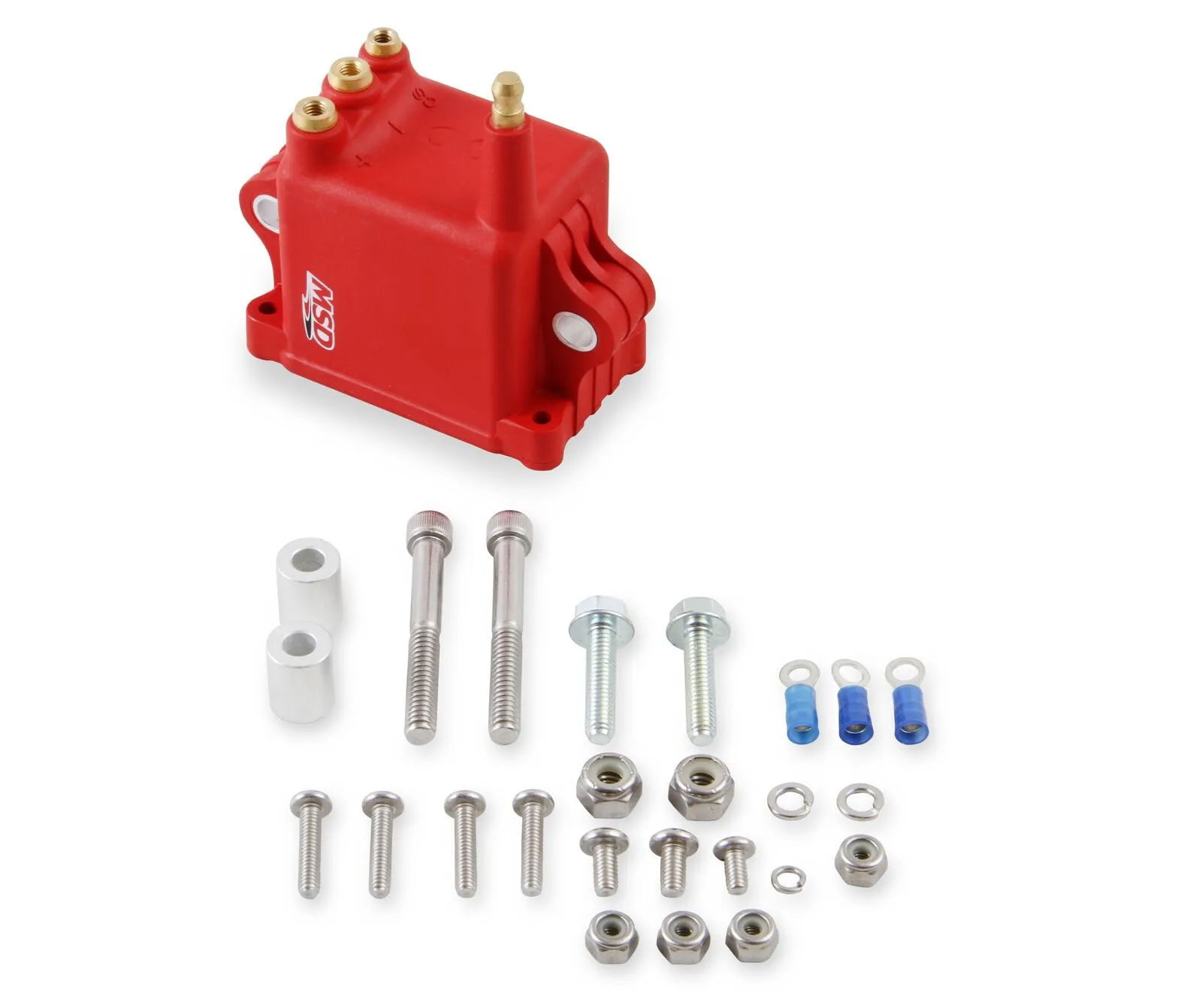

  • Supplied with hardware to mount horizontal or vertical position
  • Coils are designed to be mounted on Holley’s LS valve covers, or Original Equipment LS passenger car coil brackets using 72mm bolt spacing
  • HEI style secondary tower for secure coil wire connection

Specifications

Bolt Spacing2.82-2.90 in.
BrandMSD
ColourRed
Emission Code4
Inductance500mH
Maximum Voltage50,000 Volts
Peak Current1700 mA
Primary Resistance.064 OHMs
Product TypeIgnition Coils

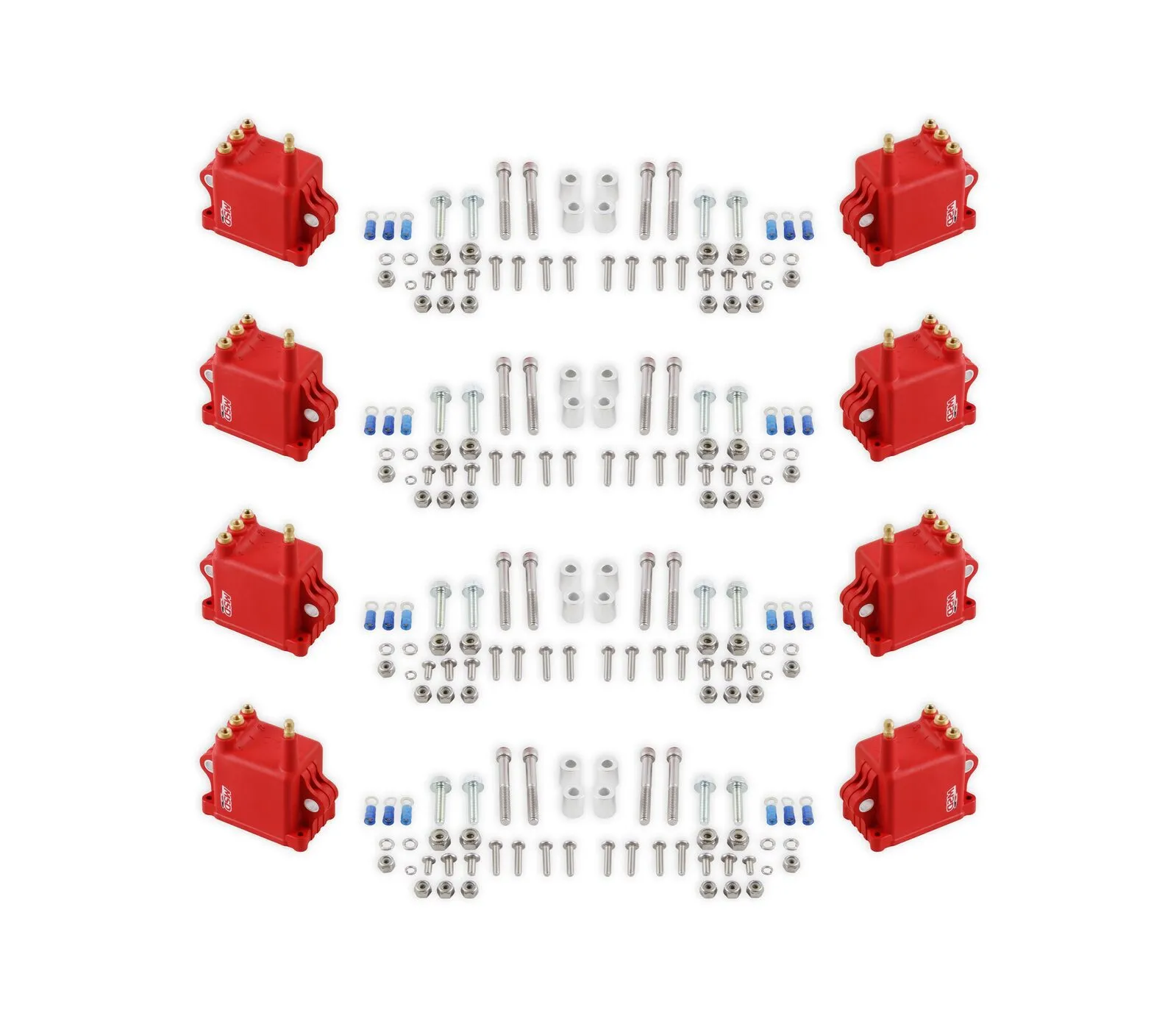

Quantity8-pack
Sale CategoryIgnition
Secondary Resistance466 OHMs
Spark Duration345 uS
Spark Energy208 mj
Turns Ratio2.3340277777777776
TypeDrag Race / Short Duration Use
WarrantyLimited 1 Year Warranty

Compatibility

  • Universal Part

If you've made the step up to the industry-leading MSD Pro 600 Ignition, you'll want to equip it with the best coils on the market. The Pro 600 (Capacitive Discharge Ignition) coil is the solution with the highest current and voltage available in a small compact design.

When you're making extreme cylinder pressure with boost or nitrous on an inductive coil-per-plug ignition, lack of spark energy means you are leaving horsepower on the table. To answer this need, MSD developed this powerful coil for the PRO 600 Capacitive Discharge Ignition to provide unrivaled spark energy and dependability.

With the unrivaled output of the Pro 600 CDI, combined with these High-Output coils, everything from Pro Mod to Pulling Trucks can perform at a whole new level!

Features

  • Designed for extreme racing for the Pro 600 Capacitive Discharge Ignition, PN 8000
  • Capable of up to 50,000 Volts to ignite extreme cylinder pressures
  • Over 200 millijoules of spark energy makes them ideal for use with methanol, ethanol, E85 and forced induction and power adder combinations
  • Supplied with hardware to mount horizontal or vertical position
  • Coils are designed to be mounted on Holley’s LS valve covers, or Original Equipment LS passenger car coil brackets using 72mm bolt spacing
  • HEI style secondary tower for secure coil wire connection
Bolt Spacing2.82-2.90 in.
BrandMSD
ColourRed
Emission Code4
Inductance500mH
Maximum Voltage50,000 Volts
Peak Current1700 mA
Primary Resistance.064 OHMs
Product TypeIgnition Coils
Quantity8-pack
Sale CategoryIgnition
Secondary Resistance466 OHMs
Spark Duration345 uS
Spark Energy208 mj
Turns Ratio2.3340277777777776
TypeDrag Race / Short Duration Use
WarrantyLimited 1 Year Warranty
  • Universal Part
