Description

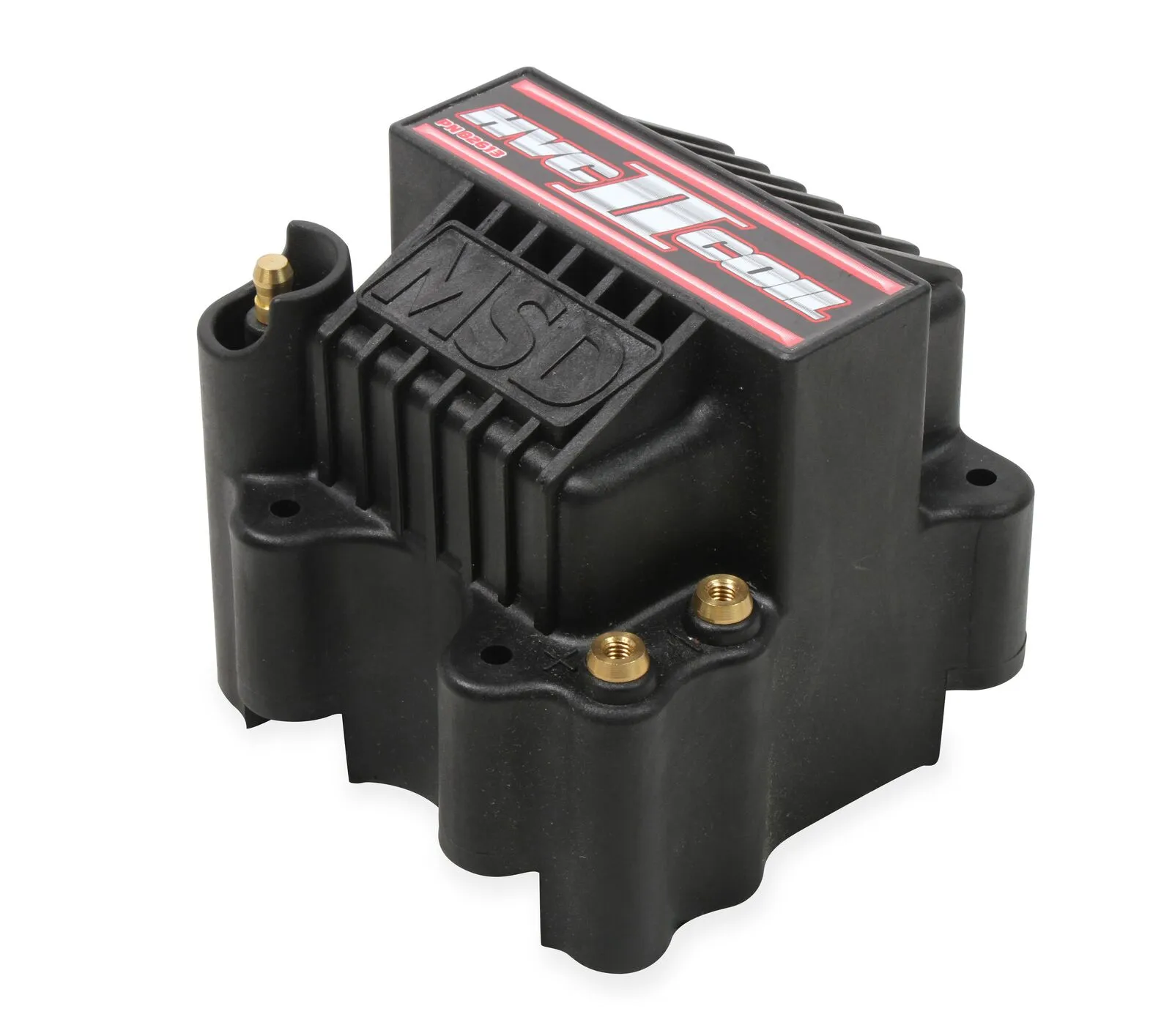

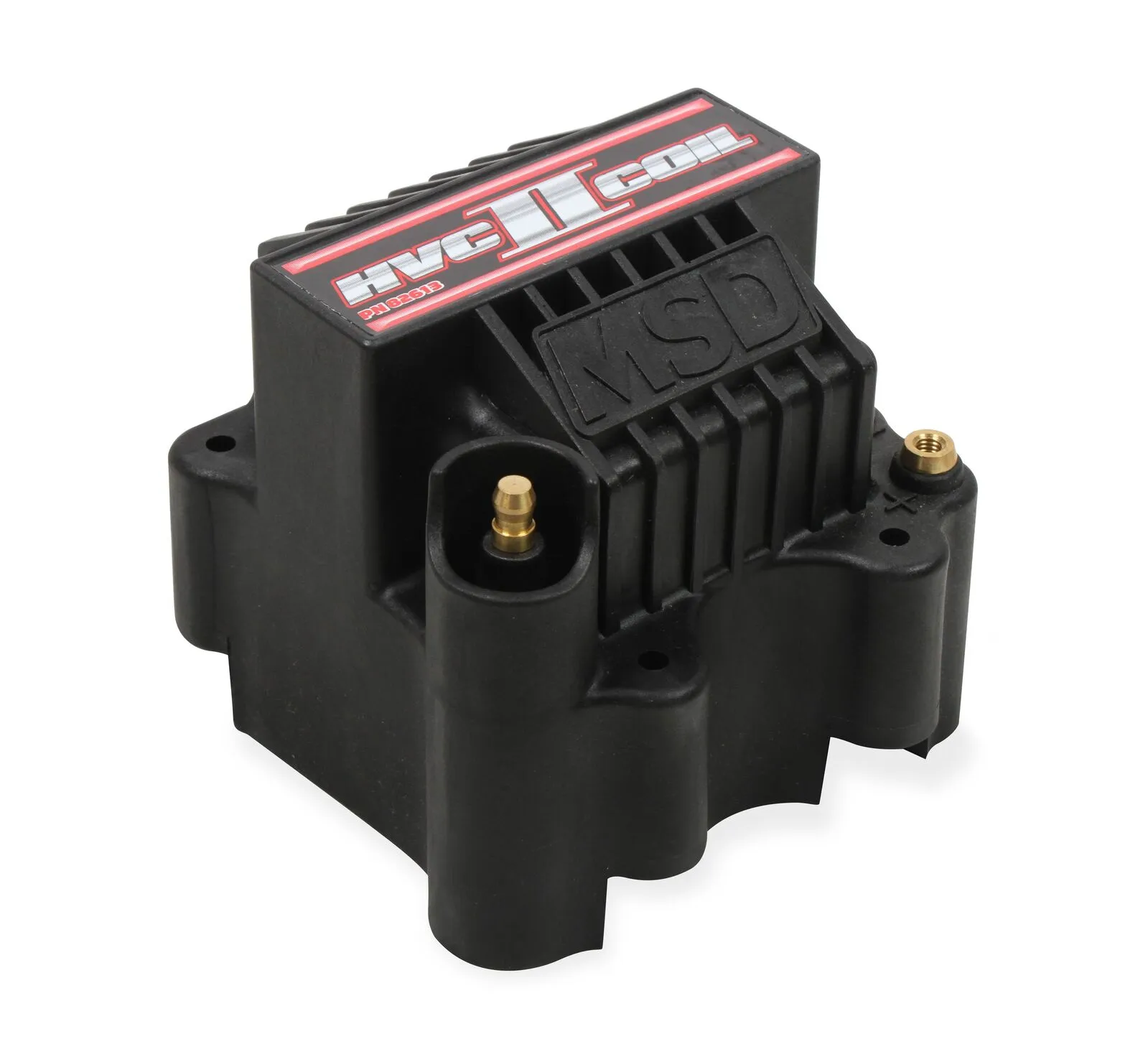

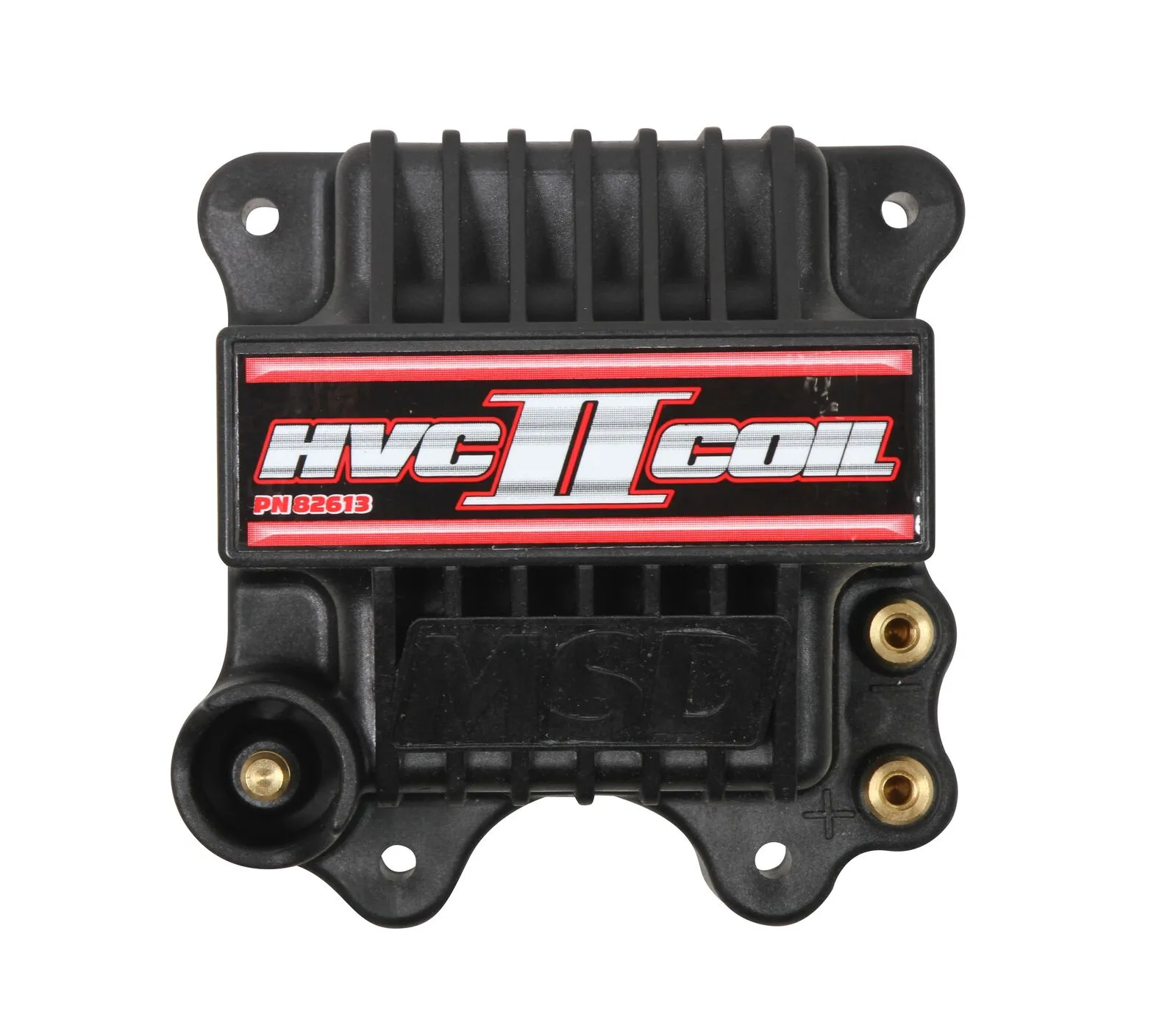

The HVC II Coil is completely built in-house so our engineers have exclusive control over their performance and quality. The Coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material which has incredible dielectric capabilities at high temperatures. MSD also incorporated a cutting edge winding material that has an improved insulation and is also capable of enduring extreme voltages. Together, these materials create a durable coil with incredible voltage capabilities, lightning quick rise time and lengthy spark duration.

Features

  • Designed for racing applications with an MSD 7 or 8 Series Ignition Control
  • U-Core winding design produces more voltage and current
  • 70:1 turns ratio and lower primary resistant compound for vibration resistance
  • Tough, rigid housing with isolated tower and brass primary terminals
  • Supplied with mounting hardware and rubber shock mounts

Specifications

BrandMSD
ColourBlack
Emission Code4
Inductance.250 mH
Maximum Voltage45,000 Volts
Peak Current2 Amps
Primary Resistance.016 OHMs
Product TypeCoil
Sale CategoryIgnition
Secondary Resistance30 OHMs
Spark Duration150 uS
Turns Ratio2.917361111111111
TypeDrag Race / Long Duration Use
WarrantyLimited 1 Year Warranty
Weight3.75 Lbs

Compatibility

  • Universal Part
