Description

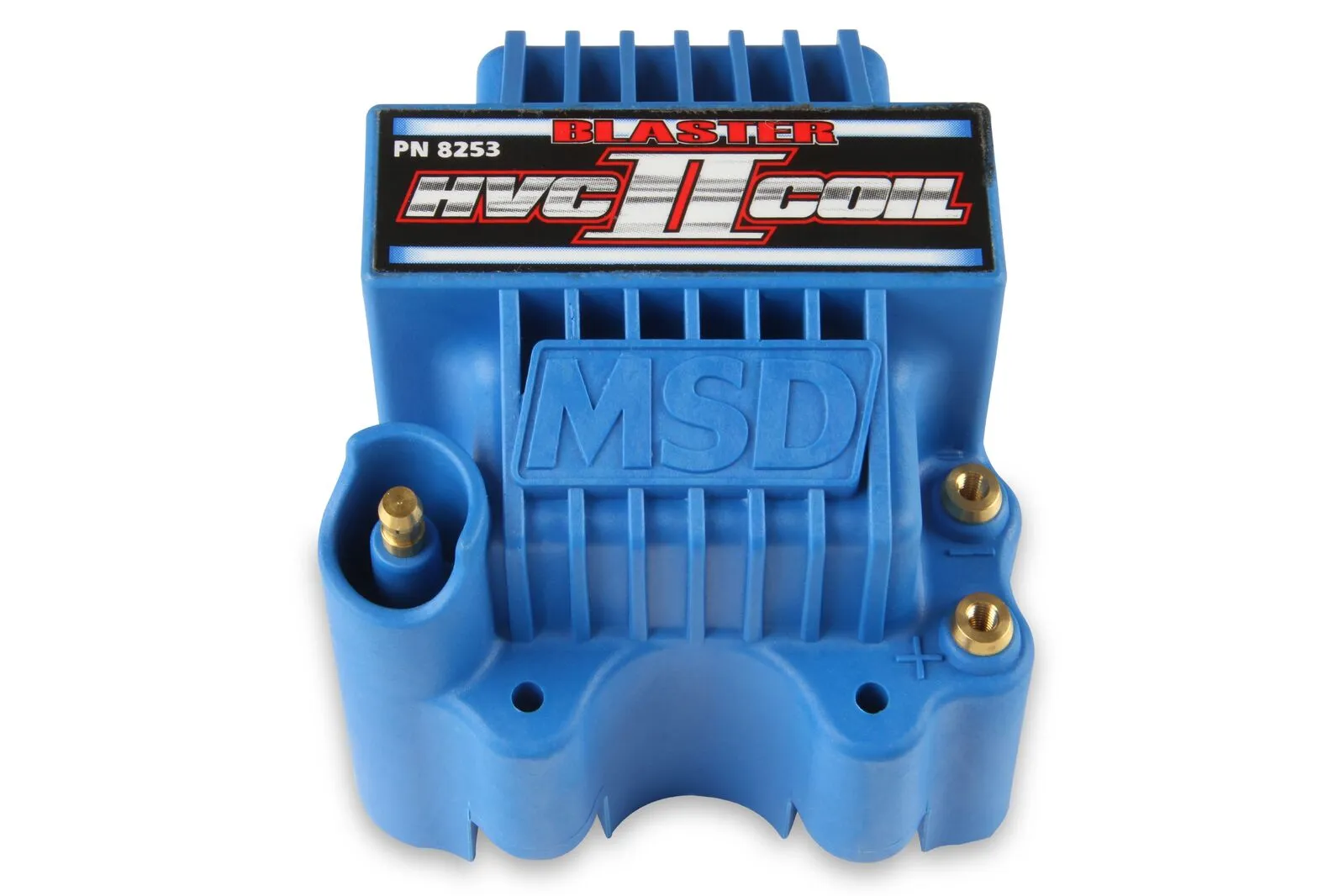

The Blaster HVC coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special Dupont Rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time.

Features

  • Designed for high rpm, long duration applications using MSD 6 Series Ignitions
  • New U-core winding design produces more voltage and current
  • 100:1 turns ratio and lower primary resistance produce high voltage output
  • Windings are encased in fracture resistant compound for vibration resistance
  • Dupont Rynite housing with isolated tower and brass primary terminals

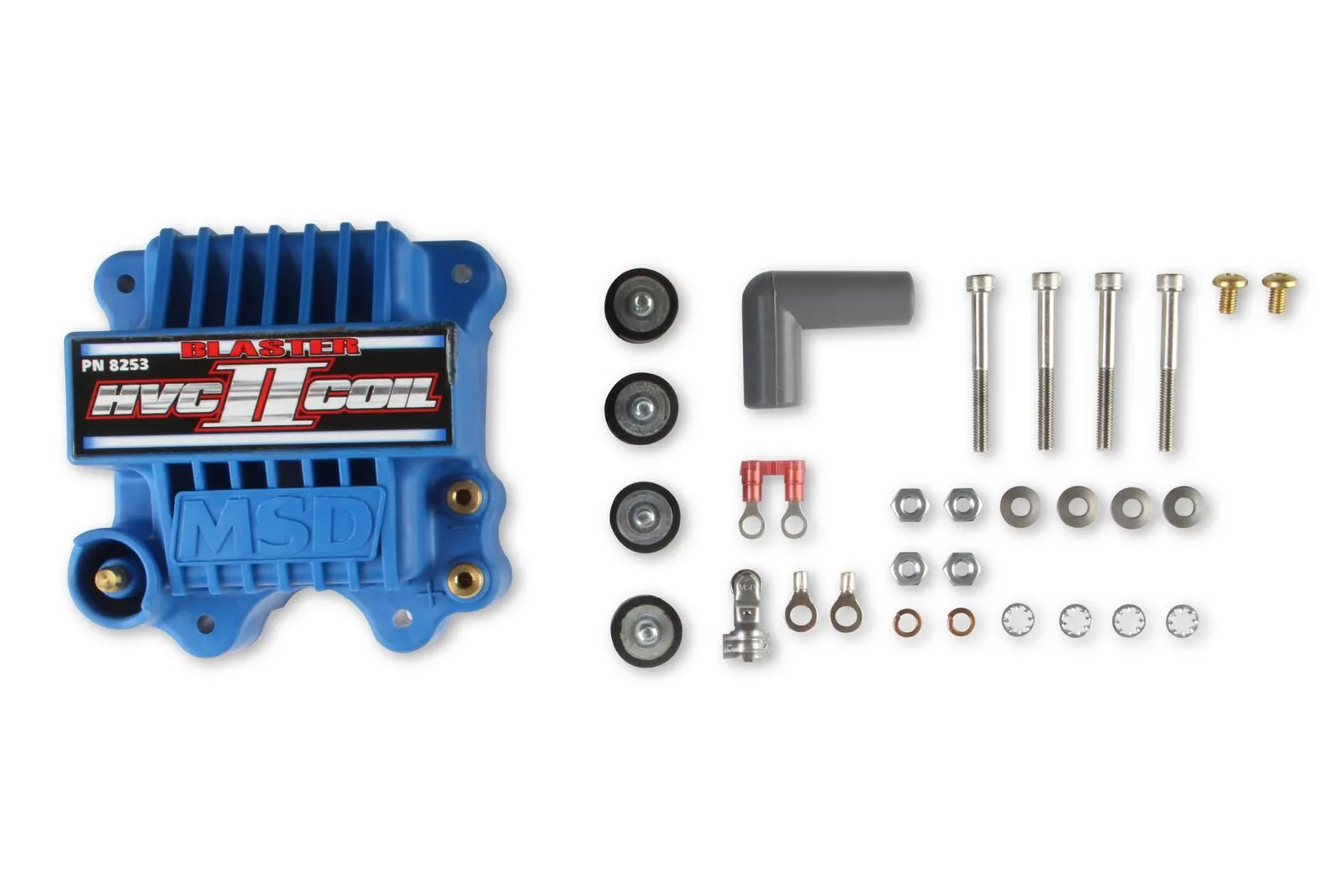

  • Supplied with rubber shock mounts
  • No CARB Exemption Order Number

Specifications

BrandMSD
Emission Code4
Inductance3.5 mH
Maximum Voltage44,000 Volts
Peak Current450 mA
Primary Resistance.16 OHMs
Product TypeIgnition Coil
Sale CategoryIgnition
Secondary Resistance630 OHMs
Spark Duration450 uS
Turns Ratio4.167361111111111
WarrantyLimited 1 Year Warranty
Weight3.75 Lbs

Compatibility

  • Universal Part

The Blaster HVC coil utilizes an iron U-Core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from a special Dupont Rynite material and wound specifically to produce the most current possible with incredible voltage and lightning quick rise time.

Features

  • Designed for high rpm, long duration applications using MSD 6 Series Ignitions
  • New U-core winding design produces more voltage and current
  • 100:1 turns ratio and lower primary resistance produce high voltage output
  • Windings are encased in fracture resistant compound for vibration resistance
  • Dupont Rynite housing with isolated tower and brass primary terminals
  • Supplied with rubber shock mounts
  • No CARB Exemption Order Number
BrandMSD
Emission Code4
Inductance3.5 mH
Maximum Voltage44,000 Volts
Peak Current450 mA
Primary Resistance.16 OHMs
Product TypeIgnition Coil
Sale CategoryIgnition
Secondary Resistance630 OHMs
Spark Duration450 uS
Turns Ratio4.167361111111111
WarrantyLimited 1 Year Warranty
Weight3.75 Lbs
  • Universal Part
