Description

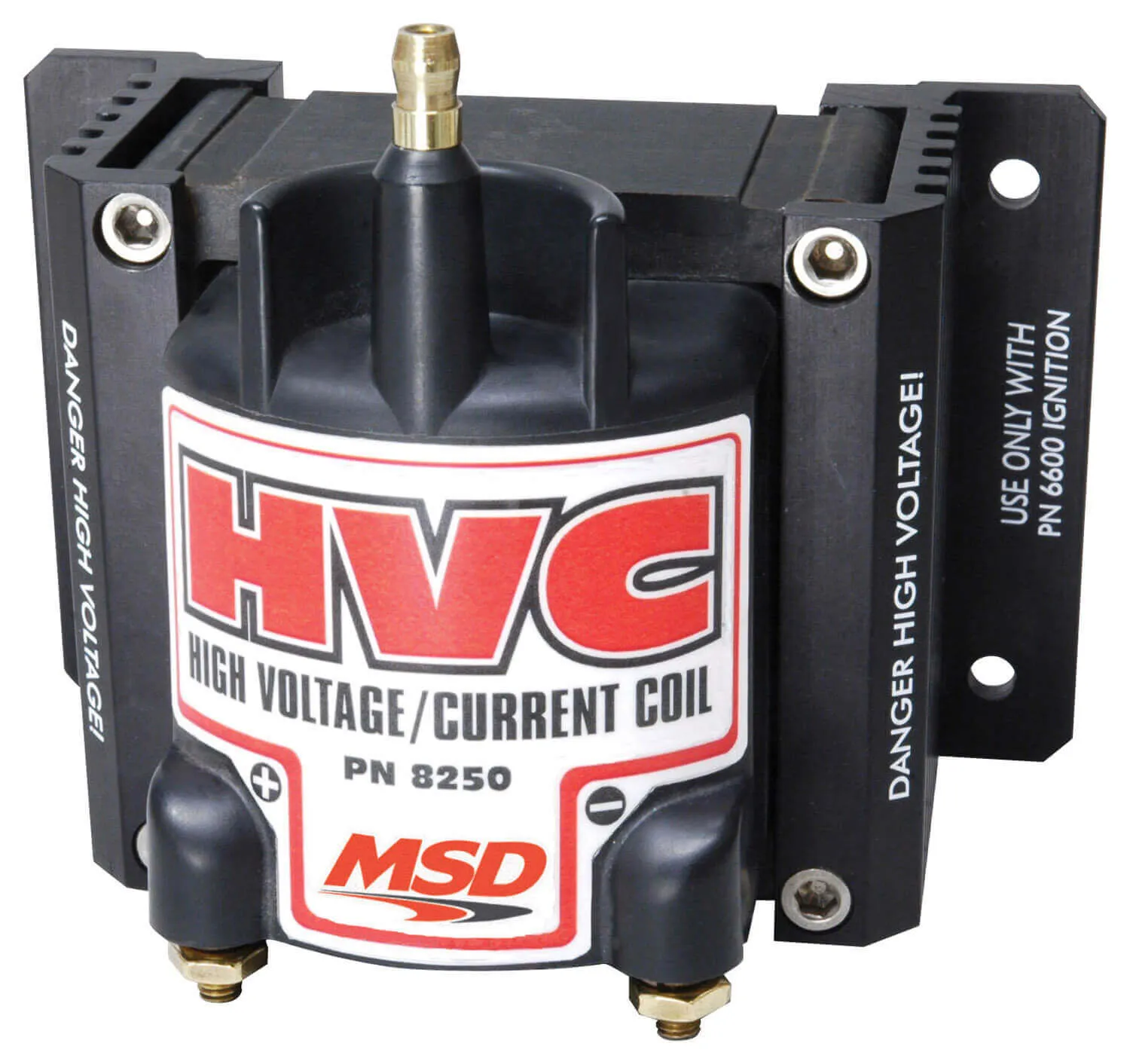

The E-Core design of the HVC Coil is more efficient in producing more output with less loss.

The HVC Coil is designed to be used exclusively with the MSD 6 HVC Series Ignition Controls (#6631, #6632). This Coil is not recommended for use with any other MSD Ignition Control or similar

aftermarket ignition.

Features

  • E-Core design produces more voltage and current while running 50% cooler than canister coils
  • Massive laminations and windings are engineered for less energy loss
  • Delivers high voltage to ionize the plug gap while the spark glows with high current

Specifications

BrandMSD
ColourBlack
Emission Code4
Inductance3mH
Maximum Voltage34,000 Volts
Peak Current600 mA
Primary Resistance.07 OHMs
Product TypeIgnition Coils
Sale CategoryIgnition
Secondary Resistance360 OHMs
Spark Duration200 uS
Turns Ratio4.167361111111111
TypeCircle Track
WarrantyLimited 1 Year Warranty
Weight3.75 Lbs

Compatibility

  • Universal Part

The E-Core design of the HVC Coil is more efficient in producing more output with less loss.

The HVC Coil is designed to be used exclusively with the MSD 6 HVC Series Ignition Controls (#6631, #6632). This Coil is not recommended for use with any other MSD Ignition Control or similar

aftermarket ignition.

Features

  • E-Core design produces more voltage and current while running 50% cooler than canister coils
  • Massive laminations and windings are engineered for less energy loss
  • Delivers high voltage to ionize the plug gap while the spark glows with high current
BrandMSD
ColourBlack
Emission Code4
Inductance3mH
Maximum Voltage34,000 Volts
Peak Current600 mA
Primary Resistance.07 OHMs
Product TypeIgnition Coils
Sale CategoryIgnition
Secondary Resistance360 OHMs
Spark Duration200 uS
Turns Ratio4.167361111111111
TypeCircle Track
WarrantyLimited 1 Year Warranty
Weight3.75 Lbs
  • Universal Part
