Description

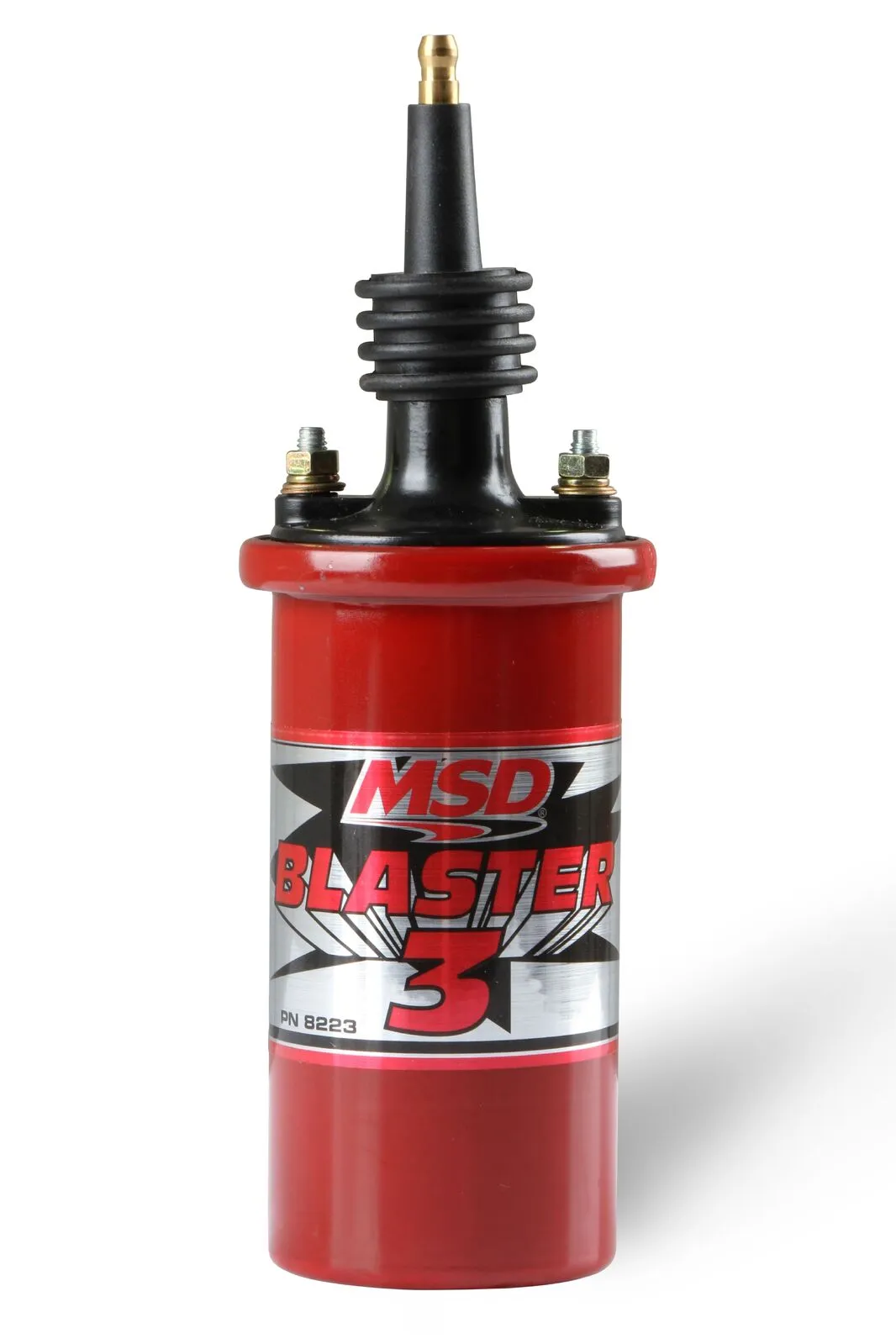

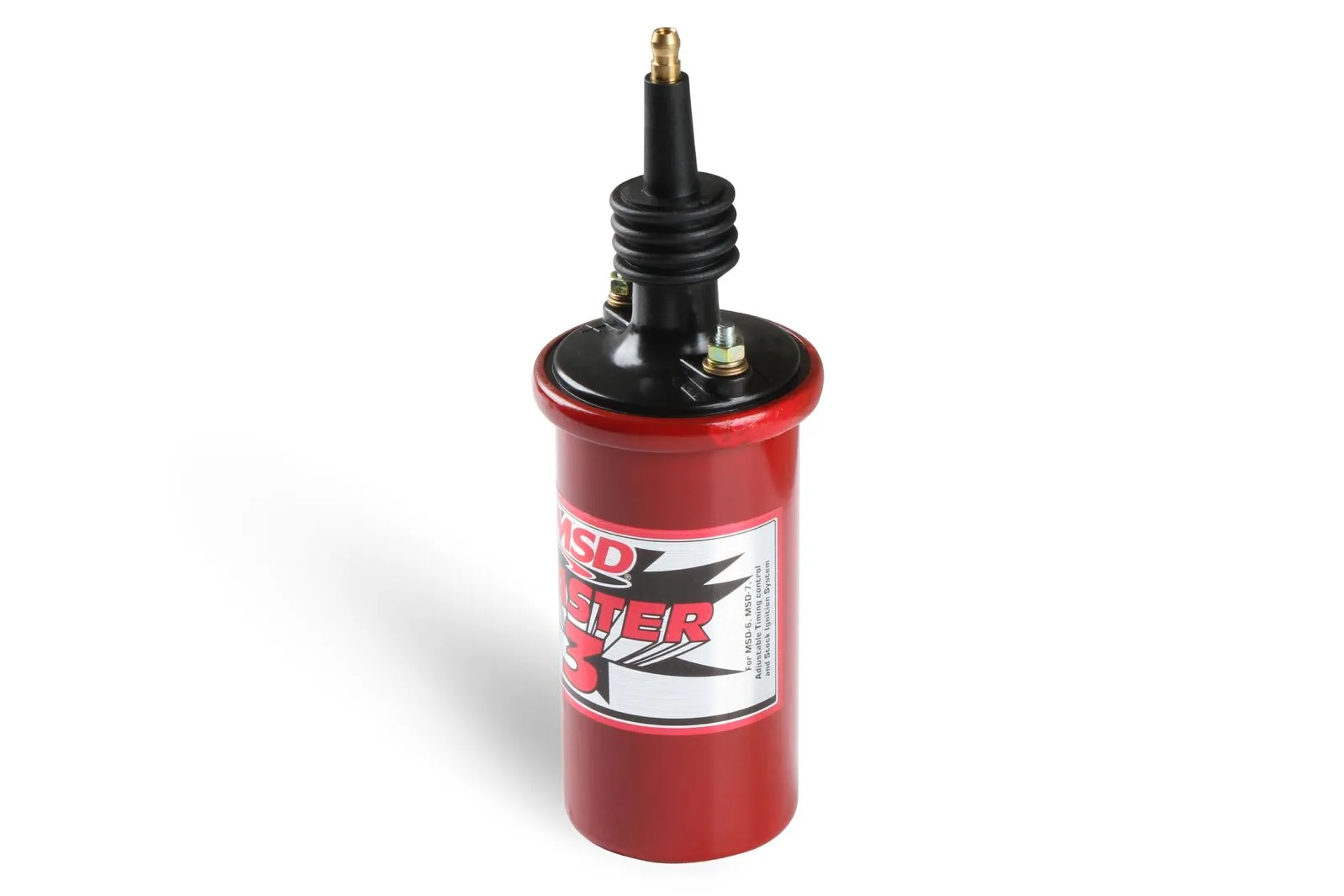

The Blaster 3 Coil features an extra-tall tower design to improve the coil wire attachment and spark isolation. Supplied with a 90-degree terminal and boot.

If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD Blaster Ignition, MSD 5, 6, or 7, the Blaster Coil line is the right choice. Our Blaster Coils are designed for improved spark output! Special 100:1 windings are used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil-filled metal canister.

Features

  • Extra tall secondary tower for secure coil wire connection
  • Improved output coil for electronic ignitions, and MSD Ignitions (ballast resistor required for points)• 100:1 turns ratio and lower primary resistance produce high voltage output
  • MSD Red metal canister is filled with a premium grade oil for cooling

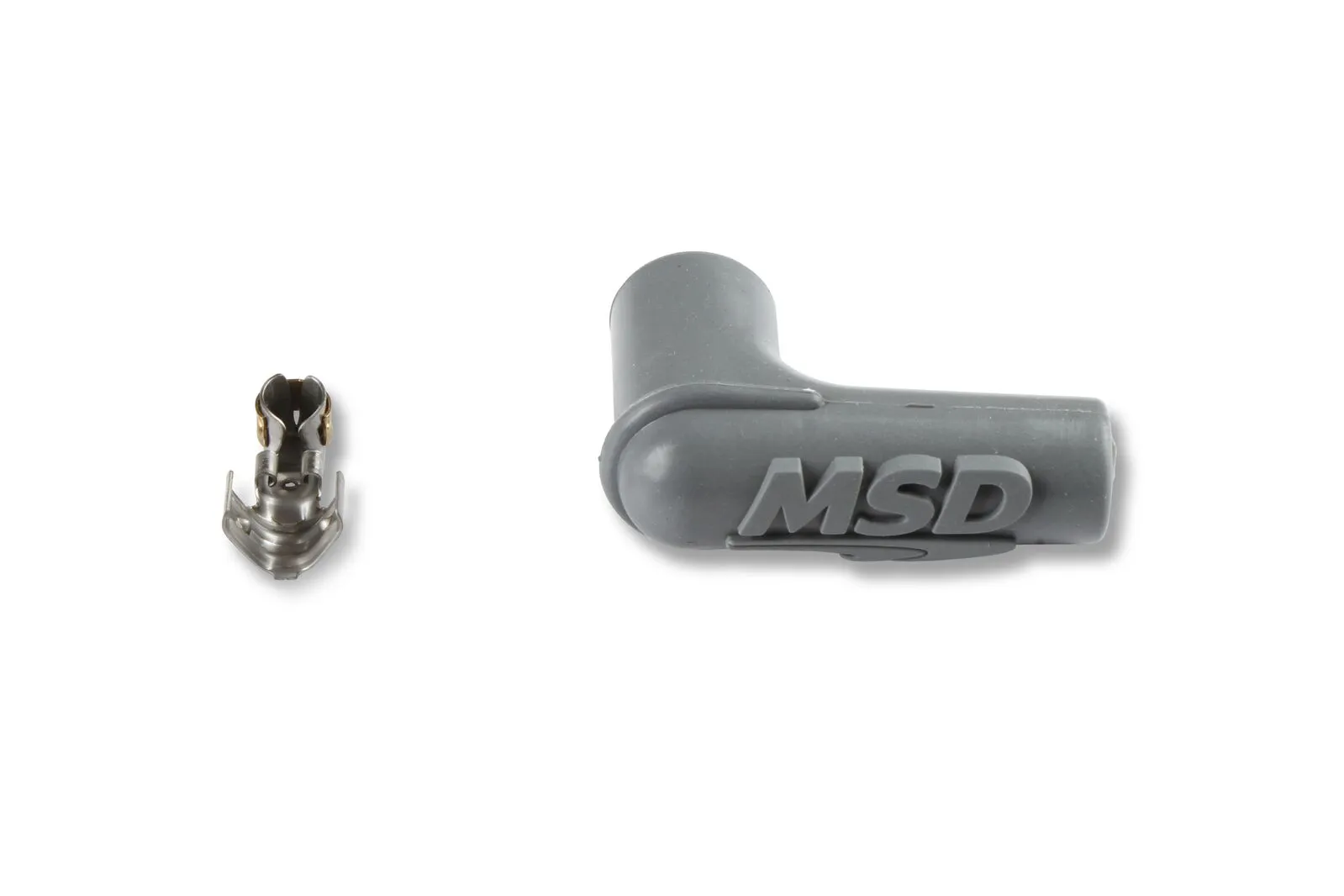

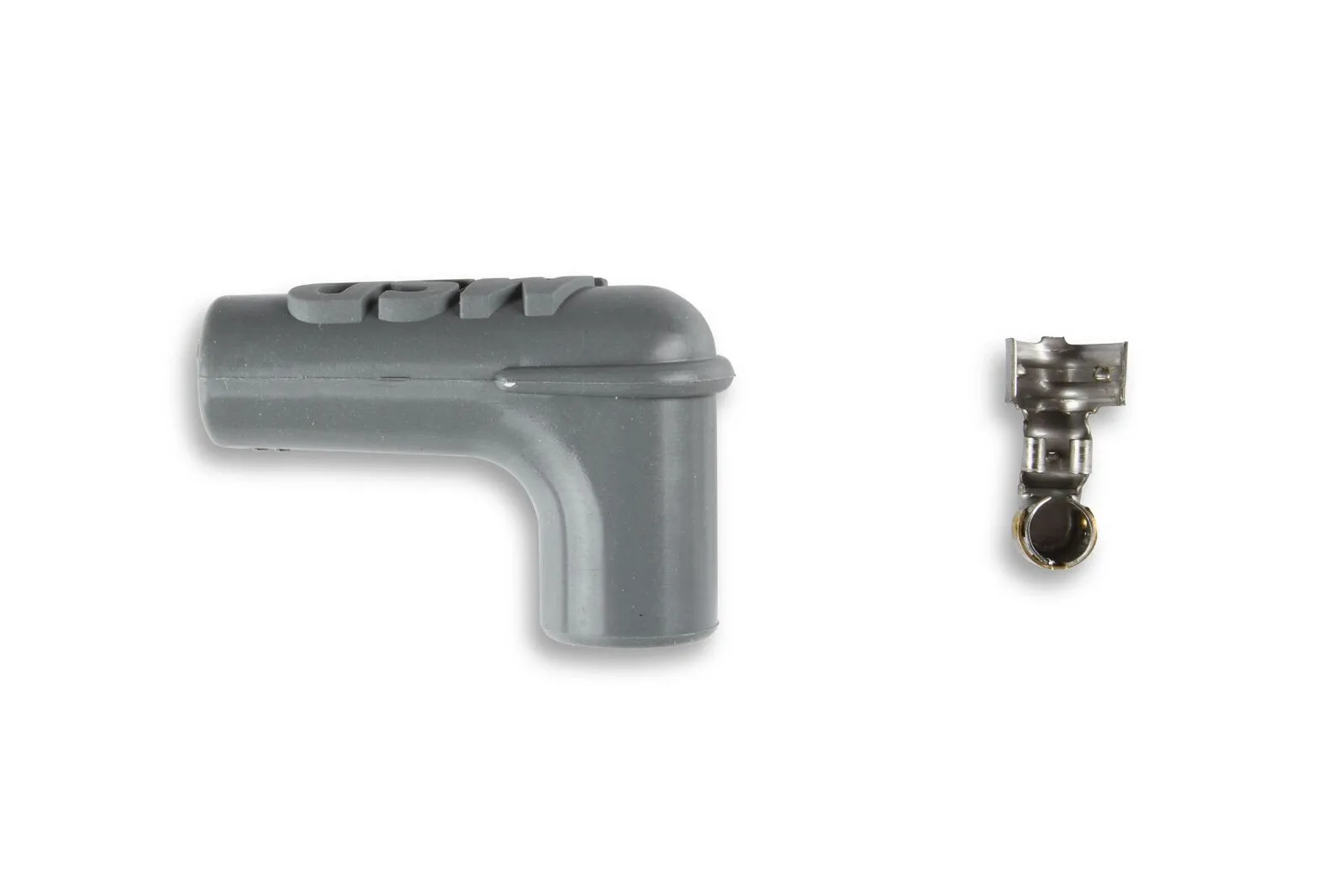

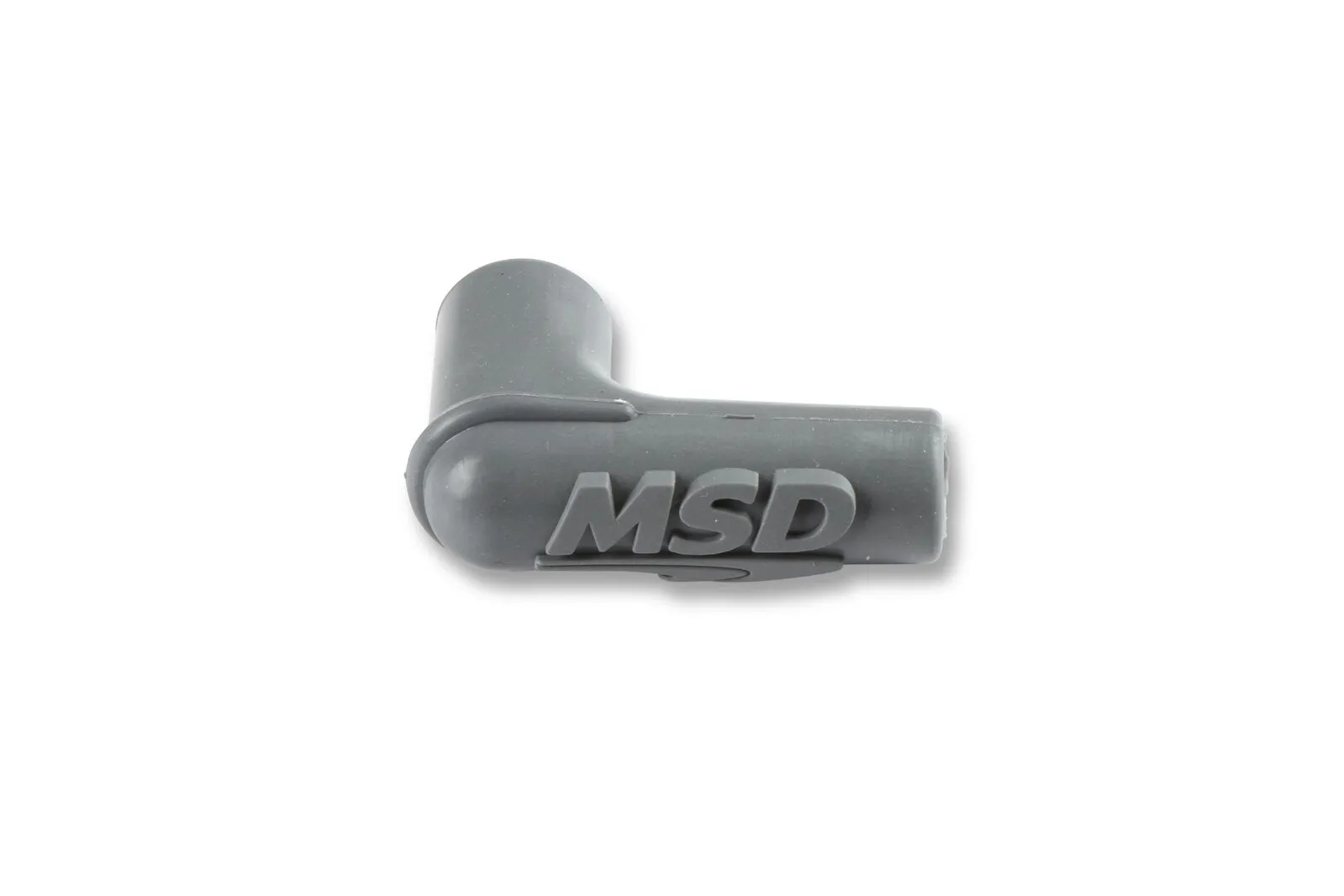

  • Supplied with a 90° spark plug style terminal and boot
  • CARB E.O. Approved

Specifications

BrandMSD
C.A.R.B. EO #D-40-37
Emission Code1
Inductance8 mH
Maximum Voltage45,000 Volts
Peak Current140 mA
Primary Resistance.7 OHMs
Product TypeCoil
Sale CategoryIgnition
Secondary Resistance4.5K OHMs
Spark Duration350 uS
Turns Ratio4.167361111111111
WarrantyLimited 1 Year Warranty

Compatibility

  • Universal Part

The Blaster 3 Coil features an extra-tall tower design to improve the coil wire attachment and spark isolation. Supplied with a 90-degree terminal and boot.

If you are looking to upgrade your stock coil, or want to compliment the performance of your MSD Blaster Ignition, MSD 5, 6, or 7, the Blaster Coil line is the right choice. Our Blaster Coils are designed for improved spark output! Special 100:1 windings are used to provide maximum build-up of voltage! These windings are held secure and kept cool in an oil-filled metal canister.

Features

  • Extra tall secondary tower for secure coil wire connection
  • Improved output coil for electronic ignitions, and MSD Ignitions (ballast resistor required for points)• 100:1 turns ratio and lower primary resistance produce high voltage output
  • MSD Red metal canister is filled with a premium grade oil for cooling
  • Supplied with a 90° spark plug style terminal and boot
  • CARB E.O. Approved
BrandMSD
C.A.R.B. EO #D-40-37
Emission Code1
Inductance8 mH
Maximum Voltage45,000 Volts
Peak Current140 mA
Primary Resistance.7 OHMs
Product TypeCoil
Sale CategoryIgnition
Secondary Resistance4.5K OHMs
Spark Duration350 uS
Turns Ratio4.167361111111111
WarrantyLimited 1 Year Warranty
  • Universal Part
