Description

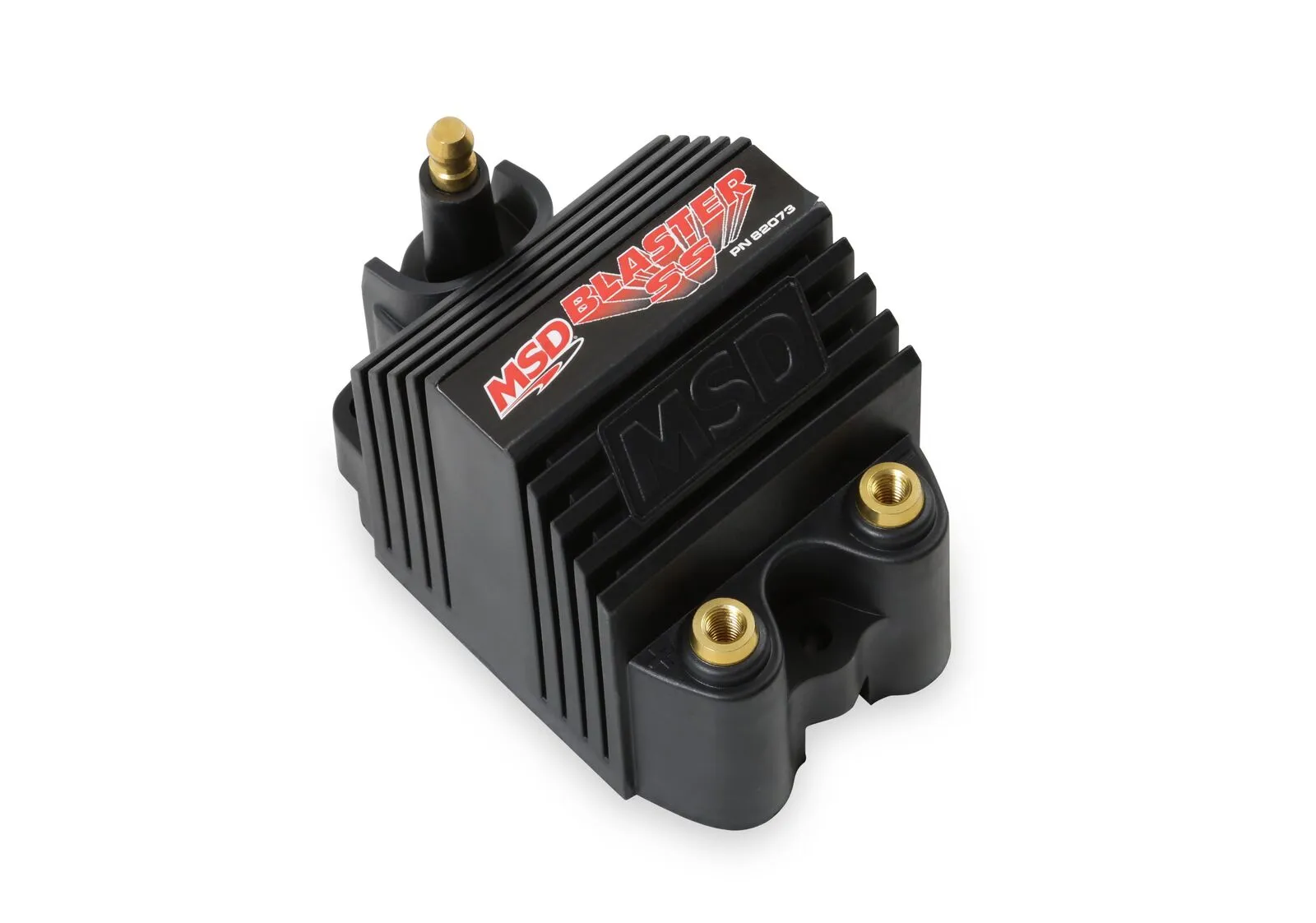

Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps with a maximum voltage output of 40,000 volts!

Note: If installing the Blaster SS Coil to a points distributor or a non-current limiting ignition system without an MSD Ignition, a 0.8 ohm ballast resistor is required (MSD PN 8214). The resistor should wire in series along with any factory resistors on the positive coil wire.

Features

  • Improved output coil for electronic ignitions, and MSD Ignitions
  • Efficient winding design and assembly creates a compact housing
  • Primary and secondary windings are encased in Ciba polyurethane
  • 70:1 turns ratio and lower primary resistance produce high voltage output
  • Tough, rigid housing with a tall tower and brass primary terminals
  • CARB E.O. D-40-37

Specifications

BrandMSD
C.A.R.B. EO #D-40-37
Coil TypeBlaster
ColourBlack
Emission Code1
Inductance6.9 mH
Maximum Voltage40,000 Volts
Peak Current300 mA
Primary Resistance.355 OHMs
Product TypeIgnition Coil
Sale CategoryIgnition
Secondary Resistance4.4K OHMs
Spark Duration220 uS
Turns Ratio2.917361111111111
WarrantyLimited 1 Year Warranty
Weight1.08 lbs.

Compatibility

  • Universal Part
