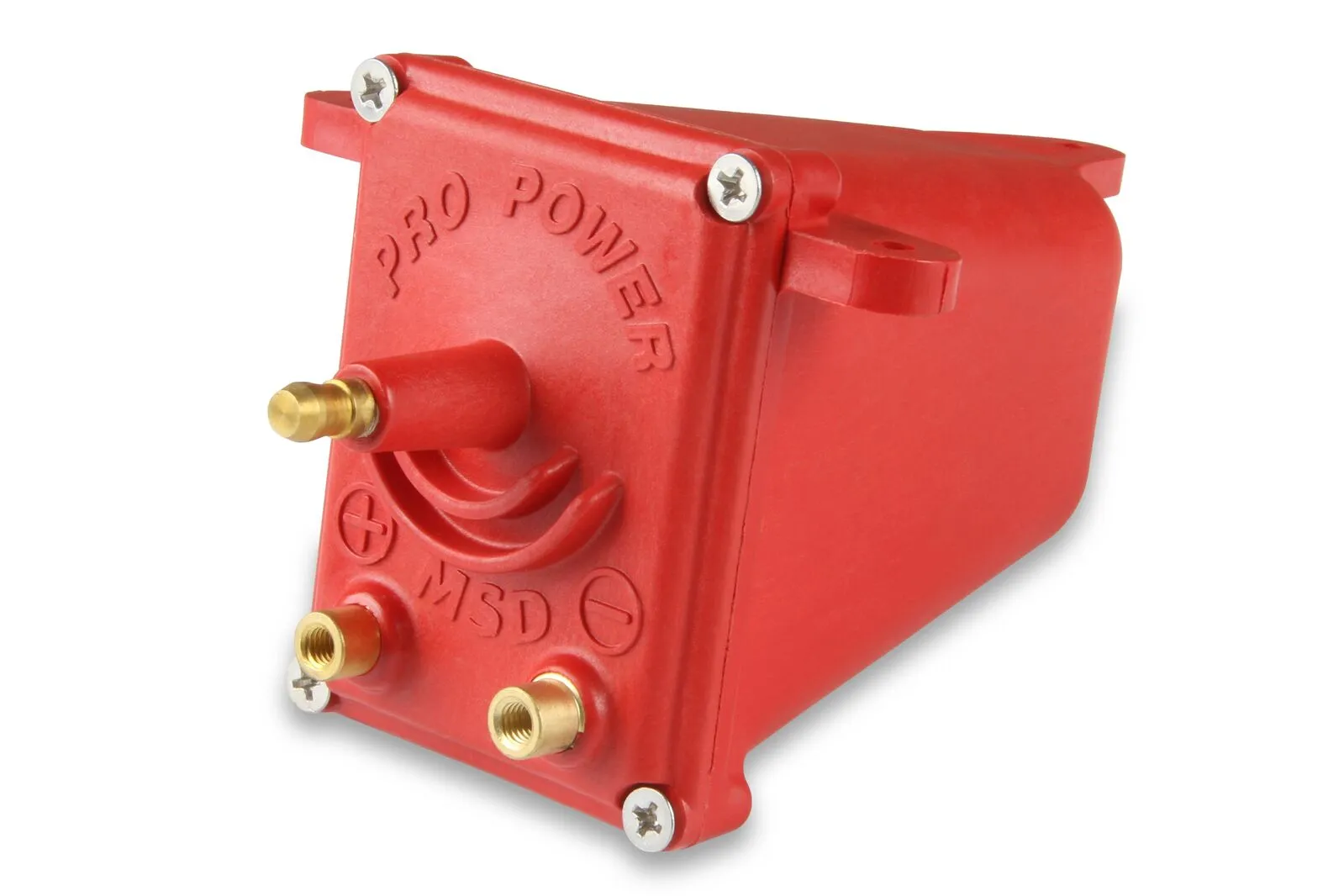

The special windings of the Pro Power Coil have extremely low resistance to produce the highest voltage possible with plenty of spark energy when used with an MSD 7 or 8 Series Ignition Control. The MSD Pro Power Coil is a great choice for short-duration applications such as drag racing.

This Coil is designed for use with an MSD 7AL-2 (#7220), 7AL-2 Plus (#7222), 7AL-3 (#7230), and MSD 8 (7805) Ignitions only.

Sold Individually.

Features

  • High voltage coil designed for short duration applications only
  • Primary and secondary windings are encased in Ciba polyurethane for vibration protection
  • Extremely low primary resistance
  • Housing is molded from a durable and high dielectric polyester

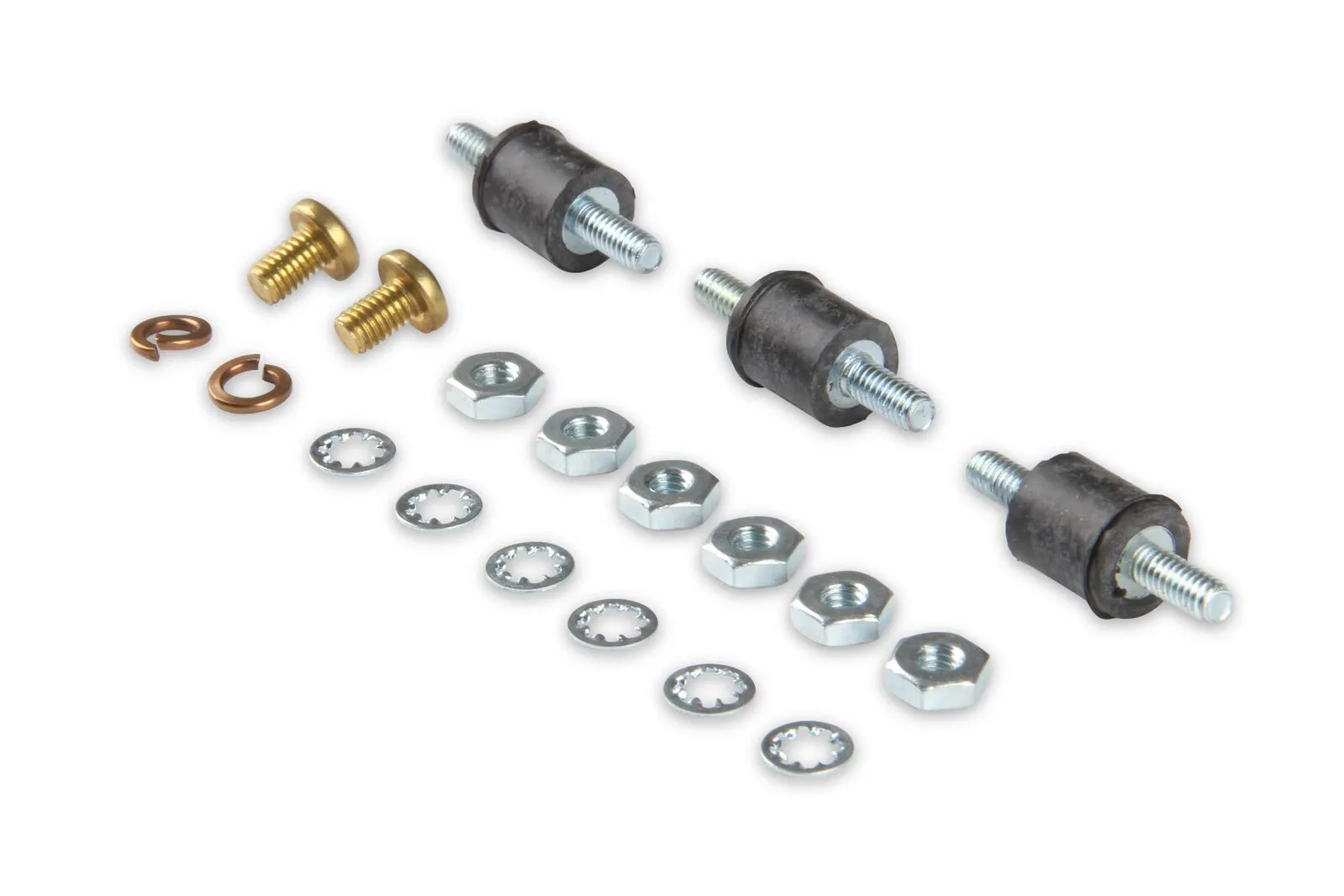

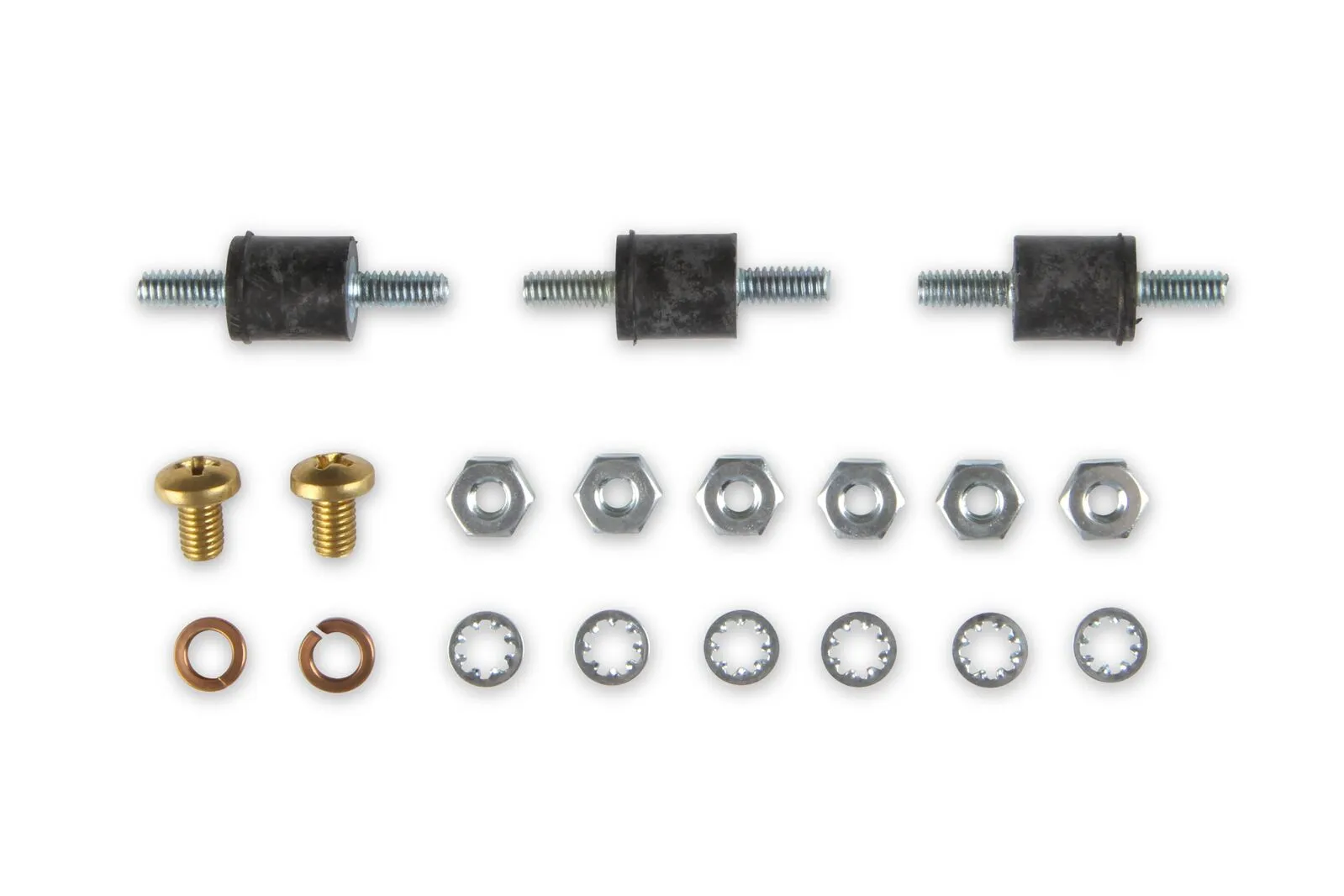

  • Supplied with rubber shock mounts
  • For MSD 7 and 8 ignitions only, not for use on street vehicles

Specifications

BrandMSD
ColourRed
Emission Code4
Inductance1 mH
Maximum Voltage43,000 Volts
Peak Current800 mA
Primary Resistance.03 OHMs
Product TypeIgnition Coil
Sale CategoryIgnition
Secondary Resistance240 ohms
Spark Duration180 uS
Turns Ratio4.167361111111111
TypeDrag Race / Short Duration Use
WarrantyLimited 1 Year Warranty

Compatibility

  • Universal Part

The special windings of the Pro Power Coil have extremely low resistance to produce the highest voltage possible with plenty of spark energy when used with an MSD 7 or 8 Series Ignition Control. The MSD Pro Power Coil is a great choice for short-duration applications such as drag racing.

This Coil is designed for use with an MSD 7AL-2 (#7220), 7AL-2 Plus (#7222), 7AL-3 (#7230), and MSD 8 (7805) Ignitions only.

Sold Individually.

Features

  • High voltage coil designed for short duration applications only
  • Primary and secondary windings are encased in Ciba polyurethane for vibration protection
  • Extremely low primary resistance
  • Housing is molded from a durable and high dielectric polyester
  • Supplied with rubber shock mounts
  • For MSD 7 and 8 ignitions only, not for use on street vehicles
BrandMSD
ColourRed
Emission Code4
Inductance1 mH
Maximum Voltage43,000 Volts
Peak Current800 mA
Primary Resistance.03 OHMs
Product TypeIgnition Coil
Sale CategoryIgnition
Secondary Resistance240 ohms
Spark Duration180 uS
Turns Ratio4.167361111111111
TypeDrag Race / Short Duration Use
WarrantyLimited 1 Year Warranty
  • Universal Part
