Description

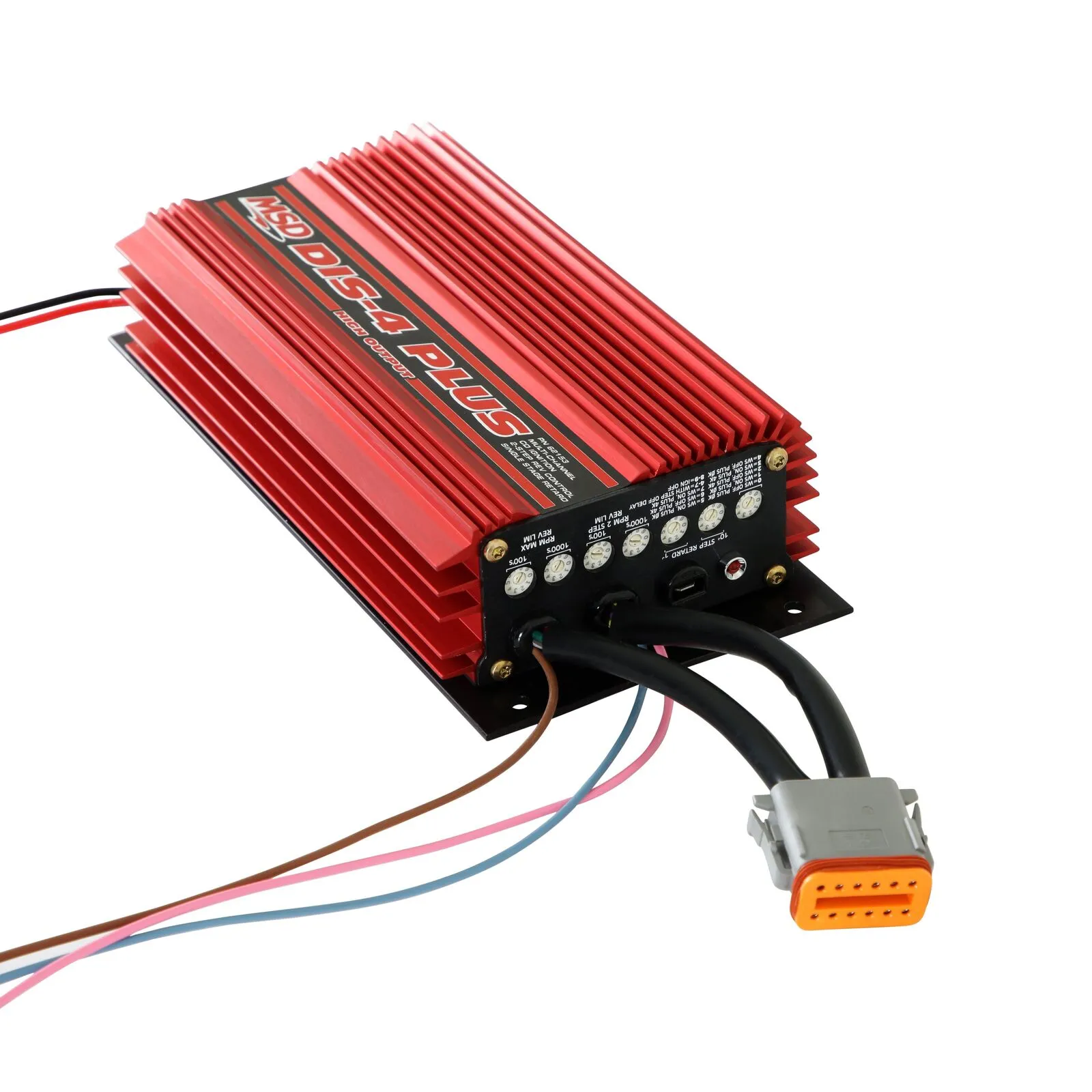

For full bred drag race engines running high boost pressures from turbos, blowers or nitrous we offer a Higher Output version of the DIS Ignition Control. The DIS-4 Plus HO Ignition produces an incredible 170 millijoules of spark energy with 470 primary volts. This increased output will light up fuel mixtures even under extreme cylinder pressures.

Features

  • Two adjustable Rev Limits
  • Diagnostic LED
  • Adjustable retard stage
  • Ignition Interrupt Circuit

Specifications

BrandMSD
Current Draw10 Amps at 10,000 RPM
Emission Code3
Primary Voltage470 Volts
Product TypeIgnition
RPM Range14,000 RPM with 14.4 Volts
Sale CategoryIgnition
Secondary Voltage43,000 Volts
Spark Energy170 mJ/spark
Spark Series Duration20 Degree Crankshaft Rotation
Voltage Required10-18 Volts, Negative Ground
WarrantyLimited 1 Year Warranty
Weight and Size3 lbs.,9.5"L x 4.5"W x 2.2"H

Compatibility

  • Universal Part

For full bred drag race engines running high boost pressures from turbos, blowers or nitrous we offer a Higher Output version of the DIS Ignition Control. The DIS-4 Plus HO Ignition produces an incredible 170 millijoules of spark energy with 470 primary volts. This increased output will light up fuel mixtures even under extreme cylinder pressures.

Features

  • Two adjustable Rev Limits
  • Diagnostic LED
  • Adjustable retard stage
  • Ignition Interrupt Circuit
BrandMSD
Current Draw10 Amps at 10,000 RPM
Emission Code3
Primary Voltage470 Volts
Product TypeIgnition
RPM Range14,000 RPM with 14.4 Volts
Sale CategoryIgnition
Secondary Voltage43,000 Volts
Spark Energy170 mJ/spark
Spark Series Duration20 Degree Crankshaft Rotation
Voltage Required10-18 Volts, Negative Ground
WarrantyLimited 1 Year Warranty
Weight and Size3 lbs.,9.5"L x 4.5"W x 2.2"H
  • Universal Part
