Description

Spark plug wires have two main objectives; transfer the spark energy and suppress the Electro Magnetic Interference (EMI) that the spark voltage creates. The MSD 8.5mm Super Conductor delivers the best of both worlds! MSD uses a special copper conductor keeping resistance under 50 ohms per foot! Even with this low resistance, the wire retains high EMI suppression capabilities. By wrapping the conductor tightly around a ferro-magnetic impregnated center core an EMI choke is created keeping any interference inside the wire.

The Super Conductor wire is a high performance wire from the inside out. The outer sleeve is a combination of silicone and synthetic materials for supreme resistance against heat, chemicals and abrasion. Thick boots with more material also help guard against spark arcing to ground and special dual crimp terminals grip the conductor and the sleeve of the wire so there is no chance of the terminal pulling off the wire.

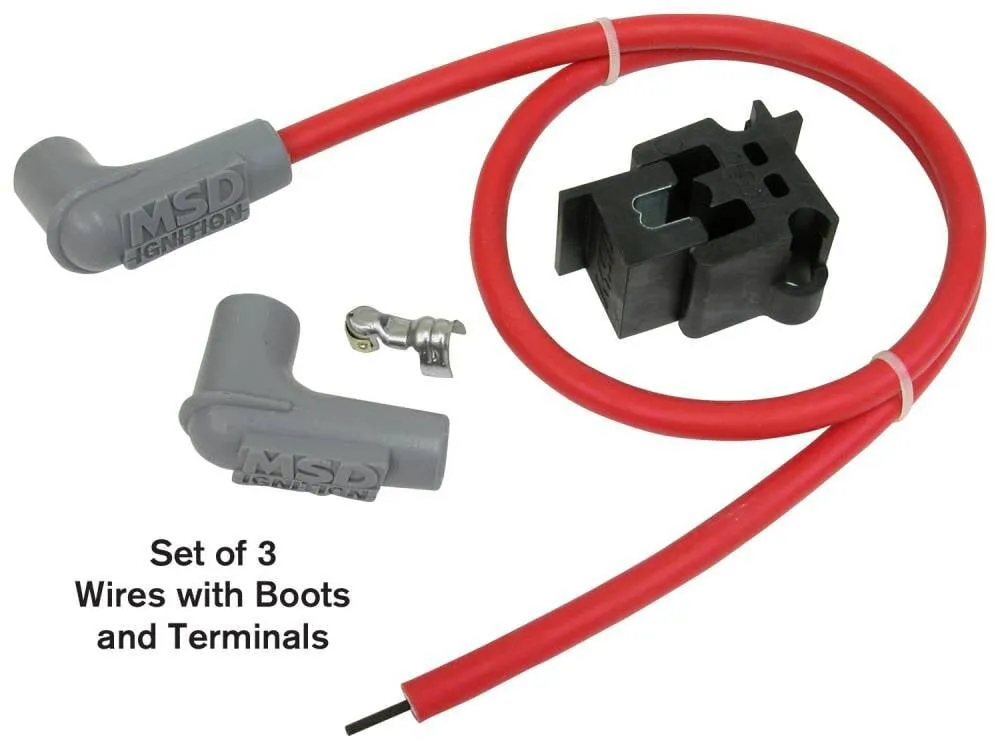

The 8.5mm Wire is available in bulk and universal sets. Universal kits are supplied with the spark plug terminal and boot installed, then you cut the wire to length and crimp the coil side on. MSD even supplies a Mini-Stripperr_Crimper tool to produce a firm crimp.

Features

  • Extra long 8.5mm wire so you can cut to your desired length
  • Includes Mini-Stripper-Crimper
  • Wire Lengths: 3 - 30"

Specifications

ApplicationWatercraft 3-Cylinder
Boot MaterialSilicone
BrandMSD
ColourRed
CORECopper
Emission Code5
Insulation ColourRed
Outside Diameter8.5
Product TypeSpark Plug Wires
Resistance40-50 Ohms Per Foot
Spark Plug Boot Angle90 Degree
Spark Plug End Boot Degree90
Universal Or Specific FitUniversal
WarrantyLimited 1 Year Warranty
Wire Diameter8.5mm
Wire Separators IncludedNo
Wire Series8.5 Super Conductor

Compatibility

  • Universal Part

Spark plug wires have two main objectives; transfer the spark energy and suppress the Electro Magnetic Interference (EMI) that the spark voltage creates. The MSD 8.5mm Super Conductor delivers the best of both worlds! MSD uses a special copper conductor keeping resistance under 50 ohms per foot! Even with this low resistance, the wire retains high EMI suppression capabilities. By wrapping the conductor tightly around a ferro-magnetic impregnated center core an EMI choke is created keeping any interference inside the wire.

The Super Conductor wire is a high performance wire from the inside out. The outer sleeve is a combination of silicone and synthetic materials for supreme resistance against heat, chemicals and abrasion. Thick boots with more material also help guard against spark arcing to ground and special dual crimp terminals grip the conductor and the sleeve of the wire so there is no chance of the terminal pulling off the wire.

The 8.5mm Wire is available in bulk and universal sets. Universal kits are supplied with the spark plug terminal and boot installed, then you cut the wire to length and crimp the coil side on. MSD even supplies a Mini-Stripperr_Crimper tool to produce a firm crimp.

Features

  • Extra long 8.5mm wire so you can cut to your desired length
  • Includes Mini-Stripper-Crimper
  • Wire Lengths: 3 - 30"
ApplicationWatercraft 3-Cylinder
Boot MaterialSilicone
BrandMSD
ColourRed
CORECopper
Emission Code5
Insulation ColourRed
Outside Diameter8.5
Product TypeSpark Plug Wires
Resistance40-50 Ohms Per Foot
Spark Plug Boot Angle90 Degree
Spark Plug End Boot Degree90
Universal Or Specific FitUniversal
WarrantyLimited 1 Year Warranty
Wire Diameter8.5mm
Wire Separators IncludedNo
Wire Series8.5 Super Conductor
  • Universal Part
