Description

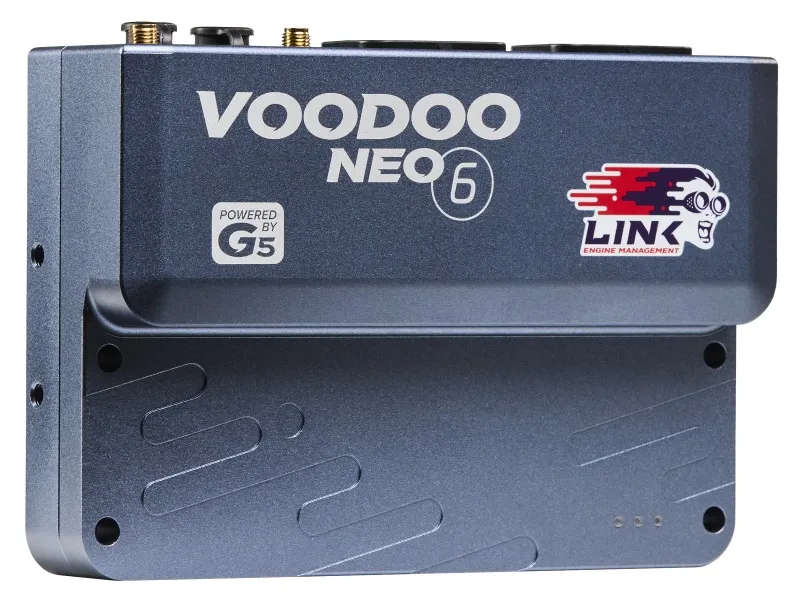

The G5 Voodoo Neo 6 is a professional-grade wire-in engine management ECU designed for 6-cylinder engines with direct injection, staged port/direct injection, or port injection configurations, and also supports 8-cylinder port or direct injection setups with direct spark. Built around an all-new communications module, it delivers up to 10x faster log file download speeds via USB-C, with built-in Ethernet, WiFi, and GPS as standard.

  • 1 GB onboard data logging at up to 100 kHz across 250 channels
  • 12 injector pins, 8 ignition pins, 6 auxiliary outputs, 6 customisable ADIO pins
  • Dual H-Bridge electronic throttle control and integrated wideband oxygen controller
  • CAN connectivity with WiFi antenna and 4m GPS antenna included
  • CNC-machined sealed enclosure (107 mm × 158 mm × 45 mm, 730 g) with multiple mounting options
  • Can be powered via USB-C for bench setup and firmware updates
  • Compatible with PC Link software — opens both G4X and G5 map and log files

The G5 Voodoo Neo 6 uses Link's familiar A and B connector header (68 pins total) and runs the same highly acclaimed PC Link tuning software as the G4X platform, making it an accessible upgrade path for experienced Link tuners moving to the next generation.

Specifications

  • G5 Voodoo Neo 6
  • The next generation of engine management for many more engines.
  • The G5 Voodoo Neo 6 can run:
  • 8 cylinders with port or direct injection and direct spark,
  • 6 cylinders with direct/port staged injection and direct spark
  • The G5 Voodoo processing units are the perfect choice for professional-level motorsport.
  • The G5 Voodoo Neo 6 works on a variety of vehicles.
  • In the box:
  • G5 Voodoo Neo 6 ECU
  • USB-C Connection Cable
  • WiFi Antenna
  • 4m GPS Antenna (Magnetic or Adhesive Mount)
  • USB-C and SMA Dust Covers
  • QuickStart Guide (A5)
  • Installer I/O Table (A3)
  • Link stickers
  • New comms module: Up to 10x faster log file download speeds, from minutes to seconds, and enhanced WiFi and GPS
  • Built in ethernet
  • 1GB onboard logging in data storage unit
  • 1 onboard wideband
  • CNC case, sealed enclosure
  • 68 pins total (Link A and B 34 pin superseal connectors)
  • K-line support
  • New WEIPU CAN connector, which supplies power for the CAN-bus.
  • Highly customisable IO, using 2 types of multi purpose pins:
  • ADIO pins and Injector/Digital-Input pins. These pins can act as inputs or outputs.
  • Can now power up via the USB cable, making firmware updates and setting up the initial tune a breeze at your PC.
  • Runs on the same highly acclaimed PC Link software as G4X, meaning you don’t need to learn a new software package. You can open both G4X and G5 log and map files in the same software (G4X Map can also be loaded into a G5 Voodoo Pro)
  • More mounting options than ever, with through holes and threaded mount holes on the side and underneath.
  • All NEOs are direct injection capable, including staged port-DI on NEO 4 and 6.
  • Requires “A” & “B” connector kits (not supplied).
  • Inputs/Outputs
  • Control up to 8 cylin

Compatibility

  • Universal Part

The G5 Voodoo Neo 6 is a professional-grade wire-in engine management ECU designed for 6-cylinder engines with direct injection, staged port/direct injection, or port injection configurations, and also supports 8-cylinder port or direct injection setups with direct spark. Built around an all-new communications module, it delivers up to 10x faster log file download speeds via USB-C, with built-in Ethernet, WiFi, and GPS as standard.

  • 1 GB onboard data logging at up to 100 kHz across 250 channels
  • 12 injector pins, 8 ignition pins, 6 auxiliary outputs, 6 customisable ADIO pins
  • Dual H-Bridge electronic throttle control and integrated wideband oxygen controller
  • CAN connectivity with WiFi antenna and 4m GPS antenna included
  • CNC-machined sealed enclosure (107 mm × 158 mm × 45 mm, 730 g) with multiple mounting options
  • Can be powered via USB-C for bench setup and firmware updates
  • Compatible with PC Link software — opens both G4X and G5 map and log files

The G5 Voodoo Neo 6 uses Link's familiar A and B connector header (68 pins total) and runs the same highly acclaimed PC Link tuning software as the G4X platform, making it an accessible upgrade path for experienced Link tuners moving to the next generation.

  • G5 Voodoo Neo 6
  • The next generation of engine management for many more engines.
  • The G5 Voodoo Neo 6 can run:
  • 8 cylinders with port or direct injection and direct spark,
  • 6 cylinders with direct/port staged injection and direct spark
  • The G5 Voodoo processing units are the perfect choice for professional-level motorsport.
  • The G5 Voodoo Neo 6 works on a variety of vehicles.
  • In the box:
  • G5 Voodoo Neo 6 ECU
  • USB-C Connection Cable
  • WiFi Antenna
  • 4m GPS Antenna (Magnetic or Adhesive Mount)
  • USB-C and SMA Dust Covers
  • QuickStart Guide (A5)
  • Installer I/O Table (A3)
  • Link stickers
  • New comms module: Up to 10x faster log file download speeds, from minutes to seconds, and enhanced WiFi and GPS
  • Built in ethernet
  • 1GB onboard logging in data storage unit
  • 1 onboard wideband
  • CNC case, sealed enclosure
  • 68 pins total (Link A and B 34 pin superseal connectors)
  • K-line support
  • New WEIPU CAN connector, which supplies power for the CAN-bus.
  • Highly customisable IO, using 2 types of multi purpose pins:
  • ADIO pins and Injector/Digital-Input pins. These pins can act as inputs or outputs.
  • Can now power up via the USB cable, making firmware updates and setting up the initial tune a breeze at your PC.
  • Runs on the same highly acclaimed PC Link software as G4X, meaning you don’t need to learn a new software package. You can open both G4X and G5 log and map files in the same software (G4X Map can also be loaded into a G5 Voodoo Pro)
  • More mounting options than ever, with through holes and threaded mount holes on the side and underneath.
  • All NEOs are direct injection capable, including staged port-DI on NEO 4 and 6.
  • Requires “A” & “B” connector kits (not supplied).
  • Inputs/Outputs
  • Control up to 8 cylin
  • Universal Part
