Description

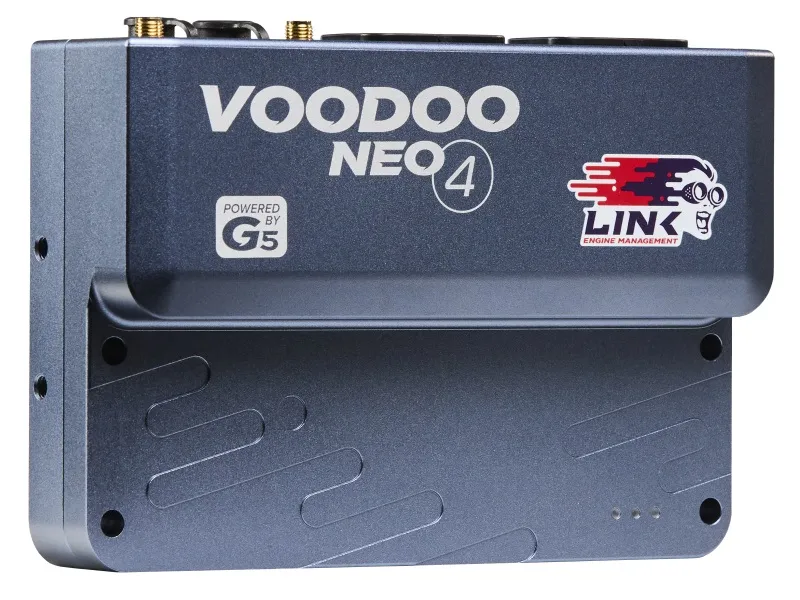

The Link G5 Voodoo Neo 4 is a professional-grade wire-in engine management system built for high-performance motorsport applications. It supports up to 6 cylinders with port or direct injection and direct spark, or 4 cylinders with direct/port staged injection, making it highly versatile across a wide range of engine configurations.

Key Features

  • Built-in Ethernet, Wi-Fi, and high-accuracy GPS for position, speed, and time logging
  • 1GB onboard logging memory — double that of previous Link ECU generations
  • 10x faster USB-C speeds compared to older platforms, enabling log downloads in seconds
  • Dual on-board electronic throttle control with H-bridge support
  • One integrated digital wideband O2 sensor input
  • Highly customisable I/O via ADIO and Aux/Digital-Input multi-purpose pins
  • CNC machined sealed enclosure with 68-pin superseal connectors
  • Ability to power up via USB-C cable for easy bench-side firmware updates and initial setup

The G5 Voodoo Neo 4 runs on Link's acclaimed PCLink software, fully compatible with G4X tune files, and supports external DI Driver boxes for direct injection operation. Box includes: G5 Voodoo Neo 4 ECU, USB-C connection cable, Wi-Fi antenna, 4m GPS antenna (magnetic or adhesive mount), USB-C and SMA dust covers, QuickStart guide, and installer I/O table.

Specifications

  • G5 Voodoo Neo 4
  • The next generation of engine management for many more engines.
  • The G5 Voodoo Neo 4 can run:
  • 6 cylinders port or direct injection and direct spark, or,
  • 4 cylinders with direct/port staged injection, and direct spark
  • The G5 Voodoo processing units are the perfect choice for professional level motorsport.
  • The G5 Voodoo Neo 4 works on a variety of vehicles.
  • In the box:
  • G5 Voodoo Neo 4 ECU
  • USB-C Connection Cable
  • WiFi Antenna
  • 4m GPS Antenna (Magnetic or Adhesive Mount)
  • USB-C and SMA Dust Covers
  • QuickStart Guide (A5)
  • Installer I/O table (A3)
  • Link stickers
  • New comms module: Up to 10x faster log file download speeds, from minutes to seconds, and enhanced WiFi and GPS
  • Built in ethernet
  • 1GB onboard logging in data storage unit
  • 1 onboard wideband
  • CNC case, sealed enclosure
  • 68 pins total (Link A and B 34 pin superseal connectors)
  • K-line support
  • New WEIPU CAN connector, which supplies power for the CAN-bus.
  • Highly customisable IO, using 2 types of multi purpose pins:
  • ADIO pins and Aux./Digital-Input pins. These pins can act as inputs or outputs.
  • Can now power up via the USB cable, making firmware updates and setting up the initial tune a breeze at your PC.
  • Runs on the same highly acclaimed PC Link software as G4X, meaning you don’t need to learn a new software package. You can open both G4X and G5 log and map files in the same software (G4X Map can also be loaded into a G5 Voodoo Pro)
  • More mounting options than ever, with through holes and threaded mount holes on the side and underneath.
  • All NEOs are direct injection capable, including staged port-DI on NEO 4 and 6.
  • Requires “A” & “B” connector kits (not supplied).
  • Inputs/Outputs
  • Control up to 6 cylinders

Compatibility

  • Universal Part

The Link G5 Voodoo Neo 4 is a professional-grade wire-in engine management system built for high-performance motorsport applications. It supports up to 6 cylinders with port or direct injection and direct spark, or 4 cylinders with direct/port staged injection, making it highly versatile across a wide range of engine configurations.

Key Features

  • Built-in Ethernet, Wi-Fi, and high-accuracy GPS for position, speed, and time logging
  • 1GB onboard logging memory — double that of previous Link ECU generations
  • 10x faster USB-C speeds compared to older platforms, enabling log downloads in seconds
  • Dual on-board electronic throttle control with H-bridge support
  • One integrated digital wideband O2 sensor input
  • Highly customisable I/O via ADIO and Aux/Digital-Input multi-purpose pins
  • CNC machined sealed enclosure with 68-pin superseal connectors
  • Ability to power up via USB-C cable for easy bench-side firmware updates and initial setup

The G5 Voodoo Neo 4 runs on Link's acclaimed PCLink software, fully compatible with G4X tune files, and supports external DI Driver boxes for direct injection operation. Box includes: G5 Voodoo Neo 4 ECU, USB-C connection cable, Wi-Fi antenna, 4m GPS antenna (magnetic or adhesive mount), USB-C and SMA dust covers, QuickStart guide, and installer I/O table.

  • G5 Voodoo Neo 4
  • The next generation of engine management for many more engines.
  • The G5 Voodoo Neo 4 can run:
  • 6 cylinders port or direct injection and direct spark, or,
  • 4 cylinders with direct/port staged injection, and direct spark
  • The G5 Voodoo processing units are the perfect choice for professional level motorsport.
  • The G5 Voodoo Neo 4 works on a variety of vehicles.
  • In the box:
  • G5 Voodoo Neo 4 ECU
  • USB-C Connection Cable
  • WiFi Antenna
  • 4m GPS Antenna (Magnetic or Adhesive Mount)
  • USB-C and SMA Dust Covers
  • QuickStart Guide (A5)
  • Installer I/O table (A3)
  • Link stickers
  • New comms module: Up to 10x faster log file download speeds, from minutes to seconds, and enhanced WiFi and GPS
  • Built in ethernet
  • 1GB onboard logging in data storage unit
  • 1 onboard wideband
  • CNC case, sealed enclosure
  • 68 pins total (Link A and B 34 pin superseal connectors)
  • K-line support
  • New WEIPU CAN connector, which supplies power for the CAN-bus.
  • Highly customisable IO, using 2 types of multi purpose pins:
  • ADIO pins and Aux./Digital-Input pins. These pins can act as inputs or outputs.
  • Can now power up via the USB cable, making firmware updates and setting up the initial tune a breeze at your PC.
  • Runs on the same highly acclaimed PC Link software as G4X, meaning you don’t need to learn a new software package. You can open both G4X and G5 log and map files in the same software (G4X Map can also be loaded into a G5 Voodoo Pro)
  • More mounting options than ever, with through holes and threaded mount holes on the side and underneath.
  • All NEOs are direct injection capable, including staged port-DI on NEO 4 and 6.
  • Requires “A” & “B” connector kits (not supplied).
  • Inputs/Outputs
  • Control up to 6 cylinders
  • Universal Part
