Description

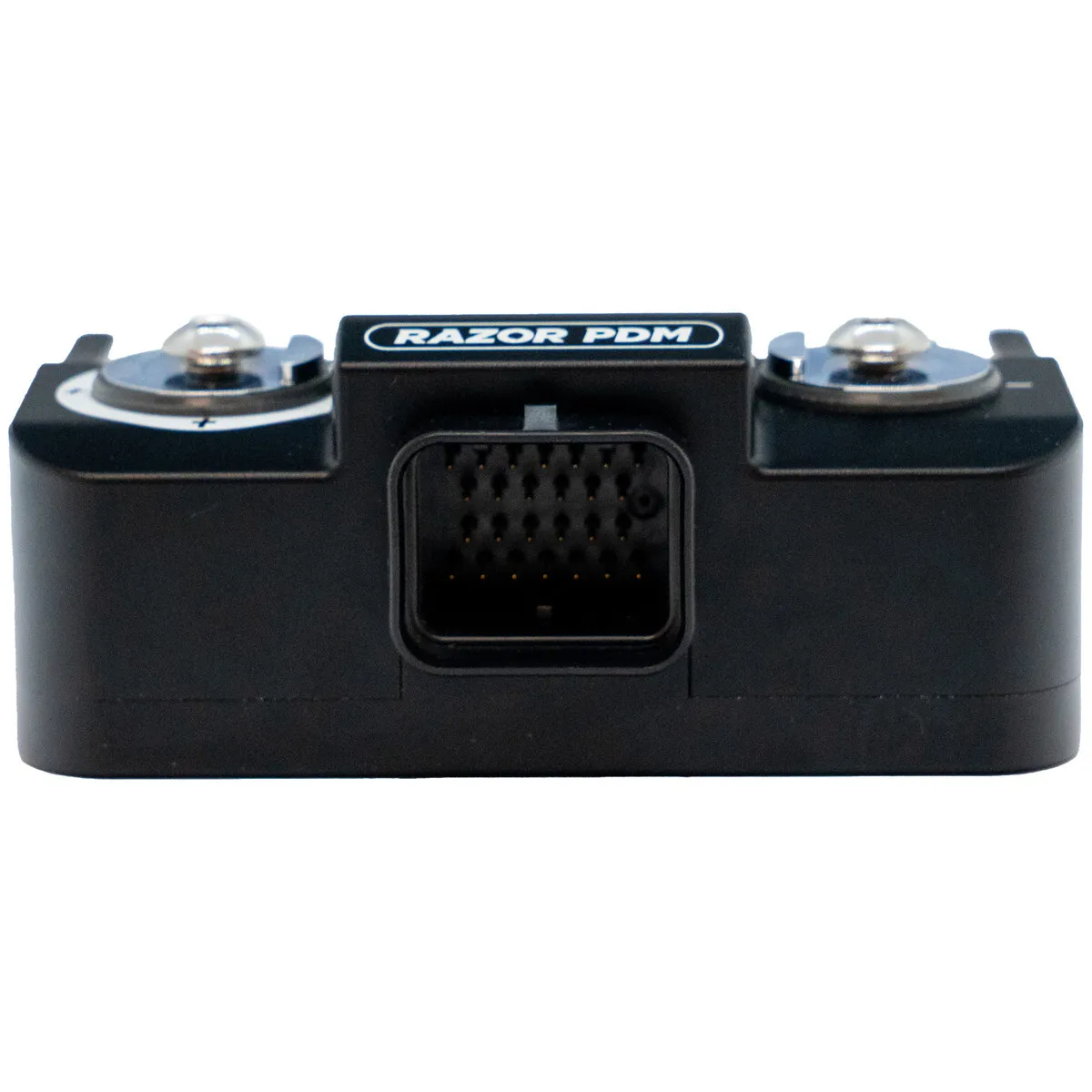

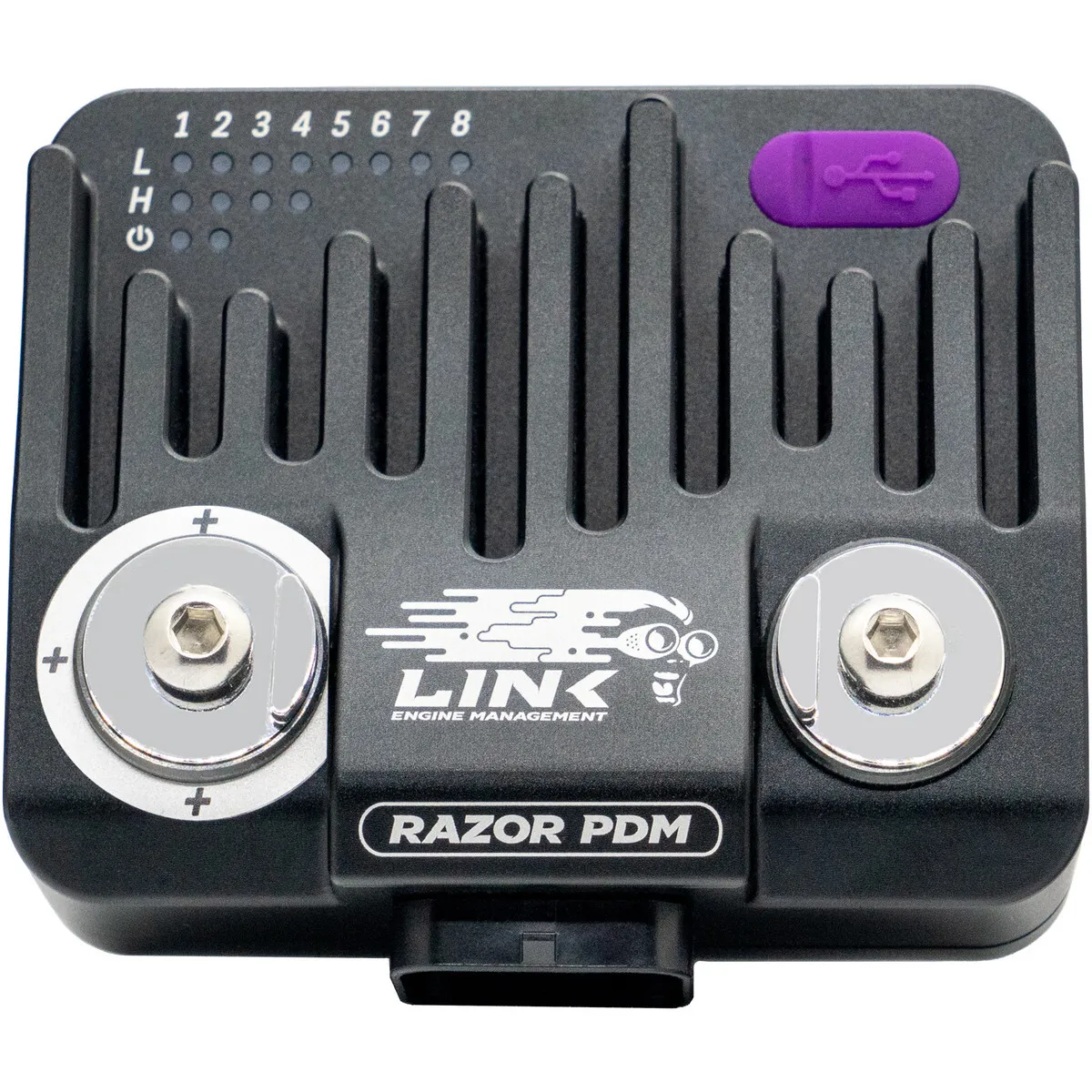

Link's highly anticipated PDM, the Razor PDM, is an intelligent Power Distribution Module that replaces traditional fuses and relays, putting you in complete control of your setup.

The Razor PDM is a programmable device that uses logic for the smart control of any outputs you have connected, meaning events and commands can be triggered when your vehicle hits specific parameters.

The device will allow you to manage things such as fuel pumps, radiator fans, electronic throttles, servos, lights and more, as well as monitoring analog or digital sensor signals.

You can gain full control by using an Analog Switch Panel, CAN Keypad or ECU to switch output channels, as well as increasing reliability and protecting your critical components from damage.

With superior thermal performance, the Razor PDM has been designed with vehicle protection in mind, while allowing for a more efficient, cleaner, and reliable build.

It may be small and compact, but the Razor PDM can handle up to 100 Amps of continuous combined current, as well as 160A of non-repetitive maximum current. If you need to manage even more power, you can easily add multiple Razor PDM’s via CAN or use as a CAN Expander to increase your inputs and outputs.

The Razor PDM has the ability to connect with many other ECU brands and CAN devices when using a custom CAN stream. Those of you with a Link ECU will be pleased to know that our software comes with a pre-configured stream, so your Link products will work with the device straight out of the box.

Features
  • Can be used in conjunction with a Link ECU or as a completely standalone device
  • 4 high power outputs capable of 25A continuous, PWM, high side drive, low side drive, or paired for H-bridge actuator motor control
  • 8 Universal A/D I/O pins, capable of 8A output each or as analog or digital inputs. Software controlled pull-ups and adjustable switching thresholds when used as inputs
  • Over-Current and Short Circuit Protection, with configurable trip and resettable fuse parameters
  • Flexible and powerful control strategies including internal general purpose PID control, math functions, logic expressions and CAN keypad functions
  • CAN keypad integration and flexible button logic, buttons can control PDM or Link ECU functions (G4X or G4+ with some limitations)
  • Logging support via CAN or USB
  • Multiple PDM support - Add additional units and simply connect via CAN
  • USB Configuration via PDM Link software (Windows only)
  • 6 pin Superseal connector
  • Fully sealed CNC aluminium enclosure.
  • Specifications

    Specifications:


    High Power Outputs

  • 4 x High power outputs. Highside or lowside drive or paired in H-bridge configuration.
  • 25A continuous, 70A peak, PWM capable 10KHz max.
  • Multi-Purpose I/O

  • 8 x "ADIO" - Analog-Digital-Input-Output
  • All 8 capable of analog and digital/switched input
  • All 8 capable of highside drive on/off output
  • 4 x capable of PWM/Frequency/Duty cycle/Speed input. 10KHz max (ADIO 5-8)
  • 4 x capable of PWM output. Highside drive only. 10 KHz max (ADIO 1-4)
  • Software controlled pull-ups (4K7 to 5V)
  • Output 8A max, overcurrent protected but current limit is not user adjustable (wire must be capable of 8A)
  • Max input voltage 12V, max measurable voltage 5V
  • Power

  • 6 - 24 Volts operating range (across main terminals)
  • 12 and 16 Volt systems supported - nominal operation
  • 4.5V - 5.5V USB (Low power mode, configuration only)
  • <300mA No output static current draw
  • 5V Sensor supply
  • Sensor ground
  • Communication

  • USB (C type connector)
  • CAN BUS user configurable bit rate
  • Environment

  • Water resistant
  • -40 to +80 °C operating temperature
  • What's Included

    Box Contents:
    Link Razor PDM
    Mounting plate and screws
    Superseal Plug and Pin Kit
    USB-C connection cable
    Positive terminal insulation boot
    2 x high-current ring terminals and bolts
    Quickstart guide

    Compatibility

    • Universal Part
