Description

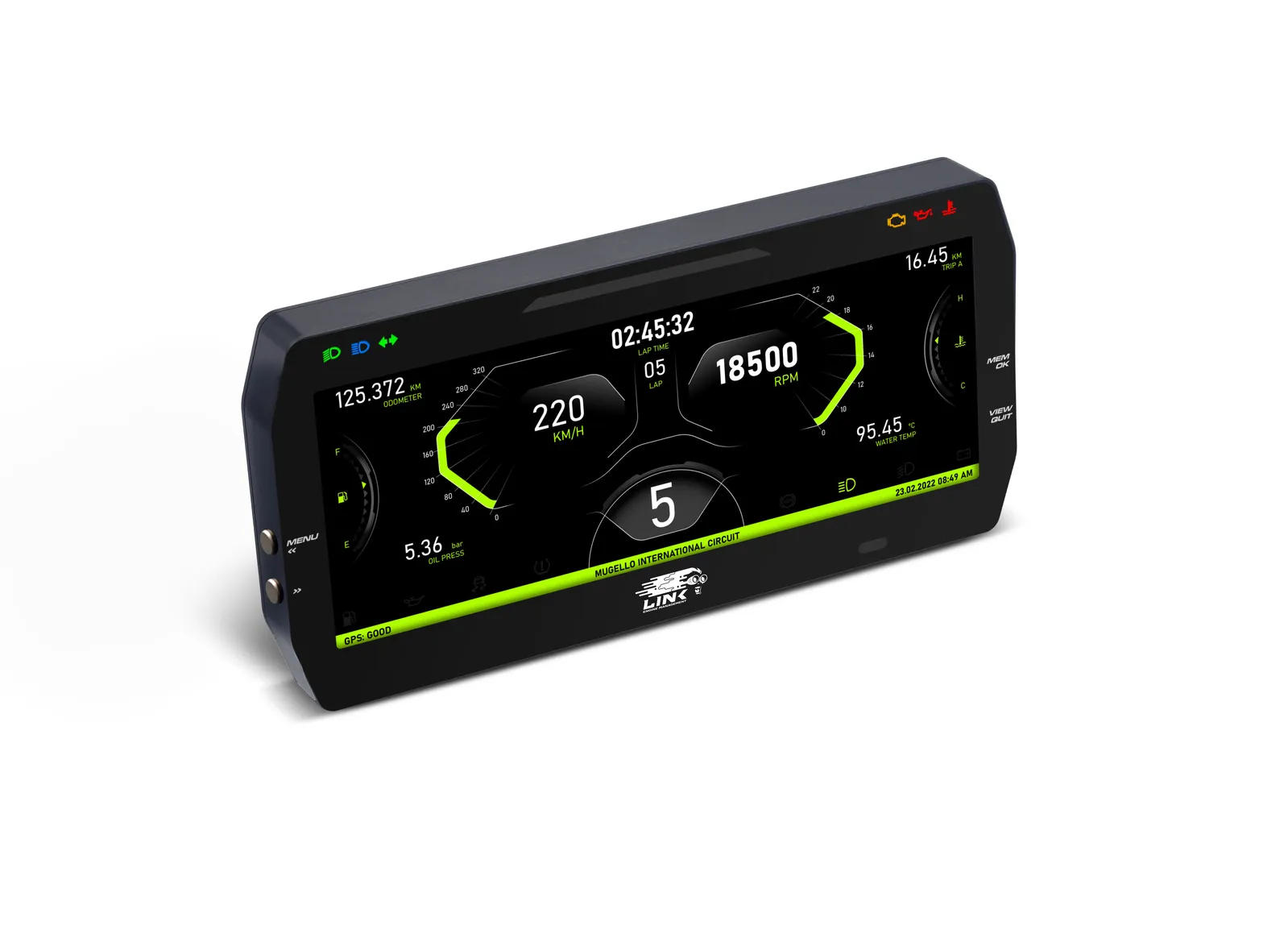

The Link MXT Strada 10-inch Dash (Street Edition) is a full-colour digital dash display powered by AIM Technologies, purpose-built for road-legal street applications. Pre-configured to work with all Link G4+, G4X, and G5 wire-in and plug-in ECUs, it delivers real-time engine data in a high-contrast, easy-to-read format.

Key Features

  • 10-inch TFT display at 1280 x 480 pixels with ambient light sensor for automatic brightness adjustment
  • 10 integrated RGB shift lights, fully customisable RPM thresholds per gear
  • 6 configurable street icons (turn signals, headlights, check engine, warning, fuel, and more)
  • Connects directly to the Link ECU via CAN bus using the included wiring harness and pin kit
  • 8 configurable analog inputs for additional sensor channels
  • IP65 waterproof rating; anodized aluminium body with metallic pushbuttons
  • Side buttons for navigating between preset display styles on the fly

Technical Specifications

  • Dimensions: 278 x 135 x 43.2mm | Weight: 1200g
  • Power consumption: 400 mA

Customisation and configuration are handled through Link PCLink and AIM Technologies Race Studio 3 software (both free downloads). Box includes: dash unit, USB cable, 14-pin standard wiring harness, and 23-pin connector with contacts. GPS module sold separately.

Specifications

  • Link MXT Strada 10-inch dash, powered by AIM.
  • The Link MXT Strada Street edition is a full colour, 10-inch dash display legal for road use featuring 10 RGB shift lights and street icons above the dash. It is pre-configured to work with all Link G4+/G4X/G5 Wire-In and Plug-in ECU's.
  • The Strada dash is also available in 5-inch (MXS) and 7-inch (MXG) versions.
  • The Link MXT Strada Street Edition dash features customisable shift lights, six street icons and a high contrast 10-inch TFT screen display. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.
  • The 10 multi-coloured RGB shift lights on the MXT Strada can be customised to your liking to define the RPM threshold for each single gear. There are also 6 Street Icons located above the screen. These include turn signal indicator lights, headlight, check engine, a warning light and a fuel warning light.
  • The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information readings from the ECU such as RPM, speed, water temperature, oil pressure and much more.
  • The Link MXT connects directly to your Link ECU over CAN using via the pin kit and wiring provided in the box.
  • The dash can be personalised and configured using Link’s PCLink and Aim Technologies Race Studio 3 software (Both free downloads).
  • Included in the box:
  • Link MXT Strada 10-inch Dash
  • USB cable
  • 14 pin standard wiring
  • 23 pin connector + contacts
  • GPS module available separately.
  • Power consumption: 400 mA
  • Dash Dimensions: 278 X 135 X 43.2mm
  • Weight: 1200 g
  • Waterproof: IP65
  • Display 10-inch TFT
  • Resolution 1280x480 pixels
  • Contrast 1000:1
  • Brightness 700cd/m2 - 1,100 Lumen
  • Ambient light sensor Yes

Compatibility

  • Universal Part

The Link MXT Strada 10-inch Dash (Street Edition) is a full-colour digital dash display powered by AIM Technologies, purpose-built for road-legal street applications. Pre-configured to work with all Link G4+, G4X, and G5 wire-in and plug-in ECUs, it delivers real-time engine data in a high-contrast, easy-to-read format.

Key Features

  • 10-inch TFT display at 1280 x 480 pixels with ambient light sensor for automatic brightness adjustment
  • 10 integrated RGB shift lights, fully customisable RPM thresholds per gear
  • 6 configurable street icons (turn signals, headlights, check engine, warning, fuel, and more)
  • Connects directly to the Link ECU via CAN bus using the included wiring harness and pin kit
  • 8 configurable analog inputs for additional sensor channels
  • IP65 waterproof rating; anodized aluminium body with metallic pushbuttons
  • Side buttons for navigating between preset display styles on the fly

Technical Specifications

  • Dimensions: 278 x 135 x 43.2mm | Weight: 1200g
  • Power consumption: 400 mA

Customisation and configuration are handled through Link PCLink and AIM Technologies Race Studio 3 software (both free downloads). Box includes: dash unit, USB cable, 14-pin standard wiring harness, and 23-pin connector with contacts. GPS module sold separately.

  • Link MXT Strada 10-inch dash, powered by AIM.
  • The Link MXT Strada Street edition is a full colour, 10-inch dash display legal for road use featuring 10 RGB shift lights and street icons above the dash. It is pre-configured to work with all Link G4+/G4X/G5 Wire-In and Plug-in ECU's.
  • The Strada dash is also available in 5-inch (MXS) and 7-inch (MXG) versions.
  • The Link MXT Strada Street Edition dash features customisable shift lights, six street icons and a high contrast 10-inch TFT screen display. Visual quality is always optimal as the ambient light sensor auto-adjusts the brightness of the display.
  • The 10 multi-coloured RGB shift lights on the MXT Strada can be customised to your liking to define the RPM threshold for each single gear. There are also 6 Street Icons located above the screen. These include turn signal indicator lights, headlight, check engine, a warning light and a fuel warning light.
  • The dash is extremely easy to use, with buttons on the side to navigate through a library of preset display styles, depending on what information you want to see and in what layout. The screen can display all real-time information readings from the ECU such as RPM, speed, water temperature, oil pressure and much more.
  • The Link MXT connects directly to your Link ECU over CAN using via the pin kit and wiring provided in the box.
  • The dash can be personalised and configured using Link’s PCLink and Aim Technologies Race Studio 3 software (Both free downloads).
  • Included in the box:
  • Link MXT Strada 10-inch Dash
  • USB cable
  • 14 pin standard wiring
  • 23 pin connector + contacts
  • GPS module available separately.
  • Power consumption: 400 mA
  • Dash Dimensions: 278 X 135 X 43.2mm
  • Weight: 1200 g
  • Waterproof: IP65
  • Display 10-inch TFT
  • Resolution 1280x480 pixels
  • Contrast 1000:1
  • Brightness 700cd/m2 - 1,100 Lumen
  • Ambient light sensor Yes
  • Universal Part
