Description

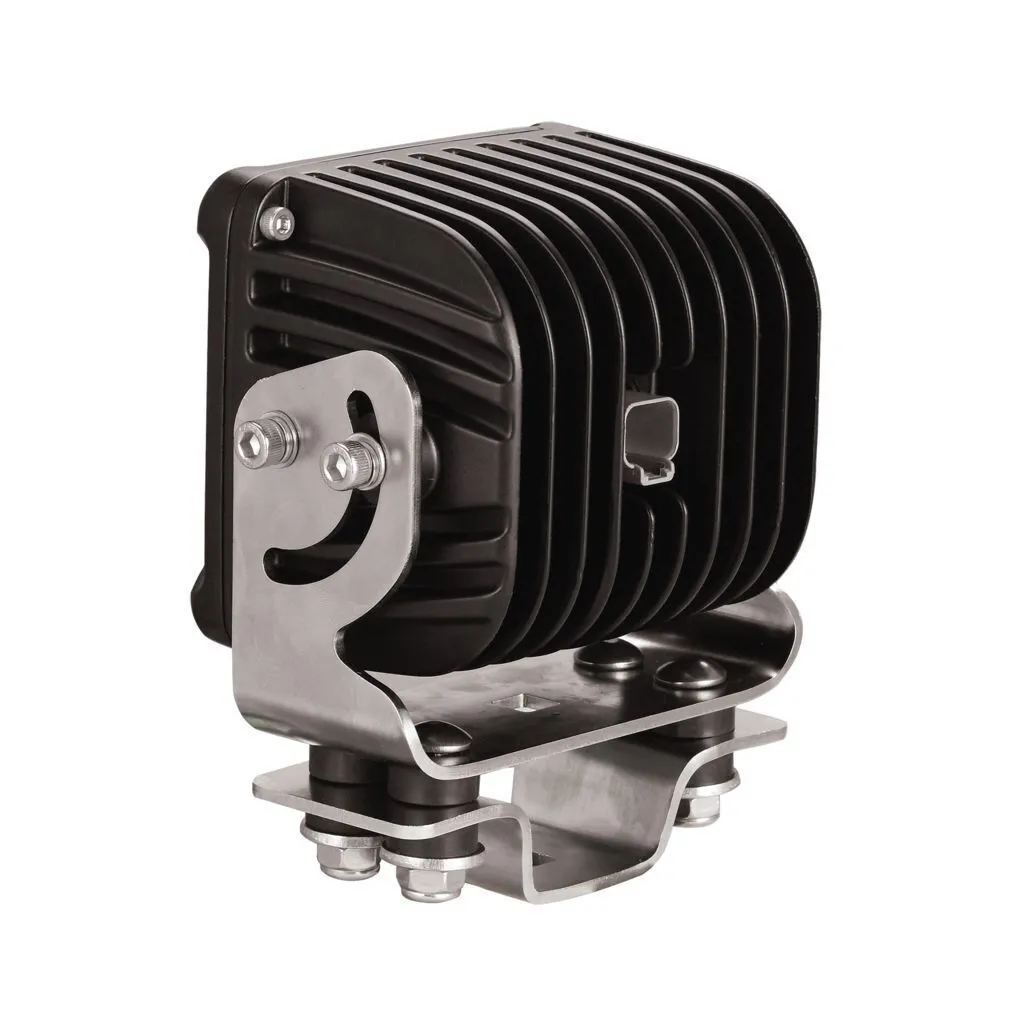

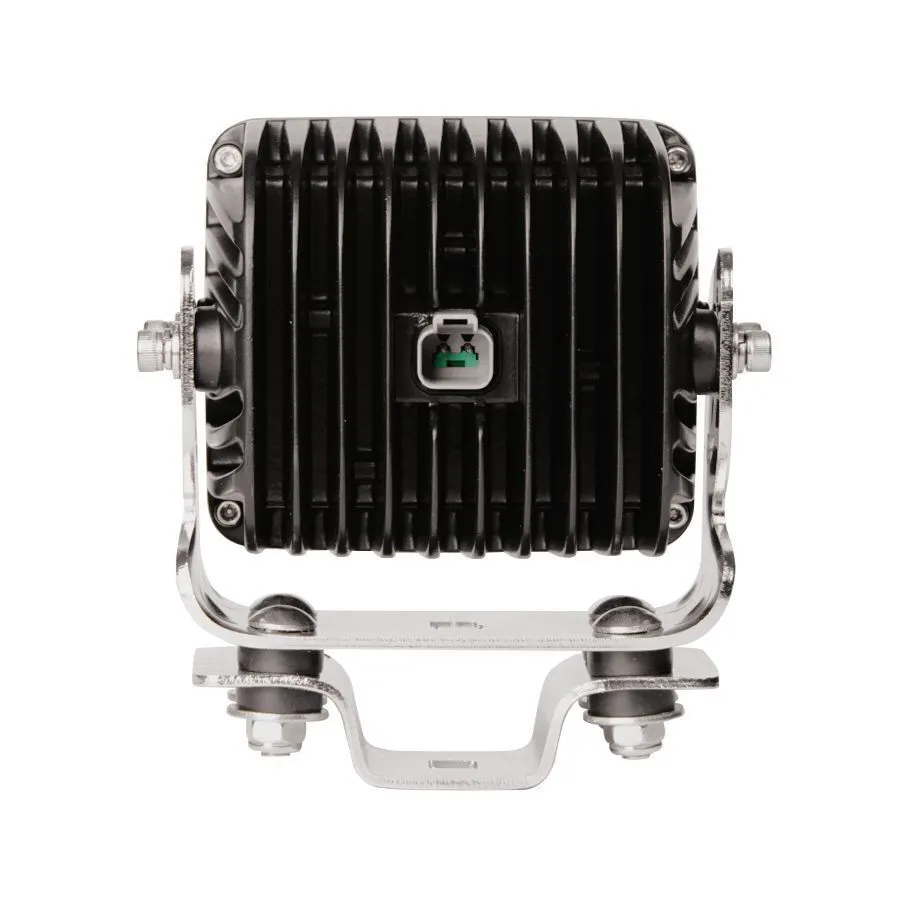

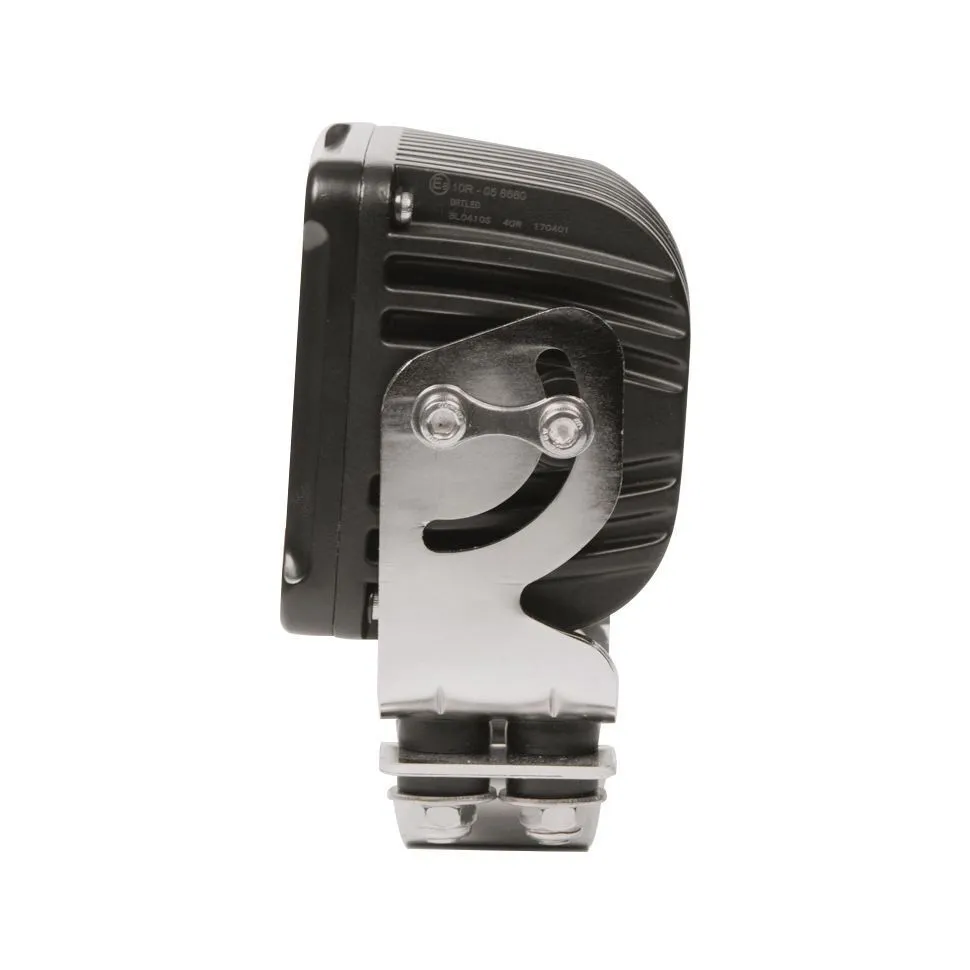

Ignite 4.9" Square LED Worklamp 9 - 36 Volt 60 Watt
Integrated Electronic Thermal Management (ETM)
Black Anondised Polyester Powder Coated Die-Cast Aluminium Alloy Housing with integrated
6063 Extruded Aluminium Heat-Sink
Stainless Steel Single Bolt Rubber dampened Mounting Bracket and Stainless Steel Mounting Hardware
In-Built 2 Pin Deutsch Plug in back of housing
Over and Under Voltage Protection
Reverse Polarity Protection
45° Flood (Spread) Beam Pattern
UV, Water and Shock resistant
50,000 Hours LED Lifespan
ECE R10, CE Approved and EMC Compliant, CISPR 25 Class 4 Certified
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
_,___ Effective Lumens, 6,380 Raw Lumens and 6,500K
4 x 15 Watt High Intensity LumiLEDs LED's
3.3amps @ 12 Volt and 1.65amps @ 24 Volt Current Draw
Patented Multi-Surface Polycarbonate TIR Optical System Reflector Technology with Polycarbonate Lens
Light Transmittance >95%

Specifications

Beam Type Flood
Depth (mm) 84
Height (mm) 152
Mount Single Bolt
No. of LED 4
Series Other
Shape Square
Type LED
Voltage Multivolt
Watts 60W
Width (mm) 126
SKU IWL415F
Barcode # 9323327945313
Brand Ignite

Compatibility

  • Universal Part

Ignite 4.9" Square LED Worklamp 9 - 36 Volt 60 Watt
Integrated Electronic Thermal Management (ETM)
Black Anondised Polyester Powder Coated Die-Cast Aluminium Alloy Housing with integrated
6063 Extruded Aluminium Heat-Sink
Stainless Steel Single Bolt Rubber dampened Mounting Bracket and Stainless Steel Mounting Hardware
In-Built 2 Pin Deutsch Plug in back of housing
Over and Under Voltage Protection
Reverse Polarity Protection
45° Flood (Spread) Beam Pattern
UV, Water and Shock resistant
50,000 Hours LED Lifespan
ECE R10, CE Approved and EMC Compliant, CISPR 25 Class 4 Certified
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Year Warranty
_,___ Effective Lumens, 6,380 Raw Lumens and 6,500K
4 x 15 Watt High Intensity LumiLEDs LED's
3.3amps @ 12 Volt and 1.65amps @ 24 Volt Current Draw
Patented Multi-Surface Polycarbonate TIR Optical System Reflector Technology with Polycarbonate Lens
Light Transmittance >95%

Beam Type Flood
Depth (mm) 84
Height (mm) 152
Mount Single Bolt
No. of LED 4
Series Other
Shape Square
Type LED
Voltage Multivolt
Watts 60W
Width (mm) 126
SKU IWL415F
Barcode # 9323327945313
Brand Ignite
  • Universal Part
