Description

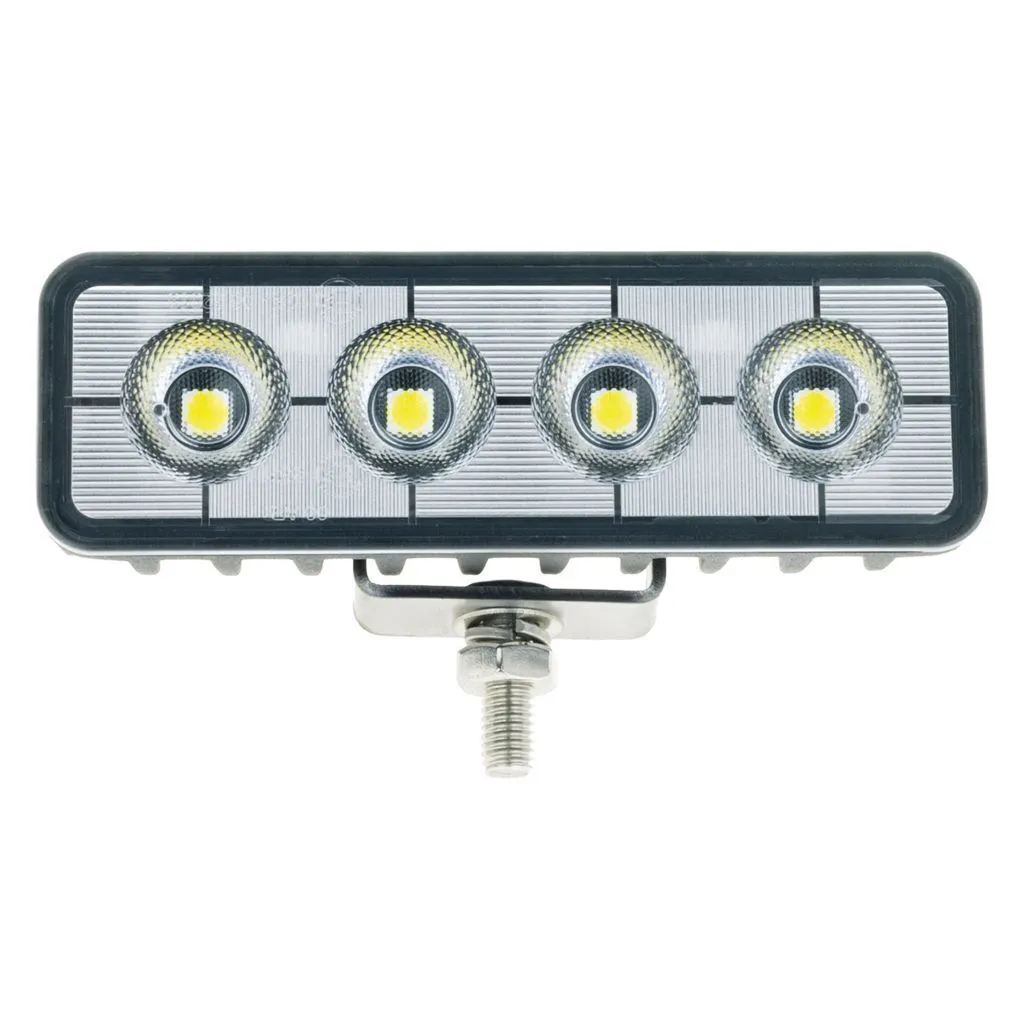

Ignite 5" Rectangular LED Worklamp 9 - 36 Volt 24 Watt
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Anondised Polyester Powder Coated Die-Cast ADC12 Aluminium Alloy Housing with integrated
Extruded 6061 Aluminium Heat-Sink and Pressure Equalising Vent
Provided with Stainless Steel Bolt and Stainless Steel Mounting Bracket
300mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
70° Flood (Spread) Beam Pattern
Reverse Polarity Protection
UV, Water and Shock resistant
Anti Rust, corrosion and freezing resistance
50,000 Hours LED Lifespan
ECE R10, R23 CE Approved and EMC Compliant, CISPR 25 Class 3 Certified
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Years Warranty
.
Can be used in may different applications such as; Worklamp, Awning Lamp, Interior Lamp, Courtesy
2,800 Raw Lumens, 2,200 Effective Lumens and 5,700K
Lamp, Deck Lamp, Tub Lamp, also ECE approved as a Reverse Lamp
4 x 6 Watt High Intensity LumiLEDs LED's
1 Lux @ 59m and 3,400cd Peak Beam Density
Current Draw: 1.6amp @ 12 Volt and 0.8amp @ 24 Volt
Patented Multi-Surface Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens

Specifications

Beam Type Flood
Depth (mm) 48.6
Height (mm) 42
Mount Single Bolt
No. of LED 4
Series Other
Shape Rectangular
Type LED
Voltage Multivolt
Watts Other
Width (mm) 130
SKU IWL406F2
Barcode # 9323327946969
Brand Ignite

Compatibility

  • Universal Part

Ignite 5" Rectangular LED Worklamp 9 - 36 Volt 24 Watt
Light Transmittance >95%
Integrated Electronic Thermal Management (ETM)
Black Anondised Polyester Powder Coated Die-Cast ADC12 Aluminium Alloy Housing with integrated
Extruded 6061 Aluminium Heat-Sink and Pressure Equalising Vent
Provided with Stainless Steel Bolt and Stainless Steel Mounting Bracket
300mm Lead with 2 Pin Deutsch Plug
Over and Under Voltage Protection
70° Flood (Spread) Beam Pattern
Reverse Polarity Protection
UV, Water and Shock resistant
Anti Rust, corrosion and freezing resistance
50,000 Hours LED Lifespan
ECE R10, R23 CE Approved and EMC Compliant, CISPR 25 Class 3 Certified
IP68 and IP69K Rating
Environment Temperature: -40°C ~ +60°C
5 Years Warranty
.
Can be used in may different applications such as; Worklamp, Awning Lamp, Interior Lamp, Courtesy
2,800 Raw Lumens, 2,200 Effective Lumens and 5,700K
Lamp, Deck Lamp, Tub Lamp, also ECE approved as a Reverse Lamp
4 x 6 Watt High Intensity LumiLEDs LED's
1 Lux @ 59m and 3,400cd Peak Beam Density
Current Draw: 1.6amp @ 12 Volt and 0.8amp @ 24 Volt
Patented Multi-Surface Polycarbonate TIR Optical System Reflector Technology with Lexan Polycarbonate Lens

Beam Type Flood
Depth (mm) 48.6
Height (mm) 42
Mount Single Bolt
No. of LED 4
Series Other
Shape Rectangular
Type LED
Voltage Multivolt
Watts Other
Width (mm) 130
SKU IWL406F2
Barcode # 9323327946969
Brand Ignite
  • Universal Part
