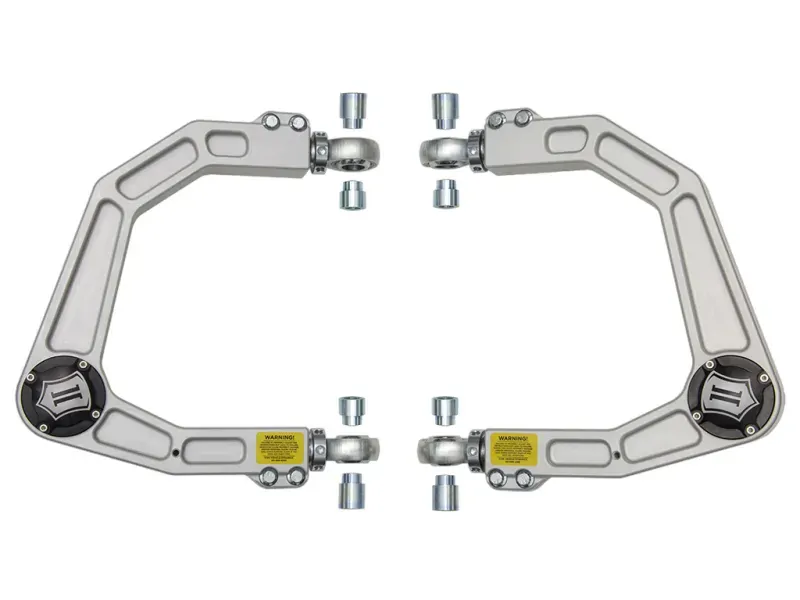

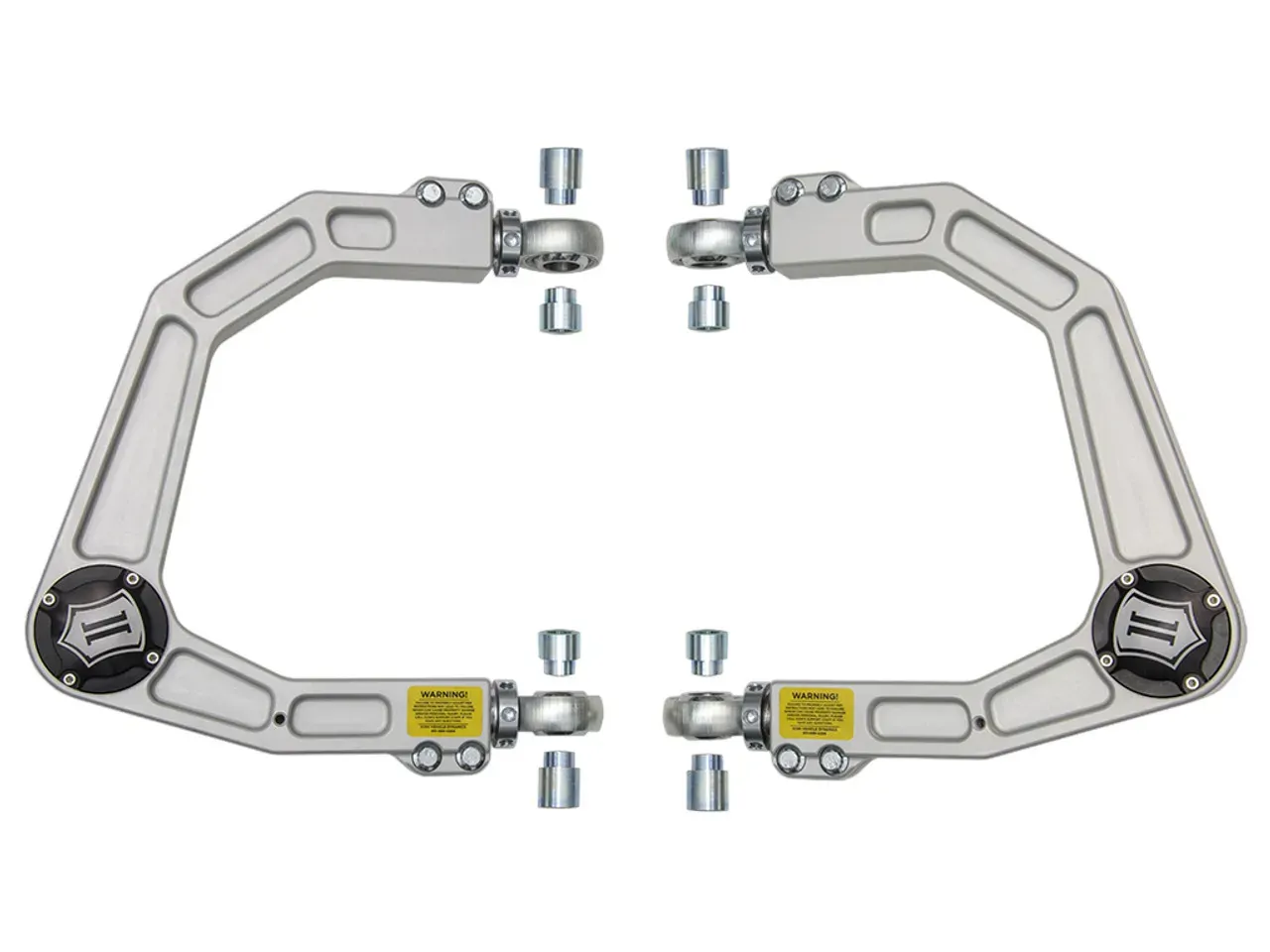

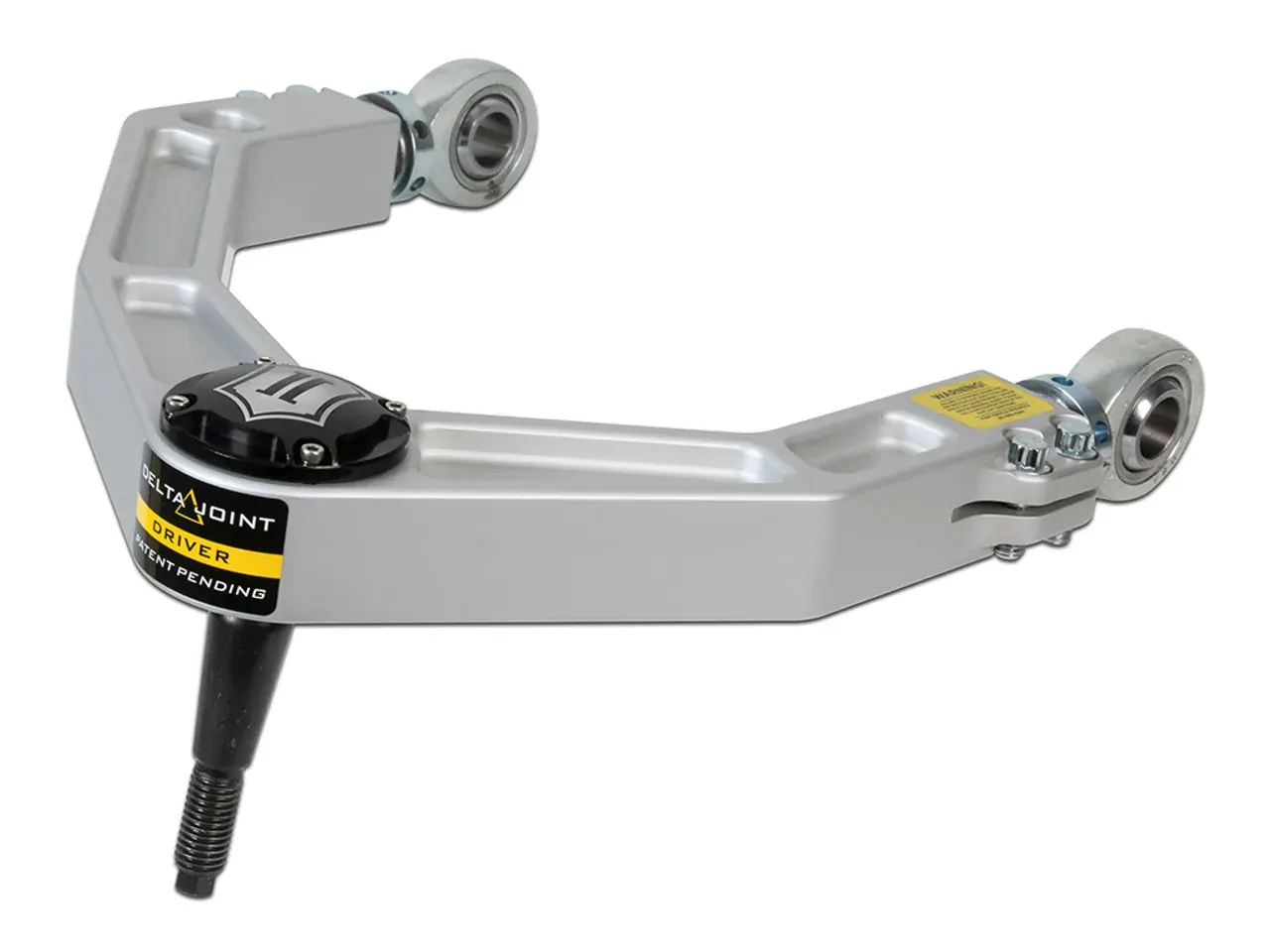

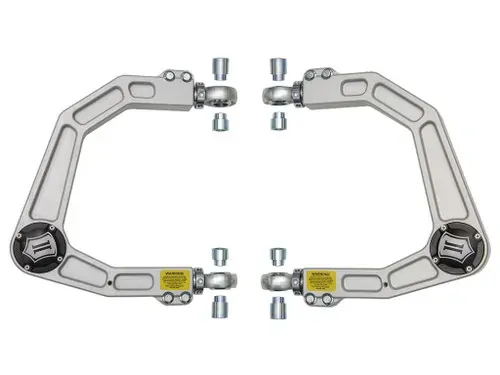

07-21 TUNDRA/08-22 SEQUOIA BILLET UCA DJ KIT

ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a traditional uniball.

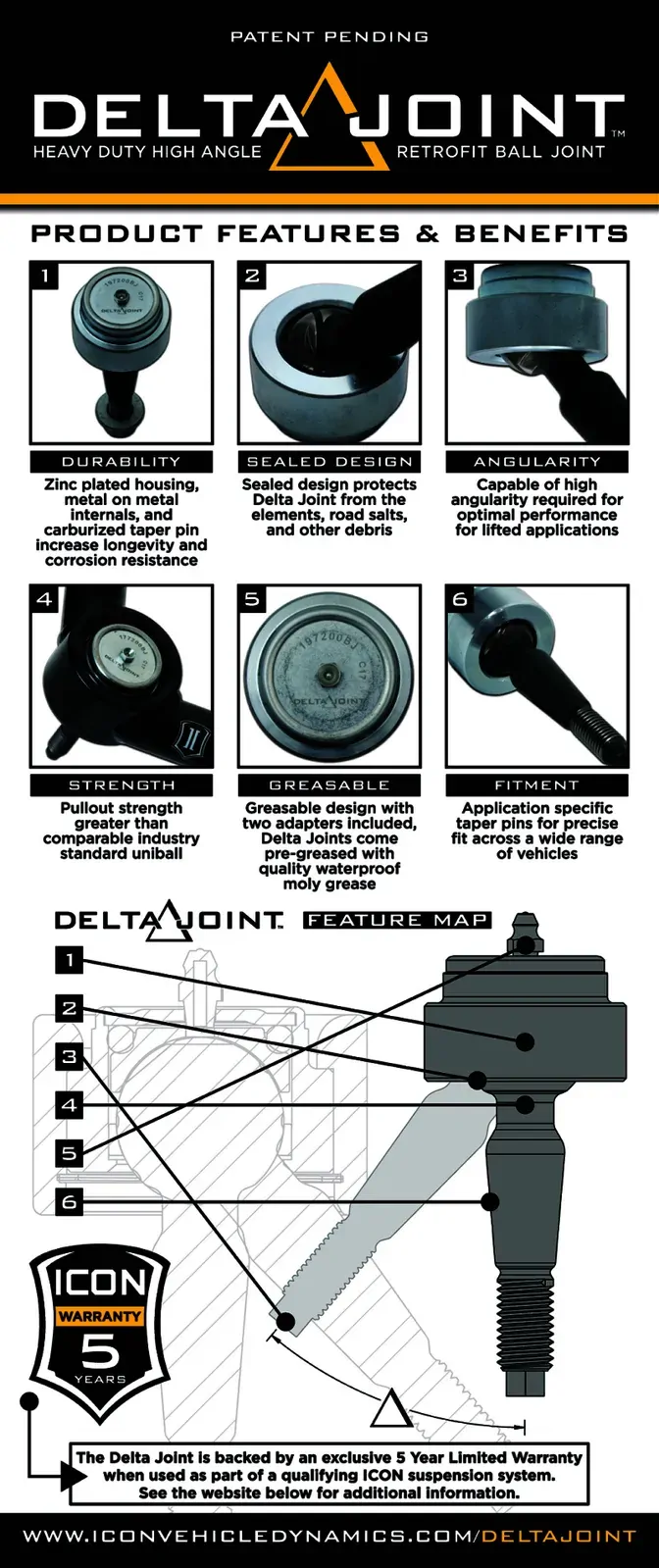

These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

• ICON Delta Joint
• CNC Machined 6061 Billet Aluminum Construction

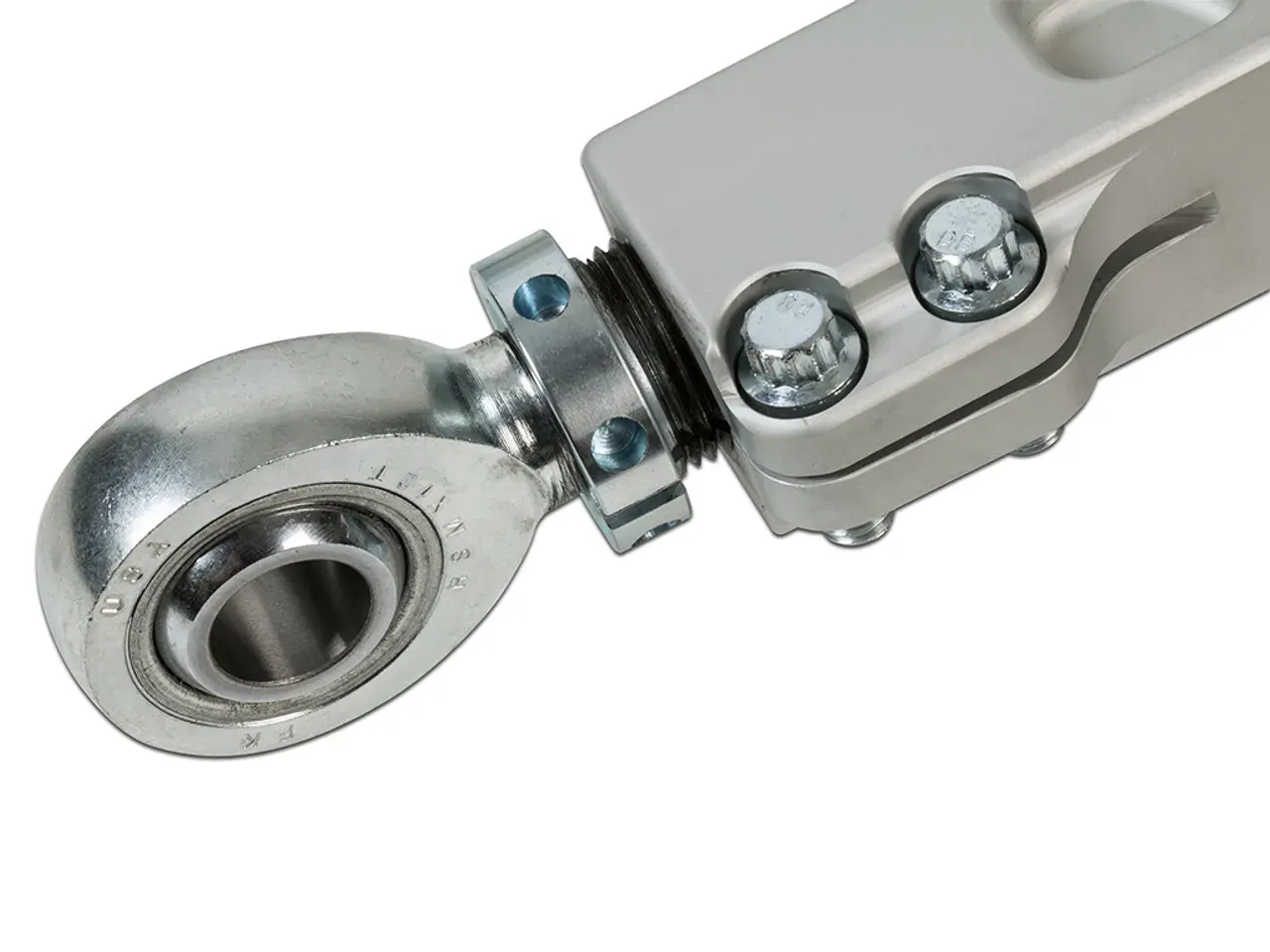

• Quality PTFE-lined ¾” FK Rod Ends
• On-Vehicle Adjustable For Quick And Precise Alignment
• Caster and Camber Adjustability Allows For Fine Tuning Of Vehicle Handling
• Matte Anodized Finish Provides Exceptional Corrosion Resistance
• O-ring Sealed Delta Joint Cover Cap For Additional Protection From The Elements

Adjustable: Yes

Adjustable Control Arm: yes

Ball Joint Included: Yes

Ball Joint Mounting Type: Press In

Ball Joint Stud Type: Threaded

Bushing Material: Rod End Bearing

Bushings Included: Yes

Color: Black

Color: Gray

Construction: Billet

Control Arm Color: Gray

Control Arm Construction: Billet

Control Arm Material: Aluminum

Finish: Anodized

Grade Type: Performance

Grease Fitting Included: yes

Material: Aluminum

Material: Steel

Mounting Hardware Included: Yes

OEM Wheels & Tires Fitment: Yes

Pre-Greased: No

Quantity: Pair

Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)

Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 6” Backspace / 25mm Offset

Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset

Reinforced: Yes

Suspension Grade Type: Performance

Suspension Type: Spring
