Description

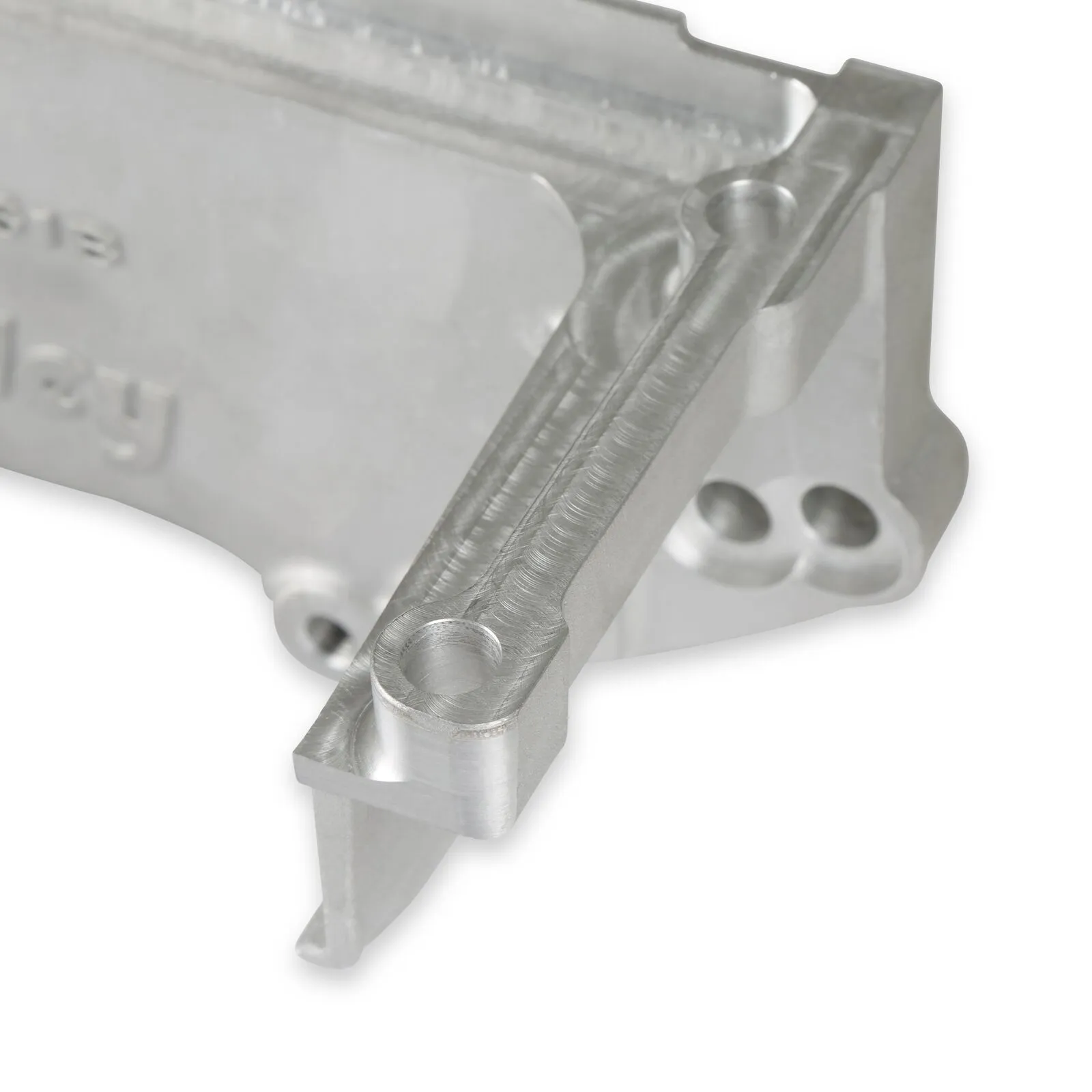

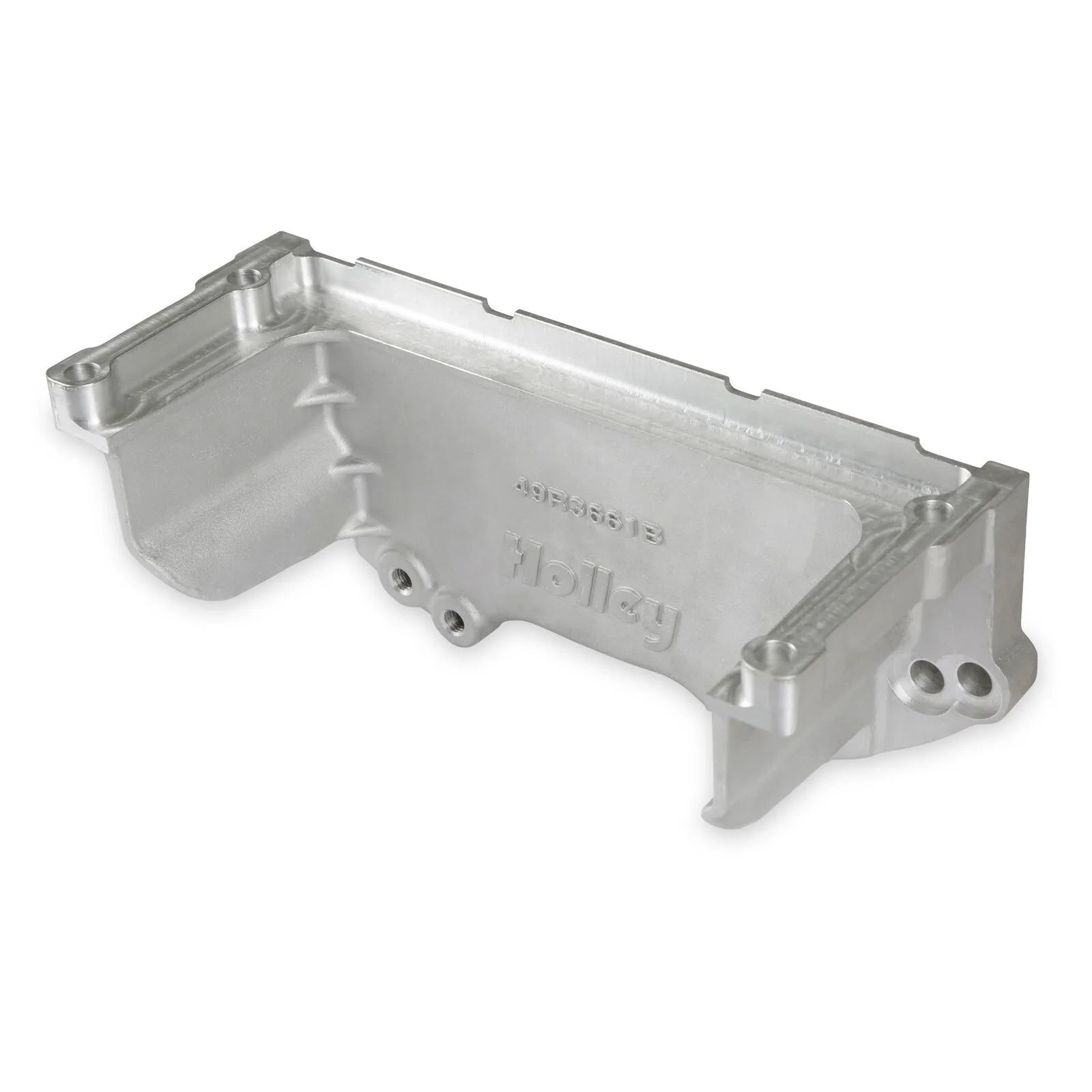

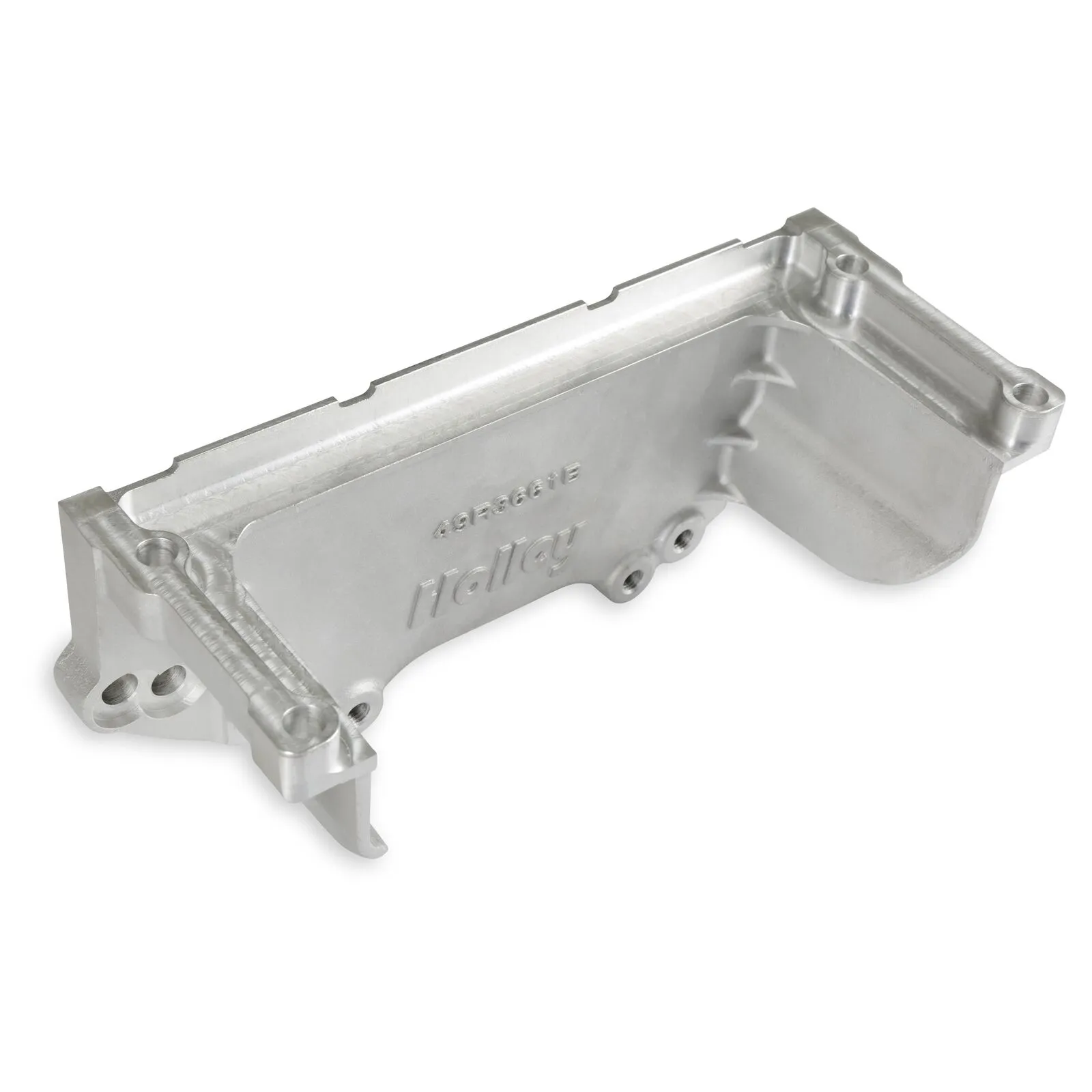

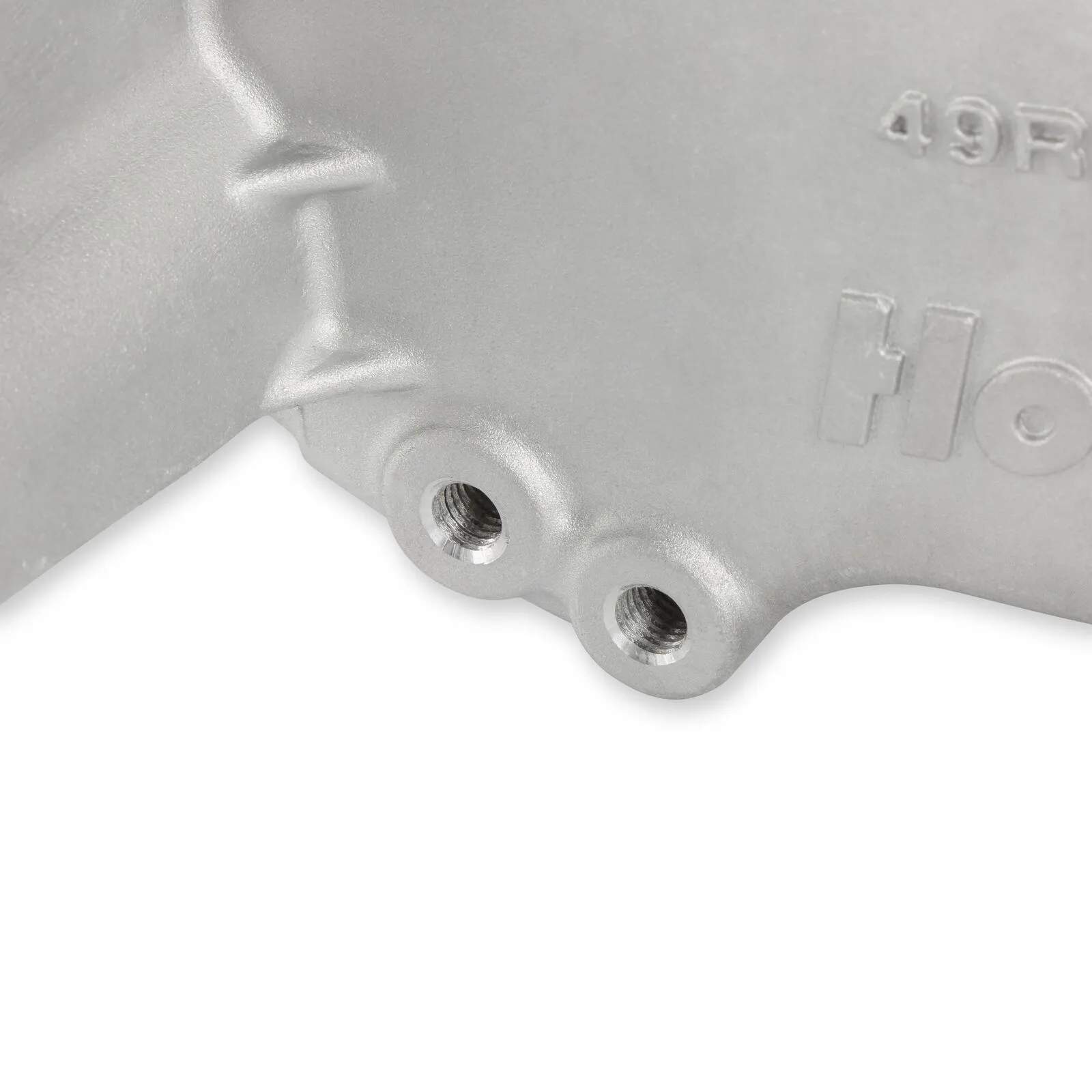

Most Late-model factory oil pans bolt to the engine block and the transmission for extra strength and support. Most swap oil pans for the Gen III Hemi do not have this additional support, but it can be added using PN # 302-65. This lower support fits cast, fabricated, and stamped swap pans on Gen III Hemi engines with popular transmissions (or bellhousings). The lower structure support also covers the bottom of the transmission (or bellhousing) to keep out dirt and reduce vibration & noise.

Features

  • Lower support bolts engine block to transmission or bellhousing for additional driveline strength and support while keeping dirt and debris out of driveline components
  • Provides OEM style fitment and support on oil pans that do not bolt to the transmission
  • Fits engine swap oil pans: 302-60, 302-61, 302-64, 302-64BK, 5050WND, 5051WND, WB11010, and stamped steel factory oil pans
  • Fits all Gen III Hemi engines – 2003 & Up 5.7, 6.1, 6.2, and 6.4-Liter
  • Fits all common transmissions: TR-6060, NAG1, 545RFE, 8HP70, 8HP90, 9HP75, A727, 46RE, 46RH + More
  • Fits Lakewood bellhousings: LK7000 or LK7000K with Mopar 3-speed, 4-speed, or Tremec TKO/TKX transmissions
  • Covers the lower portion of the bell-housing – to keep dirt out of the bell-housing or transmission
  • Reduces vibration and noise
  • Rigid cast aluminum design with a natural as-cast aluminum finish

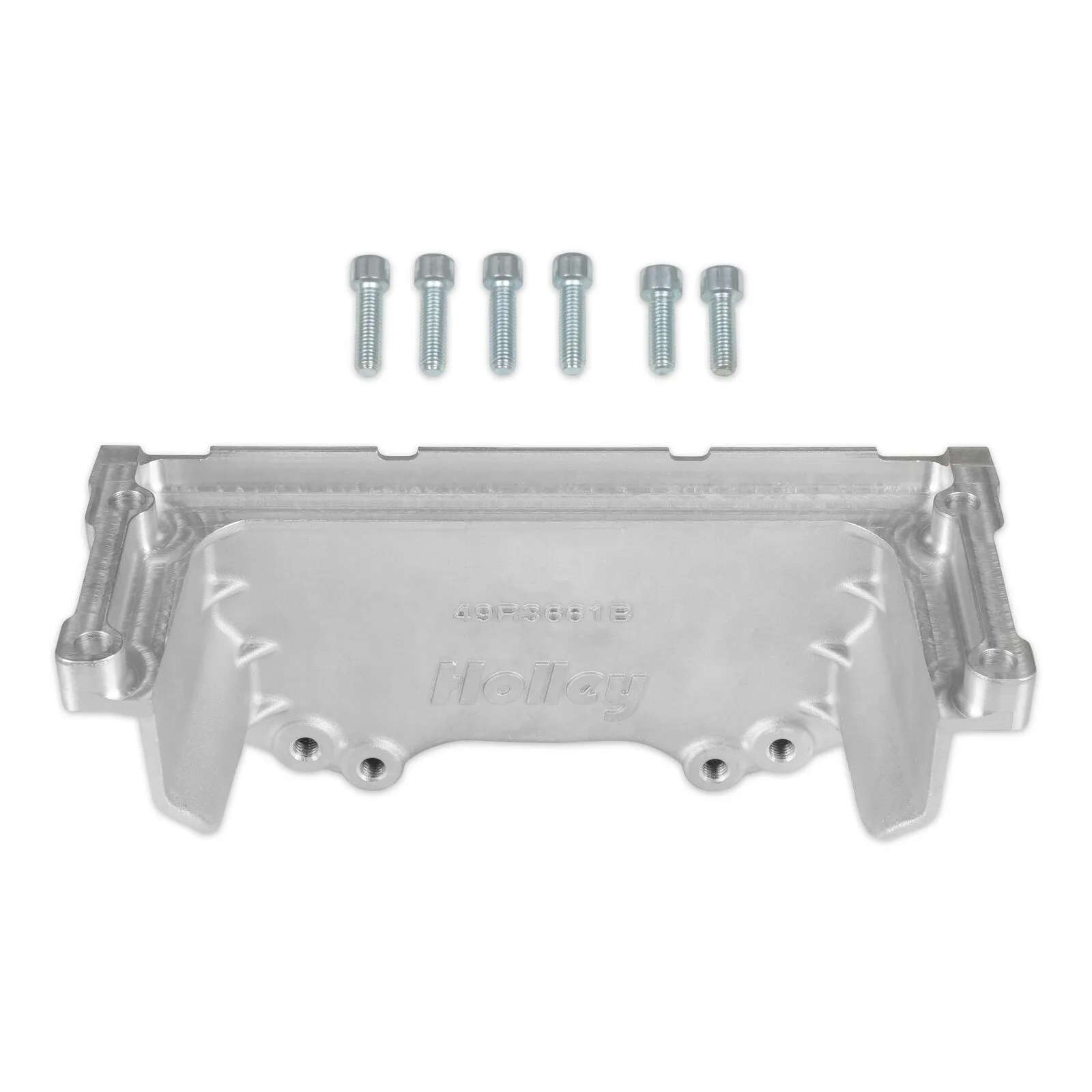

  • Bolts on over existing oil pan with included fasteners

Specifications

ApplicationGen III Hemi
BrandHolley
Category FilterOil Pans
Clearance CategoryOil Pans
Emission Code6
EngineGen III Hemi
FinishNatural Cast
MaterialAluminium
Product TypeEngine and Transmission Support
Sale CategoryEngine

Compatibility

  • Universal Part

Most Late-model factory oil pans bolt to the engine block and the transmission for extra strength and support. Most swap oil pans for the Gen III Hemi do not have this additional support, but it can be added using PN # 302-65. This lower support fits cast, fabricated, and stamped swap pans on Gen III Hemi engines with popular transmissions (or bellhousings). The lower structure support also covers the bottom of the transmission (or bellhousing) to keep out dirt and reduce vibration & noise.

Features

  • Lower support bolts engine block to transmission or bellhousing for additional driveline strength and support while keeping dirt and debris out of driveline components
  • Provides OEM style fitment and support on oil pans that do not bolt to the transmission
  • Fits engine swap oil pans: 302-60, 302-61, 302-64, 302-64BK, 5050WND, 5051WND, WB11010, and stamped steel factory oil pans
  • Fits all Gen III Hemi engines – 2003 & Up 5.7, 6.1, 6.2, and 6.4-Liter
  • Fits all common transmissions: TR-6060, NAG1, 545RFE, 8HP70, 8HP90, 9HP75, A727, 46RE, 46RH + More
  • Fits Lakewood bellhousings: LK7000 or LK7000K with Mopar 3-speed, 4-speed, or Tremec TKO/TKX transmissions
  • Covers the lower portion of the bell-housing – to keep dirt out of the bell-housing or transmission
  • Reduces vibration and noise
  • Rigid cast aluminum design with a natural as-cast aluminum finish
  • Bolts on over existing oil pan with included fasteners
ApplicationGen III Hemi
BrandHolley
Category FilterOil Pans
Clearance CategoryOil Pans
Emission Code6
EngineGen III Hemi
FinishNatural Cast
MaterialAluminium
Product TypeEngine and Transmission Support
Sale CategoryEngine
  • Universal Part
