Description

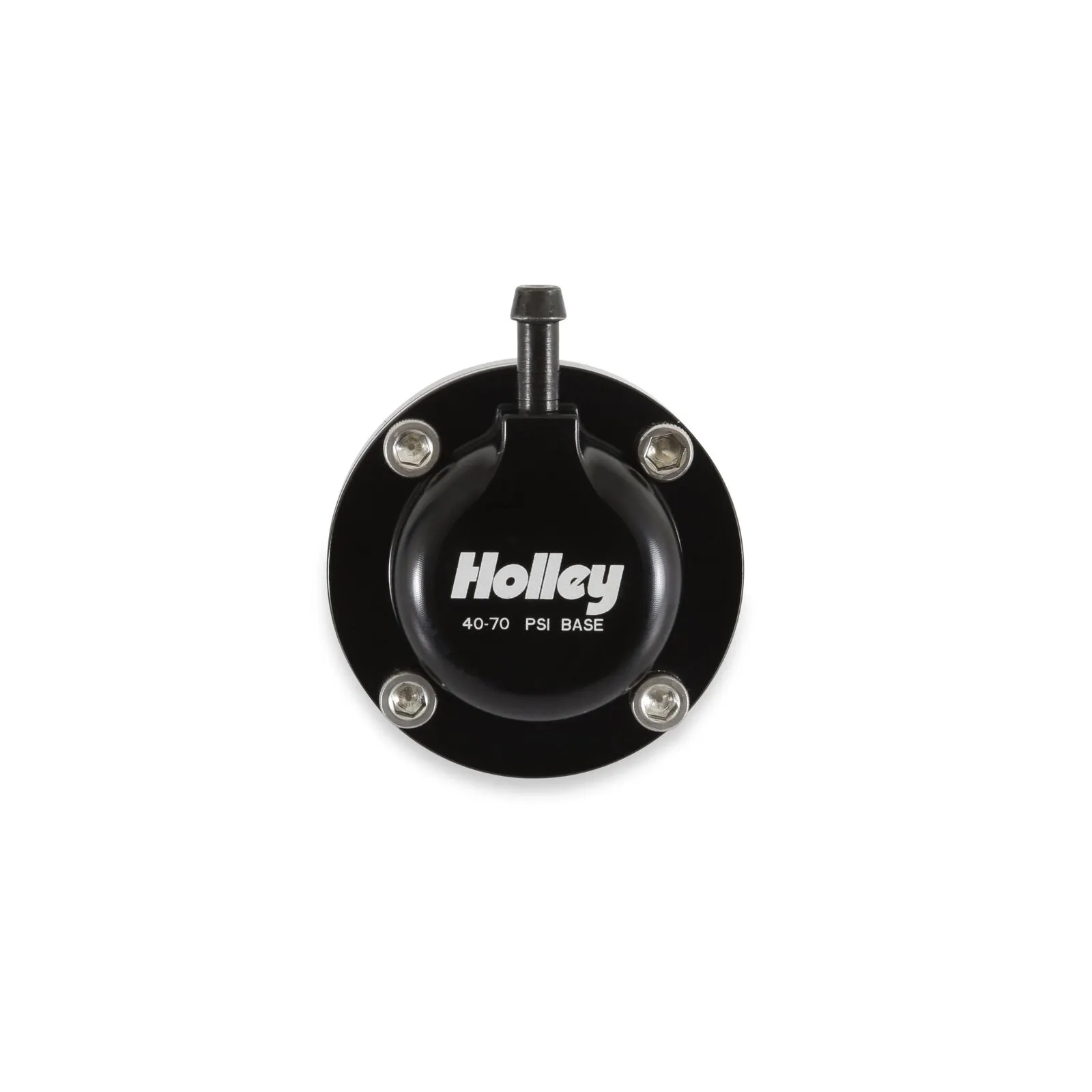

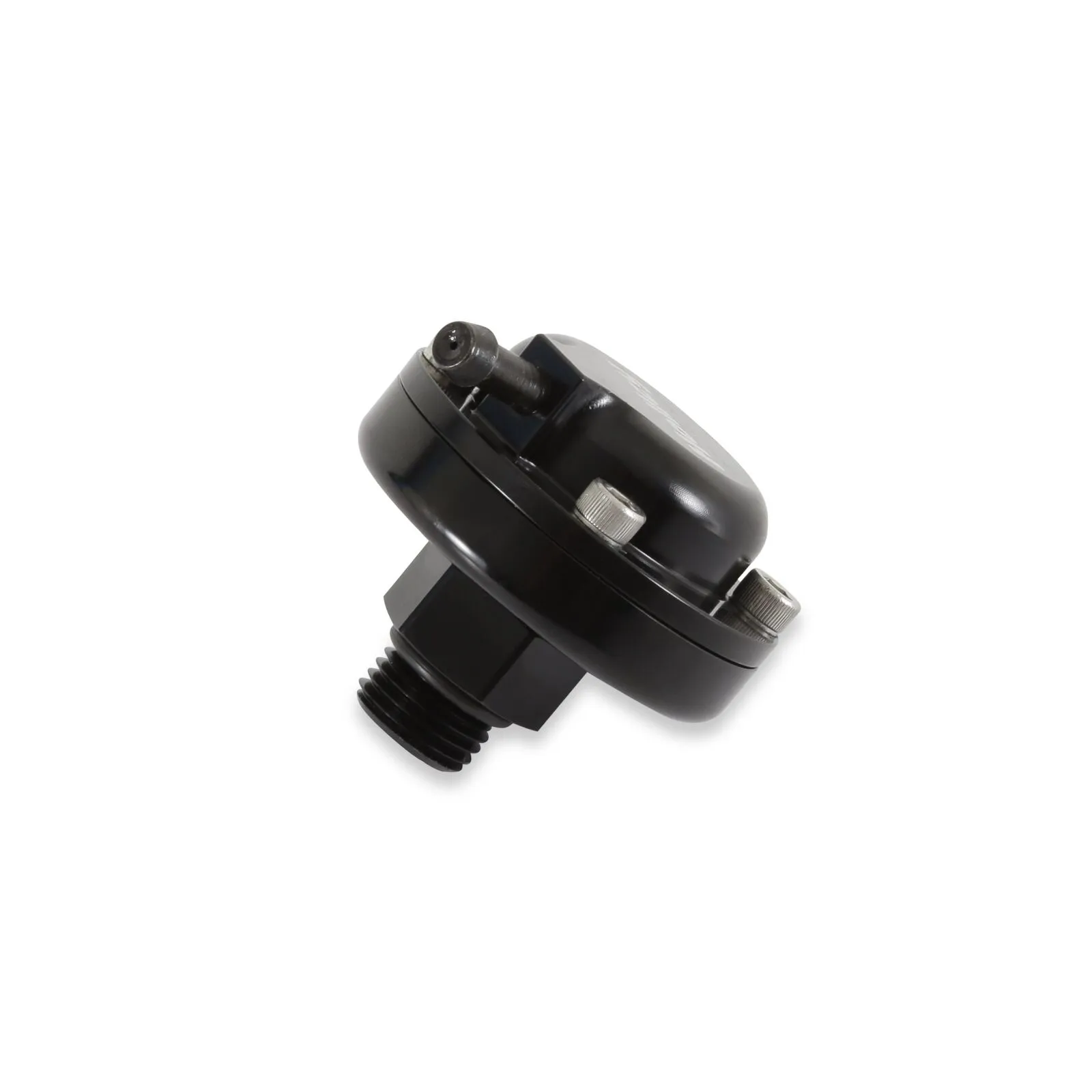

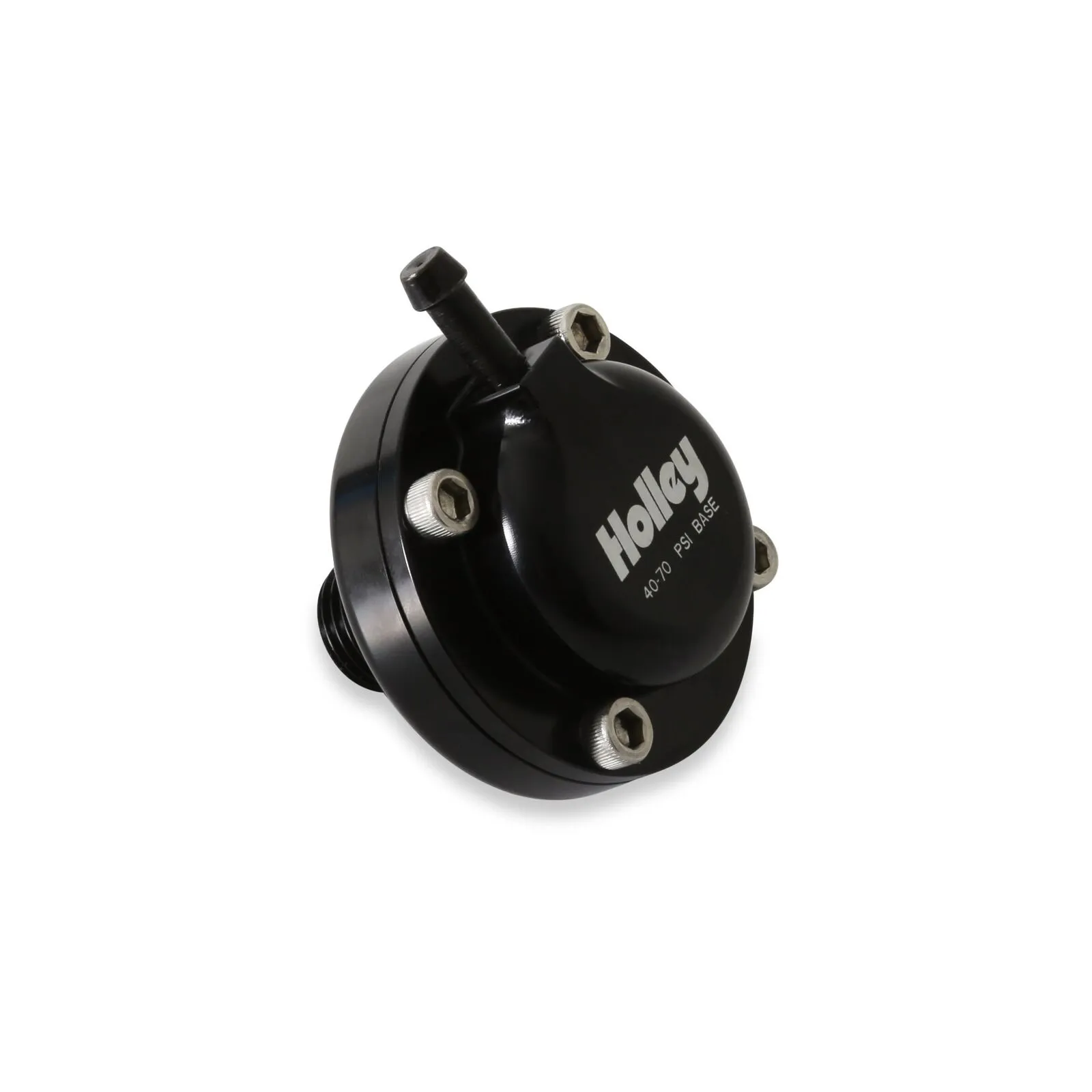

Fuel pulse dampers act in tandem with the fuel pressure regulator to further control the fuel pressure in an EFI system. They act to smooth out the pressure pulsations caused by the injectors opening and closing as well as the fuel pump operating. These pulsations happen so quickly that in many cases they can't be identified with an analog gauge but can cause issues with fuel delivery to the engine.

Features

  • Engineered to stabilize pressure pulsations caused by the injectors opening, ideal for applications with large fuel injectors and high volume fuel pumps
  • Compatible with any fuel -- full anodized billet aluminum construction with stainless steel springs and fluorosilicone diaphragm
  • Fittings included for damper/regulator’s and direct mount dampers
  • 1/8" NPT port on body of damper/regulators and in-line dampers for easy installation of mechanical pressure gauge or pressure transducer

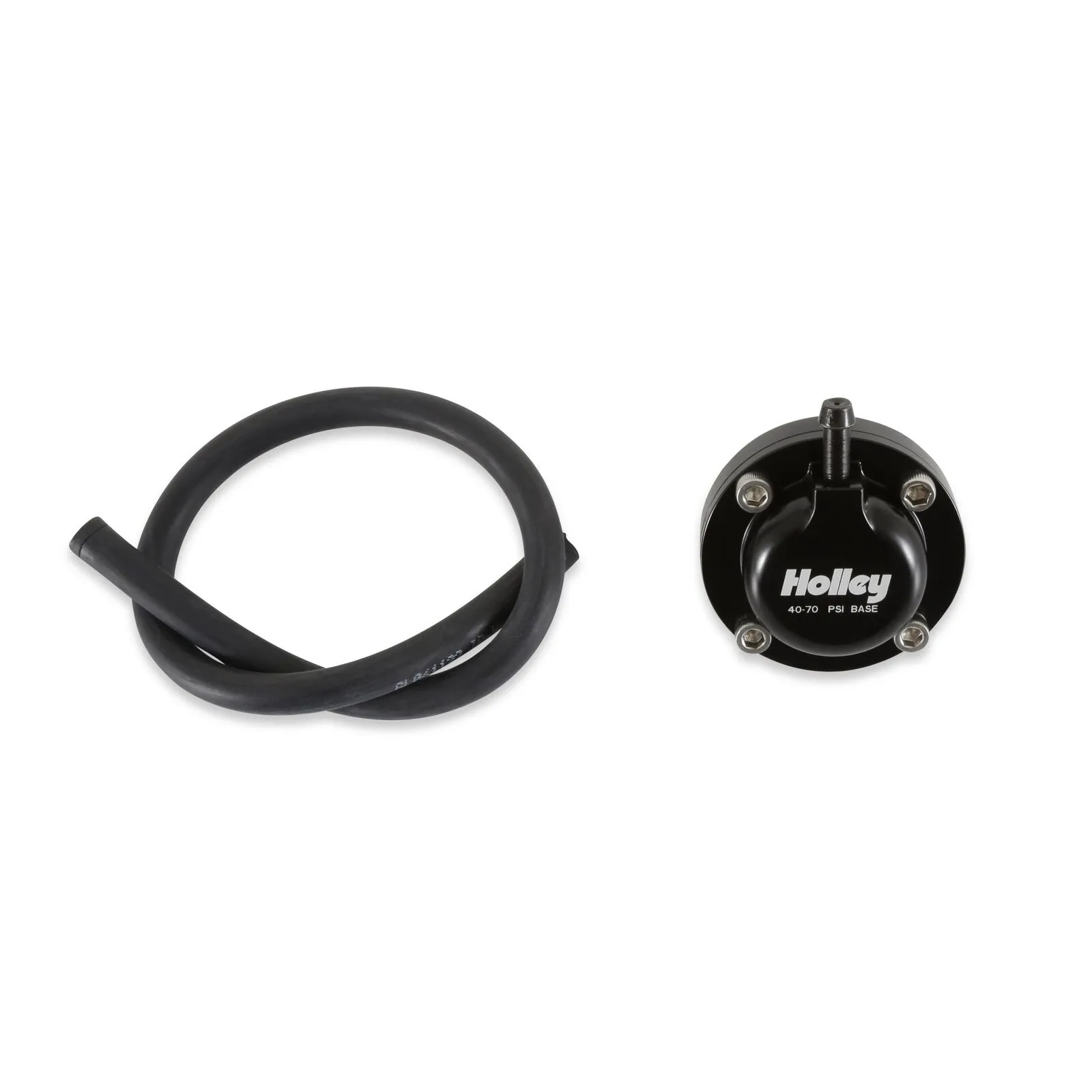

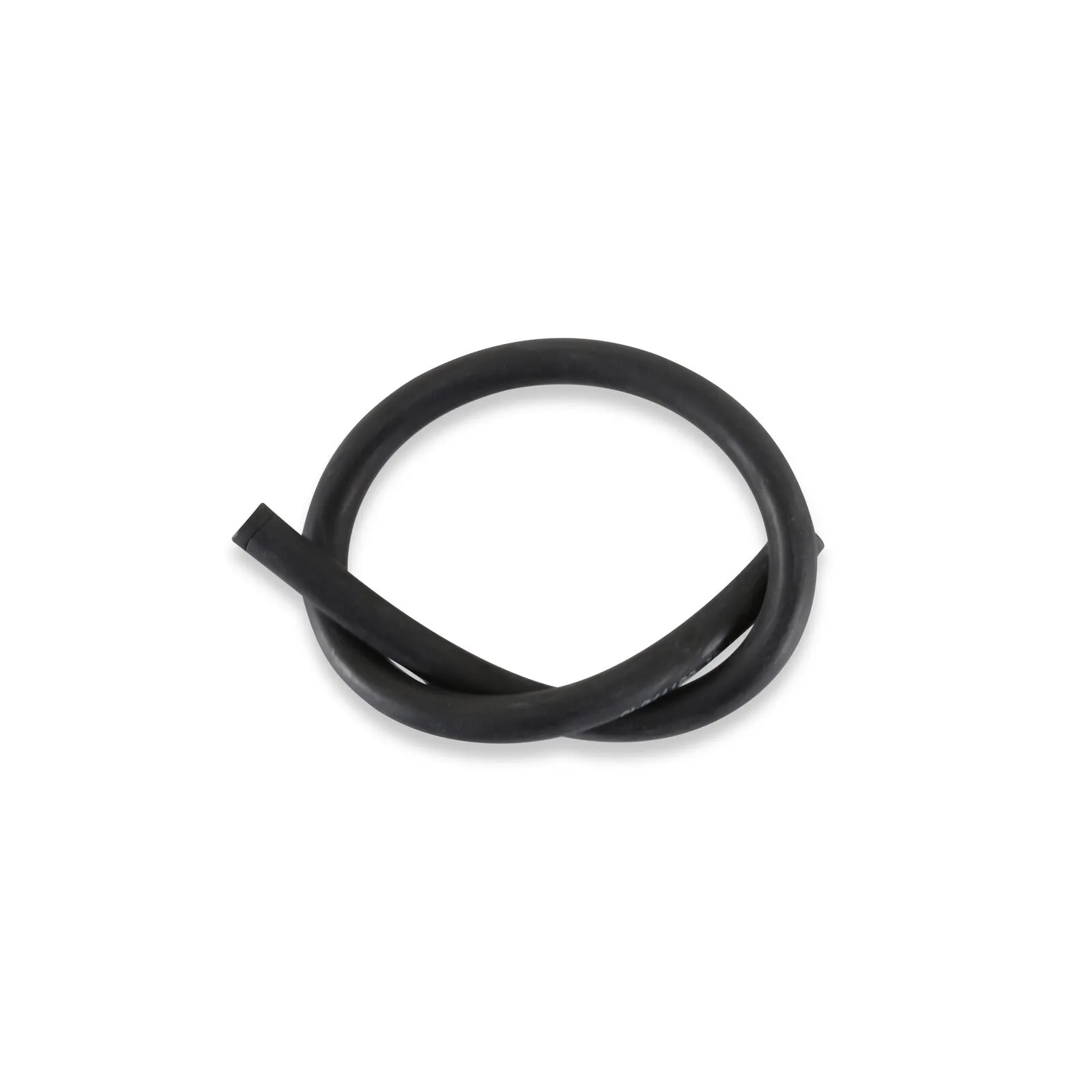

  • Vacuum fitting and one foot of hose included with all dampers for vacuum referencing
  • Assembled and tested in the USA

Specifications

BrandHolley
Emission Code3
FinishAnodized Black
Fuel TypeGasoline / Ethanol / Methanol / E85
Gasket Or Seal IncludedNo
Grade TypePerformance
MaterialAluminum
Mounting Hardware IncludedNo
Port Quantity1
Pressure Range40-70 PSI
Product TypeFuel Pulse Damper
ShapeRound
StyleBillet Aluminum
Thread9/16-18 Male O-Ring (6 AN)
WarrantyLimited 90 Day

Compatibility

  • Universal Part

Fuel pulse dampers act in tandem with the fuel pressure regulator to further control the fuel pressure in an EFI system. They act to smooth out the pressure pulsations caused by the injectors opening and closing as well as the fuel pump operating. These pulsations happen so quickly that in many cases they can't be identified with an analog gauge but can cause issues with fuel delivery to the engine.

Features

  • Engineered to stabilize pressure pulsations caused by the injectors opening, ideal for applications with large fuel injectors and high volume fuel pumps
  • Compatible with any fuel -- full anodized billet aluminum construction with stainless steel springs and fluorosilicone diaphragm
  • Fittings included for damper/regulator’s and direct mount dampers
  • 1/8" NPT port on body of damper/regulators and in-line dampers for easy installation of mechanical pressure gauge or pressure transducer
  • Vacuum fitting and one foot of hose included with all dampers for vacuum referencing
  • Assembled and tested in the USA
BrandHolley
Emission Code3
FinishAnodized Black
Fuel TypeGasoline / Ethanol / Methanol / E85
Gasket Or Seal IncludedNo
Grade TypePerformance
MaterialAluminum
Mounting Hardware IncludedNo
Port Quantity1
Pressure Range40-70 PSI
Product TypeFuel Pulse Damper
ShapeRound
StyleBillet Aluminum
Thread9/16-18 Male O-Ring (6 AN)
WarrantyLimited 90 Day
  • Universal Part
