Description

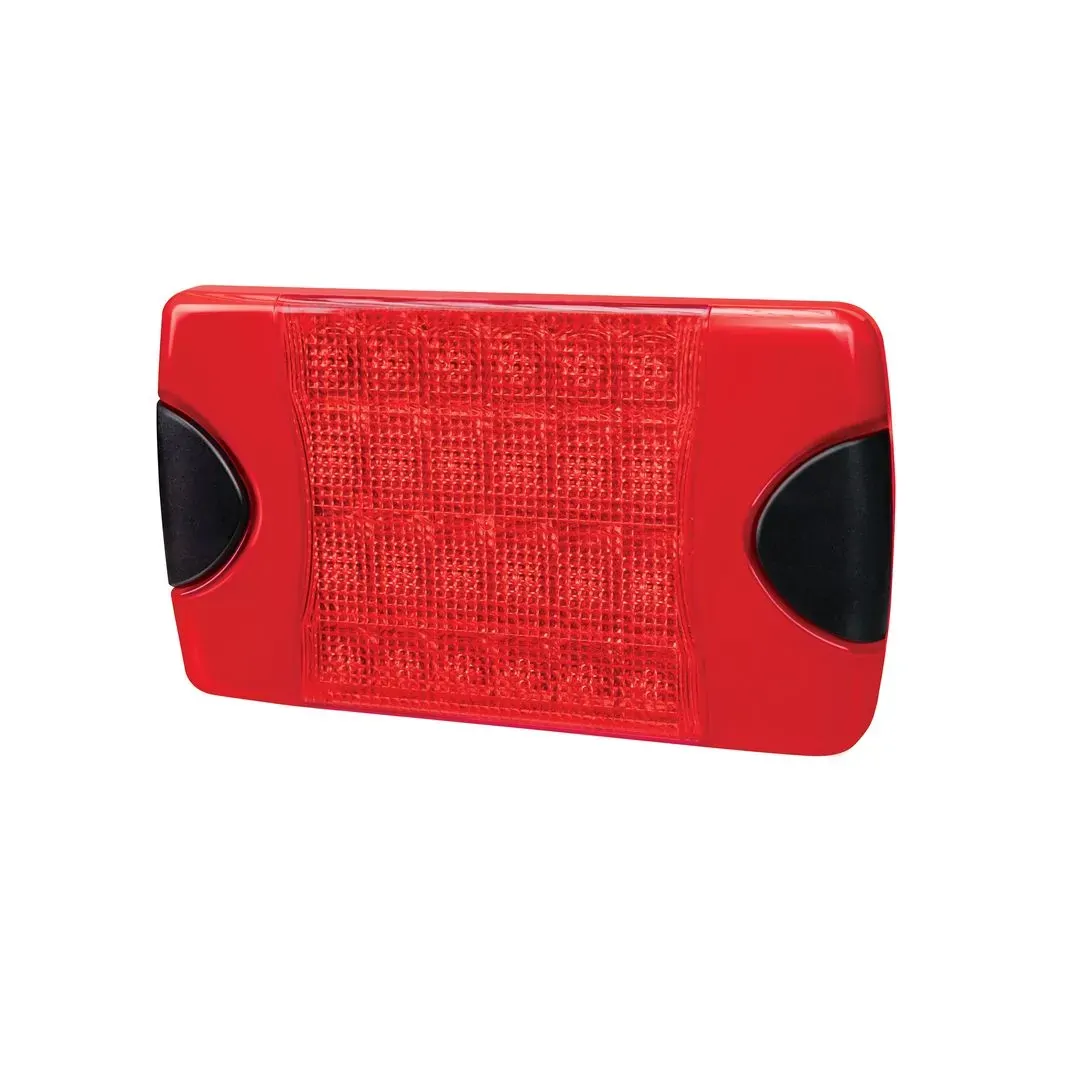

Hella Duraled-S Red LED Rear Stop / Tail Lamp 9 - 33 Volt

NEW Slim Rectangular design- LED - Box Pack - Single

Red Illumination

24 x High Intensity White LEDs

Current Draw: 8 Watt at 12 Volt, 4 Watt at 24 Volt for Stop Function

Current Draw: 2 Watt at 12 Volt, 1 Watt at 24 Volt for Tail Function

Red Optical High impact PMMA Lens

Black ABS Plastic Housing with mounting screws and caps included

Surface Mount - Suitable for Horizontal or Vertical mounting

2.5m Sheathed with 2 wires

Fully encapsulated - Sealed against Dust and Moisture

Reverse Polarity and Transient Spike Circuit protection

Able to withstand high pressure water jets

UV and Chemical resistance

ADR 49/00, ECE R148/01, R10/06 Approved - Rear Stop Lamp

Refer to ADR 13/00 for mounting instructions

IP6K7 and IP6K9K Rating

10,000 Hours LED Lifespan

Lifetime Warranty



Notes:

Approved for use in both Australia and New Zealand

All Models share the same Width, Length and mounting holes as previous DuraLED® range

making them fully interchangeable

The NEW DuraLED-S Models are 5mm slimmer

Approved for use in both Australia and New Zealand

All Models share the same Width, Length and mounting holes as previous DuraLED® range

making them fully interchangeable

The NEW DuraLED-S Models are 5mm slimmer

Specifications

  • Colour: Red
  • Type: LED
  • Shape: Rectangular
  • Voltage: Multivolt
  • Beam Type: Combined
  • Mount: Surface
  • Width (mm): 177
  • Height (mm): 100
  • Depth (mm): 21

Compatibility

  • Universal Part

Hella Duraled-S Red LED Rear Stop / Tail Lamp 9 - 33 Volt

NEW Slim Rectangular design- LED - Box Pack - Single

Red Illumination

24 x High Intensity White LEDs

Current Draw: 8 Watt at 12 Volt, 4 Watt at 24 Volt for Stop Function

Current Draw: 2 Watt at 12 Volt, 1 Watt at 24 Volt for Tail Function

Red Optical High impact PMMA Lens

Black ABS Plastic Housing with mounting screws and caps included

Surface Mount - Suitable for Horizontal or Vertical mounting

2.5m Sheathed with 2 wires

Fully encapsulated - Sealed against Dust and Moisture

Reverse Polarity and Transient Spike Circuit protection

Able to withstand high pressure water jets

UV and Chemical resistance

ADR 49/00, ECE R148/01, R10/06 Approved - Rear Stop Lamp

Refer to ADR 13/00 for mounting instructions

IP6K7 and IP6K9K Rating

10,000 Hours LED Lifespan

Lifetime Warranty



Notes:

Approved for use in both Australia and New Zealand

All Models share the same Width, Length and mounting holes as previous DuraLED® range

making them fully interchangeable

The NEW DuraLED-S Models are 5mm slimmer

Approved for use in both Australia and New Zealand

All Models share the same Width, Length and mounting holes as previous DuraLED® range

making them fully interchangeable

The NEW DuraLED-S Models are 5mm slimmer

  • Colour: Red
  • Type: LED
  • Shape: Rectangular
  • Voltage: Multivolt
  • Beam Type: Combined
  • Mount: Surface
  • Width (mm): 177
  • Height (mm): 100
  • Depth (mm): 21
  • Universal Part
