Description

Braided Brake line kits offer a simply and effective method to eliminate that 'spongy' feeling often found with rubber hoses under extreme braking conditions - the time when performance is needed the most. By replacing the original rubber hoses with our complete system you will remove this sponginess and your braking will deliver new levels of precision. On top of the performance benefit, HEL Performance braided brake lines will last significantly longer than OEM rubber-type hoses and offer a lifetime warranty to back it up. Additionally, HEL Performance brake lines are available in a number of colours and options to add a subtle yet noticeable improvement to the looks of your car.

  • Hose Colour: Clear
  • Tag Colour: Black
  • Heatshrink: No

Specifications

  • Line inner material: PTFE
  • Line outer material: Stainless steel (303/304) and protective PVC cover
  • Fittings material: Stainless steel (303/304)
  • Temperature range: -70°C to 260°C (-94°F to 500°F)
  • Inside diameter: 3.5mm (0.138")
  • Outside diameter: 7.5mm (0.295")
  • Maximum working pressure: 290 Bar (4206 PSI)
  • Burst pressure: 870 Bar (12618 PSI)
  • Minimum bend radius: 38mm (1.496")

What's Included

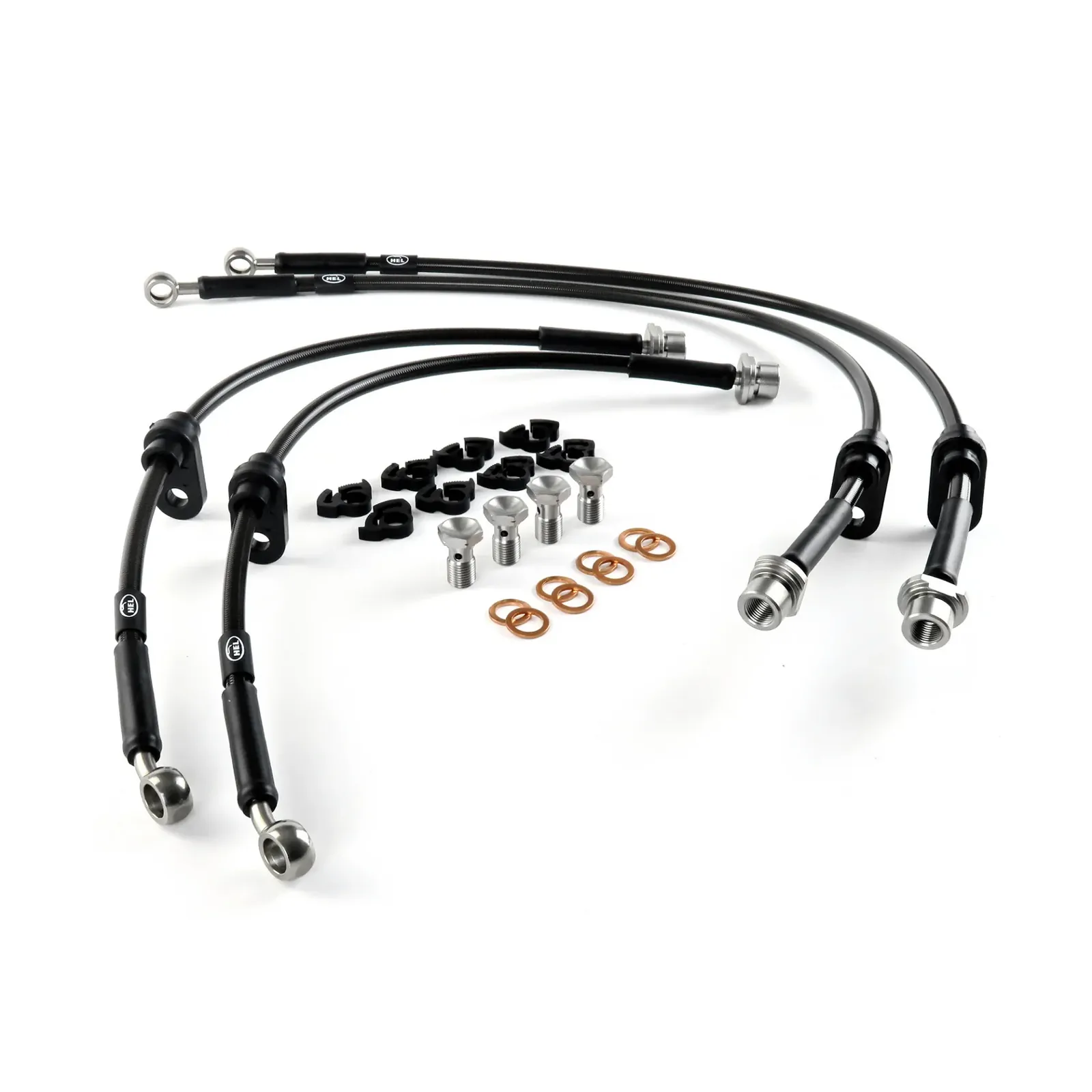

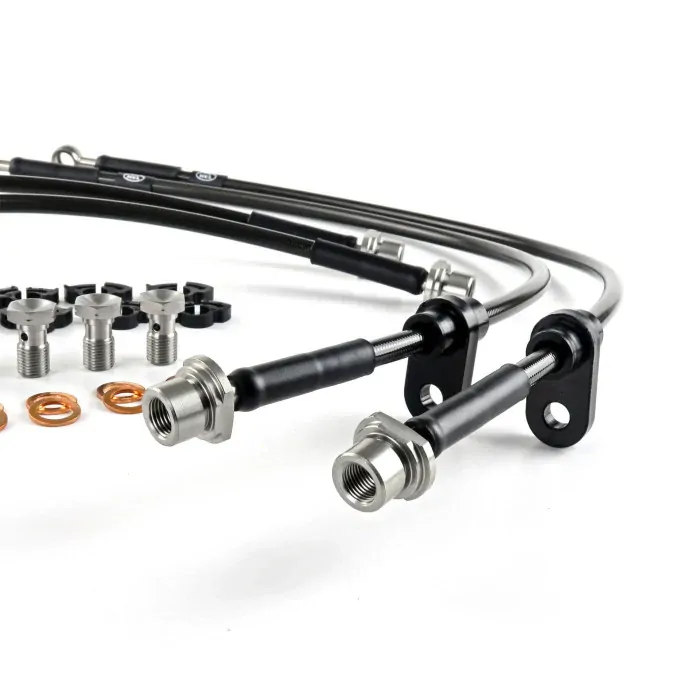

  • Stainless steel braided brake lines (see above for quantity)
  • ADR Certification Number Tags (one per line)
  • Natural plain stainless steel banjo bolts (if the fittings require them)
  • Copper crush washers (if the fittings require them)
  • Instruction Leaflet with Stickers

Compatibility

  • 2020- Toyota Yaris GR 1.6

Vehicle Specific Notes:

  • 4 Line Braided brake line kit
  • Standard layout- replaces the OEM factory rubber brake hoses

Braided Brake line kits offer a simply and effective method to eliminate that 'spongy' feeling often found with rubber hoses under extreme braking conditions - the time when performance is needed the most. By replacing the original rubber hoses with our complete system you will remove this sponginess and your braking will deliver new levels of precision. On top of the performance benefit, HEL Performance braided brake lines will last significantly longer than OEM rubber-type hoses and offer a lifetime warranty to back it up. Additionally, HEL Performance brake lines are available in a number of colours and options to add a subtle yet noticeable improvement to the looks of your car.

  • Hose Colour: Clear
  • Tag Colour: Black
  • Heatshrink: No
  • Line inner material: PTFE
  • Line outer material: Stainless steel (303/304) and protective PVC cover
  • Fittings material: Stainless steel (303/304)
  • Temperature range: -70°C to 260°C (-94°F to 500°F)
  • Inside diameter: 3.5mm (0.138")
  • Outside diameter: 7.5mm (0.295")
  • Maximum working pressure: 290 Bar (4206 PSI)
  • Burst pressure: 870 Bar (12618 PSI)
  • Minimum bend radius: 38mm (1.496")
  • Stainless steel braided brake lines (see above for quantity)
  • ADR Certification Number Tags (one per line)
  • Natural plain stainless steel banjo bolts (if the fittings require them)
  • Copper crush washers (if the fittings require them)
  • Instruction Leaflet with Stickers
  • 2020- Toyota Yaris GR 1.6

Vehicle Specific Notes:

  • 4 Line Braided brake line kit
  • Standard layout- replaces the OEM factory rubber brake hoses
