Description

DASH OVERVIEW

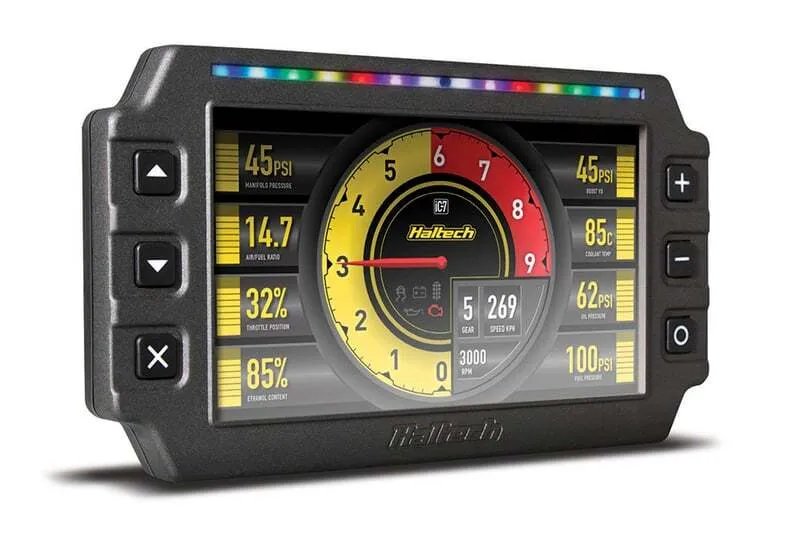

With a crisp, clear and full colour display, the all new Haltech iC-7 Display Dash lets you see things in a brand new way.
Designed and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package.
Featuring auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network. The OBD-II iC-7 is preconfigured to connect directly (via CAN) to most late model vehicles (approx 2008-on) using the factory OBD-II port.
  • Ideal replacement for individual analogue gauge clusters.
  • Easy to install and configure.
  • User adjustable brightness control with automatic dimming.
  • User configurable channels, units and alarms.
  • User definable Inputs & Outputs
  • 4 x Analog Voltage Inputs (AVI)
  • 4 x Digital Pulsed Inputs (DPI)
  • 4 x Digital Pulsed Outputs (DPO)
  • 14 programmable, seven colour shift light LEDs.
  • On-board datalogging (512MB)
  • Controlled via easily accessible, face-mounted control buttons.
  • Configuration via Haltech software and USB cable.
  • IP64 (Dust-tight and protected against water splashes).

Specifications

  • SIZE: 7in
  • SUITS: Most late model vehicles (approx 2008-on) with OBD-II CAN
  • NOTES: Preconfigured to connect directly (via CAN) to most late model vehicles (approx 2008-on) using the factory OBD-II port.

What's Included

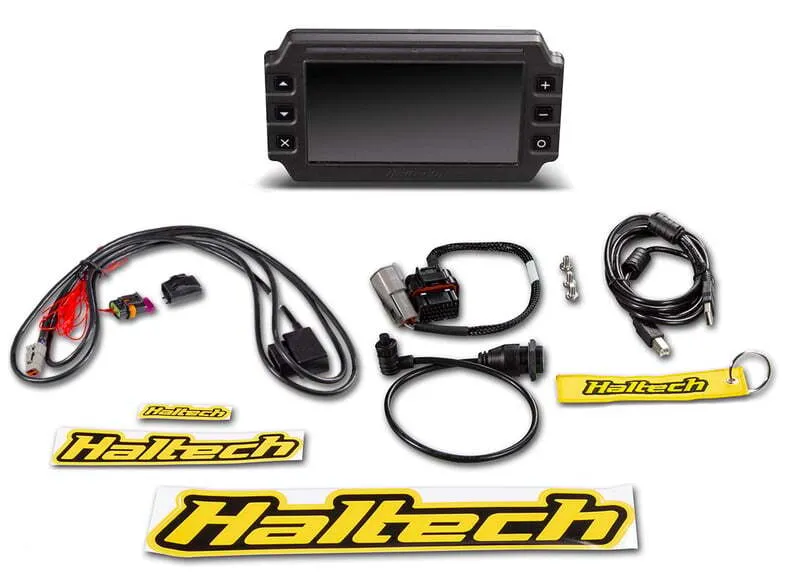

  • Haltech iC-7 Display Dash, 34 Pin main connector harness, OBD-II to DTM-4 CAN cable, USB to M5 right angle cable, USB Cable, Mounting Screws, USB flash drive with iC-7 Software, Quick Start Guide, Haltech stickers and a fabric keyring tag

Compatibility

  • Universal Part
DASH OVERVIEW
With a crisp, clear and full colour display, the all new Haltech iC-7 Display Dash lets you see things in a brand new way.
Designed and manufactured in Australia with motoring enthusiasts in mind, the iC-7 offers market-leading features in a unique, state-of-the-art package.
Featuring auto-dimming ambient light reactive brightness, user-programmable multi-colour shift light bar, the iC-7 connects directly to all current Haltech ECUs via a CAN network. The OBD-II iC-7 is preconfigured to connect directly (via CAN) to most late model vehicles (approx 2008-on) using the factory OBD-II port.
  • Ideal replacement for individual analogue gauge clusters.
  • Easy to install and configure.
  • User adjustable brightness control with automatic dimming.
  • User configurable channels, units and alarms.
  • User definable Inputs & Outputs
  • 4 x Analog Voltage Inputs (AVI)
  • 4 x Digital Pulsed Inputs (DPI)
  • 4 x Digital Pulsed Outputs (DPO)
  • 14 programmable, seven colour shift light LEDs.
  • On-board datalogging (512MB)
  • Controlled via easily accessible, face-mounted control buttons.
  • Configuration via Haltech software and USB cable.
  • IP64 (Dust-tight and protected against water splashes).
  • SIZE: 7in
  • SUITS: Most late model vehicles (approx 2008-on) with OBD-II CAN
  • NOTES: Preconfigured to connect directly (via CAN) to most late model vehicles (approx 2008-on) using the factory OBD-II port.
  • Haltech iC-7 Display Dash, 34 Pin main connector harness, OBD-II to DTM-4 CAN cable, USB to M5 right angle cable, USB Cable, Mounting Screws, USB flash drive with iC-7 Software, Quick Start Guide, Haltech stickers and a fabric keyring tag
  • Universal Part
