Description

HKS Super SQV (Sequential Blow Off Valve) uses a unique sequential valve structure and a differential pressure control system, which allows for a broad operating range from low boost to high boost. Its Pull-Type relief design ensures stable operation regardless of the amount of boost pressure. The Super SQV will support new generations of turbocharged vehicles.

Construction:

  • High Quality Aluminum Die-Cast Body: Silver-coated aluminum die-cast body. Combines the ultimate in looks and durability in the engine compartment.
  • High Stiffness Metal Die-Cast Valve: Secondary valve main portion is made of die cast metal. Reliable operation with beautiful looking.
  • Triple Fin design produces "Super Sound": Triple Fins set at the center of the funnel produces a dynamic and aggressive sound. An optional special Round Fin can be purchased separately for sound tuning.

Operation:

  • 1.Pull-Type Relief Valve Operation: The Pull-Type valve operation offers more precise relief of excess boost and is compatible for a wider range of boost pressure compared to typical push-type blow off valves.
  • 2.Primary Valve (Small): Lift off the throttle, and the primary valve instantly opens, quickly discharging initial excess boost pressure.
  • 3.Secondary Valve (Large): This valve combined with the Primary Valve from the sequential dual valve structure. Optimal blow-off operation from how to high boost ranges without leaking.

Dual Valve Structure, Sequential System:

  • At low boost ranges the Primary Valve opens, and at high boost ranges the Secondary Valve also opens, resulting in linear response and optimal blow-off operation at all boost levels.

SUPER SQV4 VEHICLE SPECIFIC KIT:

Parts necessary for installation are included. SSQV4 can be easily installed on a vehicle with this kit. Circulation Adapter is Included. A triple fin and replacing type circulation adapter are included for a vehicle to install. These parts are not included in the universal kit. Using this recirculation adapter allows suction return by fabricating the return piping.





Specifications

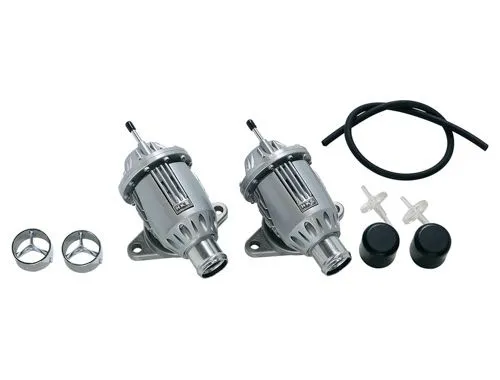

What's Included

  • (2) HKS SQV BOVs
  • (2) Triple Fin Sections
  • (2) Recirculation Fittings
  • (2) Block-Off Plugs
  • (2) Vacuum Line Filters
  • Vacuum Hose

Compatibility

  • 2007+ Nissan GT-R R35

HKS Super SQV (Sequential Blow Off Valve) uses a unique sequential valve structure and a differential pressure control system, which allows for a broad operating range from low boost to high boost. Its Pull-Type relief design ensures stable operation regardless of the amount of boost pressure. The Super SQV will support new generations of turbocharged vehicles.

Construction:

  • High Quality Aluminum Die-Cast Body: Silver-coated aluminum die-cast body. Combines the ultimate in looks and durability in the engine compartment.
  • High Stiffness Metal Die-Cast Valve: Secondary valve main portion is made of die cast metal. Reliable operation with beautiful looking.
  • Triple Fin design produces "Super Sound": Triple Fins set at the center of the funnel produces a dynamic and aggressive sound. An optional special Round Fin can be purchased separately for sound tuning.

Operation:

  • 1.Pull-Type Relief Valve Operation: The Pull-Type valve operation offers more precise relief of excess boost and is compatible for a wider range of boost pressure compared to typical push-type blow off valves.
  • 2.Primary Valve (Small): Lift off the throttle, and the primary valve instantly opens, quickly discharging initial excess boost pressure.
  • 3.Secondary Valve (Large): This valve combined with the Primary Valve from the sequential dual valve structure. Optimal blow-off operation from how to high boost ranges without leaking.

Dual Valve Structure, Sequential System:

  • At low boost ranges the Primary Valve opens, and at high boost ranges the Secondary Valve also opens, resulting in linear response and optimal blow-off operation at all boost levels.

SUPER SQV4 VEHICLE SPECIFIC KIT:

Parts necessary for installation are included. SSQV4 can be easily installed on a vehicle with this kit. Circulation Adapter is Included. A triple fin and replacing type circulation adapter are included for a vehicle to install. These parts are not included in the universal kit. Using this recirculation adapter allows suction return by fabricating the return piping.





  • (2) HKS SQV BOVs
  • (2) Triple Fin Sections
  • (2) Recirculation Fittings
  • (2) Block-Off Plugs
  • (2) Vacuum Line Filters
  • Vacuum Hose
  • 2007+ Nissan GT-R R35
