Description

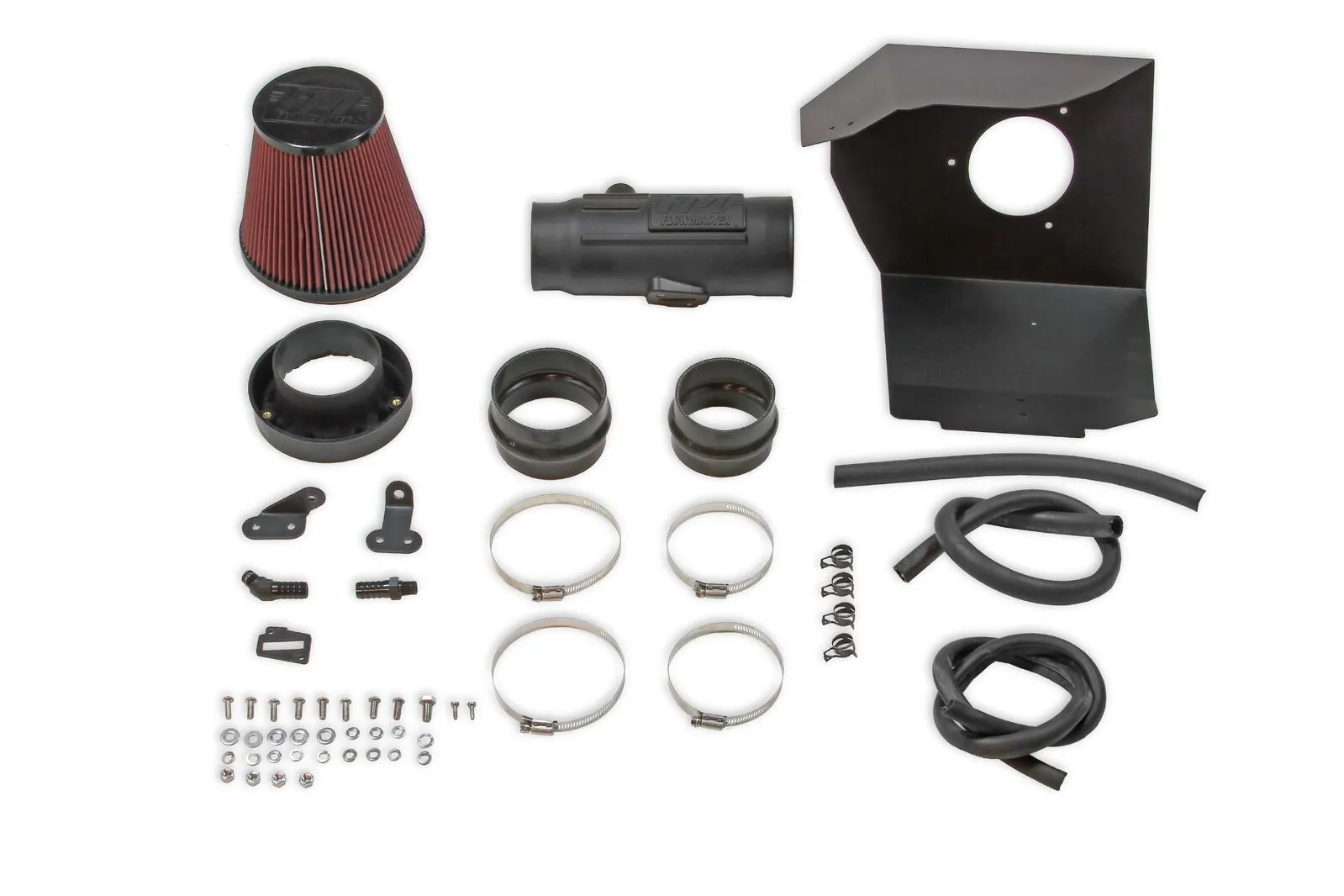

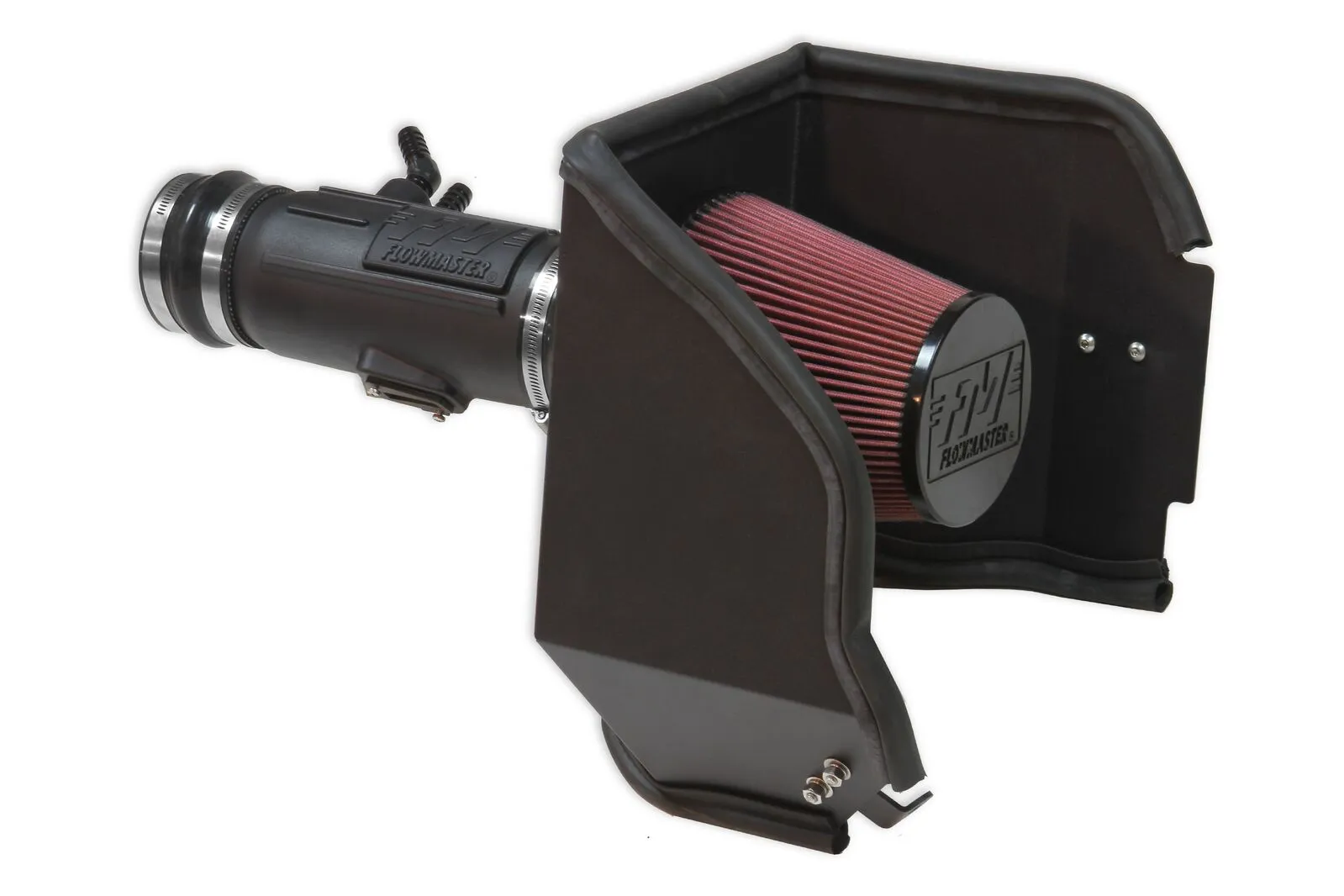

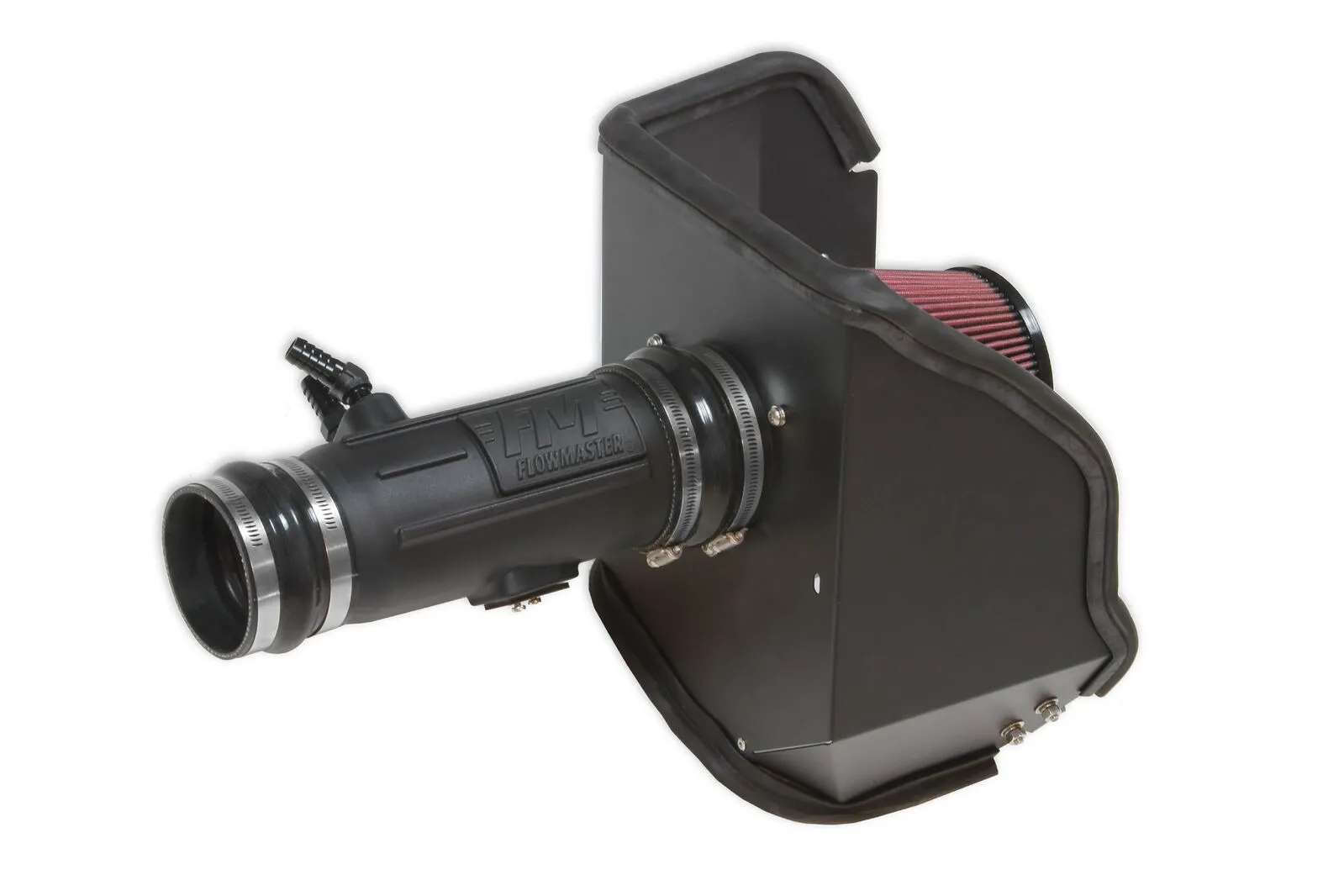

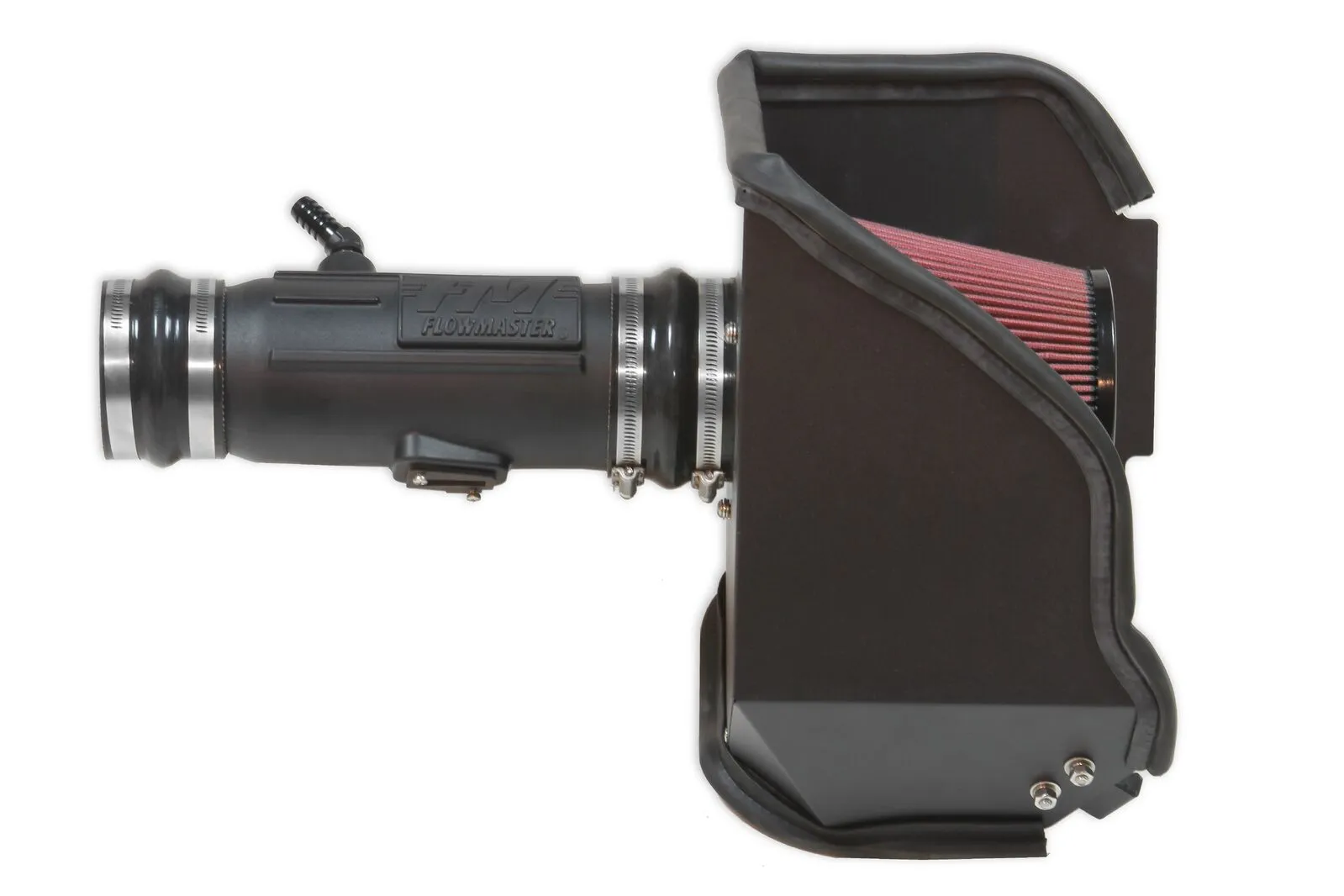

This Flowmaster Delta Force Performance Air Intake system is for the 2017-2024 Nissan Titan with the 5.6L engine. The Delta Force® system contains a custom molded black Cross-Linked Polyethylene (XLPE) high-flow intake tube to maximize air flow, black anodized aluminum fittings (when applicable), high quality reinforced silicone couplers and all stainless steel hardware. Other features include a large diameter high-flow conical shaped 8 layer cotton gauze air filter, which traps more dirt than typical 6 layer designs, a custom-fit black powder-coated air dam with attachment brackets to securely mount the system in place along with soft bumpers to eliminate any metal to metal contact under the hood. The Delta Force Air Filters are serviceable with our Delta Force cleaning kits, #615001, which will help make your filter outlast your vehicle. This systems includes an easy bolt-on installation with no cutting or drilling. The Delta Force filters have a lifetime limited warranty and deliver power gains of up to 6% HP and TQ, with no tuning required. This kit is CARB Compliant under EO # D-698-12 for 2017-2020 Nissan Titan trucks with the 5.6L engine.

Features

  • Serviceable Lifetime High-Flow 8 Layer Cotton Gauze Filter
  • Cross-Linked Polyethylene (XLPE) High-flow Intake Tube
  • Serviceable with our Delta Force Cleaning Kit
  • High Quality Components With Custom Look
  • No Cutting or Drilling For Easy Installation
  • Includes Stainless Steel Hardware

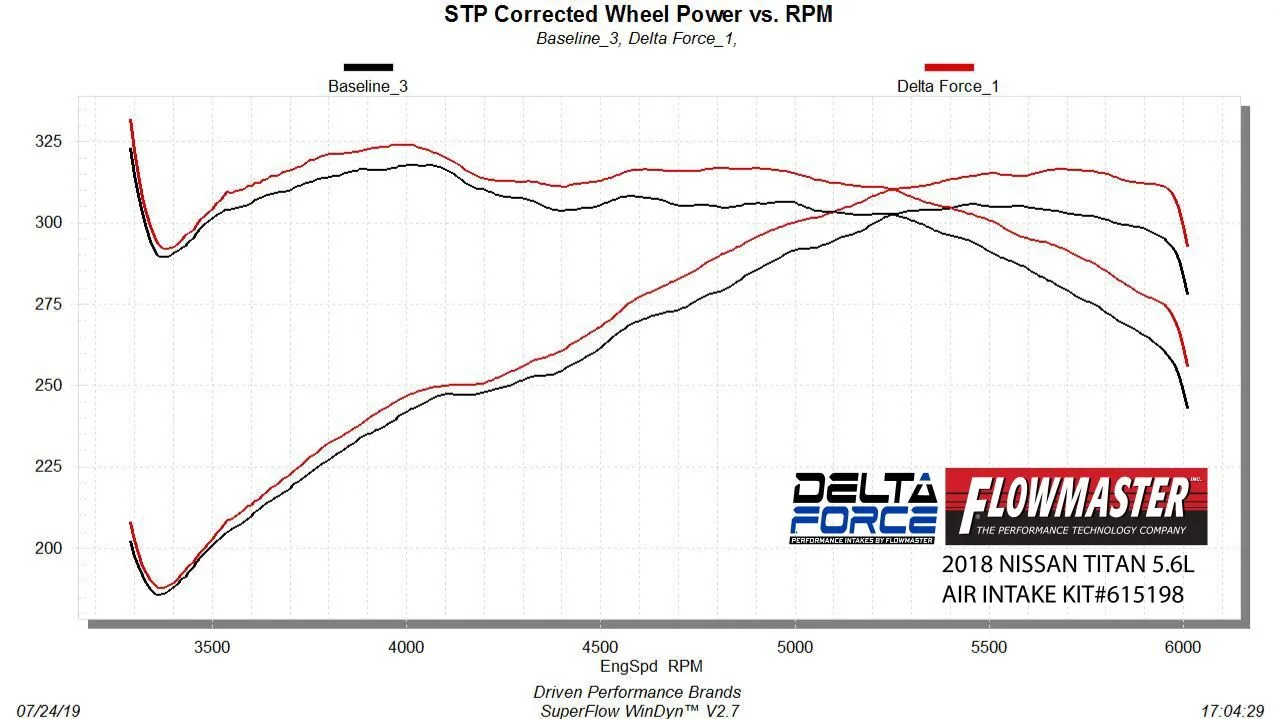

  • Gains of up to 6% for HP and TQ
  • No Special Tuning Required
  • Lifetime Limited Warranty
  • Flowmaster Quality
  • Easy Installation

Specifications

Air Box IncludedNo
Air Filter Element ColourRed
Air Filter Element MaterialOiled Cotton
Air Filter Element WashableYes
Air Filter End Cap Colour/FinishBlack
Air Filter Heat Shield Colour/FinishBlack/Powder Coated
Air Filter Heat Shield IncludedYes
Air Filter Heat Shield MaterialSteel
Air Filter Inside Diameter6
Air Filter Large End Diameter7.5
Air Filter Oil IncludedPre-Oiled
Air Filter Outlet Length1
Air Filter Outlet ShapeCircular
Air Filter Outlet Width6
Air Filter Outside Diameter7.5
Air Filter Overall Height7.5
Air Filter Overall Length7.5
Air Filter Overall Width7.5
Air Filter Small End Diameter5
BrandFlowmaster
California Proposition 65 Chemical NameBenzene, Chromium (hexavalent compounds), Ethylbenzene, Lead, Nickel (Metallic)
California Proposition 65 RequiredYes
CARB (California) CompliantYes
Clamp Colour/FinishNatural
Clamp MaterialStainless Steel
Clamp Quantity Included4
Clamp TypeWorm Gear
Coupler Colour/FinishBlack
Coupler MaterialSilicone
Coupler Quantity Included2
Emission Code7
Filter ShapeCone
FitmentDirect Fit
Fuel TypeGas
Intake Pipe Colour/FinishBlack
Intake Pipe Inlet Length1
Intake Pipe Inlet Width3.6
Intake Pipe MaterialCross-Linked Polythylene
Intake Pipe Outlet Length1
Intake Pipe Outlet ShapeRound
Intake Pipe Outlet Width3.1
Intake Pipe Portsintake air temp. sensor
IntakePipe Inlet ShapeRound
MAF Sensor Adapter IncludedNo
Mass Air Flow Sensor IncludedNo
Mounting Hardware IncludedYes
Product TypePerformance Air Intakes
Replacement Filter PN (Dry)615011D
Replacement Filter PN (Oiled)615011
Sale CategoryAir and Fuel Delivery
Special Fitment InfoDirect Fit
Vacuum Tubing IncludedNo

Compatibility

  • 2017 - 2024 Nissan TITAN Platinum Reserve 5.6
  • 2017 - 2024 Nissan TITAN PRO-4X 5.6
  • 2017 - 2024 Nissan TITAN SV 5.6
  • 2017 - 2023 Nissan TITAN S 5.6
  • 2017 - 2021 Nissan TITAN SL 5.6
  • 2020 - 2021 Nissan TITAN Platinum 5.6

This Flowmaster Delta Force Performance Air Intake system is for the 2017-2024 Nissan Titan with the 5.6L engine. The Delta Force® system contains a custom molded black Cross-Linked Polyethylene (XLPE) high-flow intake tube to maximize air flow, black anodized aluminum fittings (when applicable), high quality reinforced silicone couplers and all stainless steel hardware. Other features include a large diameter high-flow conical shaped 8 layer cotton gauze air filter, which traps more dirt than typical 6 layer designs, a custom-fit black powder-coated air dam with attachment brackets to securely mount the system in place along with soft bumpers to eliminate any metal to metal contact under the hood. The Delta Force Air Filters are serviceable with our Delta Force cleaning kits, #615001, which will help make your filter outlast your vehicle. This systems includes an easy bolt-on installation with no cutting or drilling. The Delta Force filters have a lifetime limited warranty and deliver power gains of up to 6% HP and TQ, with no tuning required. This kit is CARB Compliant under EO # D-698-12 for 2017-2020 Nissan Titan trucks with the 5.6L engine.

Features

  • Serviceable Lifetime High-Flow 8 Layer Cotton Gauze Filter
  • Cross-Linked Polyethylene (XLPE) High-flow Intake Tube
  • Serviceable with our Delta Force Cleaning Kit
  • High Quality Components With Custom Look
  • No Cutting or Drilling For Easy Installation
  • Includes Stainless Steel Hardware
  • Gains of up to 6% for HP and TQ
  • No Special Tuning Required
  • Lifetime Limited Warranty
  • Flowmaster Quality
  • Easy Installation
Air Box IncludedNo
Air Filter Element ColourRed
Air Filter Element MaterialOiled Cotton
Air Filter Element WashableYes
Air Filter End Cap Colour/FinishBlack
Air Filter Heat Shield Colour/FinishBlack/Powder Coated
Air Filter Heat Shield IncludedYes
Air Filter Heat Shield MaterialSteel
Air Filter Inside Diameter6
Air Filter Large End Diameter7.5
Air Filter Oil IncludedPre-Oiled
Air Filter Outlet Length1
Air Filter Outlet ShapeCircular
Air Filter Outlet Width6
Air Filter Outside Diameter7.5
Air Filter Overall Height7.5
Air Filter Overall Length7.5
Air Filter Overall Width7.5
Air Filter Small End Diameter5
BrandFlowmaster
California Proposition 65 Chemical NameBenzene, Chromium (hexavalent compounds), Ethylbenzene, Lead, Nickel (Metallic)
California Proposition 65 RequiredYes
CARB (California) CompliantYes
Clamp Colour/FinishNatural
Clamp MaterialStainless Steel
Clamp Quantity Included4
Clamp TypeWorm Gear
Coupler Colour/FinishBlack
Coupler MaterialSilicone
Coupler Quantity Included2
Emission Code7
Filter ShapeCone
FitmentDirect Fit
Fuel TypeGas
Intake Pipe Colour/FinishBlack
Intake Pipe Inlet Length1
Intake Pipe Inlet Width3.6
Intake Pipe MaterialCross-Linked Polythylene
Intake Pipe Outlet Length1
Intake Pipe Outlet ShapeRound
Intake Pipe Outlet Width3.1
Intake Pipe Portsintake air temp. sensor
IntakePipe Inlet ShapeRound
MAF Sensor Adapter IncludedNo
Mass Air Flow Sensor IncludedNo
Mounting Hardware IncludedYes
Product TypePerformance Air Intakes
Replacement Filter PN (Dry)615011D
Replacement Filter PN (Oiled)615011
Sale CategoryAir and Fuel Delivery
Special Fitment InfoDirect Fit
Vacuum Tubing IncludedNo
  • 2017 - 2024 Nissan TITAN Platinum Reserve 5.6
  • 2017 - 2024 Nissan TITAN PRO-4X 5.6
  • 2017 - 2024 Nissan TITAN SV 5.6
  • 2017 - 2023 Nissan TITAN S 5.6
  • 2017 - 2021 Nissan TITAN SL 5.6
  • 2020 - 2021 Nissan TITAN Platinum 5.6
